Shed size comparison

8×10 versus 10×12: compact or practical

See what changes when the same reference arrangement moves between two sizes. Then compare your own saved measurements and check the candidate against your yard.

Does extra width and depth preserve the bench and its standing route?

Same arrangement: 8×10 and 10×12

Equipment, activities and allowances are identical. The authored shell dimensions and opening can differ. The drawings use one scale, including full-size items that cannot be placed. Positions can change as the bounded layout search uses the available space.

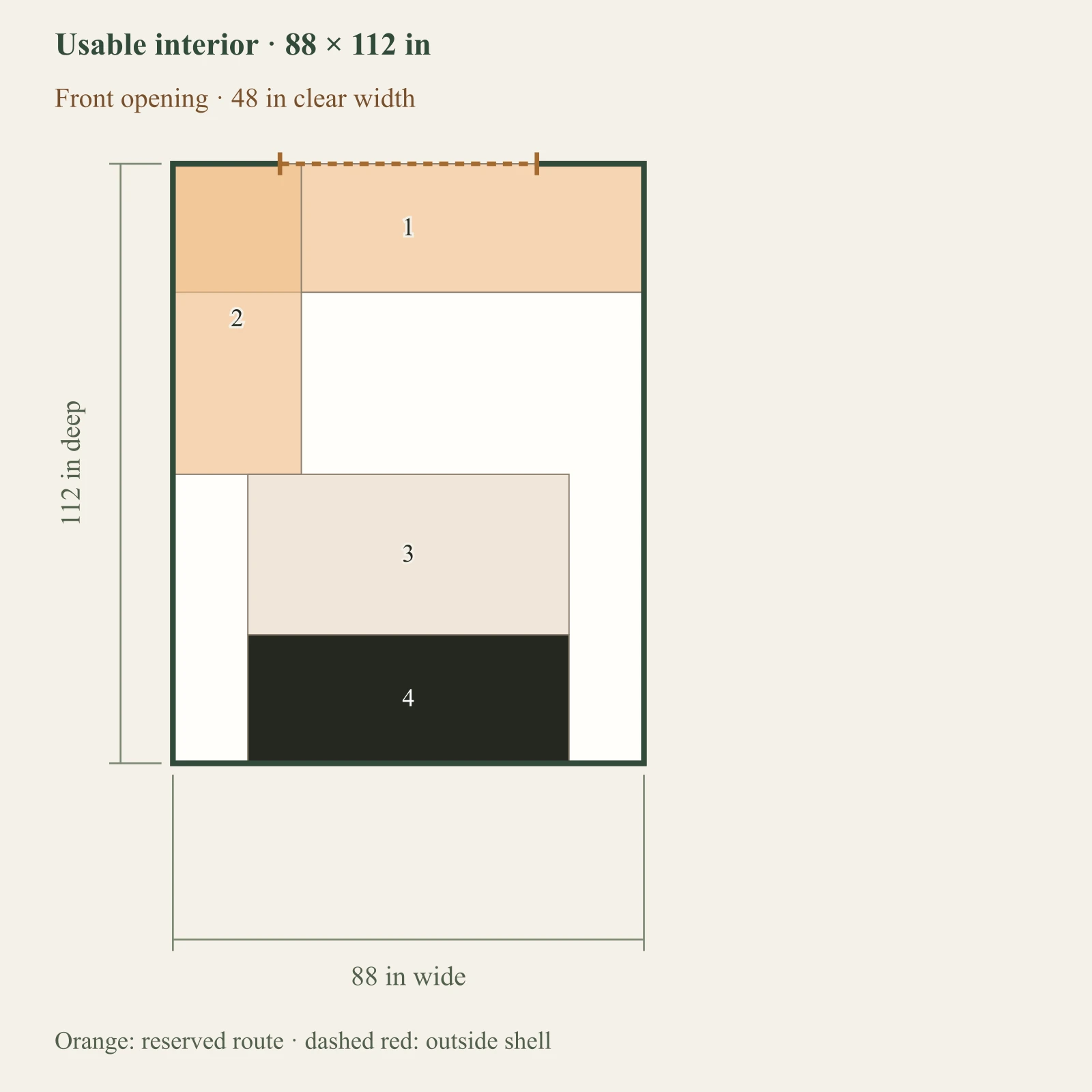

8×10

Example interior 88 × 112 in; clear door 48 × 78 in.

Full-size layout and reserved spacesFull-size footprints with a 24 in entry/side aisle and 30 in bench standing depth. Each mobile deployment and its orthogonal routes are tested with other parked positions unchanged. Staging is screened along the lengthwise axis; turning, actual machine feed points and manufacturer operating instructions require separate confirmation. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Reserved entry cross-aisle: 88 × 24 in at 0, 0 inReserved side aisle: 24 × 58 in at 0, 0 inBench standing area: 60 × 30 in at 14, 58 inWorkbench: 60 × 24 in at 14, 88 in1234Usable interior · 88 × 112 inFront opening · 48 in clear width88 in wide112 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Reserved entry cross-aisle: 88 × 24 in
  2. 2. Reserved side aisle: 24 × 58 in
  3. 3. Bench standing area: 60 × 30 in
  4. 4. Workbench: 60 × 24 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

The shown arrangement preserves its reserved spaces and entry aisle.

  • A failed arrangement is not proof that every layout in this size fails. Only the displayed axis-aligned arrangements were tested.
  • Equipment footprints and reserved spaces are editable planning assumptions. These rectangles do not establish manufacturer operating clearances.
10×12

Example interior 112 × 136 in; clear door 64 × 78 in.

Full-size layout and reserved spacesFull-size footprints with a 24 in entry/side aisle and 30 in bench standing depth. Each mobile deployment and its orthogonal routes are tested with other parked positions unchanged. Staging is screened along the lengthwise axis; turning, actual machine feed points and manufacturer operating instructions require separate confirmation. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Reserved entry cross-aisle: 112 × 24 in at 0, 0 inReserved side aisle: 24 × 82 in at 0, 0 inBench standing area: 60 × 30 in at 26, 82 inWorkbench: 60 × 24 in at 26, 112 in1234Usable interior · 112 × 136 inFront opening · 64 in clear width112 in wide136 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Reserved entry cross-aisle: 112 × 24 in
  2. 2. Reserved side aisle: 24 × 82 in
  3. 3. Bench standing area: 60 × 30 in
  4. 4. Workbench: 60 × 24 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

The shown arrangement preserves its reserved spaces and entry aisle.

  • A failed arrangement is not proof that every layout in this size fails. Only the displayed axis-aligned arrangements were tested.
  • Equipment footprints and reserved spaces are editable planning assumptions. These rectangles do not establish manufacturer operating clearances.

Moving from the first example to the second changes usable width by 24 in, depth by 24 in and clear door width by 16 in. These differences belong to these examples. Obtain actual product measurements before choosing.

A changed result applies to the shown arrangement only. A different layout may work; a larger candidate can still fail a doorway, site or budget check.

Separate the ground footprint from the access result

Same-origin nominal footprint overlaySolid: 8×10 ft nominalDashed: 10×12 ft nominal
These are nominal building footprints, without a foundation extension, overhang or setback. Their overlap does not describe either product's interior or door.

8×10 · Reserved activity and access areas

Full-size layout and reserved spacesFull-size footprints with a 24 in entry/side aisle and 30 in bench standing depth. Each mobile deployment and its orthogonal routes are tested with other parked positions unchanged. Staging is screened along the lengthwise axis; turning, actual machine feed points and manufacturer operating instructions require separate confirmation. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Reserved entry cross-aisle: 88 × 24 in at 0, 0 inReserved side aisle: 24 × 58 in at 0, 0 inBench standing area: 60 × 30 in at 14, 58 inWorkbench: 60 × 24 in at 14, 88 in1234Usable interior · 88 × 112 inFront opening · 48 in clear width88 in wide112 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Reserved entry cross-aisle: 88 × 24 in
  2. 2. Reserved side aisle: 24 × 58 in
  3. 3. Bench standing area: 60 × 30 in
  4. 4. Workbench: 60 × 24 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

A failed arrangement is not proof that every layout in this size fails. Only the displayed axis-aligned arrangements were tested.

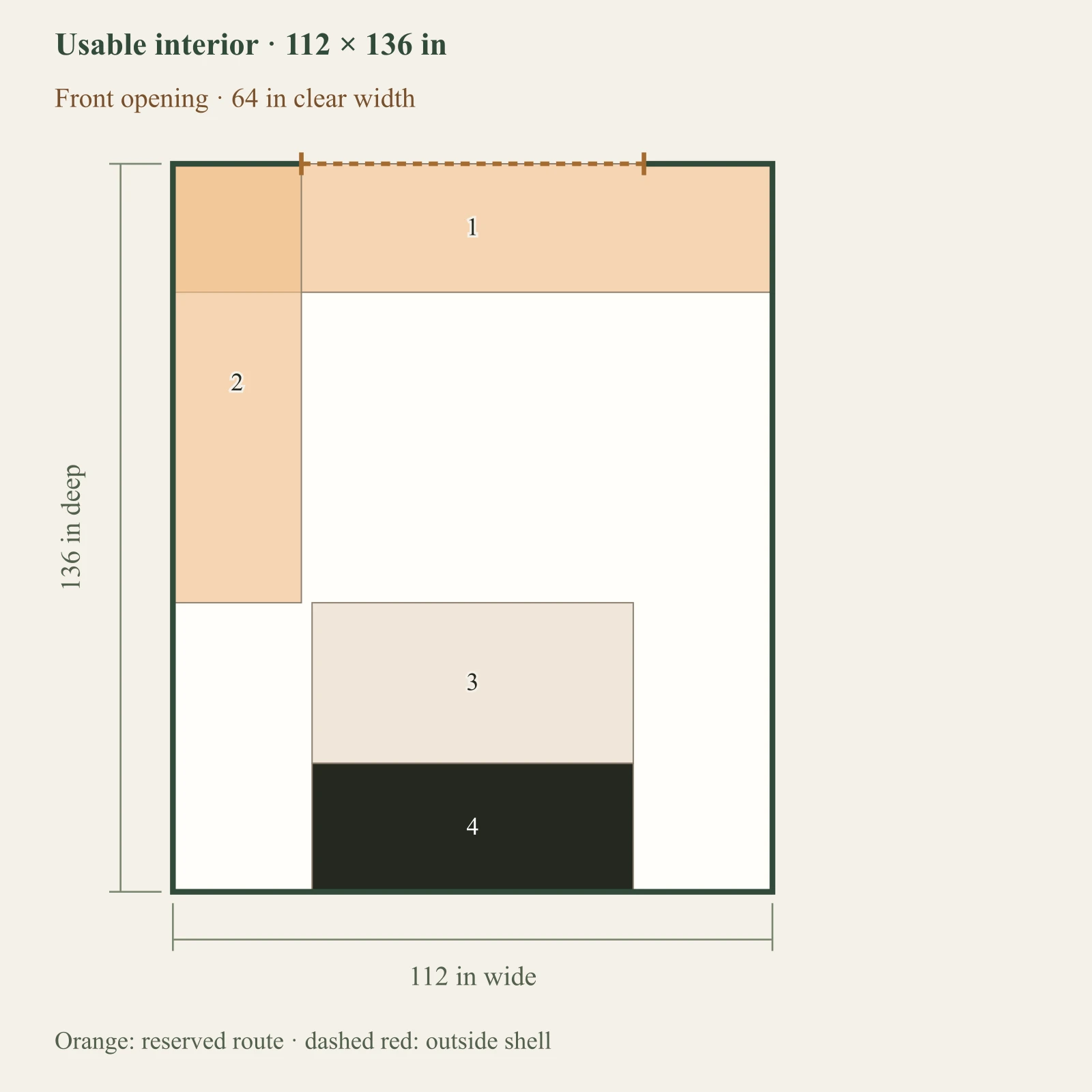

10×12 · Reserved activity and access areas

Full-size layout and reserved spacesFull-size footprints with a 24 in entry/side aisle and 30 in bench standing depth. Each mobile deployment and its orthogonal routes are tested with other parked positions unchanged. Staging is screened along the lengthwise axis; turning, actual machine feed points and manufacturer operating instructions require separate confirmation. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Reserved entry cross-aisle: 112 × 24 in at 0, 0 inReserved side aisle: 24 × 82 in at 0, 0 inBench standing area: 60 × 30 in at 26, 82 inWorkbench: 60 × 24 in at 26, 112 in1234Usable interior · 112 × 136 inFront opening · 64 in clear width112 in wide136 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Reserved entry cross-aisle: 112 × 24 in
  2. 2. Reserved side aisle: 24 × 82 in
  3. 3. Bench standing area: 60 × 30 in
  4. 4. Workbench: 60 × 24 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

A failed arrangement is not proof that every layout in this size fails. Only the displayed axis-aligned arrangements were tested.

The highlighted state retains the same inventory and working requirements. An unchanged opening or blocked route can remain limiting even when the nominal footprint increases. Inspect other operating states in the expanded viewer.

What changes, and what stays limiting?

Usable width
88 → 112 in
+24 in
Usable depth
112 → 136 in
+24 in
Clear opening width
48 → 64 in
+16 in
Clear opening height
78 → 78 in
Unchanged

Both shown arrangements pass their requested geometry screens. This example does not establish that you need the larger candidate. Name the additional task or constraint you want it to resolve, then test it.

Measure before choosing

Measure the bench end to end, the standing zone in front and the route you want to keep open.

If your arrangement still fails

If the bench is too long for the rear wall, test usable width. If it projects into the entry zone, test depth or position. More nominal area alone does not identify either remedy.

The dimensions above belong to authored examples, not universal specifications for these nominal sizes.

Does the larger footprint fit my site?What must match in the quote?
Download the authored reference diagrams

Version 2026-09-08-decisions. These files reproduce the public examples, including failed arrangements. Your private measurements are only included when you generate your own brief.

  • Figure 1 · 8×10 10×12 workshop bench 8×10SVGWebP
  • Figure 2 · 8×10 10×12 workshop bench 10×12SVGWebP
  • Figure 3 · 8×10 10×12 overlaySVGWebP
  • Figure 4 · 8×10 10×12 access 8×10SVGWebP
  • Figure 5 · 8×10 10×12 access 10×12SVGWebP
Compare my saved project

Decision questions

  1. 01Which footprint addresses the actual constraint?
  2. 02Do the same objects fit in both directions?
  3. 03Does extra width or length improve retrieval?
  4. 04What changes at the clear door and access path?
  5. 05Can the larger footprint still fit the yard and budget?

Same inventory. Two footprints.

8×10 versus 10×12.

The comparison preserves your current project state. It shows a planning trade-off, not an assertion that either nominal size has a universal interior or door opening.

8×10

Nominal exterior size
This layout needs a change
Placement
1 need checking
Clear opening
1 need a change
Selected retrieval paths
1 need a change

54 in width + 2 in each side; 48 in clear opening.

Includes example or unconfirmed measurements

Draft reason stays in this browser. Confirm a choice to include it as a decision.

10×12

Nominal exterior size
Details still need checking
Placement
1 need checking
Clear opening
Modeled checks pass
Selected retrieval paths
Modeled checks pass

Wall-mounted geometry, mounting, projection and retrieval have not been evaluated. This item is not included as usable floor capacity.

Includes example or unconfirmed measurements

Draft reason stays in this browser. Confirm a choice to include it as a decision.

Using example planning shells · edit measurements

Open only when you have usable interior and clear-door measurements for either shell. These editable values remain separate from nominal exterior size.

Example planning shell

Nominal size is not usable interior size.

8×10 is a nominal exterior size. The values below are editable example planning assumptions, not a claim about every shed of this size.

Example planning shell

Nominal size is not usable interior size.

10×12 is a nominal exterior size. The values below are editable example planning assumptions, not a claim about every shed of this size.

Check the selected footprint in your yard Open Project Planning Brief
