10×12 shed · size guide

10×12 shed: what fits, and what still needs checking

120 sq ft is the nominal footprint, not a promise of usable floor space. Start with an explicit example, then replace its interior, opening and object dimensions with your own.

Plan with my measurementsCompare reference sizes

Start with a complete project

  • 10×12 Gable Storage Shed →

    Layout reference · A mower-led storage study with a front shelf you can reach independently. See what fits in the assumed interior, what can come out first, and what changes when the shelf moves.

    Straight mower exit; front shelf approach checked; bin retrieval unassessed.

Is 10×12 enough for my storage?

A mower-and-shelf layout can pass the limited checks with the example dimensions below. That is a useful starting point, not a promise that your equipment or every 10×12 product fits. List the items that must remain accessible before choosing.

Compare the usable rectangle, lowest relevant interior height and clear opening of the exact products. Wall thickness, supports and openings can change usable space; do not copy the nominal dimensions into every input.

Use it as a candidate when…

  • Each measured item has a place, with no overlapping floor footprints.
  • The widest attachment clears the actual door with your chosen allowance.
  • The items used often have a checked path while the others stay parked.
  • You can separately confirm the site, delivery method and full written quote.

Check bike access and a compact workshop against organized mower storage.

These are separate alternatives, not a combined workshop and bike plan. Bins, machinery and walking space must remain in the calculation when combining tasks.

Five checks behind this page
  1. What does nominal area leave out?
  2. Which shown arrangement works with these exact inputs?
  3. Which equipment or path is the first constraint?
  4. Does a wider or deeper candidate resolve that constraint?
  5. What must I measure and take to a supplier before choosing?
Nominal 10 × 12 ft · 120 sq ft

Solid: nominal footprint definition. Dashed: independently authored interior 112 × 136 in, aligned for illustration. The gap does not specify wall thickness. Usable height: 84 in; opening: 64 × 78 in. Editable planning assumptions.

Compare the reference arrangements

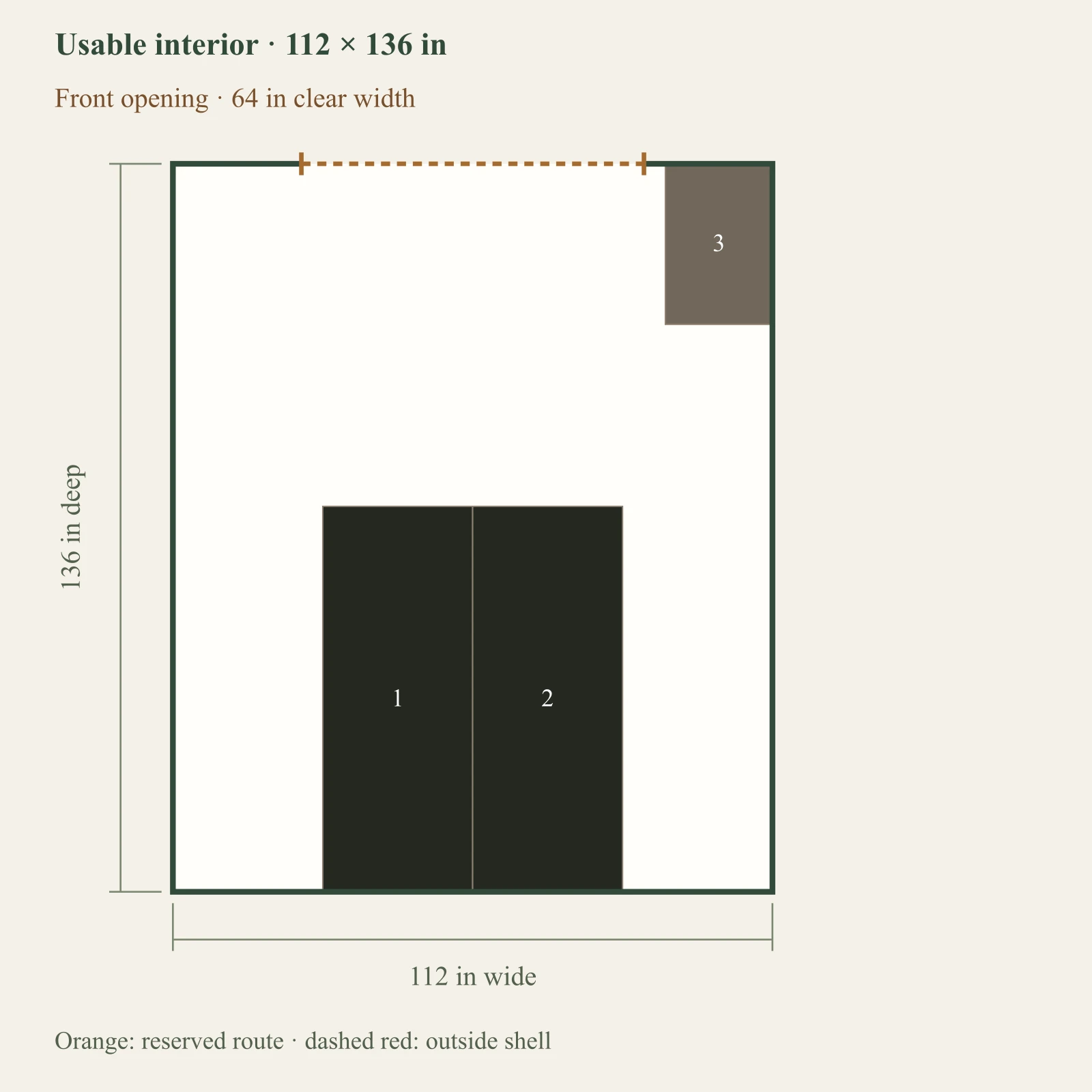

Example layout · 10×12

Two bikes with a storage-bin footprint

Daily bicycle access with seasonal supplies kept inside the same building.

Full-size layout and reserved spacesEach bike retains its own measurements. Every route is checked with all other parked bikes and the entered storage footprint fixed. Wall storage uses entered installed dimensions, not a rotated floor-bike rectangle. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Bike 1 parked: 28 × 72 in at 28, 64 inBike 2 parked: 28 × 72 in at 56, 64 inEntered mixed-storage shelf/bin: 20 × 30 in at 92, 0 in123Usable interior · 112 × 136 inFront opening · 64 in clear width112 in wide136 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Bike 1 parked: 28 × 72 in
  2. 2. Bike 2 parked: 28 × 72 in
  3. 3. Entered mixed-storage shelf/bin: 20 × 30 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

Each shown handling and translation reservation keeps the other objects in place.

What you gain
Checks each bike's complete retrieval sweep with the other bike and the 20 by 30 in storage footprint left in place.
What you give up
This example reserves a footprint for the bins, not lid-opening height or access inside a shelving system.
When to choose it
Choose this direction when the measured bins can stay outside both bike routes.

Example interior: 112 × 136 in. Opening: 64 in wide. All reference dimensions and allowances are planning assumptions, not product specifications.

Checks and operating states
  • Full assembled rectangles and entered hardware reservations are geometric screens. Steering, balance, lifting technique and the route outside the shed are not simulated.
  • Wall-storage mounting capacity, fasteners, compatibility and actual lifting must be confirmed from the hardware instructions and with the user. An entered handling envelope is not a safety certification.
  • Sideways translation may require lifting or suitable hardware. Confirm it is practical rather than treating an open rectangle as proof of easy retrieval.

Retrieve Bike 1

Retrieve Bike 1Each bike retains its own measurements. Every route is checked with all other parked bikes and the entered storage footprint fixed. Wall storage uses entered installed dimensions, not a rotated floor-bike rectangle. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Bike 1: full forward sweep: 28 × 136 in at 28, 0 inBike 1 parked: 28 × 72 in at 28, 64 inBike 2 parked: 28 × 72 in at 56, 64 inEntered mixed-storage shelf/bin: 20 × 30 in at 92, 0 in1234Usable interior · 112 × 136 inFront opening · 64 in clear width112 in wide136 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Bike 1: full forward sweep: 28 × 136 in
  2. 2. Bike 1 parked: 28 × 72 in
  3. 3. Bike 2 parked: 28 × 72 in
  4. 4. Entered mixed-storage shelf/bin: 20 × 30 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

Retrieve Bike 2

Retrieve Bike 2Each bike retains its own measurements. Every route is checked with all other parked bikes and the entered storage footprint fixed. Wall storage uses entered installed dimensions, not a rotated floor-bike rectangle. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Bike 2: full forward sweep: 28 × 136 in at 56, 0 inBike 1 parked: 28 × 72 in at 28, 64 inBike 2 parked: 28 × 72 in at 56, 64 inEntered mixed-storage shelf/bin: 20 × 30 in at 92, 0 in1234Usable interior · 112 × 136 inFront opening · 64 in clear width112 in wide136 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Bike 2: full forward sweep: 28 × 136 in
  2. 2. Bike 1 parked: 28 × 72 in
  3. 3. Bike 2 parked: 28 × 72 in
  4. 4. Entered mixed-storage shelf/bin: 20 × 30 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

Before buying or building: Measure the bins and every handlebar; enlarge the storage footprint to test future supplies before choosing.

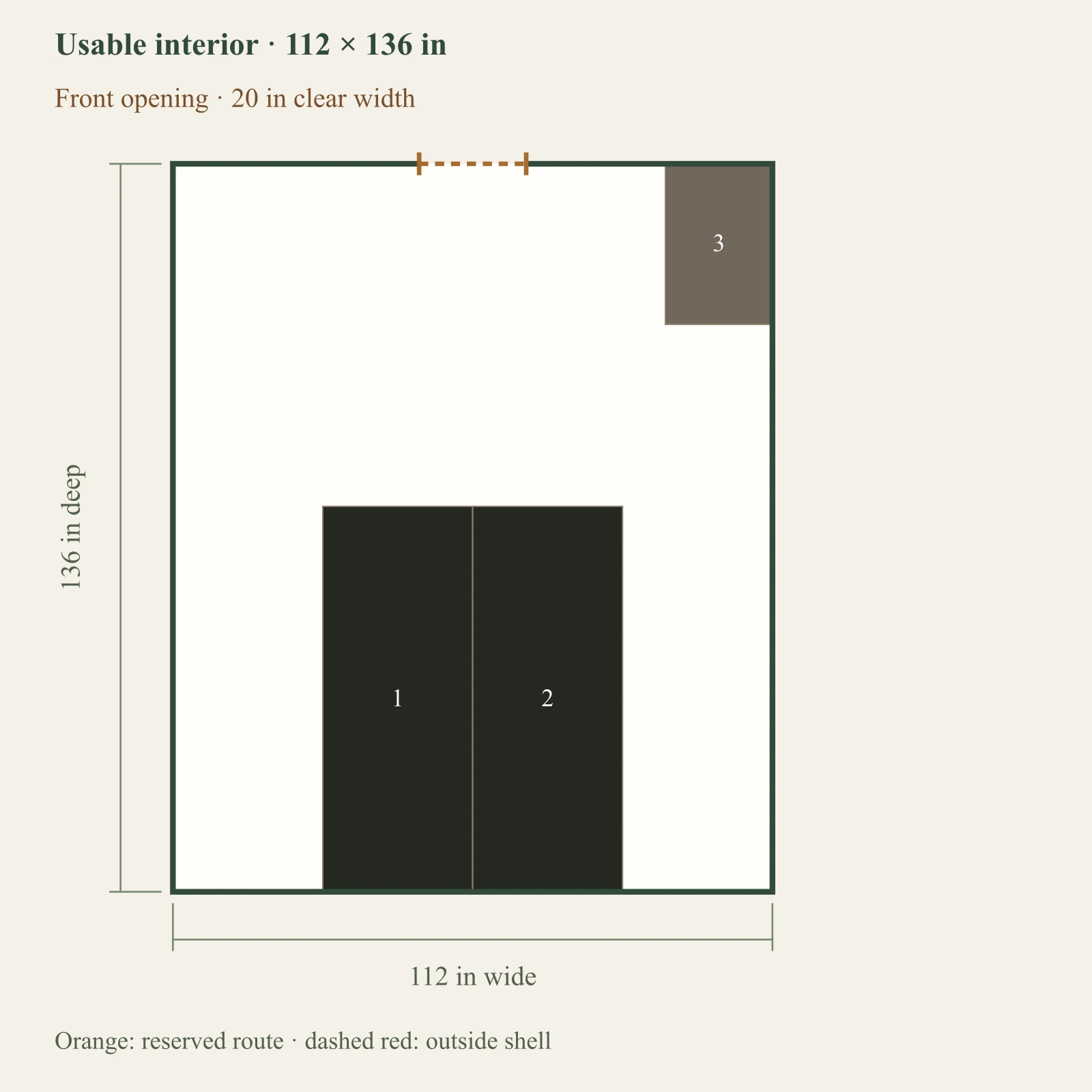

Where this candidate stops working

Only the clear door width changes to 20 in, narrower than the example handlebars.

  • Bike 1: full assembled dimensions exceed the entered opening or usable height.
  • Bike 1: the shown route is blocked with all other objects kept in place.
  • Bike 2: full assembled dimensions exceed the entered opening or usable height.
  • Bike 2: the shown route is blocked with all other objects kept in place.
Full-size layout and reserved spacesEach bike retains its own measurements. Every route is checked with all other parked bikes and the entered storage footprint fixed. Wall storage uses entered installed dimensions, not a rotated floor-bike rectangle. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Bike 1 parked: 28 × 72 in at 28, 64 inBike 2 parked: 28 × 72 in at 56, 64 inEntered mixed-storage shelf/bin: 20 × 30 in at 92, 0 in123Usable interior · 112 × 136 inFront opening · 20 in clear width112 in wide136 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Bike 1 parked: 28 × 72 in
  2. 2. Bike 2 parked: 28 × 72 in
  3. 3. Entered mixed-storage shelf/bin: 20 × 30 in

Same arrangement: 10×12 and 12×16

Equipment, activities and allowances are identical. The authored shell dimensions and opening can differ. The drawings use one scale, including full-size items that cannot be placed. Positions can change as the bounded layout search uses the available space.

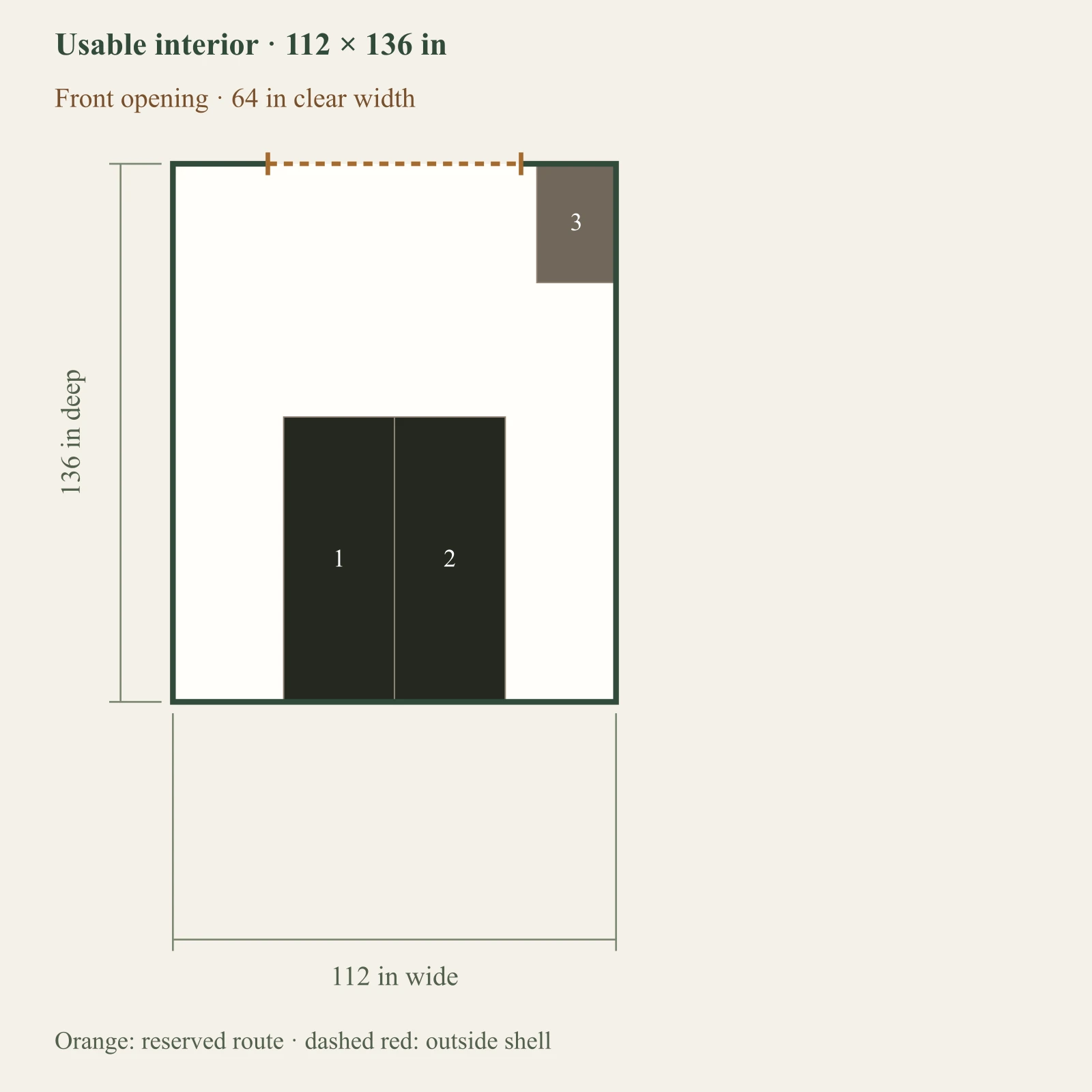

10×12

Example interior 112 × 136 in; clear door 64 × 78 in.

Full-size layout and reserved spacesEach bike retains its own measurements. Every route is checked with all other parked bikes and the entered storage footprint fixed. Wall storage uses entered installed dimensions, not a rotated floor-bike rectangle. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Bike 1 parked: 28 × 72 in at 28, 64 inBike 2 parked: 28 × 72 in at 56, 64 inEntered mixed-storage shelf/bin: 20 × 30 in at 92, 0 in123Usable interior · 112 × 136 inFront opening · 64 in clear width112 in wide136 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Bike 1 parked: 28 × 72 in
  2. 2. Bike 2 parked: 28 × 72 in
  3. 3. Entered mixed-storage shelf/bin: 20 × 30 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

Each shown handling and translation reservation keeps the other objects in place.

  • Full assembled rectangles and entered hardware reservations are geometric screens. Steering, balance, lifting technique and the route outside the shed are not simulated.
  • Wall-storage mounting capacity, fasteners, compatibility and actual lifting must be confirmed from the hardware instructions and with the user. An entered handling envelope is not a safety certification.

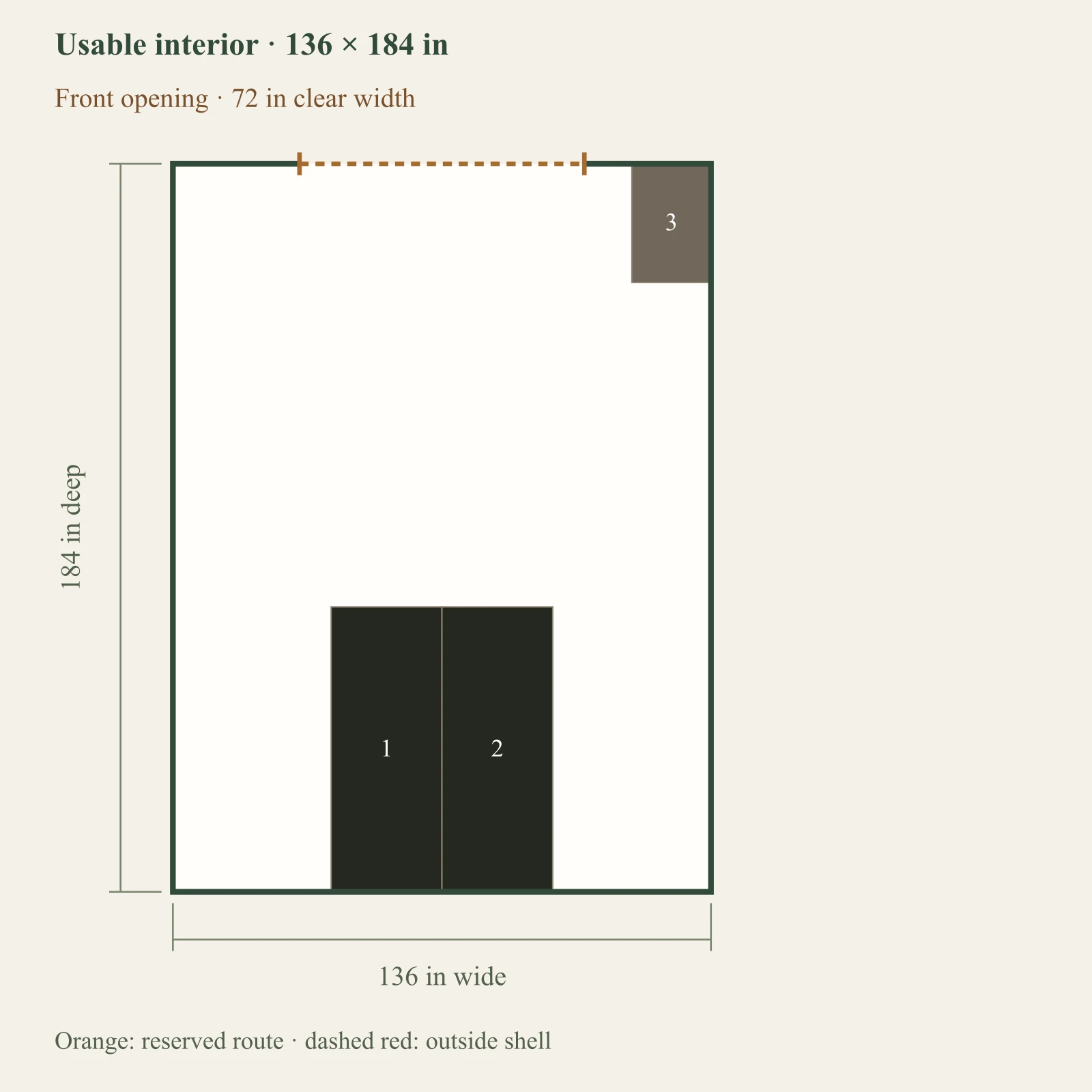

12×16

Example interior 136 × 184 in; clear door 72 × 78 in.

Full-size layout and reserved spacesEach bike retains its own measurements. Every route is checked with all other parked bikes and the entered storage footprint fixed. Wall storage uses entered installed dimensions, not a rotated floor-bike rectangle. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Bike 1 parked: 28 × 72 in at 40, 112 inBike 2 parked: 28 × 72 in at 68, 112 inEntered mixed-storage shelf/bin: 20 × 30 in at 116, 0 in123Usable interior · 136 × 184 inFront opening · 72 in clear width136 in wide184 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Bike 1 parked: 28 × 72 in
  2. 2. Bike 2 parked: 28 × 72 in
  3. 3. Entered mixed-storage shelf/bin: 20 × 30 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

Each shown handling and translation reservation keeps the other objects in place.

  • Full assembled rectangles and entered hardware reservations are geometric screens. Steering, balance, lifting technique and the route outside the shed are not simulated.
  • Wall-storage mounting capacity, fasteners, compatibility and actual lifting must be confirmed from the hardware instructions and with the user. An entered handling envelope is not a safety certification.

Moving from the first example to the second changes usable width by 24 in, depth by 48 in and clear door width by 8 in. These differences belong to these examples. Obtain actual product measurements before choosing.

A changed result applies to the shown arrangement only. A different layout may work; a larger candidate can still fail a doorway, site or budget check.

Download the authored reference diagrams

Version 2026-09-08-decisions. These files reproduce the public examples, including failed arrangements. Your private measurements are only included when you generate your own brief.

  • Figure 1 · 10×12 shellSVGWebP
  • Figure 2 · bike bins layoutSVGWebP
  • Figure 3 · workshop bench layoutSVGWebP
  • Figure 4 · 10×12 boundarySVGWebP
  • Figure 5 · 10×12 12×16 bike bins 10×12SVGWebP
  • Figure 6 · 10×12 12×16 bike bins 12×16SVGWebP
  • Figure 7 · mower shelf shell 10×12 referenceSVGWebP
  • Figure 8 · blocked path shell 10×12 referenceSVGWebP

Worked example · not a measured product or customer story

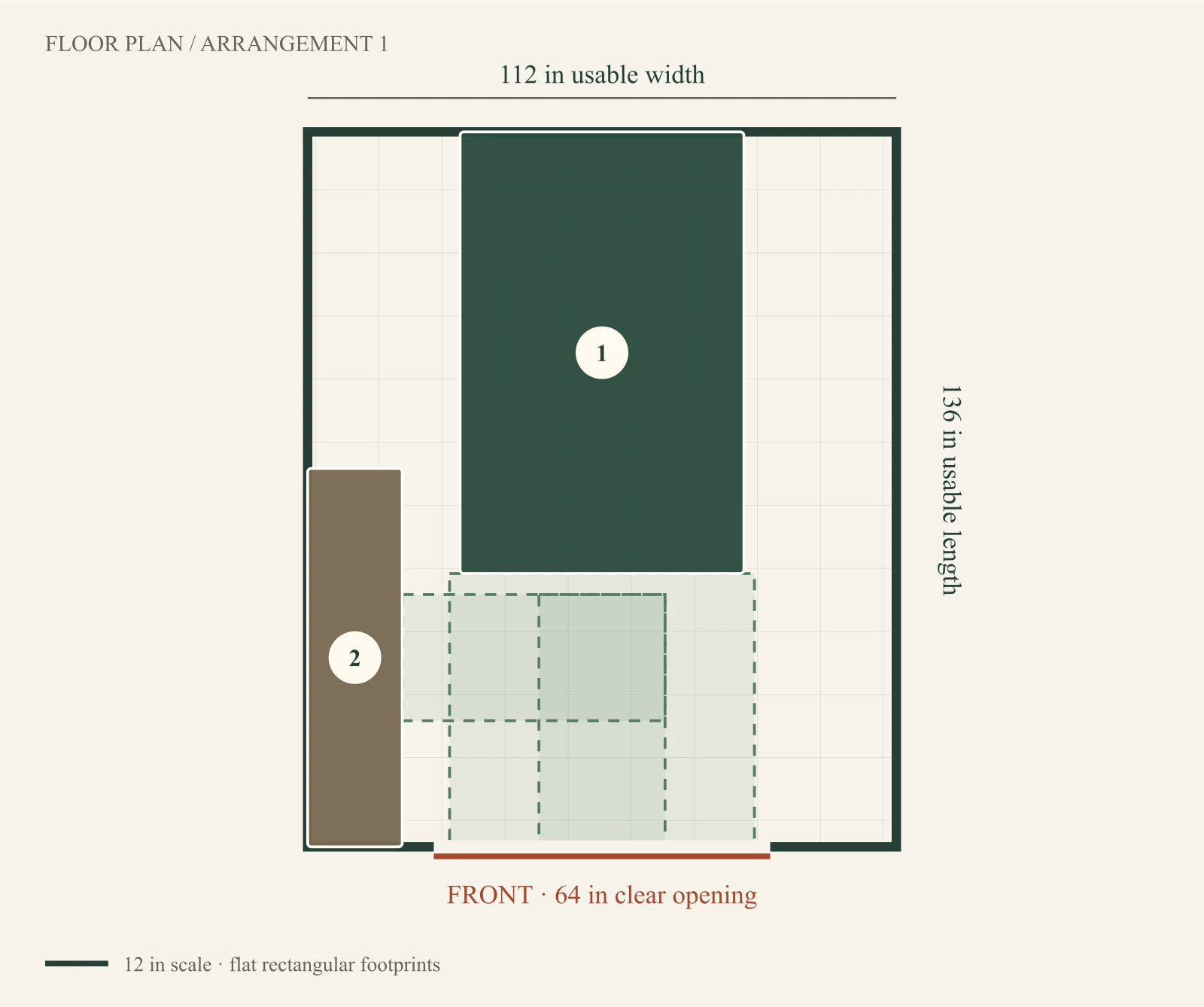

A mower and a shelf: start with the actual footprints

This authored example uses a 54 × 84 × 48 in mower and an 18 × 72 × 72 in standing shelf. Check the selected straight mower path and walking approach separately. The result does not reserve space for unspecified future items.

10×12 example

Modeled checks pass

Storage layout from the current inputsNumbers identify objects in the list below. Dashed shaded regions are selected retrieval paths, not structural or turning checks.FLOOR PLAN / ARRANGEMENT 1112 in usable width136 in usable lengthRiding mower · 54 in × 84 in1Storage shelf · 18 in × 72 in2FRONT · 64 in clear opening12 in scale · flat rectangular footprints
  1. 1. Riding mower
  2. 2. Storage shelf

Numbers identify the objects in this legend. Dashed regions show the paths actually checked. Turning, ramps, thresholds and structural capacity are not assessed.

Inspect the layout

100%

Zoom in, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys. Zoom changes the view, not your measurements.

  1. 1. Riding mower
  2. 2. Storage shelf

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

Usable interior: 112 × 136 × 84 in. Clear opening: 64 × 78 in; centered by assumption.

    The floor, opening and selected paths pass for this example only. Actual products and unmodeled movements still need verification.

    All evaluated checks (12)
    • Pass with these inputs: Riding mower: clear door width. 54 in width + 2 in each side; 64 in clear opening.
    • Pass with these inputs: Riding mower: clear door height. 48 in item height; 78 in clear opening. No tilt is modeled.
    • Pass with these inputs: Riding mower: interior height. 48 in overall height; 84 in stated usable height. This does not test lifting or overhead working space.
    • Pass with these inputs: Storage shelf: clear door width. 18 in width + 2 in each side; 64 in clear opening.
    • Pass with these inputs: Storage shelf: clear door height. 72 in item height; 78 in clear opening. No tilt is modeled.
    • Pass with these inputs: Storage shelf: interior height. 72 in overall height; 84 in stated usable height. This does not test lifting or overhead working space.
    • Pass with these inputs: Riding mower: floor boundary. The complete footprint is within the stated interior.
    • Pass with these inputs: Storage shelf: floor boundary. The complete footprint is within the stated interior.
    • Pass with these inputs: Storage shelf: wall preference. You chose the left wall.
    • Pass with these inputs: Clear opening position. The opening is within the stated front wall.
    • Pass with these inputs: Riding mower: straight retrieval. The stated straight sweep to the clear opening contains no other floor object. Turning, thresholds and ramps are not checked.
    • Pass with these inputs: Storage shelf: walking approach. The selected 24 in walking aisle reaches this shelf/work surface without crossing a floor object. Reach, assembly and load capacity are not assessed.

    A distinct checked arrangement is available after copying this example to the workbench.

    Inspect every input and its source

    All dimensions and positions are authored planning assumptions. Door side allowance: 2 in; walking aisle: 24 in. No manufacturer specification or user measurement is implied.

    • 1 × Riding mower: 54 × 84 × 48 in; frequent access; floor; roll; 0° parked orientation.
    • 1 × Storage shelf: 18 × 72 × 72 in; occasional access; shelf; fixed; 0° parked orientation.

    Case: mower-shelf · authored-cases-2026-09-03. Diagram and checks: storage-fit-1. Positions chosen by the limited automatic search.

    Continue my saved project

    Reading this example does not change your project. Copying asks before replacing it. Planning only: not a structural, installation, delivery or permit approval.

    When to change the size or layout

    Name the failed condition first. A wider door can address opening width; moving a box may restore a path; extra interior width can separate two objects. These are different remedies. If the current candidate does not work, record that outcome instead of choosing a size simply because it is larger.

    Worked example · not a measured product or customer story

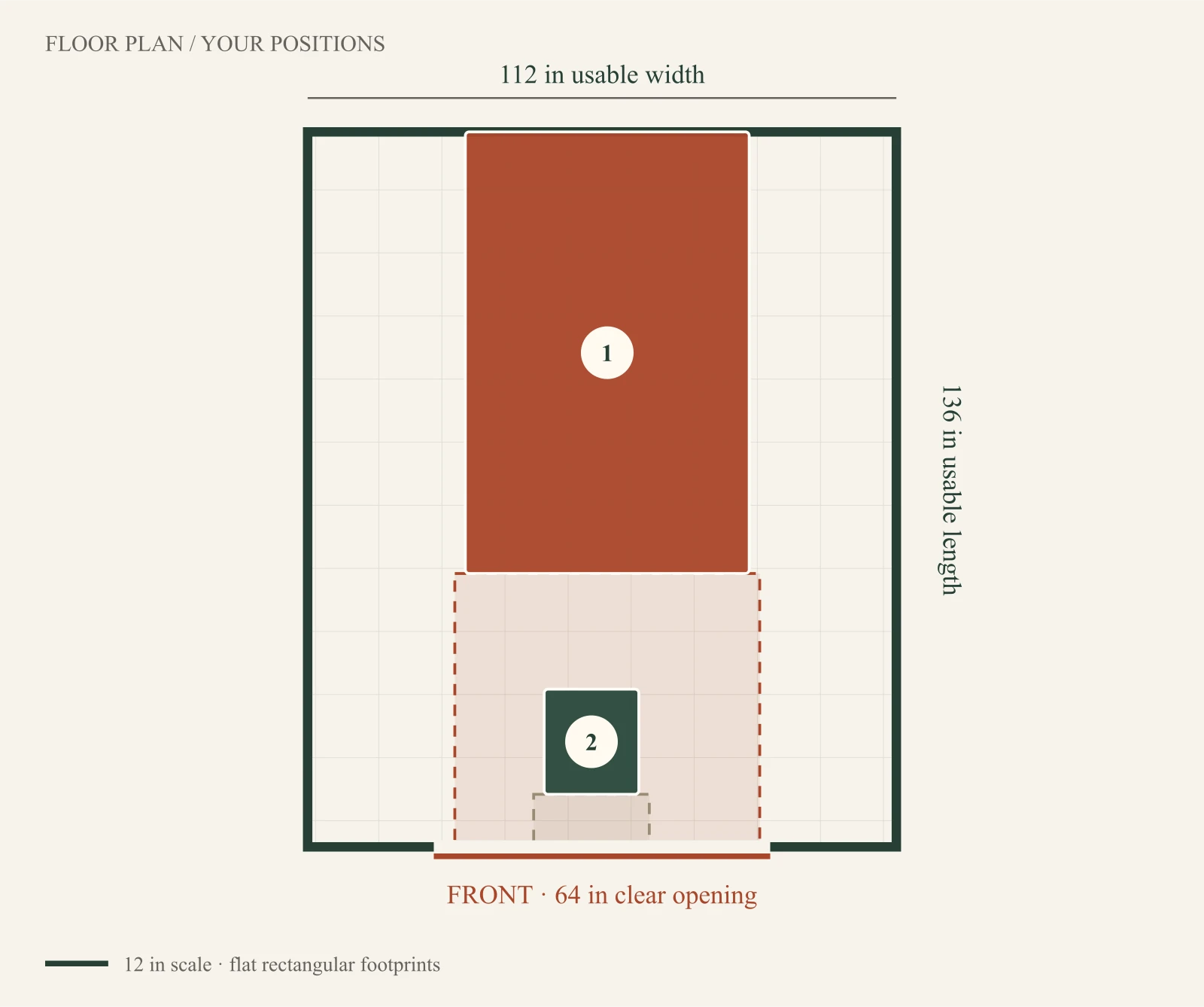

    A small item can block a much larger machine

    The mower and a small storage box do not overlap, but the box sits in the selected straight exit path. Moving an object out of a floor collision and keeping a usable route are different tasks. Reposition the box in the workbench and check again.

    10×12 example

    This layout needs a change

    Storage layout from the current inputsNumbers identify objects in the list below. Dashed shaded regions are selected retrieval paths, not structural or turning checks.FLOOR PLAN / YOUR POSITIONS112 in usable width136 in usable lengthRiding mower · 54 in × 84 in1Storage box · 18 in × 20 in2FRONT · 64 in clear opening12 in scale · flat rectangular footprints
    1. 1. Riding mower
    2. 2. Storage box

    Numbers identify the objects in this legend. Dashed regions show the paths actually checked. Turning, ramps, thresholds and structural capacity are not assessed.

    Inspect the layout

    100%

    Zoom in, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys. Zoom changes the view, not your measurements.

    1. 1. Riding mower
    2. 2. Storage box

    Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

    Usable interior: 112 × 136 × 84 in. Clear opening: 64 × 78 in; centered by assumption.

    • Needs a change: Riding mower: straight retrieval. The selected straight path is blocked by Storage box.
    • Not assessed: Storage box: straight retrieval. Independent retrieval is not required by your seasonal setting; moving other items may be necessary.
    All evaluated checks (11)
    • Pass with these inputs: Riding mower: clear door width. 54 in width + 2 in each side; 64 in clear opening.
    • Pass with these inputs: Riding mower: clear door height. 48 in item height; 78 in clear opening. No tilt is modeled.
    • Pass with these inputs: Riding mower: interior height. 48 in overall height; 84 in stated usable height. This does not test lifting or overhead working space.
    • Pass with these inputs: Storage box: clear door width. 18 in width + 2 in each side; 64 in clear opening.
    • Pass with these inputs: Storage box: clear door height. 20 in item height; 78 in clear opening. No tilt is modeled.
    • Pass with these inputs: Storage box: interior height. 20 in overall height; 84 in stated usable height. This does not test lifting or overhead working space.
    • Pass with these inputs: Riding mower: floor boundary. The complete footprint is within the stated interior.
    • Pass with these inputs: Storage box: floor boundary. The complete footprint is within the stated interior.
    • Pass with these inputs: Clear opening position. The opening is within the stated front wall.
    • Needs a change: Riding mower: straight retrieval. The selected straight path is blocked by Storage box.
    • Not assessed: Storage box: straight retrieval. Independent retrieval is not required by your seasonal setting; moving other items may be necessary.

    No distinct fully checked rearrangement was found in the limited search. This does not prove all arrangements impossible.

    Inspect every input and its source

    All dimensions and positions are authored planning assumptions. Door side allowance: 2 in; walking aisle: 24 in. No manufacturer specification or user measurement is implied.

    • 1 × Riding mower: 54 × 84 × 48 in; frequent access; floor; roll; 0° parked orientation.
    • 1 × Storage box: 18 × 20 × 20 in; seasonal access; floor; carry; 0° parked orientation.
    • mower:1: x = 30 in from the left wall, y = 52 in from the front wall.
    • custom-path-box:1: x = 45 in from the left wall, y = 10 in from the front wall.

    Case: blocked-path · authored-cases-2026-09-03. Diagram and checks: storage-fit-1. Positions fixed for this counterexample; inspect or edit the coordinates after copying.

    Continue my saved project

    Reading this example does not change your project. Copying asks before replacing it. Planning only: not a structural, installation, delivery or permit approval.

    Before comparing products or quotes

    Ask for the model and version, clear interior dimensions, usable height where the equipment stands, clear door width and height, and any fixed obstructions. Record foundation, transport and installation scope separately. This page provides planning evidence, not a construction plan, cut list, load rating or permit conclusion.

    Compare DIY, kit and delivered-shed responsibilities
