12×16 shed: what fits, and what still needs checking

192 sq ft is the nominal footprint, not a promise of usable floor space. Start with an explicit example, then replace its interior, opening and object dimensions with your own.

Plan with my measurementsCompare reference sizes

Start with a complete project

  • 12×16 Storage + Hand-work Shed →

    Layout reference · Keep the mower, front shelf and seasonal bin from the 10×12 study, then add a rear bench. Working at that bench requires the mower outside first.

    72 in example clear opening; move mower before bench work.

  • Greenhouse + Dry Storage Partition →

    Layout reference · A 12×16 nominal example with transparent growing space behind a partition and an opaque dry-storage zone at the front. Test the connecting opening before allocating more growing area.

    72 in front entry connects to a 30 in partition opening.

Is 12×16 enough for my storage?

The larger reference adds 72 sq ft of nominal area compared with 10×12. That extra area matters only when the actual width, depth, door or layout resolves your constraint. It does not make an undersized opening wider or establish delivery access.

Compare the usable rectangle, lowest relevant interior height and clear opening of the exact products. Wall thickness, supports and openings can change usable space; do not copy the nominal dimensions into every input.

Use it as a candidate when…

  • Each measured item has a place, with no overlapping floor footprints.
  • The widest attachment clears the actual door with your chosen allowance.
  • The items used often have a checked path while the others stay parked.
  • You can separately confirm the site, delivery method and full written quote.

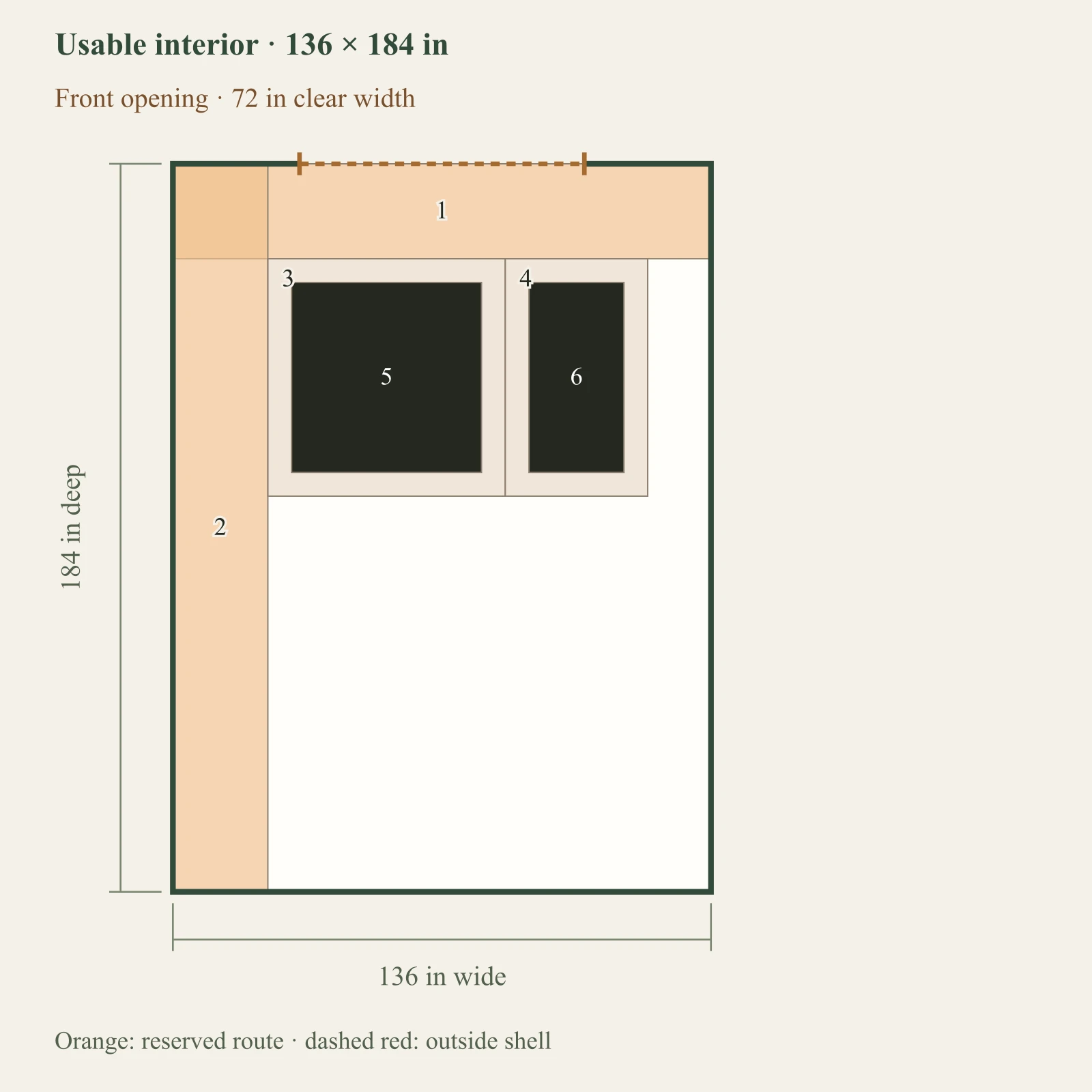

Compare space for a deployed tool with permanently positioned training equipment.

Both references have their own operating and height checks. A clear floor rectangle does not establish equipment capacity, anchoring, services or delivery access.

Five checks behind this page
  1. What does nominal area leave out?
  2. Which shown arrangement works with these exact inputs?
  3. Which equipment or path is the first constraint?
  4. Does a wider or deeper candidate resolve that constraint?
  5. What must I measure and take to a supplier before choosing?
Nominal 12 × 16 ft · 192 sq ft

Solid: nominal footprint definition. Dashed: independently authored interior 136 × 184 in, aligned for illustration. The gap does not specify wall thickness. Usable height: 84 in; opening: 72 × 78 in. Editable planning assumptions.

Compare the reference arrangements

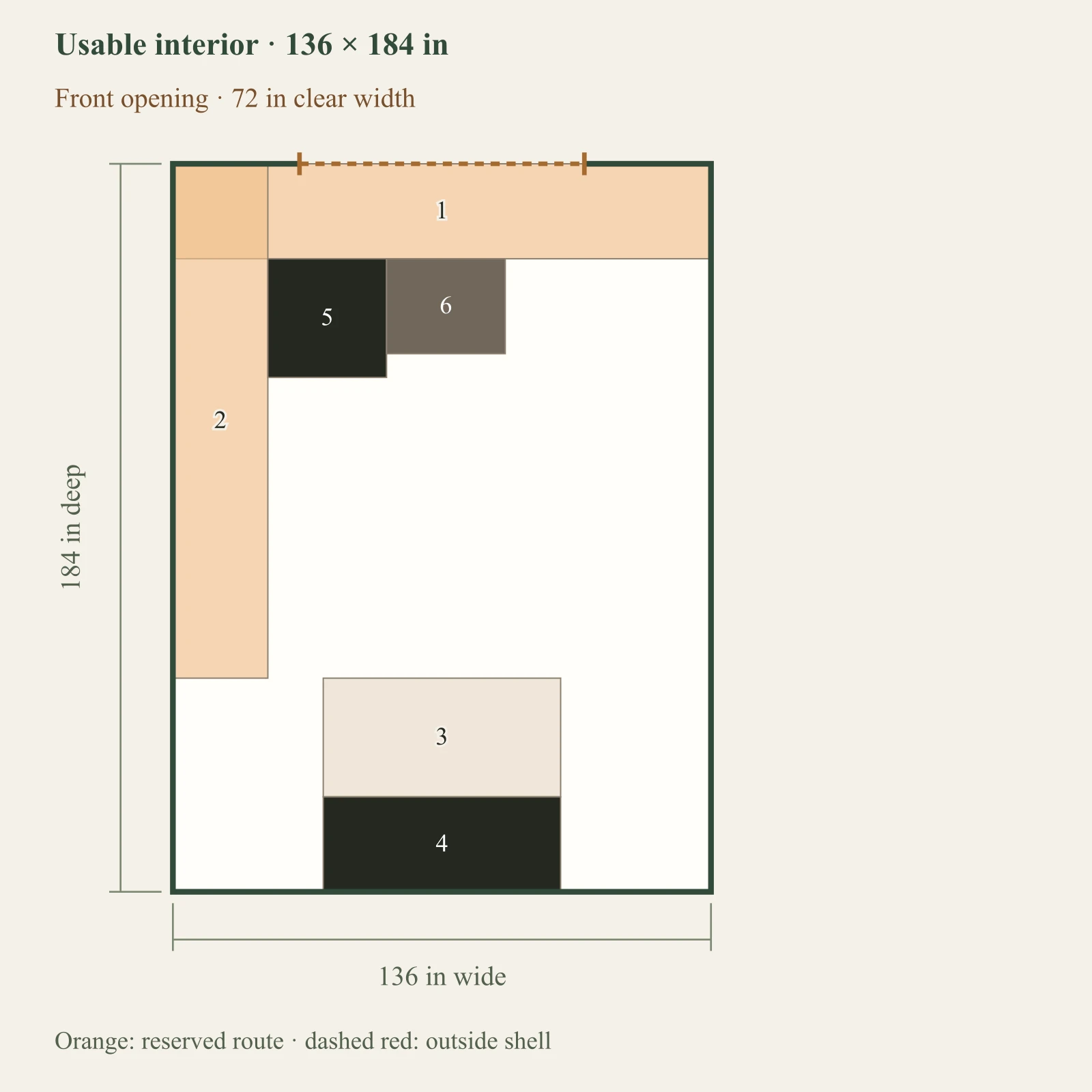

Example layout · 12×16

A mobile-tool workshop

Projects that use a movable tool and then put it away.

Full-size layout and reserved spacesFull-size footprints with a 24 in entry/side aisle and 30 in bench standing depth. Each mobile deployment and its orthogonal routes are tested with other parked positions unchanged. Staging is screened along the lengthwise axis; turning, actual machine feed points and manufacturer operating instructions require separate confirmation. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Reserved entry cross-aisle: 136 × 24 in at 0, 0 inReserved side aisle: 24 × 130 in at 0, 0 inBench standing area: 60 × 30 in at 38, 130 inWorkbench: 60 × 24 in at 38, 160 inMobile tool parked footprint: 30 × 30 in at 24, 24 inTool chest: 30 × 24 in at 54, 24 in123456Usable interior · 136 × 184 inFront opening · 72 in clear width136 in wide184 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Reserved entry cross-aisle: 136 × 24 in
  2. 2. Reserved side aisle: 24 × 130 in
  3. 3. Bench standing area: 60 × 30 in
  4. 4. Workbench: 60 × 24 in
  5. 5. Mobile tool parked footprint: 30 × 30 in
  6. 6. Tool chest: 30 × 24 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

The shown arrangement preserves its reserved spaces and entry aisle.

What you gain
Tests the parked tool and its separate deployed envelope while the other fixtures stay in place.
What you give up
Moving the tool is an extra step. The shown translation route is tested without rotation; actual steering and tool-specific feeding still need checking.
When to choose it
Choose this direction if you accept setup time in exchange for a shared floor area.

Example interior: 136 × 184 in. Opening: 72 in wide. All reference dimensions and allowances are planning assumptions, not product specifications.

Checks and operating states
  • A failed arrangement is not proof that every layout in this size fails. Only the displayed axis-aligned arrangements were tested.
  • Equipment footprints and reserved spaces are editable planning assumptions. These rectangles do not establish manufacturer operating clearances.
  • Mobile transport tests full-footprint translations along obstacle edges without rotation. Individual workstation approaches and turning remain unassessed. Machine-specific material feeding is not selected; enable its separate straight-sweep check when relevant.
  • Confirm guarding, electrical, dust collection, ventilation, fire separation, loading, and local requirements separately.

Move Mobile tool from parked to working position

Move Mobile tool from parked to working positionFull-size footprints with a 24 in entry/side aisle and 30 in bench standing depth. Each mobile deployment and its orthogonal routes are tested with other parked positions unchanged. Staging is screened along the lengthwise axis; turning, actual machine feed points and manufacturer operating instructions require separate confirmation. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Full-footprint translation sweep: 30 × 136 in at 24, 24 inFull-footprint translation sweep: 99 × 30 in at 24, 130 inFull-footprint translation sweep: 30 × 127 in at 93, 33 inReserved entry cross-aisle: 136 × 24 in at 0, 0 inReserved side aisle: 24 × 130 in at 0, 0 inBench standing area: 60 × 30 in at 38, 130 inWorkbench: 60 × 24 in at 38, 160 inTool chest: 30 × 24 in at 54, 24 inMobile tool parked footprint: 30 × 30 in at 24, 24 in123456789Usable interior · 136 × 184 inFront opening · 72 in clear width136 in wide184 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Full-footprint translation sweep: 30 × 136 in
  2. 2. Full-footprint translation sweep: 99 × 30 in
  3. 3. Full-footprint translation sweep: 30 × 127 in
  4. 4. Reserved entry cross-aisle: 136 × 24 in
  5. 5. Reserved side aisle: 24 × 130 in
  6. 6. Bench standing area: 60 × 30 in
  7. 7. Workbench: 60 × 24 in
  8. 8. Tool chest: 30 × 24 in
  9. 9. Mobile tool parked footprint: 30 × 30 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

Use Mobile tool; other machines stay parked

Use Mobile tool; other machines stay parkedFull-size footprints with a 24 in entry/side aisle and 30 in bench standing depth. Each mobile deployment and its orthogonal routes are tested with other parked positions unchanged. Staging is screened along the lengthwise axis; turning, actual machine feed points and manufacturer operating instructions require separate confirmation. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Reserved entry cross-aisle: 136 × 24 in at 0, 0 inReserved side aisle: 24 × 130 in at 0, 0 inBench standing area: 60 × 30 in at 38, 130 inWorkbench: 60 × 24 in at 38, 160 inTool chest: 30 × 24 in at 54, 24 inMobile tool working envelope: 48 × 48 in at 84, 24 inMobile tool footprint: 30 × 30 in at 93, 33 in1234567Usable interior · 136 × 184 inFront opening · 72 in clear width136 in wide184 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Reserved entry cross-aisle: 136 × 24 in
  2. 2. Reserved side aisle: 24 × 130 in
  3. 3. Bench standing area: 60 × 30 in
  4. 4. Workbench: 60 × 24 in
  5. 5. Tool chest: 30 × 24 in
  6. 6. Mobile tool working envelope: 48 × 48 in
  7. 7. Mobile tool footprint: 30 × 30 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

Before buying or building: Measure the tool in storage and in use. Check power, dust collection and moving the real tool before committing.

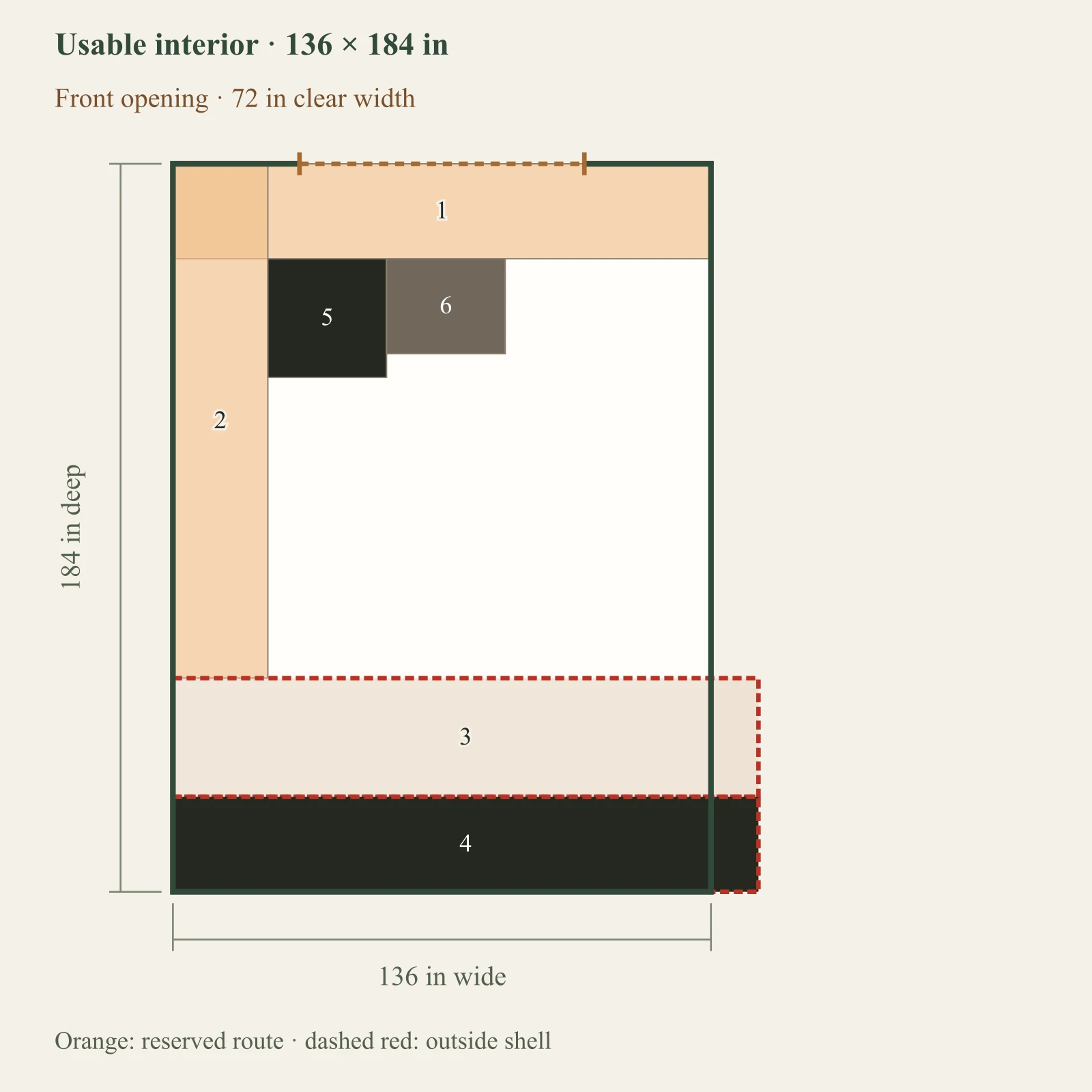

Where this candidate stops working

Only the bench length changes to 148 in, beyond the usable rear wall.

  • Bench standing area exceeds the usable interior in this arrangement.
  • Workbench exceeds the usable interior in this arrangement.
Full-size layout and reserved spacesFull-size footprints with a 24 in entry/side aisle and 30 in bench standing depth. Each mobile deployment and its orthogonal routes are tested with other parked positions unchanged. Staging is screened along the lengthwise axis; turning, actual machine feed points and manufacturer operating instructions require separate confirmation. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Reserved entry cross-aisle: 136 × 24 in at 0, 0 inReserved side aisle: 24 × 130 in at 0, 0 inBench standing area: 148 × 30 in at 0, 130 inWorkbench: 148 × 24 in at 0, 160 inMobile tool parked footprint: 30 × 30 in at 24, 24 inTool chest: 30 × 24 in at 54, 24 in123456Usable interior · 136 × 184 inFront opening · 72 in clear width136 in wide184 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Reserved entry cross-aisle: 136 × 24 in
  2. 2. Reserved side aisle: 24 × 130 in
  3. 3. Bench standing area: 148 × 30 in — outside shell
  4. 4. Workbench: 148 × 24 in — outside shell
  5. 5. Mobile tool parked footprint: 30 × 30 in
  6. 6. Tool chest: 30 × 24 in

Worked example · not a measured product or customer story

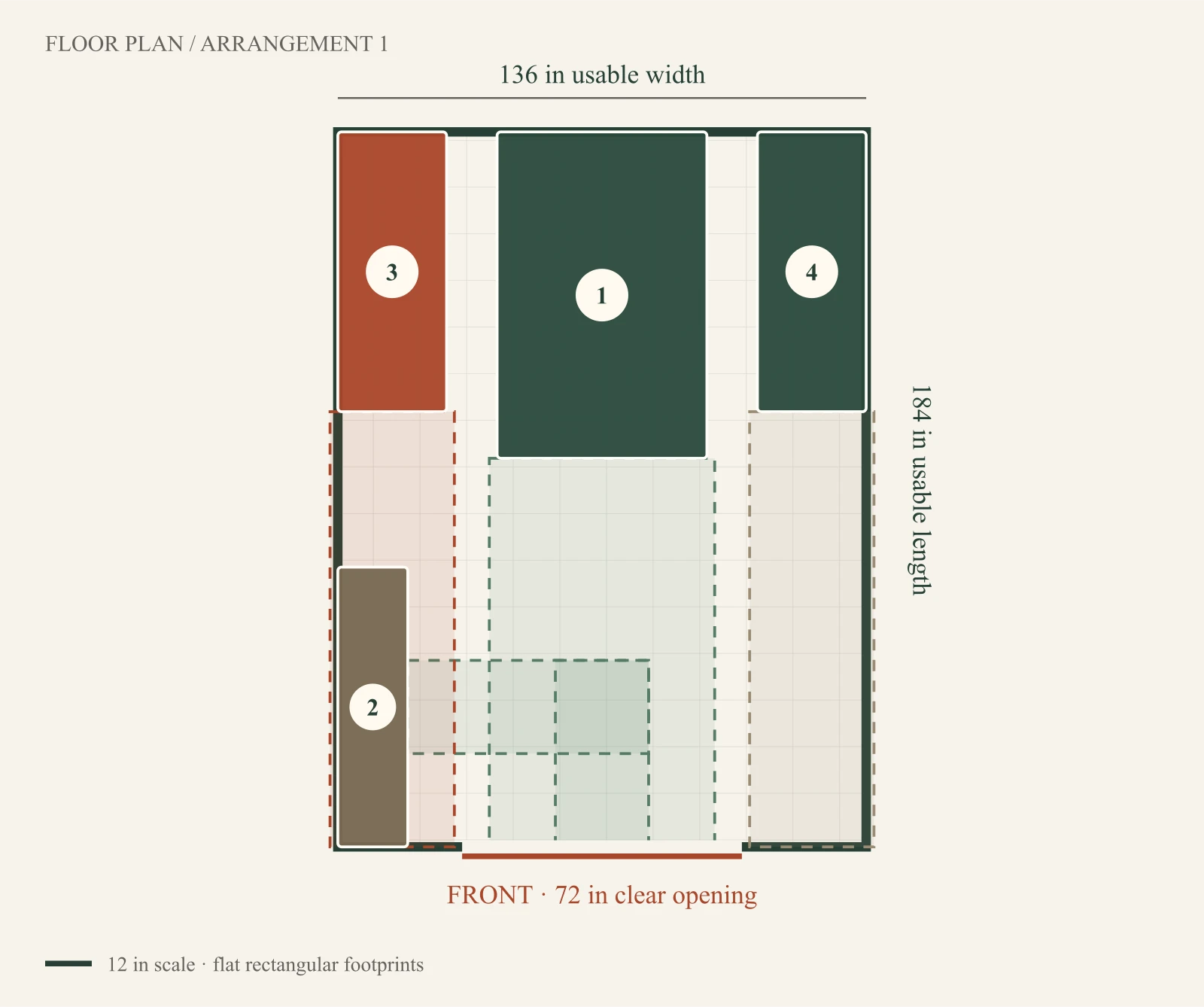

Mower, two bikes and a shelf compete for the same exits

The example retains the 54 × 84 in mower, two 28 × 72 in floor-parked bikes and an 18 × 72 in shelf. Every required route is checked with the other parked objects present. Extra floor area is not an independent-access guarantee.

12×16 example

This layout needs a change

Storage layout from the current inputsNumbers identify objects in the list below. Dashed shaded regions are selected retrieval paths, not structural or turning checks.FLOOR PLAN / ARRANGEMENT 1136 in usable width184 in usable lengthRiding mower · 54 in × 84 in1Storage shelf · 18 in × 72 in2Bikes 1 · 28 in × 72 in3Bikes 2 · 28 in × 72 in4FRONT · 72 in clear opening12 in scale · flat rectangular footprints
  1. 1. Riding mower
  2. 2. Storage shelf
  3. 3. Bikes 1
  4. 4. Bikes 2

Numbers identify the objects in this legend. Dashed regions show the paths actually checked. Turning, ramps, thresholds and structural capacity are not assessed.

Inspect the layout

100%

Zoom in, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys. Zoom changes the view, not your measurements.

  1. 1. Riding mower
  2. 2. Storage shelf
  3. 3. Bikes 1
  4. 4. Bikes 2

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

Usable interior: 136 × 184 × 84 in. Clear opening: 72 × 78 in; centered by assumption.

  • Needs a change: Bikes 1: straight retrieval. The selected straight path is blocked by Storage shelf.
  • Not assessed: Bikes 2: straight retrieval. This position needs a turn or more opening measurements; straight retrieval has not been established.
All evaluated checks (22)
  • Pass with these inputs: Riding mower: clear door width. 54 in width + 2 in each side; 72 in clear opening.
  • Pass with these inputs: Riding mower: clear door height. 48 in item height; 78 in clear opening. No tilt is modeled.
  • Pass with these inputs: Riding mower: interior height. 48 in overall height; 84 in stated usable height. This does not test lifting or overhead working space.
  • Pass with these inputs: Storage shelf: clear door width. 18 in width + 2 in each side; 72 in clear opening.
  • Pass with these inputs: Storage shelf: clear door height. 72 in item height; 78 in clear opening. No tilt is modeled.
  • Pass with these inputs: Storage shelf: interior height. 72 in overall height; 84 in stated usable height. This does not test lifting or overhead working space.
  • Pass with these inputs: Bikes: clear door width. 28 in width + 2 in each side; 72 in clear opening.
  • Pass with these inputs: Bikes: clear door height. 44 in item height; 78 in clear opening. No tilt is modeled.
  • Pass with these inputs: Bikes: interior height. 44 in overall height; 84 in stated usable height. This does not test lifting or overhead working space.
  • Pass with these inputs: Bikes: clear door width. 28 in width + 2 in each side; 72 in clear opening.
  • Pass with these inputs: Bikes: clear door height. 44 in item height; 78 in clear opening. No tilt is modeled.
  • Pass with these inputs: Bikes: interior height. 44 in overall height; 84 in stated usable height. This does not test lifting or overhead working space.
  • Pass with these inputs: Riding mower: floor boundary. The complete footprint is within the stated interior.
  • Pass with these inputs: Storage shelf: floor boundary. The complete footprint is within the stated interior.
  • Pass with these inputs: Storage shelf: wall preference. You chose the left wall.
  • Pass with these inputs: Bikes 1: floor boundary. The complete footprint is within the stated interior.
  • Pass with these inputs: Bikes 2: floor boundary. The complete footprint is within the stated interior.
  • Pass with these inputs: Clear opening position. The opening is within the stated front wall.
  • Pass with these inputs: Riding mower: straight retrieval. The stated straight sweep to the clear opening contains no other floor object. Turning, thresholds and ramps are not checked.
  • Pass with these inputs: Storage shelf: walking approach. The selected 24 in walking aisle reaches this shelf/work surface without crossing a floor object. Reach, assembly and load capacity are not assessed.
  • Needs a change: Bikes 1: straight retrieval. The selected straight path is blocked by Storage shelf.
  • Not assessed: Bikes 2: straight retrieval. This position needs a turn or more opening measurements; straight retrieval has not been established.

No distinct fully checked rearrangement was found in the limited search. This does not prove all arrangements impossible.

Inspect every input and its source

All dimensions and positions are authored planning assumptions. Door side allowance: 2 in; walking aisle: 24 in. No manufacturer specification or user measurement is implied.

  • 1 × Riding mower: 54 × 84 × 48 in; frequent access; floor; roll; 0° parked orientation.
  • 1 × Storage shelf: 18 × 72 × 72 in; occasional access; shelf; fixed; 0° parked orientation.
  • 2 × Bikes: 28 × 72 × 44 in; frequent access; floor; roll; 0° parked orientation.

Case: mower-bikes · authored-cases-2026-09-03. Diagram and checks: storage-fit-1. Positions chosen by the limited automatic search.

Continue my saved project

Reading this example does not change your project. Copying asks before replacing it. Planning only: not a structural, installation, delivery or permit approval.

Same arrangement: 12×16 and 12×20

Equipment, activities and allowances are identical. The authored shell dimensions and opening can differ. The drawings use one scale, including full-size items that cannot be placed. Positions can change as the bounded layout search uses the available space.

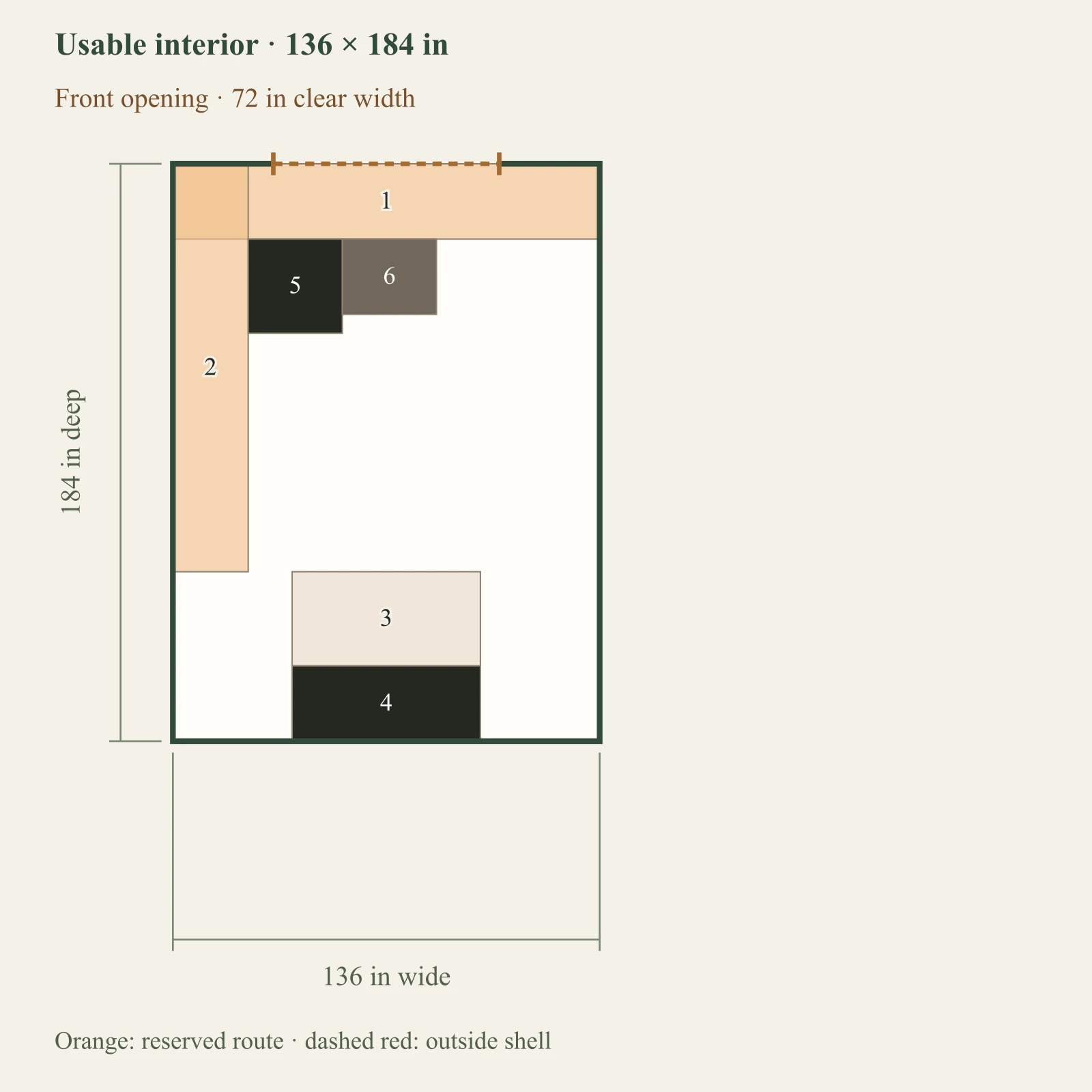

12×16

Example interior 136 × 184 in; clear door 72 × 78 in.

Full-size layout and reserved spacesFull-size footprints with a 24 in entry/side aisle and 30 in bench standing depth. Each mobile deployment and its orthogonal routes are tested with other parked positions unchanged. Staging is screened along the lengthwise axis; turning, actual machine feed points and manufacturer operating instructions require separate confirmation. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Reserved entry cross-aisle: 136 × 24 in at 0, 0 inReserved side aisle: 24 × 130 in at 0, 0 inBench standing area: 60 × 30 in at 38, 130 inWorkbench: 60 × 24 in at 38, 160 inMobile tool parked footprint: 30 × 30 in at 24, 24 inTool chest: 30 × 24 in at 54, 24 in123456Usable interior · 136 × 184 inFront opening · 72 in clear width136 in wide184 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Reserved entry cross-aisle: 136 × 24 in
  2. 2. Reserved side aisle: 24 × 130 in
  3. 3. Bench standing area: 60 × 30 in
  4. 4. Workbench: 60 × 24 in
  5. 5. Mobile tool parked footprint: 30 × 30 in
  6. 6. Tool chest: 30 × 24 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

The shown arrangement preserves its reserved spaces and entry aisle.

  • A failed arrangement is not proof that every layout in this size fails. Only the displayed axis-aligned arrangements were tested.
  • Equipment footprints and reserved spaces are editable planning assumptions. These rectangles do not establish manufacturer operating clearances.

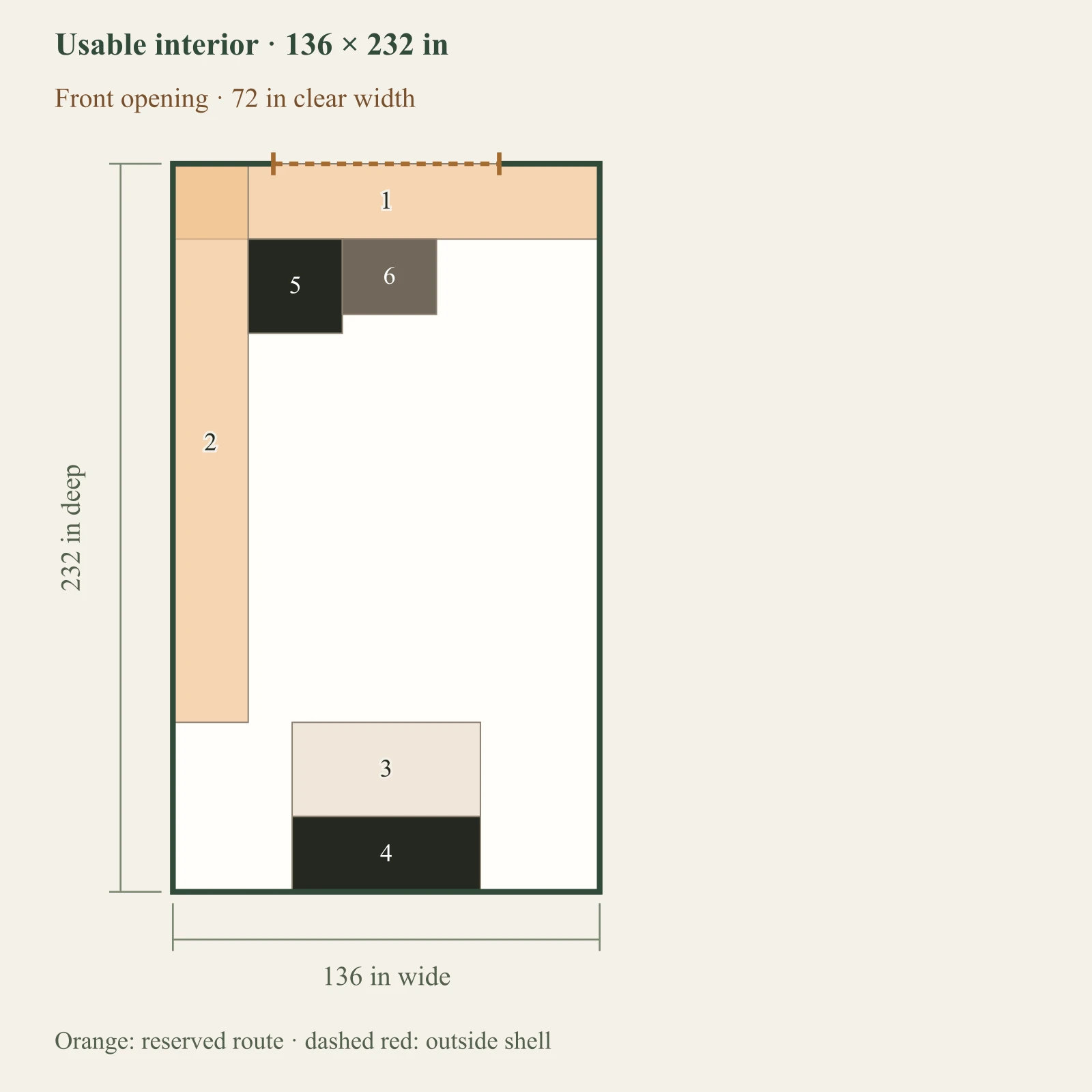

12×20

Example interior 136 × 232 in; clear door 72 × 78 in.

Full-size layout and reserved spacesFull-size footprints with a 24 in entry/side aisle and 30 in bench standing depth. Each mobile deployment and its orthogonal routes are tested with other parked positions unchanged. Staging is screened along the lengthwise axis; turning, actual machine feed points and manufacturer operating instructions require separate confirmation. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Reserved entry cross-aisle: 136 × 24 in at 0, 0 inReserved side aisle: 24 × 178 in at 0, 0 inBench standing area: 60 × 30 in at 38, 178 inWorkbench: 60 × 24 in at 38, 208 inMobile tool parked footprint: 30 × 30 in at 24, 24 inTool chest: 30 × 24 in at 54, 24 in123456Usable interior · 136 × 232 inFront opening · 72 in clear width136 in wide232 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Reserved entry cross-aisle: 136 × 24 in
  2. 2. Reserved side aisle: 24 × 178 in
  3. 3. Bench standing area: 60 × 30 in
  4. 4. Workbench: 60 × 24 in
  5. 5. Mobile tool parked footprint: 30 × 30 in
  6. 6. Tool chest: 30 × 24 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

The shown arrangement preserves its reserved spaces and entry aisle.

  • A failed arrangement is not proof that every layout in this size fails. Only the displayed axis-aligned arrangements were tested.
  • Equipment footprints and reserved spaces are editable planning assumptions. These rectangles do not establish manufacturer operating clearances.

Moving from the first example to the second changes usable width by 0 in, depth by 48 in and clear door width by 0 in. These differences belong to these examples. Obtain actual product measurements before choosing.

A changed result applies to the shown arrangement only. A different layout may work; a larger candidate can still fail a doorway, site or budget check.

Download the authored reference diagrams

Version 2026-09-08-decisions. These files reproduce the public examples, including failed arrangements. Your private measurements are only included when you generate your own brief.

  • Figure 1 · 12×16 shellSVGWebP
  • Figure 2 · workshop mobile layoutSVGWebP
  • Figure 3 · gym equipment layoutSVGWebP
  • Figure 4 · 12×16 boundarySVGWebP
  • Figure 5 · mower bikes shell 12×16 referenceSVGWebP
  • Figure 6 · 12×16 12×20 workshop mobile 12×16SVGWebP
  • Figure 7 · 12×16 12×20 workshop mobile 12×20SVGWebP
  • Figure 8 · mower shelf shell 12×16 referenceSVGWebP

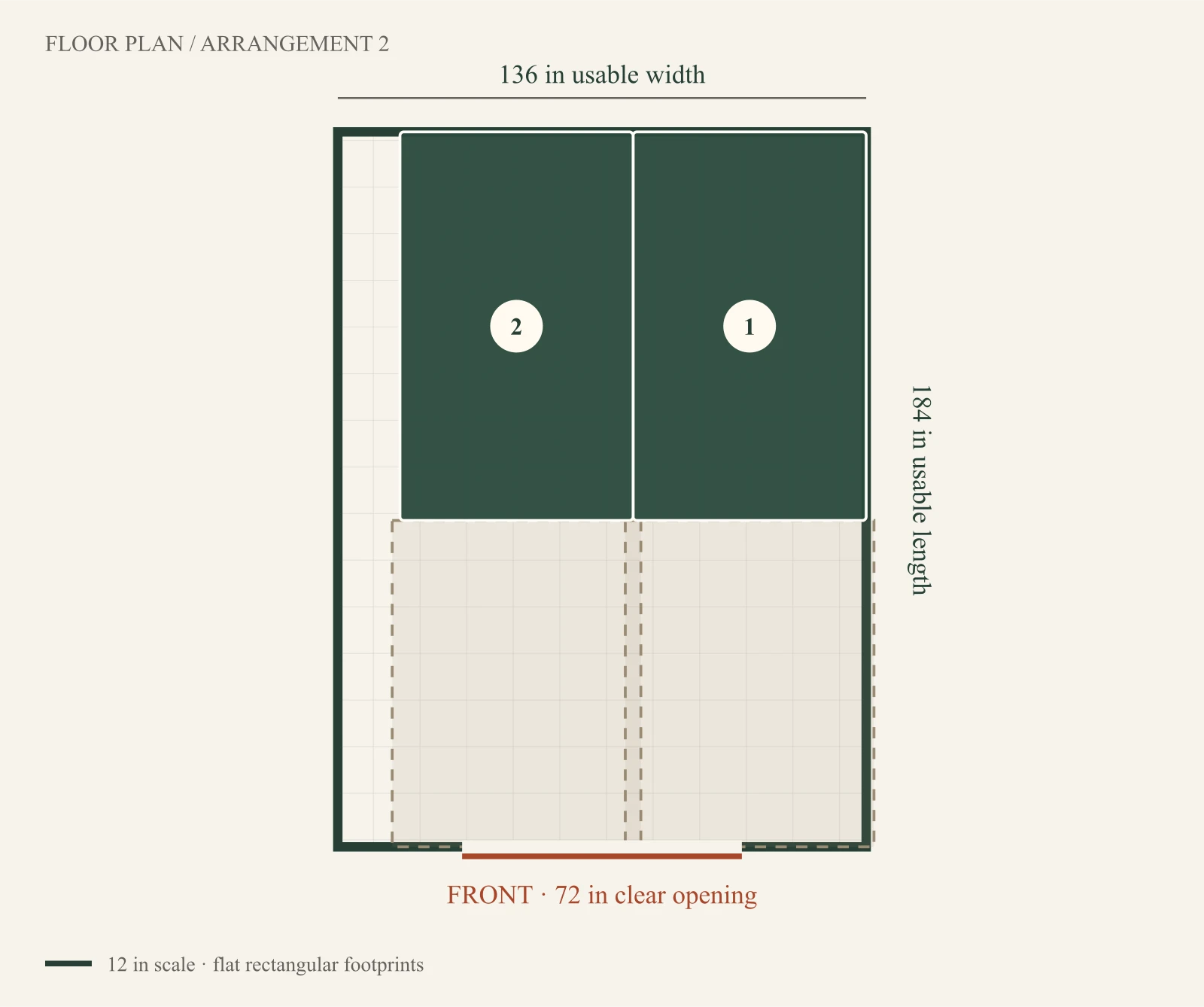

  • Figure 9 · two large items shell 12×16 referenceSVGWebP

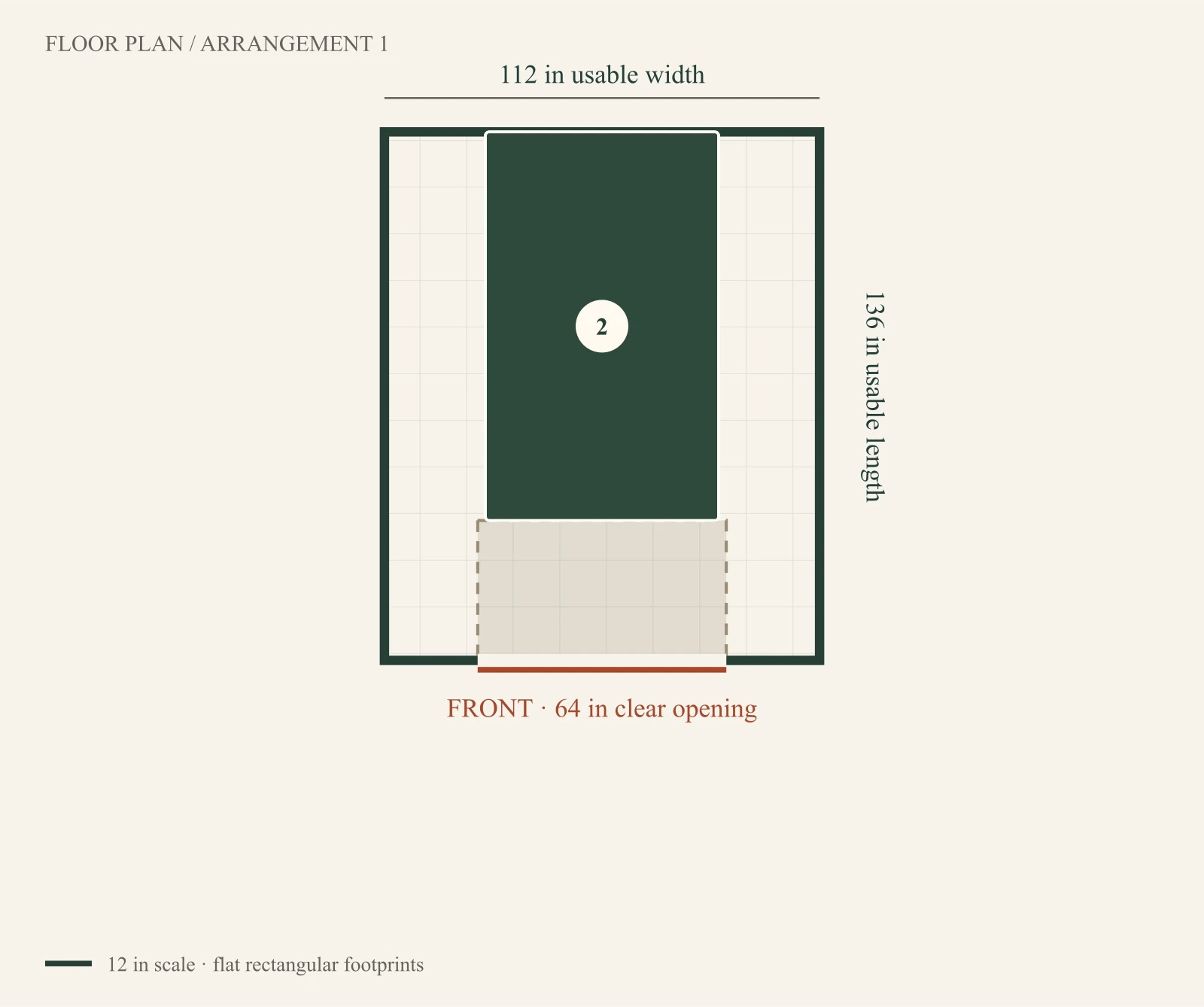

  • Figure 10 · two large items shell 10×12 referenceSVGWebP

Worked example · not a measured product or customer story

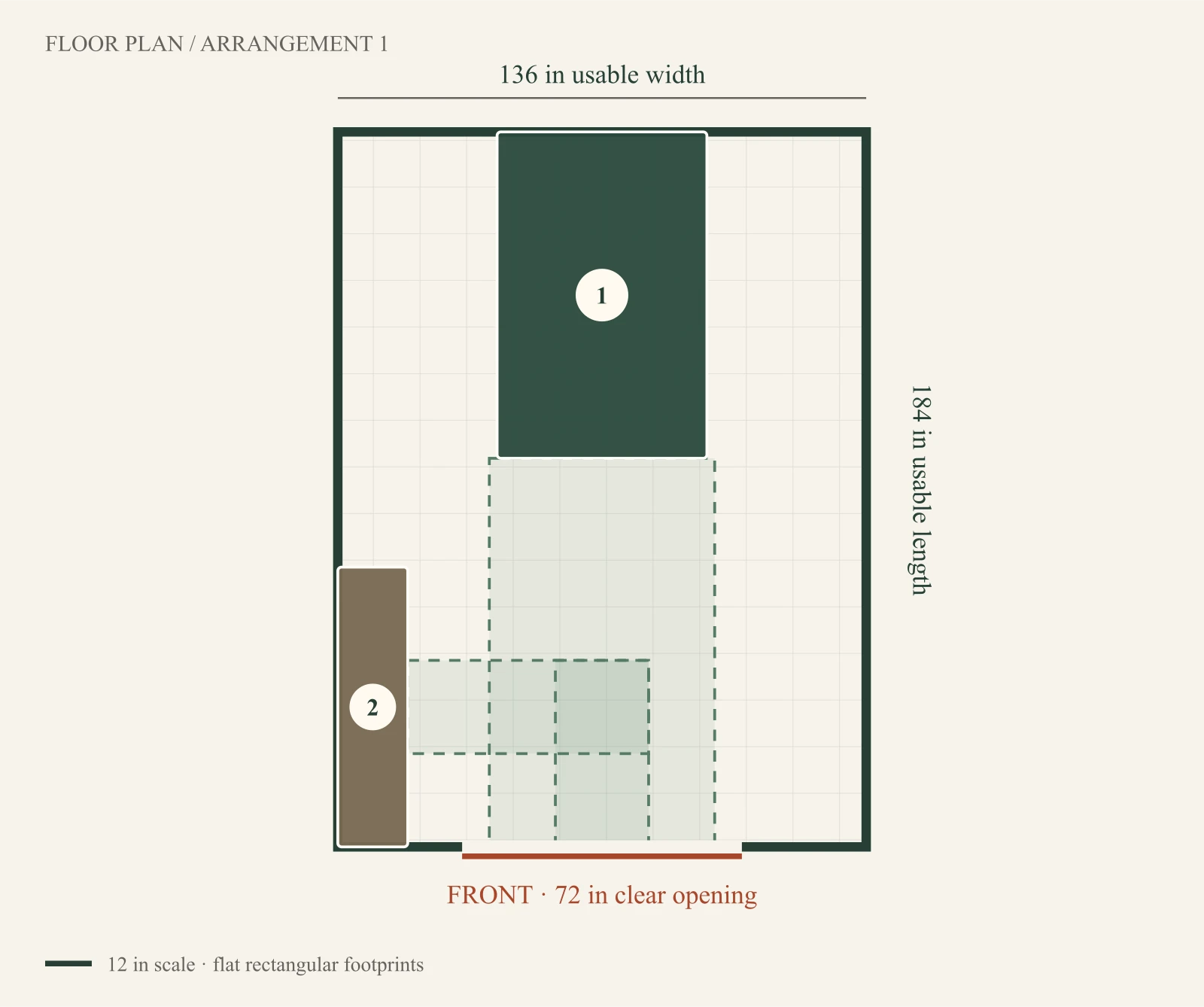

A mower and a shelf: start with the actual footprints

This authored example uses a 54 × 84 × 48 in mower and an 18 × 72 × 72 in standing shelf. Check the selected straight mower path and walking approach separately. The result does not reserve space for unspecified future items.

12×16 example

Modeled checks pass

Storage layout from the current inputsNumbers identify objects in the list below. Dashed shaded regions are selected retrieval paths, not structural or turning checks.FLOOR PLAN / ARRANGEMENT 1136 in usable width184 in usable lengthRiding mower · 54 in × 84 in1Storage shelf · 18 in × 72 in2FRONT · 72 in clear opening12 in scale · flat rectangular footprints
  1. 1. Riding mower
  2. 2. Storage shelf

Numbers identify the objects in this legend. Dashed regions show the paths actually checked. Turning, ramps, thresholds and structural capacity are not assessed.

Inspect the layout

100%

Zoom in, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys. Zoom changes the view, not your measurements.

  1. 1. Riding mower
  2. 2. Storage shelf

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

Usable interior: 136 × 184 × 84 in. Clear opening: 72 × 78 in; centered by assumption.

    The floor, opening and selected paths pass for this example only. Actual products and unmodeled movements still need verification.

    All evaluated checks (12)
    • Pass with these inputs: Riding mower: clear door width. 54 in width + 2 in each side; 72 in clear opening.
    • Pass with these inputs: Riding mower: clear door height. 48 in item height; 78 in clear opening. No tilt is modeled.
    • Pass with these inputs: Riding mower: interior height. 48 in overall height; 84 in stated usable height. This does not test lifting or overhead working space.
    • Pass with these inputs: Storage shelf: clear door width. 18 in width + 2 in each side; 72 in clear opening.
    • Pass with these inputs: Storage shelf: clear door height. 72 in item height; 78 in clear opening. No tilt is modeled.
    • Pass with these inputs: Storage shelf: interior height. 72 in overall height; 84 in stated usable height. This does not test lifting or overhead working space.
    • Pass with these inputs: Riding mower: floor boundary. The complete footprint is within the stated interior.
    • Pass with these inputs: Storage shelf: floor boundary. The complete footprint is within the stated interior.
    • Pass with these inputs: Storage shelf: wall preference. You chose the left wall.
    • Pass with these inputs: Clear opening position. The opening is within the stated front wall.
    • Pass with these inputs: Riding mower: straight retrieval. The stated straight sweep to the clear opening contains no other floor object. Turning, thresholds and ramps are not checked.
    • Pass with these inputs: Storage shelf: walking approach. The selected 24 in walking aisle reaches this shelf/work surface without crossing a floor object. Reach, assembly and load capacity are not assessed.

    A distinct checked arrangement is available after copying this example to the workbench.

    Inspect every input and its source

    All dimensions and positions are authored planning assumptions. Door side allowance: 2 in; walking aisle: 24 in. No manufacturer specification or user measurement is implied.

    • 1 × Riding mower: 54 × 84 × 48 in; frequent access; floor; roll; 0° parked orientation.
    • 1 × Storage shelf: 18 × 72 × 72 in; occasional access; shelf; fixed; 0° parked orientation.

    Case: mower-shelf · authored-cases-2026-09-03. Diagram and checks: storage-fit-1. Positions chosen by the limited automatic search.

    Continue my saved project

    Reading this example does not change your project. Copying asks before replacing it. Planning only: not a structural, installation, delivery or permit approval.

    When to change the size or layout

    Name the failed condition first. A wider door can address opening width; moving a box may restore a path; extra interior width can separate two objects. These are different remedies. If the current candidate does not work, record that outcome instead of choosing a size simply because it is larger.

    Worked example · not a measured product or customer story

    Same inventory, less overlap in the larger interior

    Two authored 60 × 100 × 20 in rectangular storage footprints collide in the smaller example interior. Compare the exact same pair in the larger interior. Seasonal access intentionally leaves independent retrieval unassessed: no collision is not a complete usability approval.

    12×16 example

    Details still need checking

    Storage layout from the current inputsNumbers identify objects in the list below. Dashed shaded regions are selected retrieval paths, not structural or turning checks.FLOOR PLAN / ARRANGEMENT 2136 in usable width184 in usable lengthLarge storage footprint 1 · 60 in × 100 in1Large storage footprint 2 · 60 in × 100 in2FRONT · 72 in clear opening12 in scale · flat rectangular footprints
    1. 1. Large storage footprint 1
    2. 2. Large storage footprint 2

    Numbers identify the objects in this legend. Dashed regions show the paths actually checked. Turning, ramps, thresholds and structural capacity are not assessed.

    Inspect the layout

    100%

    Zoom in, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys. Zoom changes the view, not your measurements.

    1. 1. Large storage footprint 1
    2. 2. Large storage footprint 2

    Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

    Usable interior: 136 × 184 × 84 in. Clear opening: 72 × 78 in; centered by assumption.

    • Not assessed: Large storage footprint 1: straight retrieval. Independent retrieval is not required by your seasonal setting; moving other items may be necessary.
    • Not assessed: Large storage footprint 2: straight retrieval. Independent retrieval is not required by your seasonal setting; moving other items may be necessary.
    All evaluated checks (11)
    • Pass with these inputs: Large storage footprint: clear door width. 60 in width + 2 in each side; 72 in clear opening.
    • Pass with these inputs: Large storage footprint: clear door height. 20 in item height; 78 in clear opening. No tilt is modeled.
    • Pass with these inputs: Large storage footprint: interior height. 20 in overall height; 84 in stated usable height. This does not test lifting or overhead working space.
    • Pass with these inputs: Large storage footprint: clear door width. 60 in width + 2 in each side; 72 in clear opening.
    • Pass with these inputs: Large storage footprint: clear door height. 20 in item height; 78 in clear opening. No tilt is modeled.
    • Pass with these inputs: Large storage footprint: interior height. 20 in overall height; 84 in stated usable height. This does not test lifting or overhead working space.
    • Pass with these inputs: Large storage footprint 1: floor boundary. The complete footprint is within the stated interior.
    • Pass with these inputs: Large storage footprint 2: floor boundary. The complete footprint is within the stated interior.
    • Pass with these inputs: Clear opening position. The opening is within the stated front wall.
    • Not assessed: Large storage footprint 1: straight retrieval. Independent retrieval is not required by your seasonal setting; moving other items may be necessary.
    • Not assessed: Large storage footprint 2: straight retrieval. Independent retrieval is not required by your seasonal setting; moving other items may be necessary.

    No distinct fully checked rearrangement was found in the limited search. This does not prove all arrangements impossible.

    10×12 example

    This layout needs a change

    Storage layout from the current inputsNumbers identify objects in the list below. Dashed shaded regions are selected retrieval paths, not structural or turning checks.FLOOR PLAN / ARRANGEMENT 1112 in usable width136 in usable lengthLarge storage footprint 1 · 60 in × 100 in1Large storage footprint 2 · 60 in × 100 in2FRONT · 64 in clear opening12 in scale · flat rectangular footprints
    1. 1. Large storage footprint 1
    2. 2. Large storage footprint 2

    Numbers identify the objects in this legend. Dashed regions show the paths actually checked. Turning, ramps, thresholds and structural capacity are not assessed.

    Inspect the layout

    100%

    Zoom in, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys. Zoom changes the view, not your measurements.

    1. 1. Large storage footprint 1
    2. 2. Large storage footprint 2

    Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

    Usable interior: 112 × 136 × 84 in. Clear opening: 64 × 78 in; centered by assumption.

    • Needs a change: Objects overlap. Large storage footprint 1 overlaps Large storage footprint 2.
    • Not assessed: Large storage footprint 1: straight retrieval. Independent retrieval is not required by your seasonal setting; moving other items may be necessary.
    • Not assessed: Large storage footprint 2: straight retrieval. Independent retrieval is not required by your seasonal setting; moving other items may be necessary.
    All evaluated checks (12)
    • Pass with these inputs: Large storage footprint: clear door width. 60 in width + 2 in each side; 64 in clear opening.
    • Pass with these inputs: Large storage footprint: clear door height. 20 in item height; 78 in clear opening. No tilt is modeled.
    • Pass with these inputs: Large storage footprint: interior height. 20 in overall height; 84 in stated usable height. This does not test lifting or overhead working space.
    • Pass with these inputs: Large storage footprint: clear door width. 60 in width + 2 in each side; 64 in clear opening.
    • Pass with these inputs: Large storage footprint: clear door height. 20 in item height; 78 in clear opening. No tilt is modeled.
    • Pass with these inputs: Large storage footprint: interior height. 20 in overall height; 84 in stated usable height. This does not test lifting or overhead working space.
    • Pass with these inputs: Large storage footprint 1: floor boundary. The complete footprint is within the stated interior.
    • Needs a change: Objects overlap. Large storage footprint 1 overlaps Large storage footprint 2.
    • Pass with these inputs: Large storage footprint 2: floor boundary. The complete footprint is within the stated interior.
    • Pass with these inputs: Clear opening position. The opening is within the stated front wall.
    • Not assessed: Large storage footprint 1: straight retrieval. Independent retrieval is not required by your seasonal setting; moving other items may be necessary.
    • Not assessed: Large storage footprint 2: straight retrieval. Independent retrieval is not required by your seasonal setting; moving other items may be necessary.

    No distinct fully checked rearrangement was found in the limited search. This does not prove all arrangements impossible.

    What changes with the same items?

    • Large storage footprint 1 / Large storage footprint 2: collision: 12×16 — Pass with these inputs; 10×12 — Needs a change. Large storage footprint 1 and Large storage footprint 2 do not overlap in this layout. Large storage footprint 1 and Large storage footprint 2 overlap in this layout.
    Inspect every input and its source

    All dimensions and positions are authored planning assumptions. Door side allowance: 2 in; walking aisle: 24 in. No manufacturer specification or user measurement is implied.

    • 2 × Large storage footprint: 60 × 100 × 20 in; seasonal access; floor; carry; 0° parked orientation.

    Case: two-large-items · authored-cases-2026-09-03. Diagram and checks: storage-fit-1. Positions chosen by the limited automatic search.

    Continue my saved project

    Reading this example does not change your project. Copying asks before replacing it. Planning only: not a structural, installation, delivery or permit approval.

    Before comparing products or quotes

    Ask for the model and version, clear interior dimensions, usable height where the equipment stands, clear door width and height, and any fixed obstructions. Record foundation, transport and installation scope separately. This page provides planning evidence, not a construction plan, cut list, load rating or permit conclusion.

    Compare DIY, kit and delivered-shed responsibilities

    Change this project?
