What actually fits in an 8×10 shed?

Screen an editable example interior, clear door opening and the same saved project state. Nominal exterior dimensions remain the only universal dimension fact.

Start with a complete project

8×10 Bench Workshop Shed →
Layout reference · A compact workshop organized around a rear bench and reserved standing space. Compare the shown 60 in bench with a longer one before adding fixed machines or more storage.
Entry and standing reservations checked; turning and individual approach unassessed.

Start with a compact bench, then test the limits of bike storage.

The 88 in example width must serve parked items and their handling routes. Four parking slots, or less floor projection from wall storage, do not establish independent retrieval.

Five checks behind this page

What does nominal area leave out?
Which shown arrangement works with these exact inputs?
Which equipment or path is the first constraint?
Does a wider or deeper candidate resolve that constraint?
What must I measure and take to a supplier before choosing?

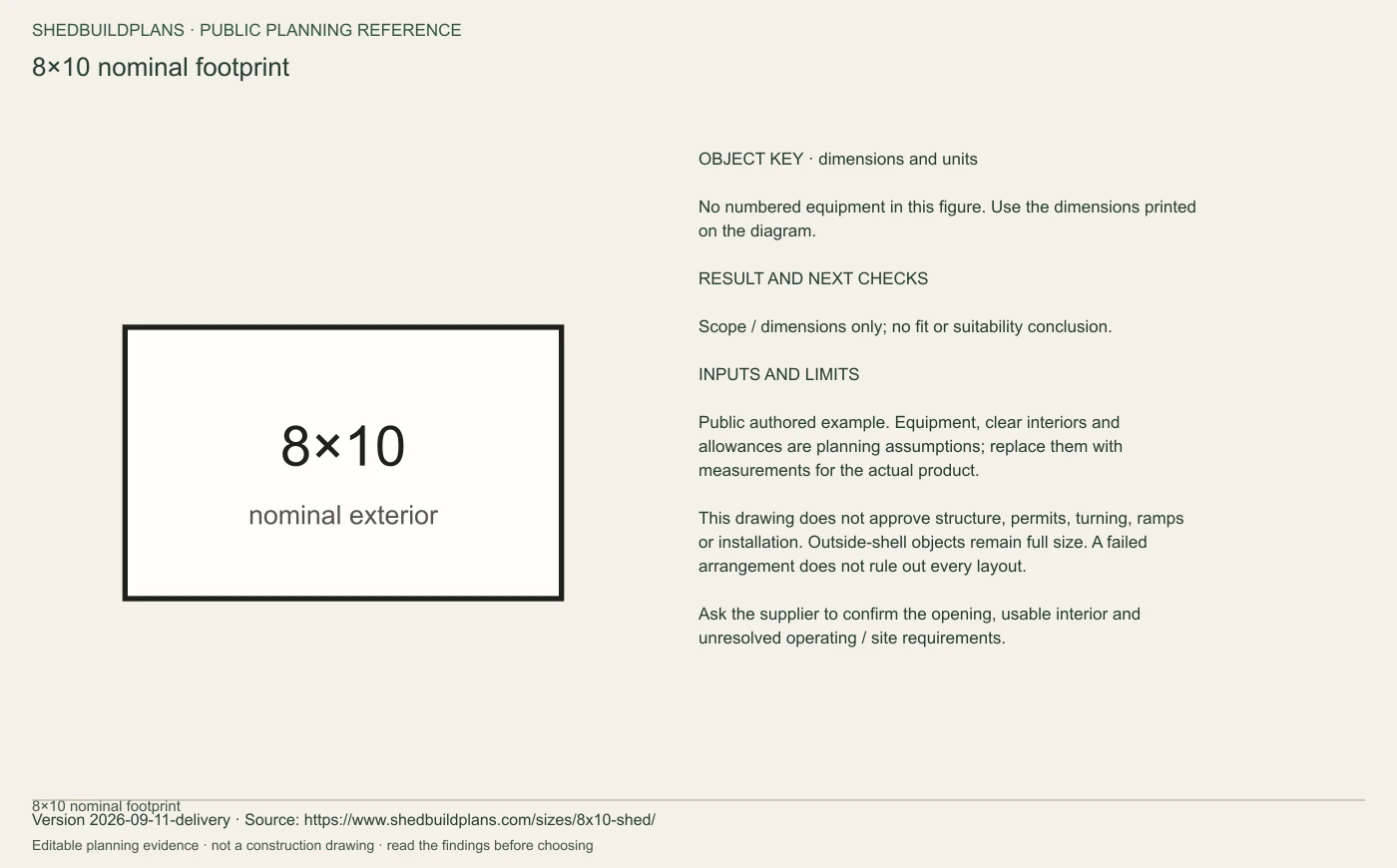

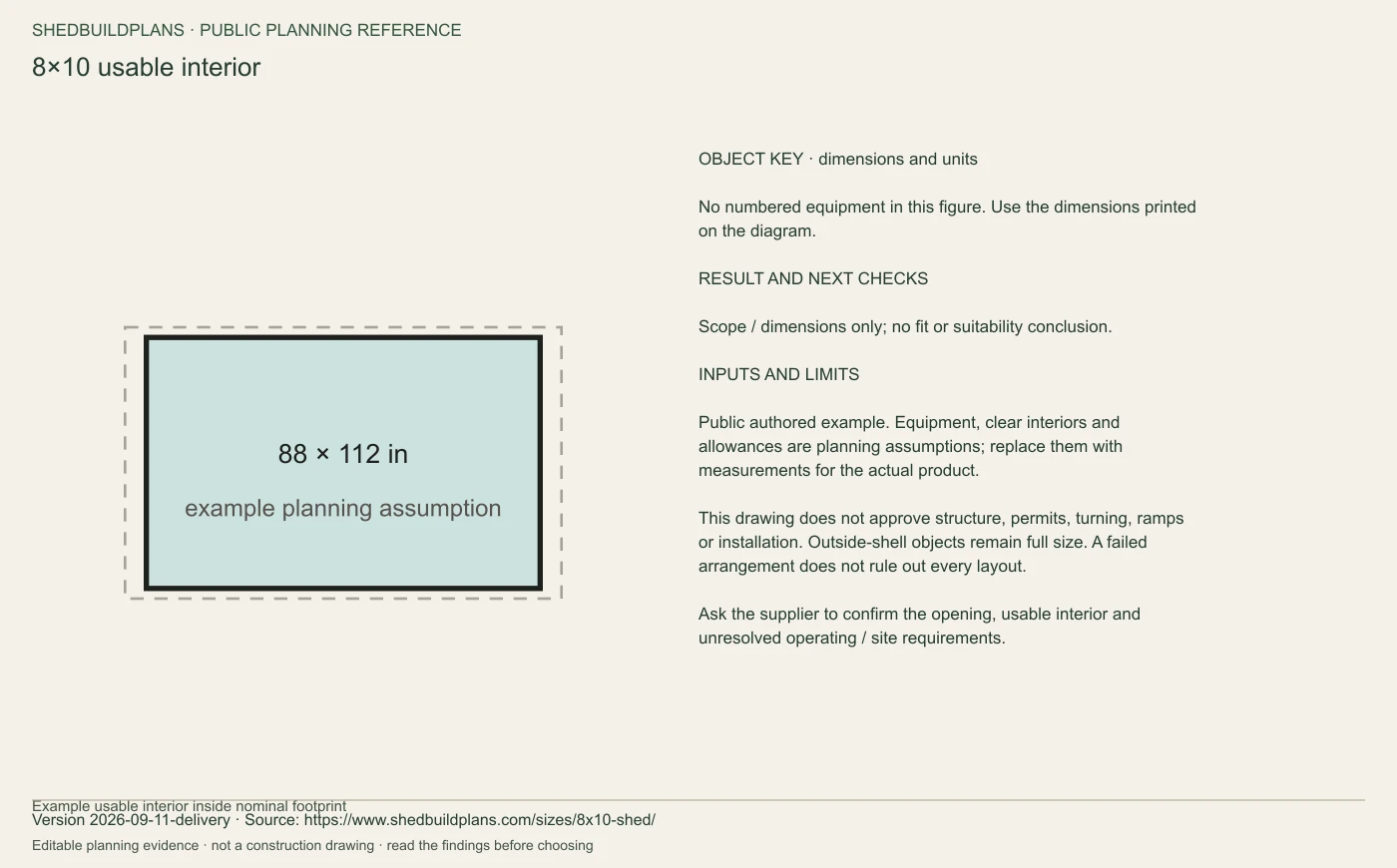

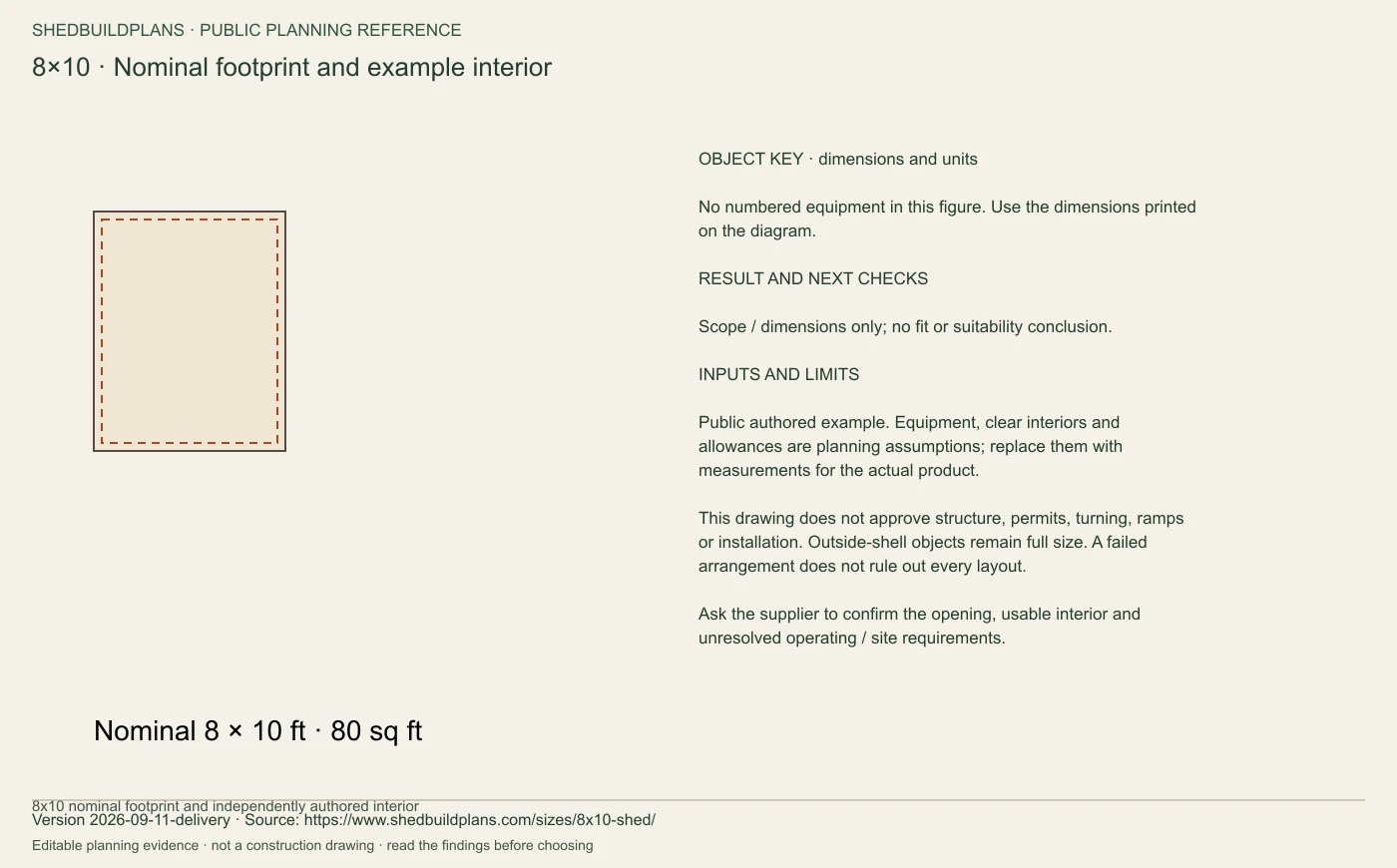

Solid: nominal footprint definition. Dashed: independently authored interior 88 × 112 in, aligned for illustration. The gap does not specify wall thickness. Usable height: 78 in; opening: 48 × 78 in. Editable planning assumptions.

Compare the reference arrangements

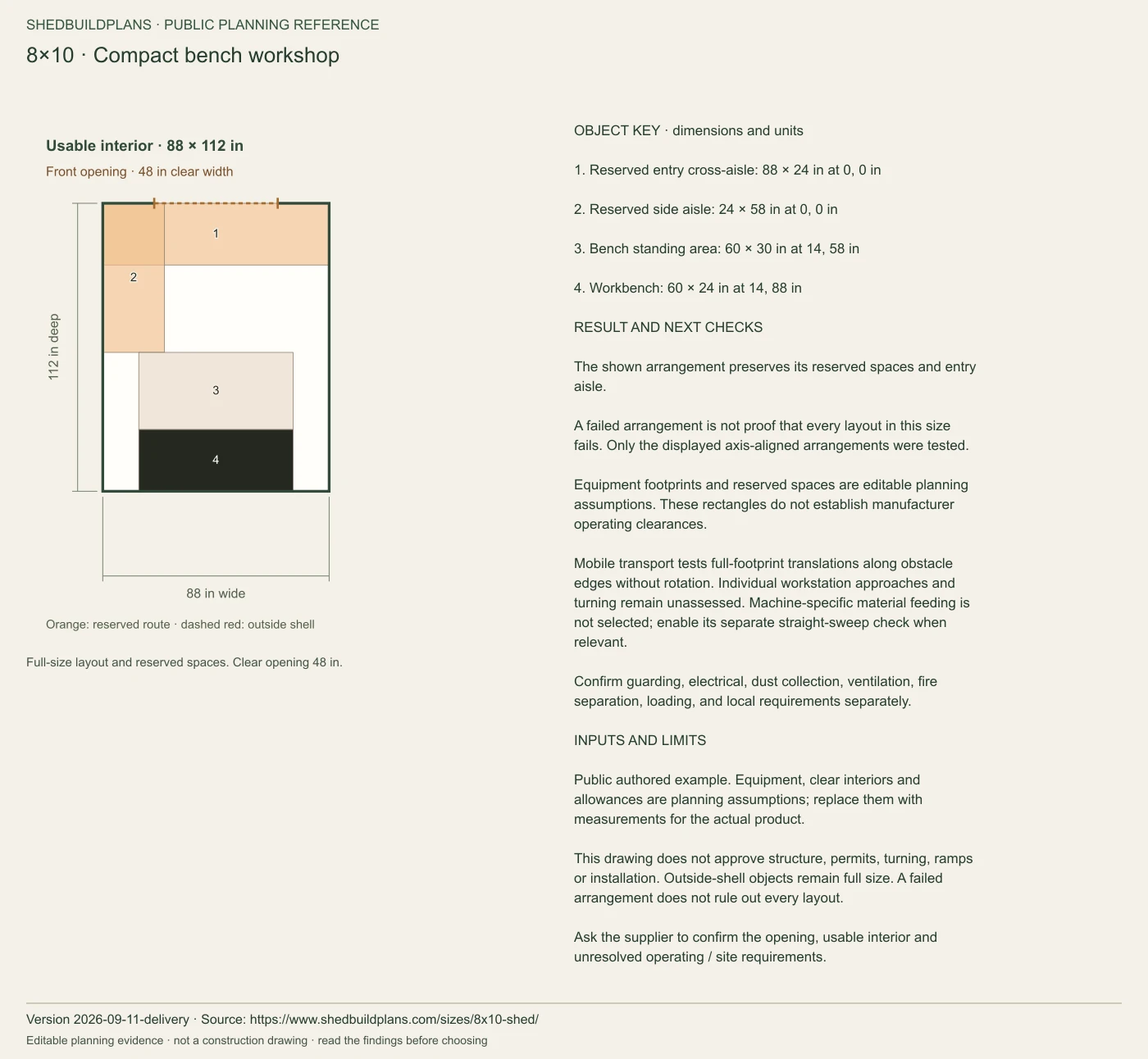

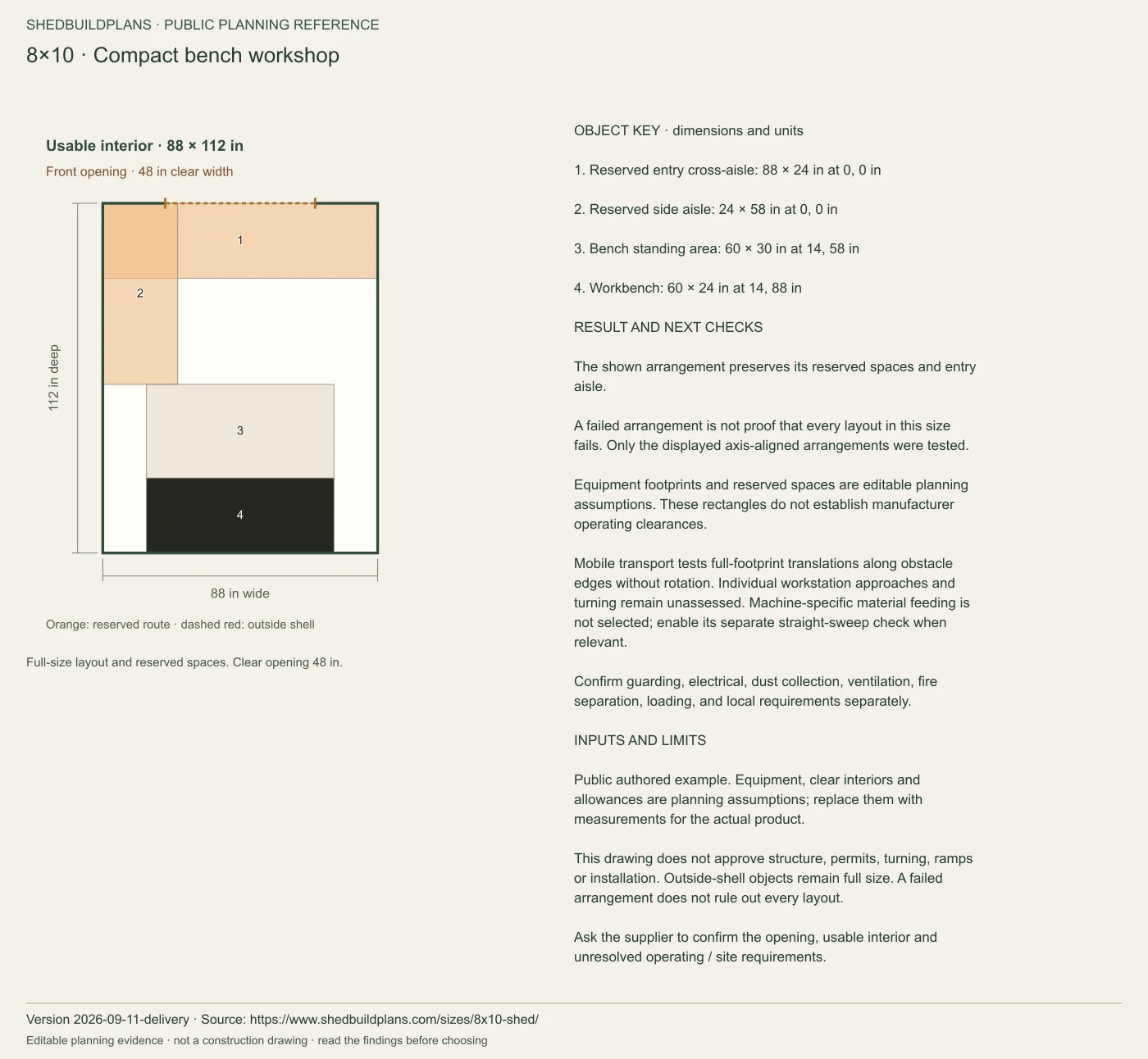

Example layout · 8×10

A bench-led repair space

Small repair and craft projects with a clear surface to work on.

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

1. Reserved entry cross-aisle: 88 × 24 in
2. Reserved side aisle: 24 × 58 in
3. Bench standing area: 60 × 30 in
4. Workbench: 60 × 24 in

The shown arrangement preserves its reserved spaces and entry aisle.

What you gain: Keeps the rear bench and standing area together, with a reserved route from the entrance.
What you give up: This reference does not reserve operating space for a floor machine. Adding one requires another check.
When to choose it: Choose this direction when the work surface matters more than permanently stationed machinery.

Example interior: 88 × 112 in. Opening: 48 in wide. All reference dimensions and allowances are planning assumptions, not product specifications.

Checks and operating states

A failed arrangement is not proof that every layout in this size fails. Only the displayed axis-aligned arrangements were tested.
Equipment footprints and reserved spaces are editable planning assumptions. These rectangles do not establish manufacturer operating clearances.
Mobile transport tests full-footprint translations along obstacle edges without rotation. Individual workstation approaches and turning remain unassessed. Machine-specific material feeding is not selected; enable its separate straight-sweep check when relevant.
Confirm guarding, electrical, dust collection, ventilation, fire separation, loading, and local requirements separately.

Before buying or building: Bring your bench dimensions, longest material and tool list to the supplier; confirm the actual door, interior and services.

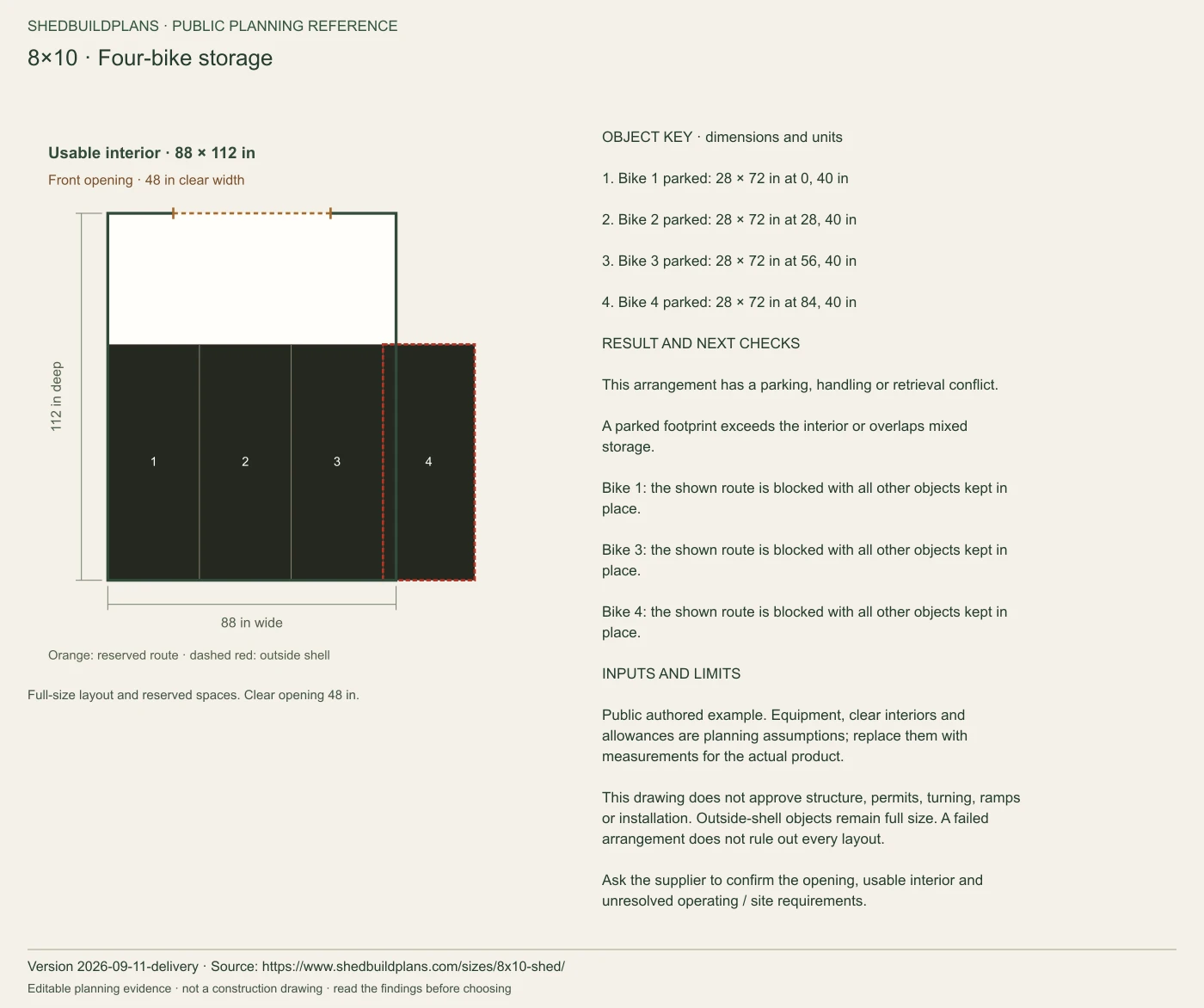

Example layout · 8×10

Four bikes along the rear wall

A larger collection with a clear staging area in front.

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

1. Bike 1 parked: 28 × 72 in
2. Bike 2 parked: 28 × 72 in
3. Bike 3 parked: 28 × 72 in
4. Bike 4 parked: 28 × 72 in — outside shell

This arrangement has a parking, handling or retrieval conflict.

What you gain: Checks every bike's translation route with the other three left in their parking positions.
What you give up: Outer bikes may require sideways movement before reaching the doorway; confirm that handling is practical.
When to choose it: Choose this direction only if the displayed handling sequence works for the users and bicycles.

A parked footprint exceeds the interior or overlaps mixed storage.
Bike 1: the shown route is blocked with all other objects kept in place.
Bike 3: the shown route is blocked with all other objects kept in place.
Bike 4: the shown route is blocked with all other objects kept in place.

Example interior: 88 × 112 in. Opening: 48 in wide. All reference dimensions and allowances are planning assumptions, not product specifications.

Checks and operating states

Full assembled rectangles and entered hardware reservations are geometric screens. Steering, balance, lifting technique and the route outside the shed are not simulated.
Wall-storage mounting capacity, fasteners, compatibility and actual lifting must be confirmed from the hardware instructions and with the user. An entered handling envelope is not a safety certification.
Sideways translation may require lifting or suitable hardware. Confirm it is practical rather than treating an open rectangle as proof of easy retrieval.

Retrieve Bike 1

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

1. Bike 1: full forward sweep: 28 × 112 in
2. Bike 1: sideways translation sweep: 58 × 72 in
3. Bike 1 parked: 28 × 72 in
4. Bike 2 parked: 28 × 72 in
5. Bike 3 parked: 28 × 72 in
6. Bike 4 parked: 28 × 72 in — outside shell

Retrieve Bike 2

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

1. Bike 2: full forward sweep: 28 × 112 in
2. Bike 1 parked: 28 × 72 in
3. Bike 2 parked: 28 × 72 in
4. Bike 3 parked: 28 × 72 in
5. Bike 4 parked: 28 × 72 in — outside shell

Retrieve Bike 3

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

1. Bike 3: full forward sweep: 28 × 112 in
2. Bike 3: sideways translation sweep: 54 × 72 in
3. Bike 1 parked: 28 × 72 in
4. Bike 2 parked: 28 × 72 in
5. Bike 3 parked: 28 × 72 in
6. Bike 4 parked: 28 × 72 in — outside shell

Retrieve Bike 4

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

1. Bike 4: full forward sweep: 28 × 112 in — outside shell
2. Bike 4: sideways translation sweep: 82 × 72 in — outside shell
3. Bike 1 parked: 28 × 72 in
4. Bike 2 parked: 28 × 72 in
5. Bike 3 parked: 28 × 72 in
6. Bike 4 parked: 28 × 72 in — outside shell

Before buying or building: Check each bike rather than counting floor slots. Add mixed storage only after locating its full footprint.

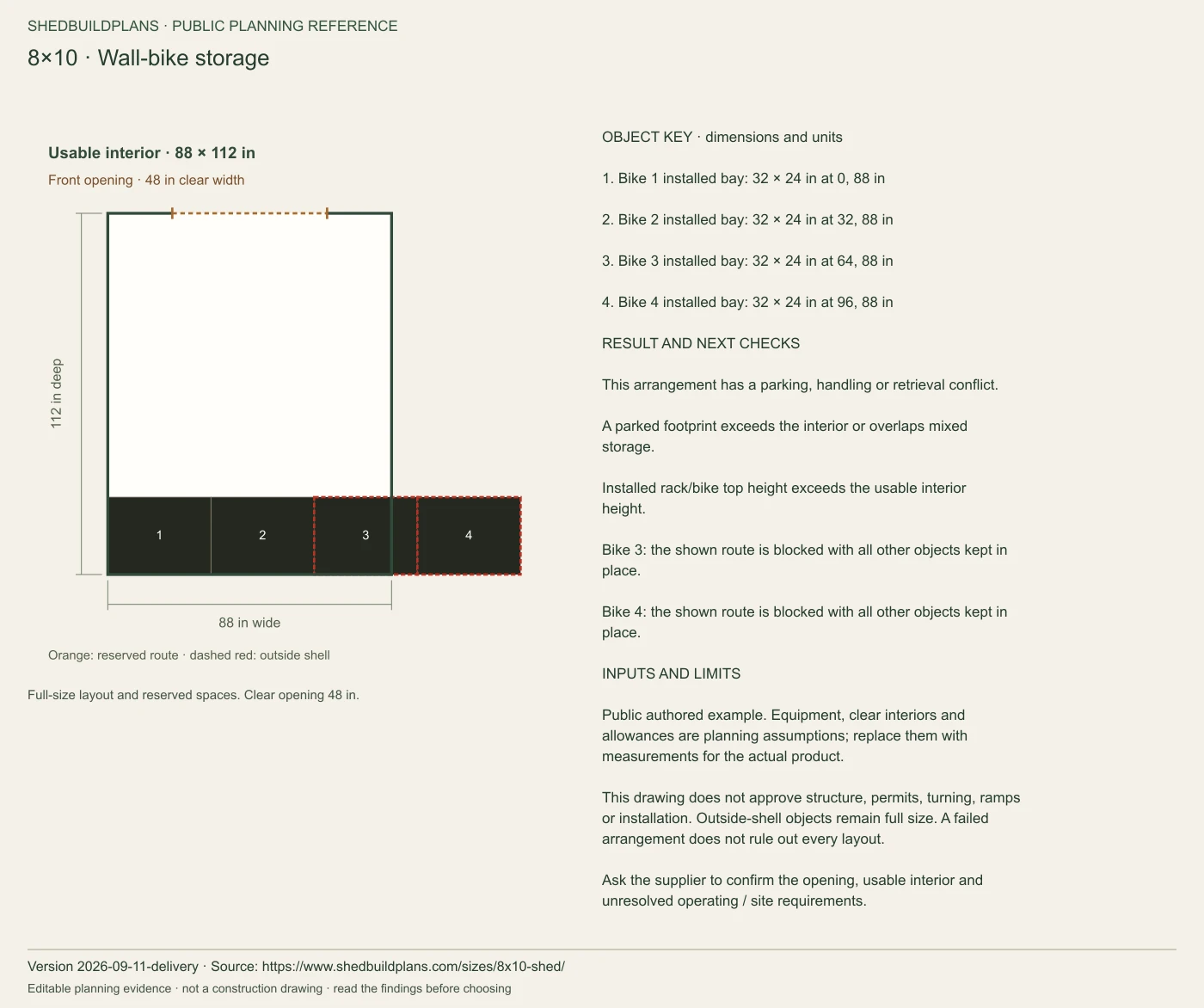

Example layout · 8×10

Wall bays with measured handling space

A household comparing installed wall storage with floor parking.

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

1. Bike 1 installed bay: 32 × 24 in
2. Bike 2 installed bay: 32 × 24 in
3. Bike 3 installed bay: 32 × 24 in — outside shell
4. Bike 4 installed bay: 32 × 24 in — outside shell

This arrangement has a parking, handling or retrieval conflict.

What you gain: Reserves the entered installed projection and a handling bay for each bicycle.
What you give up: Hardware compatibility, mounting strength and lifting remain separate checks. The entry still needs full assembled bicycle clearance.
When to choose it: Choose this direction only when the hardware and handling reservation match your actual bicycle and user.

A parked footprint exceeds the interior or overlaps mixed storage.
Installed rack/bike top height exceeds the usable interior height.
Bike 3: the shown route is blocked with all other objects kept in place.
Bike 4: the shown route is blocked with all other objects kept in place.

Example interior: 88 × 112 in. Opening: 48 in wide. All reference dimensions and allowances are planning assumptions, not product specifications.

Checks and operating states

Full assembled rectangles and entered hardware reservations are geometric screens. Steering, balance, lifting technique and the route outside the shed are not simulated.
Wall-storage mounting capacity, fasteners, compatibility and actual lifting must be confirmed from the hardware instructions and with the user. An entered handling envelope is not a safety certification.
Sideways translation may require lifting or suitable hardware. Confirm it is practical rather than treating an open rectangle as proof of easy retrieval.

Retrieve Bike 1 from the installed wall bay

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

1. Bike 1: full forward sweep: 28 × 88 in
2. Bike 1: installed-hardware handling reservation: 32 × 76 in
3. Bike 1: sideways translation sweep: 56 × 72 in
4. Bike 1 installed bay: 32 × 24 in
5. Bike 2 installed bay: 32 × 24 in
6. Bike 3 installed bay: 32 × 24 in — outside shell
7. Bike 4 installed bay: 32 × 24 in — outside shell

Retrieve Bike 2 from the installed wall bay

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

1. Bike 2: full forward sweep: 28 × 88 in
2. Bike 2: installed-hardware handling reservation: 32 × 76 in
3. Bike 1 installed bay: 32 × 24 in
4. Bike 2 installed bay: 32 × 24 in
5. Bike 3 installed bay: 32 × 24 in — outside shell
6. Bike 4 installed bay: 32 × 24 in — outside shell

Retrieve Bike 3 from the installed wall bay

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

1. Bike 3: full forward sweep: 28 × 88 in — outside shell
2. Bike 3: installed-hardware handling reservation: 32 × 76 in — outside shell
3. Bike 3: sideways translation sweep: 64 × 72 in — outside shell
4. Bike 1 installed bay: 32 × 24 in
5. Bike 2 installed bay: 32 × 24 in
6. Bike 3 installed bay: 32 × 24 in — outside shell
7. Bike 4 installed bay: 32 × 24 in — outside shell

Retrieve Bike 4 from the installed wall bay

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

1. Bike 4: full forward sweep: 28 × 88 in — outside shell
2. Bike 4: installed-hardware handling reservation: 32 × 76 in — outside shell
3. Bike 4: sideways translation sweep: 96 × 72 in — outside shell
4. Bike 1 installed bay: 32 × 24 in
5. Bike 2 installed bay: 32 × 24 in
6. Bike 3 installed bay: 32 × 24 in — outside shell
7. Bike 4 installed bay: 32 × 24 in — outside shell

Before buying or building: Confirm installed measurements and practice the lift with the actual equipment before choosing.

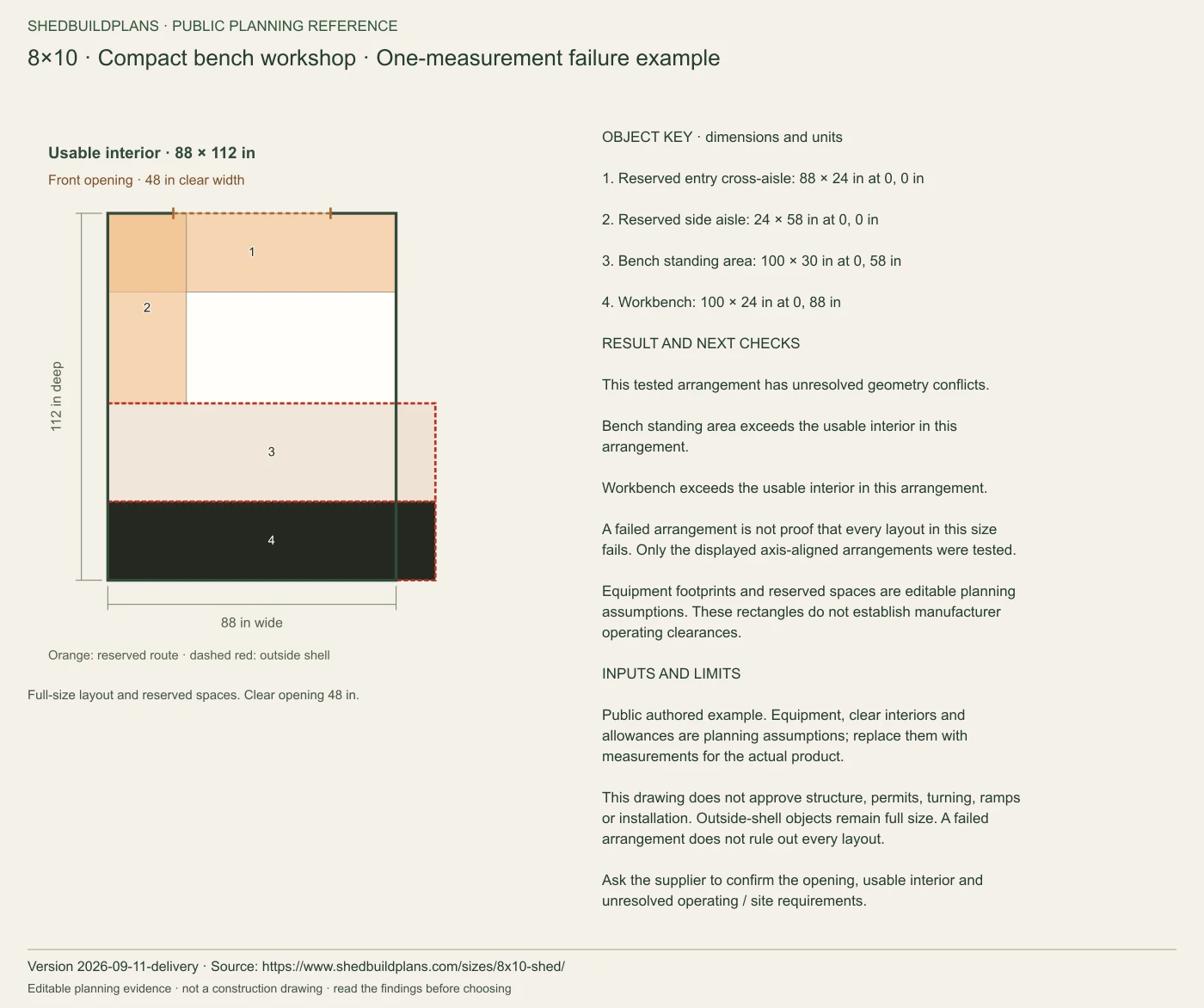

Where this candidate stops working

Only the bench length changes to 100 in, beyond the usable rear wall.

Bench standing area exceeds the usable interior in this arrangement.
Workbench exceeds the usable interior in this arrangement.

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

1. Reserved entry cross-aisle: 88 × 24 in
2. Reserved side aisle: 24 × 58 in
3. Bench standing area: 100 × 30 in — outside shell
4. Workbench: 100 × 24 in — outside shell

Change one measurement

Find the condition that changes the answer.

Start with a deliberately failing example, then restore the reference or try your own value. Only workbench length changes; the other equipment, allowances and shed dimensions stay fixed.

Workbench length (in)

This experiment is separate from your saved project. Its inputs are planning assumptions, not a product specification or a universal threshold.

This tested arrangement has unresolved geometry conflicts.

Bench standing area exceeds the usable interior in this arrangement.
Workbench exceeds the usable interior in this arrangement.

A bench that exceeds the rear wall needs a shorter bench or a wider usable interior. Extra shed depth alone does not extend that wall.

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

1. Reserved entry cross-aisle: 88 × 24 in
2. Reserved side aisle: 24 × 58 in
3. Bench standing area: 100 × 30 in — outside shell
4. Workbench: 100 × 24 in — outside shell

See how to measure and revise this requirement

Worked example · not a measured product or customer story

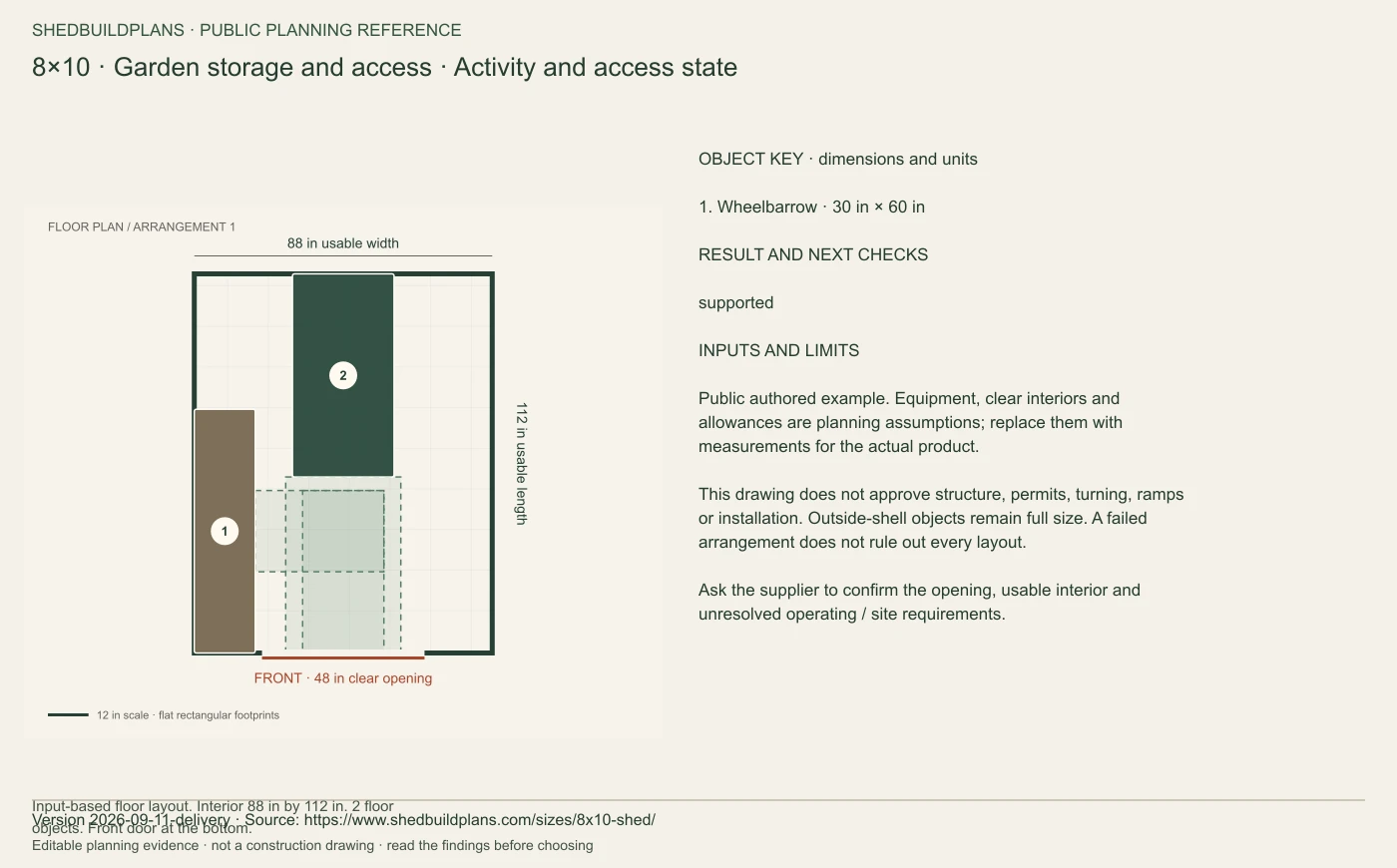

Garden tools and a wheelbarrow need separate approaches

This editable garden example uses the catalogue's 30 × 60 × 28 in wheelbarrow and 18 × 72 × 72 in standing shelf. Tools occupy the shelf; wall mounting and unspecified long-tool handling remain unassessed. Inspect the wheelbarrow exit and shelf approach independently.

8×10 example

Modeled checks pass

1. Storage shelf
2. Wheelbarrow

Numbers identify the objects in this legend. Dashed regions show the paths actually checked. Turning, ramps, thresholds and structural capacity are not assessed.

Usable interior: 88 × 112 × 78 in. Clear opening: 48 × 78 in; centered by assumption.

The floor, opening and selected paths pass for this example only. Actual products and unmodeled movements still need verification.

All evaluated checks (12)

Pass with these inputs: Storage shelf: clear door width. 18 in width + 2 in each side; 48 in clear opening.
Pass with these inputs: Storage shelf: clear door height. 72 in item height; 78 in clear opening. No tilt is modeled.
Pass with these inputs: Storage shelf: interior height. 72 in overall height; 78 in stated usable height. This does not test lifting or overhead working space.
Pass with these inputs: Wheelbarrow: clear door width. 30 in width + 2 in each side; 48 in clear opening.
Pass with these inputs: Wheelbarrow: clear door height. 28 in item height; 78 in clear opening. No tilt is modeled.
Pass with these inputs: Wheelbarrow: interior height. 28 in overall height; 78 in stated usable height. This does not test lifting or overhead working space.
Pass with these inputs: Storage shelf: floor boundary. The complete footprint is within the stated interior.
Pass with these inputs: Storage shelf: wall preference. You chose the left wall.
Pass with these inputs: Wheelbarrow: floor boundary. The complete footprint is within the stated interior.
Pass with these inputs: Clear opening position. The opening is within the stated front wall.
Pass with these inputs: Storage shelf: walking approach. The selected 24 in walking aisle reaches this shelf/work surface without crossing a floor object. Reach, assembly and load capacity are not assessed.
Pass with these inputs: Wheelbarrow: straight retrieval. The stated straight sweep to the clear opening contains no other floor object. Turning, thresholds and ramps are not checked.

A distinct checked arrangement is available after copying this example to the workbench.

Inspect every input and its source

All dimensions and positions are authored planning assumptions. Door side allowance: 2 in; walking aisle: 24 in. No manufacturer specification or user measurement is implied.

1 × Storage shelf: 18 × 72 × 72 in; occasional access; shelf; fixed; 0° parked orientation.
1 × Wheelbarrow: 30 × 60 × 28 in; occasional access; floor; roll; 0° parked orientation.

Case: garden-access · authored-cases-2026-09-03. Diagram and checks: storage-fit-1. Positions chosen by the limited automatic search.

Continue my saved project

Reading this example does not change your project. Copying asks before replacing it. Planning only: not a structural, installation, delivery or permit approval.

Worked example · not a measured product or customer story

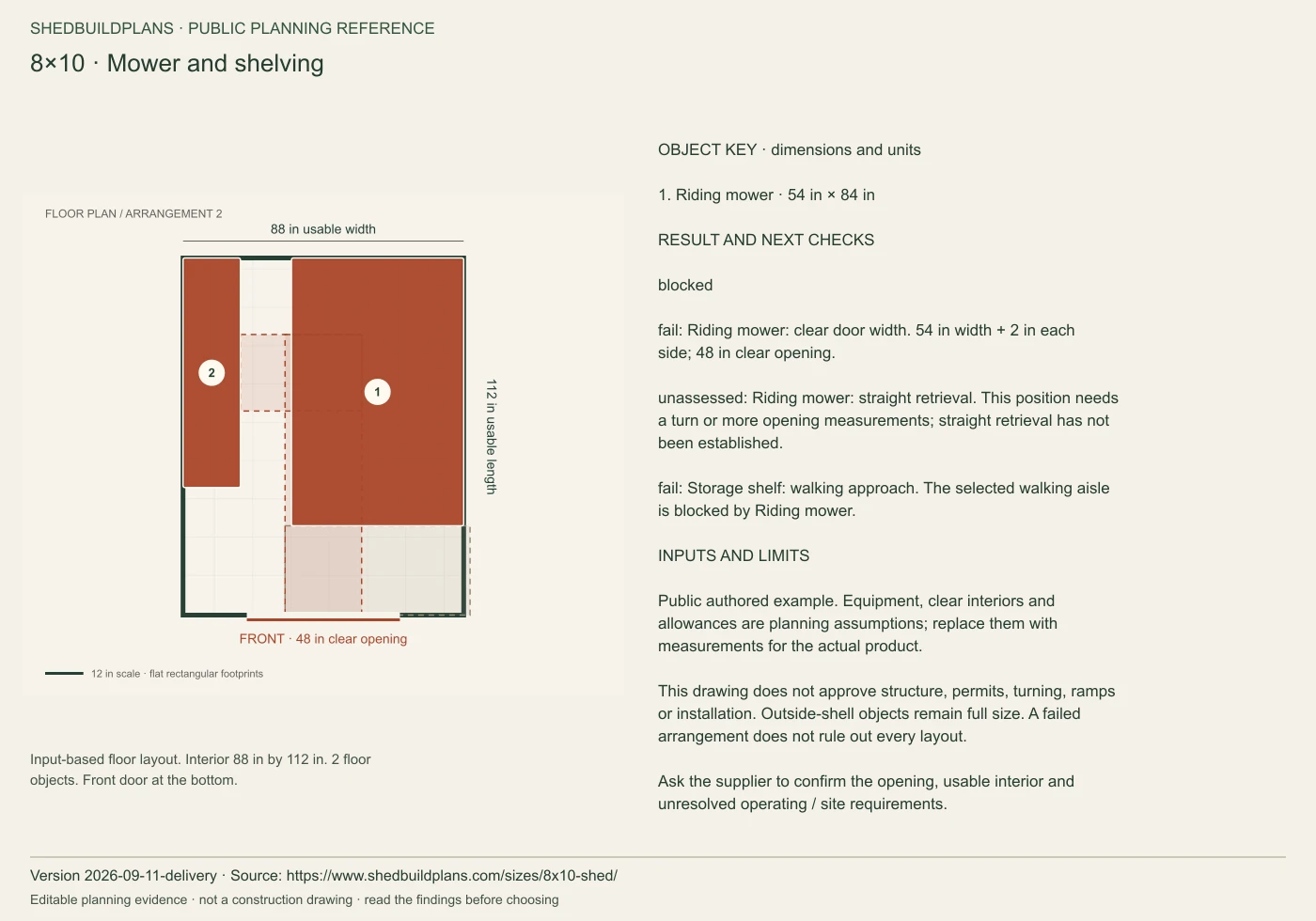

A mower and a shelf: start with the actual footprints

This authored example uses a 54 × 84 × 48 in mower and an 18 × 72 × 72 in standing shelf. Check the selected straight mower path and walking approach separately. The result does not reserve space for unspecified future items.

8×10 example

This layout needs a change

1. Riding mower
2. Storage shelf

Numbers identify the objects in this legend. Dashed regions show the paths actually checked. Turning, ramps, thresholds and structural capacity are not assessed.

Usable interior: 88 × 112 × 78 in. Clear opening: 48 × 78 in; centered by assumption.

Needs a change: Riding mower: clear door width. 54 in width + 2 in each side; 48 in clear opening.
Needs a change: Storage shelf: walking approach. The selected walking aisle is blocked by Riding mower.
Not assessed: Riding mower: straight retrieval. This position needs a turn or more opening measurements; straight retrieval has not been established.

All evaluated checks (12)

Needs a change: Riding mower: clear door width. 54 in width + 2 in each side; 48 in clear opening.
Pass with these inputs: Riding mower: clear door height. 48 in item height; 78 in clear opening. No tilt is modeled.
Pass with these inputs: Riding mower: interior height. 48 in overall height; 78 in stated usable height. This does not test lifting or overhead working space.
Pass with these inputs: Storage shelf: clear door width. 18 in width + 2 in each side; 48 in clear opening.
Pass with these inputs: Storage shelf: clear door height. 72 in item height; 78 in clear opening. No tilt is modeled.
Pass with these inputs: Storage shelf: interior height. 72 in overall height; 78 in stated usable height. This does not test lifting or overhead working space.
Pass with these inputs: Riding mower: floor boundary. The complete footprint is within the stated interior.
Pass with these inputs: Storage shelf: floor boundary. The complete footprint is within the stated interior.
Pass with these inputs: Storage shelf: wall preference. You chose the left wall.
Pass with these inputs: Clear opening position. The opening is within the stated front wall.
Not assessed: Riding mower: straight retrieval. This position needs a turn or more opening measurements; straight retrieval has not been established.
Needs a change: Storage shelf: walking approach. The selected walking aisle is blocked by Riding mower.

No distinct fully checked rearrangement was found in the limited search. This does not prove all arrangements impossible.

Inspect every input and its source

All dimensions and positions are authored planning assumptions. Door side allowance: 2 in; walking aisle: 24 in. No manufacturer specification or user measurement is implied.

1 × Riding mower: 54 × 84 × 48 in; frequent access; floor; roll; 0° parked orientation.
1 × Storage shelf: 18 × 72 × 72 in; occasional access; shelf; fixed; 0° parked orientation.

Case: mower-shelf · authored-cases-2026-09-03. Diagram and checks: storage-fit-1. Positions chosen by the limited automatic search.

Continue my saved project

Reading this example does not change your project. Copying asks before replacing it. Planning only: not a structural, installation, delivery or permit approval.

Same arrangement: 8×10 and 10×12

Equipment, activities and allowances are identical. The authored shell dimensions and opening can differ. The drawings use one scale, including full-size items that cannot be placed. Positions can change as the bounded layout search uses the available space.

8×10

Example interior 88 × 112 in; clear door 48 × 78 in.

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

1. Reserved entry cross-aisle: 88 × 24 in
2. Reserved side aisle: 24 × 58 in
3. Bench standing area: 60 × 30 in
4. Workbench: 60 × 24 in

The shown arrangement preserves its reserved spaces and entry aisle.

A failed arrangement is not proof that every layout in this size fails. Only the displayed axis-aligned arrangements were tested.
Equipment footprints and reserved spaces are editable planning assumptions. These rectangles do not establish manufacturer operating clearances.

10×12

Example interior 112 × 136 in; clear door 64 × 78 in.

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

1. Reserved entry cross-aisle: 112 × 24 in
2. Reserved side aisle: 24 × 82 in
3. Bench standing area: 60 × 30 in
4. Workbench: 60 × 24 in

The shown arrangement preserves its reserved spaces and entry aisle.

A failed arrangement is not proof that every layout in this size fails. Only the displayed axis-aligned arrangements were tested.
Equipment footprints and reserved spaces are editable planning assumptions. These rectangles do not establish manufacturer operating clearances.

Moving from the first example to the second changes usable width by 24 in, depth by 24 in and clear door width by 16 in. These differences belong to these examples. Obtain actual product measurements before choosing.

A changed result applies to the shown arrangement only. A different layout may work; a larger candidate can still fail a doorway, site or budget check.

Download the authored reference diagrams

Version 2026-09-11-delivery. These files reproduce the public examples, including failed arrangements. Your private measurements are only included when you generate your own brief.

Figure 1 · 8×10 · Nominal footprint and example interiorSVG WebP
Figure 2 · 8×10 · Compact bench workshopSVG WebP
Figure 3 · 8×10 · Four-bike storageSVG WebP
Figure 4 · 8×10 · Wall-bike storageSVG WebP
Figure 5 · 8×10 · Compact bench workshop · One-measurement failure exampleSVG WebP
Figure 6 · 8×10 · Compact bench workshop · One-measurement failure exampleSVG WebP
Figure 7 · 8×10 · Garden storage and access · Activity and access stateSVG WebP
Figure 8 · 8×10 · Mower and shelvingSVG WebP
Figure 9 · 8×10 · Compact bench workshopSVG WebP
Figure 10 · 10×12 · Compact bench workshopSVG WebP
Figure 11 · 8×10 nominal footprintSVG WebP
Figure 12 · 8×10 usable interiorSVG WebP
Figure 13 · 8×10 door accessSVG WebP
Figure 14 · 8×10 yard envelopeSVG WebP

Test my saved project in this size

Decision questions

01What is the nominal footprint?
02What usable interior and clear opening will the actual shed provide?
03Which current objects and paths must fit?
04Which nearby size changes the relevant constraint?
05Will the selected footprint fit the yard and access route?

Example planning shell

Nominal 8×10 is a footprint definition, not an interior promise.

Interior space and clear door opening vary by shed design and manufacturer. These are editable example planning assumptions; replace them with the measurements from the shed you are considering.

Example planning shell

Nominal size is not usable interior size.

8×10 is a nominal exterior size. The values below are editable example planning assumptions, not a claim about every shed of this size.

Example / your interior widthinExample / your interior lengthinExample / your interior heightinExample / your clear door widthMeasure the unobstructed passage, not the door panel.inExample / your clear door heightin

Deterministic planning evidence

Four questions before a nominal size becomes a decision.

Every diagram is calculated from nominal definition plus the saved example or user measurements. They are not manufacturer drawings.

S-8x10-nominal-footprint

Nominal footprint

What nominal footprint is being compared?

S-8x10-usable-interior

Usable interior

What usable space are you actually testing?

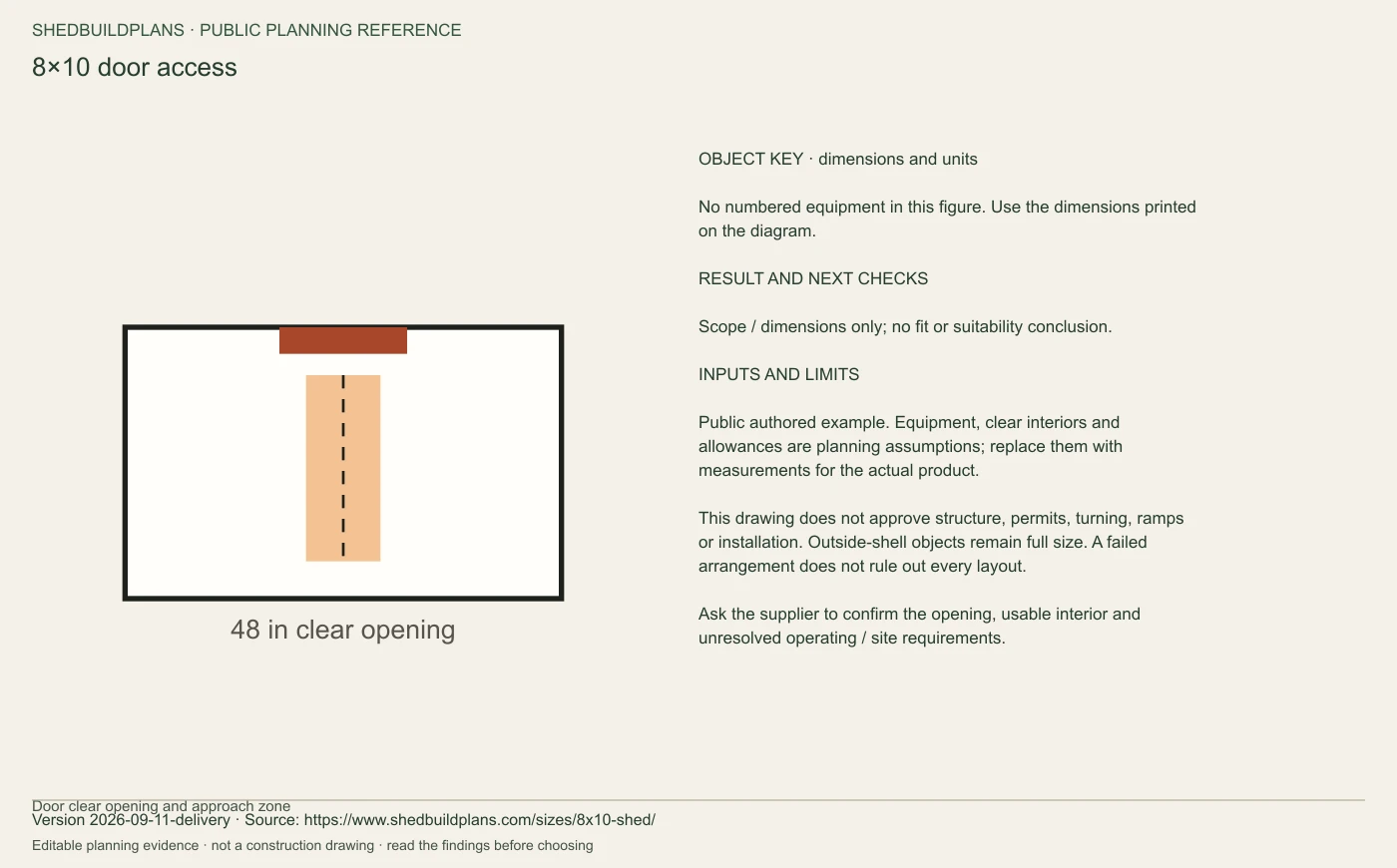

S-8x10-door-access

Clear door, clear path

Can the measured clear opening support the stated approach?

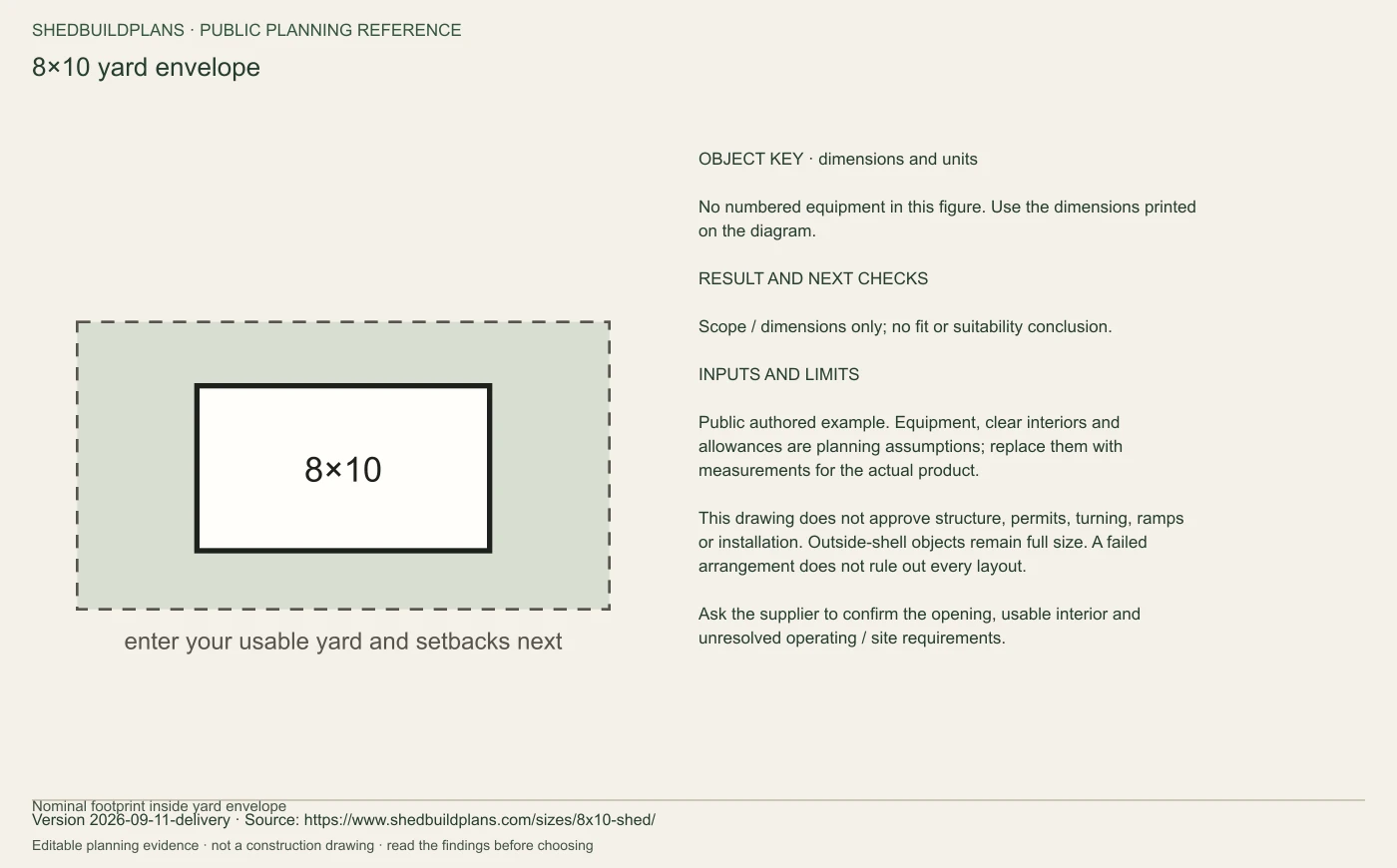

S-8x10-yard-envelope

Yard envelope

Can the chosen footprint sit within the stated yard envelope?

Nominal dimension, example planning assumption and your measurement remain separate throughout this project.

Primary layout and access proof

Show the selected use inside this size.

This layout needs a change

Includes example or unconfirmed measurements

1. Riding mower
2. Storage shelf

Numbers identify the objects in this legend. Dashed regions show the paths actually checked. Turning, ramps, thresholds and structural capacity are not assessed.

Needs a change
Riding mower: clear door width
54 in width + 2 in each side; 48 in clear opening.
Confirm the widest overall item dimension and the actual clear opening.
Needs a change
Storage shelf: walking approach
The selected walking aisle is blocked by Riding mower.
Change the shelf position, its service wall or the chosen walking-aisle width.
Not assessed
Yard tools: wall storage
Wall-mounted geometry, mounting, projection and retrieval have not been evaluated. This item is not included as usable floor capacity.
Use a measured floor footprint, or verify this storage system separately.
Not assessed
Riding mower: straight retrieval
This position needs a turn or more opening measurements; straight retrieval has not been established.
Move the blocking item, align with the opening, or confirm a different route yourself.

See 9 passing checks and their inputs

Pass with these inputs
Riding mower: clear door height
48 in item height; 78 in clear opening. No tilt is modeled.
Pass with these inputs
Riding mower: interior height
48 in overall height; 78 in stated usable height. This does not test lifting or overhead working space.
Pass with these inputs
Storage shelf: clear door width
18 in width + 2 in each side; 48 in clear opening.
Pass with these inputs
Storage shelf: clear door height
72 in item height; 78 in clear opening. No tilt is modeled.
Pass with these inputs
Storage shelf: interior height
72 in overall height; 78 in stated usable height. This does not test lifting or overhead working space.
Pass with these inputs
Riding mower: floor boundary
The complete footprint is within the stated interior.
Pass with these inputs
Storage shelf: floor boundary
The complete footprint is within the stated interior.
Pass with these inputs
Storage shelf: wall preference
You chose the left wall.
Pass with these inputs
Clear opening position
The opening is within the stated front wall.

Fit and capacity

Compare this shell with the same saved project.

8×10

Nominal exterior size

This layout needs a change

Placement: 1 need checking
Clear opening: 1 need a change
Selected retrieval paths: 1 need a change

54 in width + 2 in each side; 48 in clear opening.

Includes example or unconfirmed measurements

My reason for this candidate

Draft reason stays in this browser. Confirm a choice to include it as a decision.

10×12

Nominal exterior size

Details still need checking

Placement: 1 need checking
Clear opening: Modeled checks pass
Selected retrieval paths: Modeled checks pass

Wall-mounted geometry, mounting, projection and retrieval have not been evaluated. This item is not included as usable floor capacity.

Includes example or unconfirmed measurements

My reason for this candidate

Draft reason stays in this browser. Confirm a choice to include it as a decision.

10×10

Nominal exterior size

This layout needs a change

Placement: 1 need checking
Clear opening: Modeled checks pass
Selected retrieval paths: 1 need a change

The selected walking aisle is blocked by Riding mower.

Includes example or unconfirmed measurements

My reason for this candidate

Draft reason stays in this browser. Confirm a choice to include it as a decision.

12×16

Nominal exterior size

Details still need checking

Placement: 1 need checking
Clear opening: Modeled checks pass
Selected retrieval paths: Modeled checks pass

Wall-mounted geometry, mounting, projection and retrieval have not been evaluated. This item is not included as usable floor capacity.

Includes example or unconfirmed measurements

My reason for this candidate

Draft reason stays in this browser. Confirm a choice to include it as a decision.

8×12

Nominal exterior size

This layout needs a change

Placement: 1 need checking
Clear opening: 1 need a change
Selected retrieval paths: 1 need checking

54 in width + 2 in each side; 48 in clear opening.

Includes example or unconfirmed measurements

My reason for this candidate

Draft reason stays in this browser. Confirm a choice to include it as a decision.

12×12

Nominal exterior size

Details still need checking

Placement: 1 need checking
Clear opening: Modeled checks pass
Selected retrieval paths: Modeled checks pass

Wall-mounted geometry, mounting, projection and retrieval have not been evaluated. This item is not included as usable floor capacity.

Includes example or unconfirmed measurements

My reason for this candidate

Draft reason stays in this browser. Confirm a choice to include it as a decision.

10×20

Nominal exterior size

Details still need checking

Placement: 1 need checking
Clear opening: Modeled checks pass
Selected retrieval paths: Modeled checks pass

Wall-mounted geometry, mounting, projection and retrieval have not been evaluated. This item is not included as usable floor capacity.

Includes example or unconfirmed measurements

My reason for this candidate

Draft reason stays in this browser. Confirm a choice to include it as a decision.

12×20

Nominal exterior size

Details still need checking

Placement: 1 need checking
Clear opening: Modeled checks pass
Selected retrieval paths: Modeled checks pass

Wall-mounted geometry, mounting, projection and retrieval have not been evaluated. This item is not included as usable floor capacity.

Includes example or unconfirmed measurements

My reason for this candidate

Draft reason stays in this browser. Confirm a choice to include it as a decision.

A planning pass does not verify a manufacturer model, loading, construction, permits, installation, delivery or local siting.

Check my selected footprint in the yard Plan with your full use case

What actually fits in an 8×10 shed?

Start with a complete project

Start with a compact bench, then test the limits of bike storage.

Compare the reference arrangements

A bench-led repair space

Four bikes along the rear wall

Wall bays with measured handling space

Where this candidate stops working

Find the condition that changes the answer.

Garden tools and a wheelbarrow need separate approaches

8×10 example

A mower and a shelf: start with the actual footprints

8×10 example

Same arrangement: 8×10 and 10×12

Nominal 8×10 is a footprint definition, not an interior promise.

Nominal size is not usable interior size.

Four questions before a nominal size becomes a decision.

Nominal footprint

Usable interior

Clear door, clear path

Yard envelope

Show the selected use inside this size.

Riding mower: clear door width

Storage shelf: walking approach

Yard tools: wall storage

Riding mower: straight retrieval

Riding mower: clear door height

Riding mower: interior height

Storage shelf: clear door width

Storage shelf: clear door height

Storage shelf: interior height

Riding mower: floor boundary

Storage shelf: floor boundary

Storage shelf: wall preference

Clear opening position

Compare this shell with the same saved project.

8×10

10×12

10×10

12×16

8×12

12×12

10×20

12×20
