8×12 vs 10×12: what does the extra space change?

Keep the equipment and activities fixed. Compare usable width, depth and openings before committing to more nominal area.

Plan with my measurementsCompare reference sizes

With the same example depth, what does an extra 24 in of width change?

Same arrangement: 8×12 and 10×12

Equipment, activities and allowances are identical. The authored shell dimensions and opening can differ. The drawings use one scale, including full-size items that cannot be placed. Positions can change as the bounded layout search uses the available space.

8×12

Example interior 88 × 136 in; clear door 48 × 78 in.

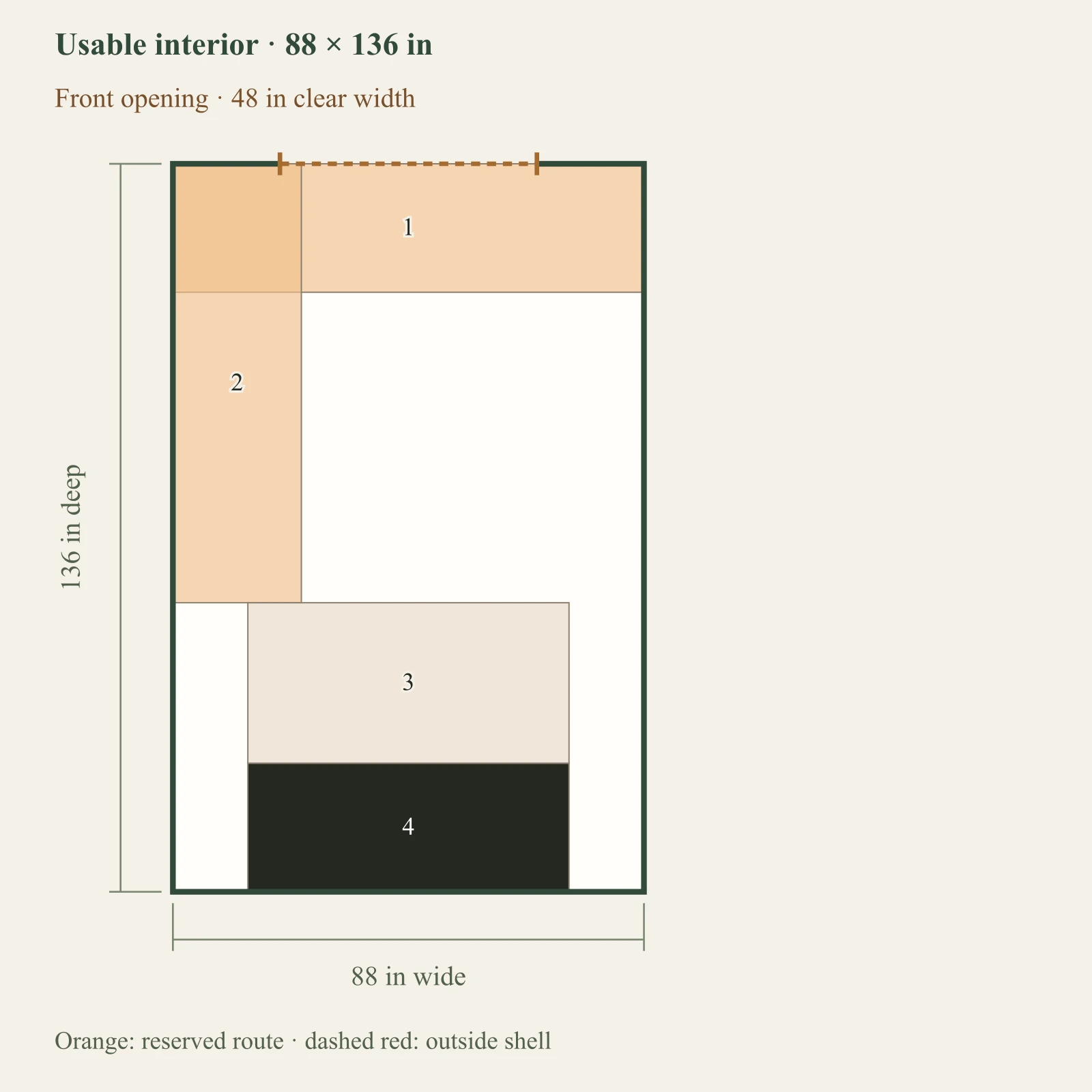

Full-size layout and reserved spacesFull-size footprints with a 24 in entry/side aisle and 30 in bench standing depth. Each mobile deployment and its orthogonal routes are tested with other parked positions unchanged. Staging is screened along the lengthwise axis; turning, actual machine feed points and manufacturer operating instructions require separate confirmation. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Reserved entry cross-aisle: 88 × 24 in at 0, 0 inReserved side aisle: 24 × 82 in at 0, 0 inBench standing area: 60 × 30 in at 14, 82 inWorkbench: 60 × 24 in at 14, 112 in1234Usable interior · 88 × 136 inFront opening · 48 in clear width88 in wide136 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Reserved entry cross-aisle: 88 × 24 in
  2. 2. Reserved side aisle: 24 × 82 in
  3. 3. Bench standing area: 60 × 30 in
  4. 4. Workbench: 60 × 24 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

The shown arrangement preserves its reserved spaces and entry aisle.

  • A failed arrangement is not proof that every layout in this size fails. Only the displayed axis-aligned arrangements were tested.
  • Equipment footprints and reserved spaces are editable planning assumptions. These rectangles do not establish manufacturer operating clearances.
10×12

Example interior 112 × 136 in; clear door 64 × 78 in.

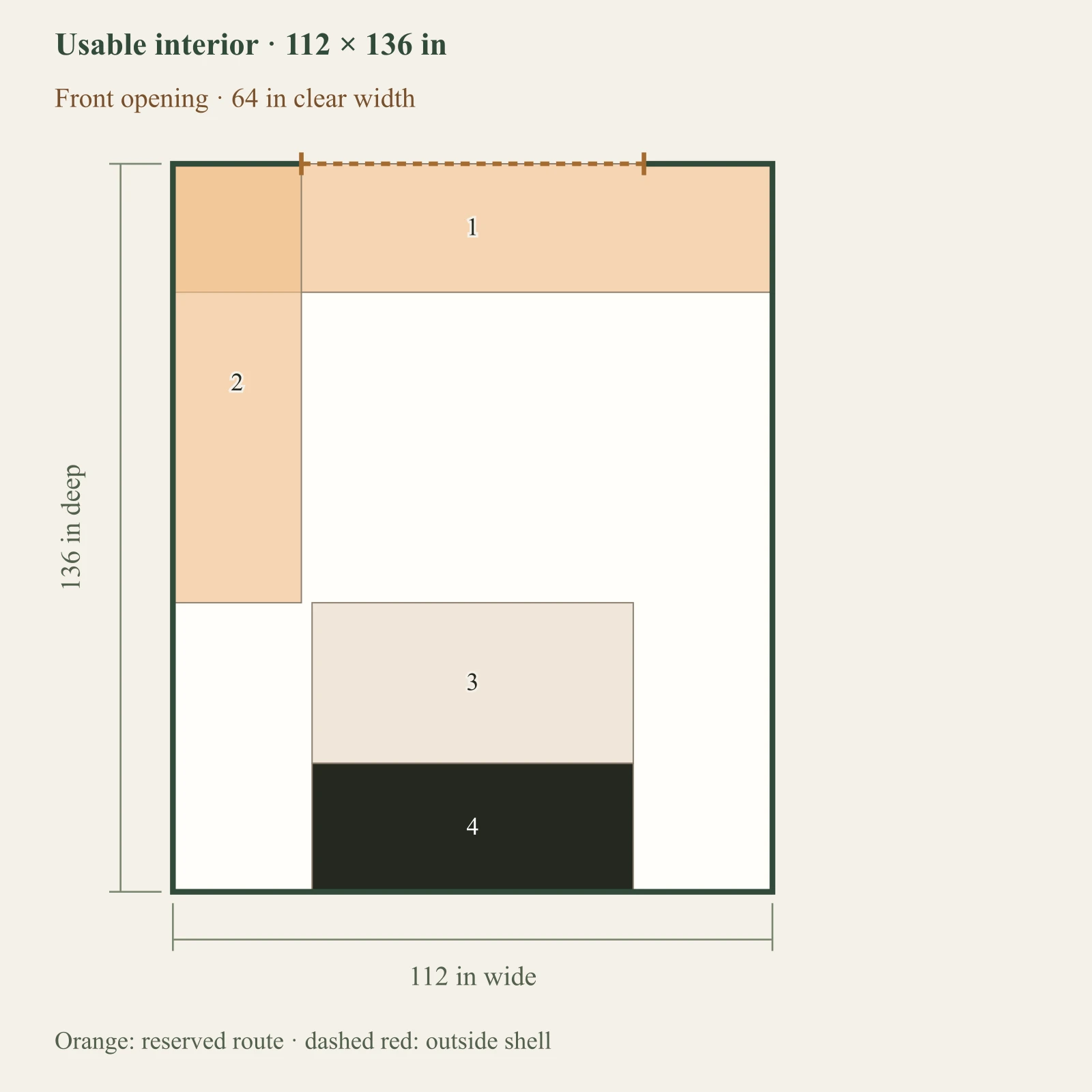

Full-size layout and reserved spacesFull-size footprints with a 24 in entry/side aisle and 30 in bench standing depth. Each mobile deployment and its orthogonal routes are tested with other parked positions unchanged. Staging is screened along the lengthwise axis; turning, actual machine feed points and manufacturer operating instructions require separate confirmation. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Reserved entry cross-aisle: 112 × 24 in at 0, 0 inReserved side aisle: 24 × 82 in at 0, 0 inBench standing area: 60 × 30 in at 26, 82 inWorkbench: 60 × 24 in at 26, 112 in1234Usable interior · 112 × 136 inFront opening · 64 in clear width112 in wide136 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Reserved entry cross-aisle: 112 × 24 in
  2. 2. Reserved side aisle: 24 × 82 in
  3. 3. Bench standing area: 60 × 30 in
  4. 4. Workbench: 60 × 24 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

The shown arrangement preserves its reserved spaces and entry aisle.

  • A failed arrangement is not proof that every layout in this size fails. Only the displayed axis-aligned arrangements were tested.
  • Equipment footprints and reserved spaces are editable planning assumptions. These rectangles do not establish manufacturer operating clearances.

Moving from the first example to the second changes usable width by 24 in, depth by 0 in and clear door width by 16 in. These differences belong to these examples. Obtain actual product measurements before choosing.

A changed result applies to the shown arrangement only. A different layout may work; a larger candidate can still fail a doorway, site or budget check.

Separate the ground footprint from the access result

Same-origin nominal footprint overlaySolid: 8×12 ft nominalDashed: 10×12 ft nominal
These are nominal building footprints, without a foundation extension, overhang or setback. Their overlap does not describe either product's interior or door.

8×12 · Reserved activity and access areas

Full-size layout and reserved spacesFull-size footprints with a 24 in entry/side aisle and 30 in bench standing depth. Each mobile deployment and its orthogonal routes are tested with other parked positions unchanged. Staging is screened along the lengthwise axis; turning, actual machine feed points and manufacturer operating instructions require separate confirmation. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Reserved entry cross-aisle: 88 × 24 in at 0, 0 inReserved side aisle: 24 × 82 in at 0, 0 inBench standing area: 60 × 30 in at 14, 82 inWorkbench: 60 × 24 in at 14, 112 in1234Usable interior · 88 × 136 inFront opening · 48 in clear width88 in wide136 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Reserved entry cross-aisle: 88 × 24 in
  2. 2. Reserved side aisle: 24 × 82 in
  3. 3. Bench standing area: 60 × 30 in
  4. 4. Workbench: 60 × 24 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

A failed arrangement is not proof that every layout in this size fails. Only the displayed axis-aligned arrangements were tested.

10×12 · Reserved activity and access areas

Full-size layout and reserved spacesFull-size footprints with a 24 in entry/side aisle and 30 in bench standing depth. Each mobile deployment and its orthogonal routes are tested with other parked positions unchanged. Staging is screened along the lengthwise axis; turning, actual machine feed points and manufacturer operating instructions require separate confirmation. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Reserved entry cross-aisle: 112 × 24 in at 0, 0 inReserved side aisle: 24 × 82 in at 0, 0 inBench standing area: 60 × 30 in at 26, 82 inWorkbench: 60 × 24 in at 26, 112 in1234Usable interior · 112 × 136 inFront opening · 64 in clear width112 in wide136 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Reserved entry cross-aisle: 112 × 24 in
  2. 2. Reserved side aisle: 24 × 82 in
  3. 3. Bench standing area: 60 × 30 in
  4. 4. Workbench: 60 × 24 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

A failed arrangement is not proof that every layout in this size fails. Only the displayed axis-aligned arrangements were tested.

The highlighted state retains the same inventory and working requirements. An unchanged opening or blocked route can remain limiting even when the nominal footprint increases. Inspect other operating states in the expanded viewer.

What changes, and what stays limiting?

Usable width
88 → 112 in
+24 in
Usable depth
136 → 136 in
Unchanged
Clear opening width
48 → 64 in
+16 in
Clear opening height
78 → 78 in
Unchanged

Both shown arrangements pass their requested geometry screens. This example does not establish that you need the larger candidate. Name the additional task or constraint you want it to resolve, then test it.

Measure before choosing

Measure the full bench length and the space needed beside it; obtain both products' actual interior width and clear opening.

If your arrangement still fails

This reference comparison holds interior depth fixed. Use the wider candidate to test a cross-shed constraint; it does not add staging length along the shed.

The dimensions above belong to authored examples, not universal specifications for these nominal sizes.

Does the larger footprint fit my site?What must match in the quote?
Download the authored reference diagrams

Version 2026-09-08-decisions. These files reproduce the public examples, including failed arrangements. Your private measurements are only included when you generate your own brief.
