Will the widest attachments clear the opening and leave side access?
ATV storage planning starts with the task you need to complete. Compare the disclosed examples below, then replace their assumptions with your measurements and keep your decision in one supplier brief.
Reference answer: The 48 × 84 in moving ATV envelope is checked separately from parked dimensions and 24 in side access. The smallest passing footprint in this three-candidate example is 10×12. This answers the disclosed example, not an unmeasured personal project.
Authored planning examples, not measured customer projects or product specifications. Dimensions are inches. No construction or safety approval.
Measure the conditions that change the answer.
Largest moving dimensions
How to measure: Measure the assembled vehicle with all installed accessories in its moving configuration, including the highest and widest projections.
What it changes: The opening uses full width plus entered allowances; the nominal vehicle body width can miss a failure.
Parking and side space
How to measure: Measure the parked envelope separately and enter the side space needed for your planned access.
What it changes: A parked fit may leave no side access or no complete straight retrieval sweep.
Mixed storage and approach
How to measure: Measure retained equipment and any front service reservation. Check the yard gate and narrowest route with the same moving width.
What it changes: Turning, ramps, gradients, engine operation and fuel storage require separate manufacturer/site checks.
Two ways to frame the decision.
Reference 1 · editable assumptions
Single vehicle
What you gain
The measured moving and parked vehicle states are checked with entered side access.
What you give up
This reference has no front service depth or extra storage. Turns and ramps are unassessed.
When to choose it
Use it for straightforward single-vehicle parking and retrieval questions.
Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

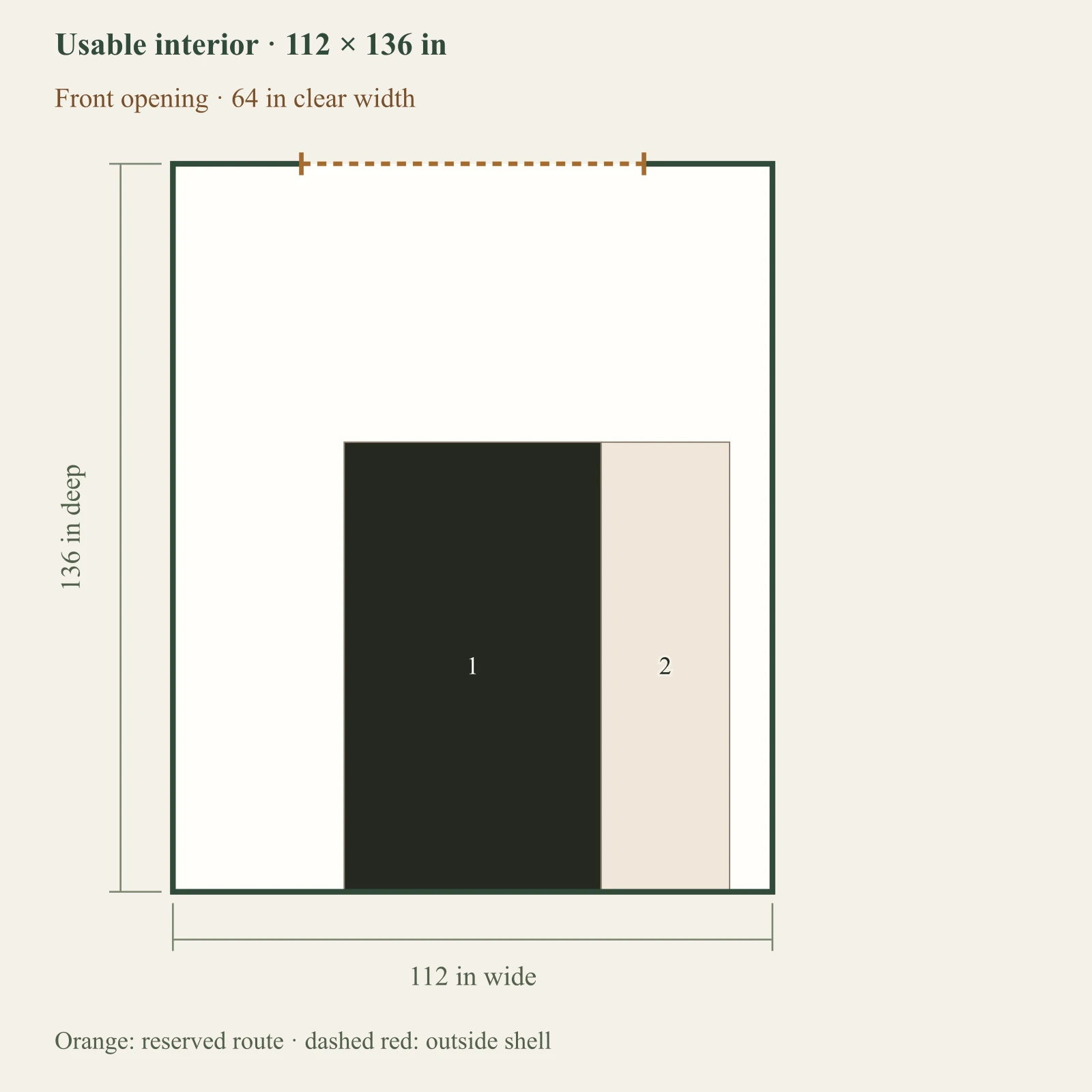

1. Measured parked envelope: 48 × 84 in
2. Entered side access: 24 × 84 in
The stated geometry fits this arrangement.
A full straight route can fail even when the parked rectangle fits. Confirm actual handling, outside approach and manufacturer requirements separately.
Every input, finding and limitation
vehicle / width: 48
vehicle / depth: 84
vehicle / height: 48
parked / width: 48
parked / depth: 84
parked / height: 48
storage / width: 18
storage / depth: 36
storage / height: 48
side Space: 24
service Depth: 0
mixed: false
A full straight route can fail even when the parked rectangle fits. Confirm actual handling, outside approach and manufacturer requirements separately.
Reference 2 · editable assumptions
Vehicle and storage
What you gain
A storage fixture and front service reservation join the same vehicle and side-access inputs.
What you give up
Both must remain outside the full straight retrieval sweep.
When to choose it
Start here if vehicle storage must coexist with equipment or front service space.
Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

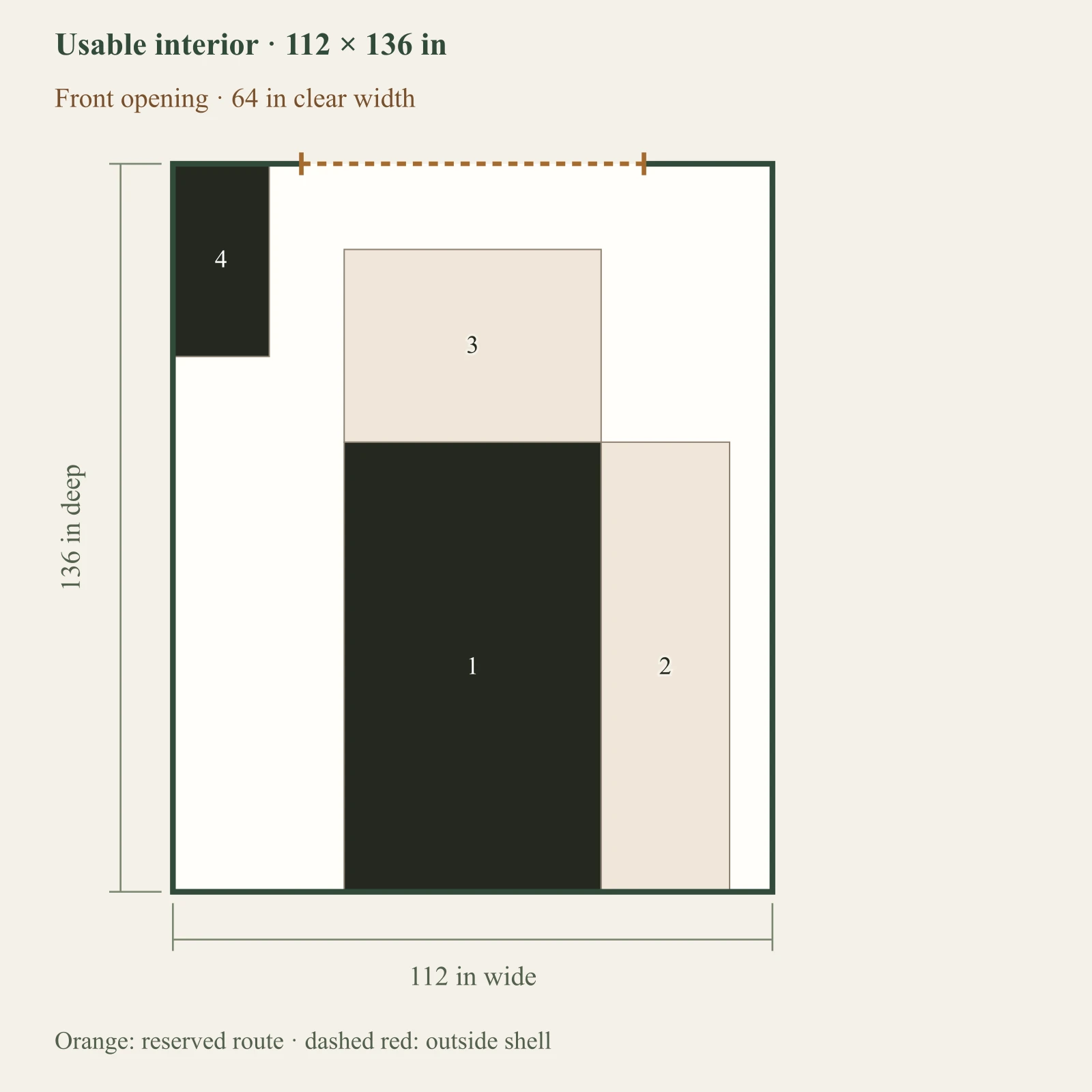

1. Measured parked envelope: 48 × 84 in
2. Entered side access: 24 × 84 in
3. Front service reservation: 48 × 36 in
4. Mixed storage: 18 × 36 in
The stated geometry fits this arrangement.
A full straight route can fail even when the parked rectangle fits. Confirm actual handling, outside approach and manufacturer requirements separately.
Every input, finding and limitation
vehicle / width: 48
vehicle / depth: 84
vehicle / height: 48
parked / width: 48
parked / depth: 84
parked / height: 48
storage / width: 18
storage / depth: 36
storage / height: 48
side Space: 24
service Depth: 36
mixed: true
A full straight route can fail even when the parked rectangle fits. Confirm actual handling, outside approach and manufacturer requirements separately.
Same task, three candidate footprints.
Reference 1 stays fixed. These are authored clear dimensions, not guaranteed interiors of products bearing the same nominal size. Each diagram uses the same scale; failed objects remain full size.
At least one shown arrangement passes the modeled geometry; read the remaining limits before making a choice.
8×10
Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

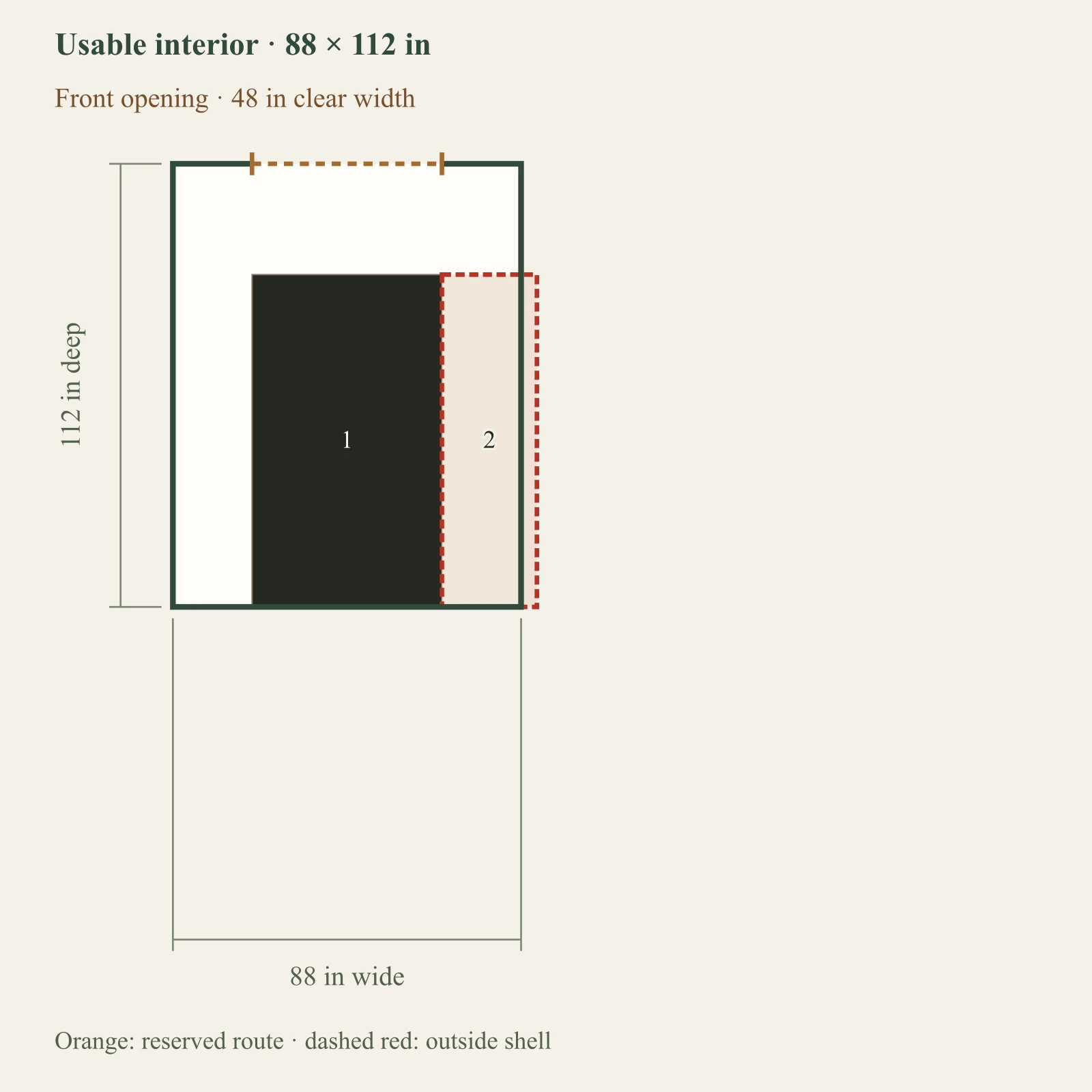

1. Measured parked envelope: 48 × 84 in
2. Entered side access: 24 × 84 in — outside shell
This arrangement needs a change.
Entered side access: full reservation exceeds the usable interior.
10×12
Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

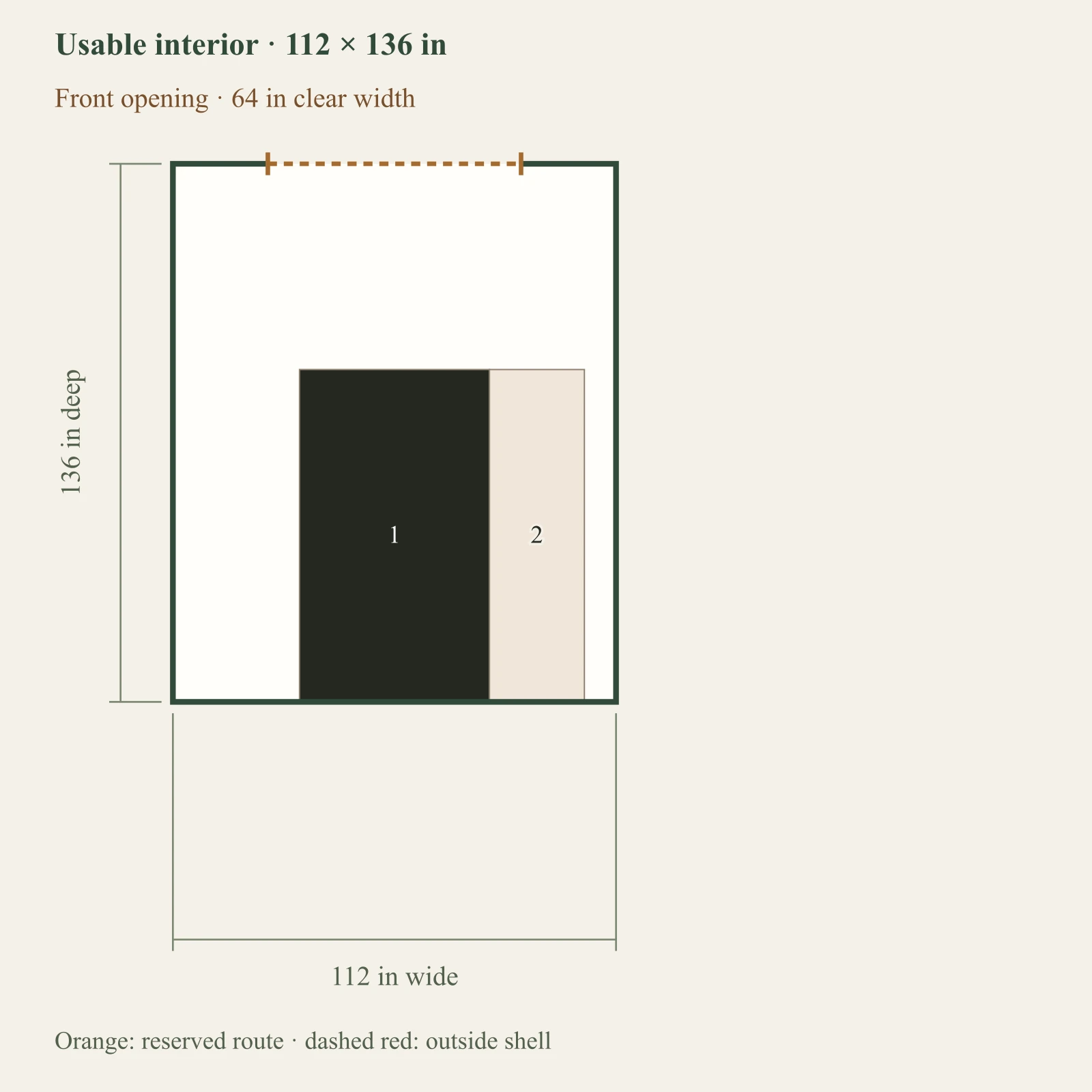

1. Measured parked envelope: 48 × 84 in
2. Entered side access: 24 × 84 in
The stated geometry fits this arrangement.
A full straight route can fail even when the parked rectangle fits. Confirm actual handling, outside approach and manufacturer requirements separately.
12×16
Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

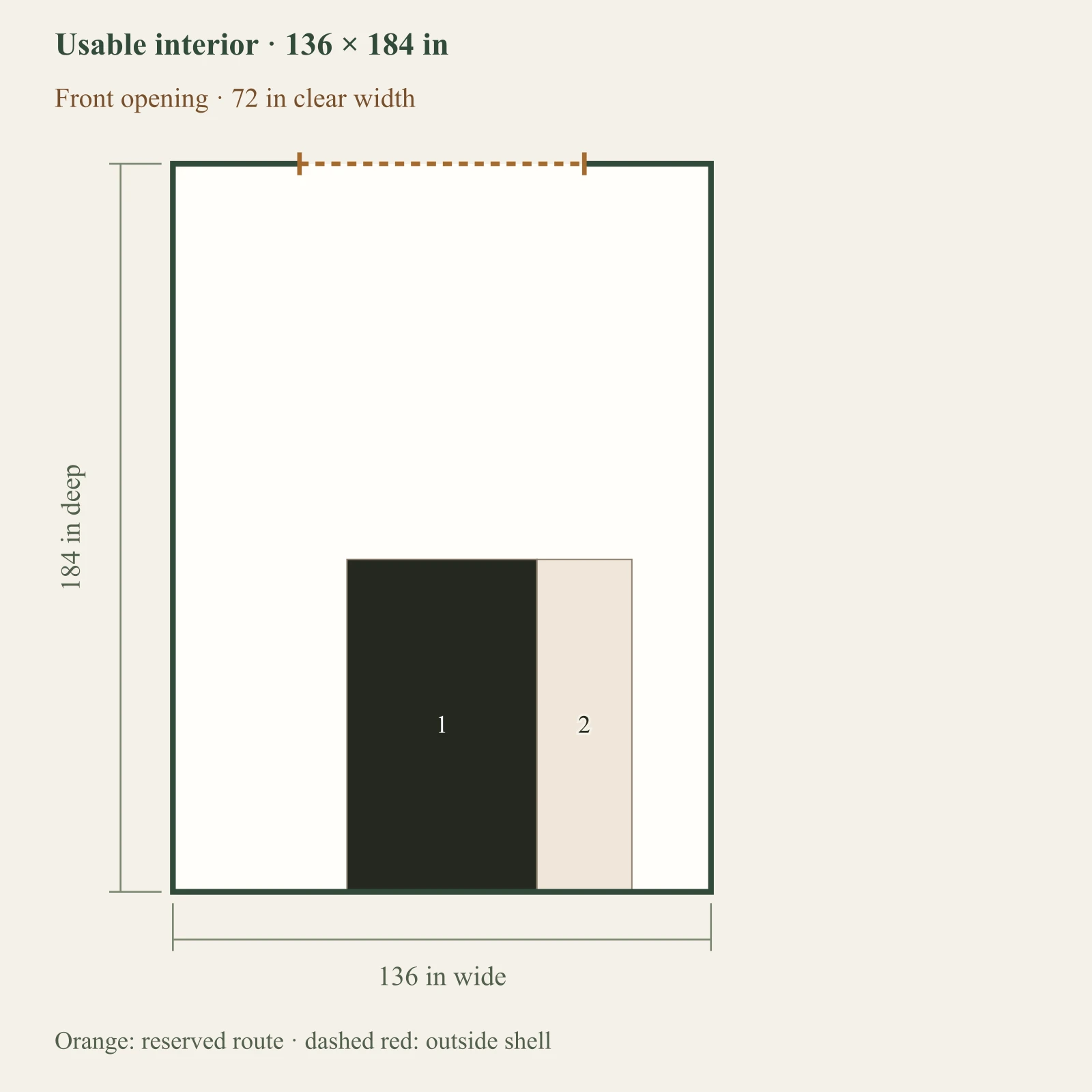

1. Measured parked envelope: 48 × 84 in
2. Entered side access: 24 × 84 in
The stated geometry fits this arrangement.
A full straight route can fail even when the parked rectangle fits. Confirm actual handling, outside approach and manufacturer requirements separately.
Test the task in use.
Straight retrieval with mixed storage fixed
Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

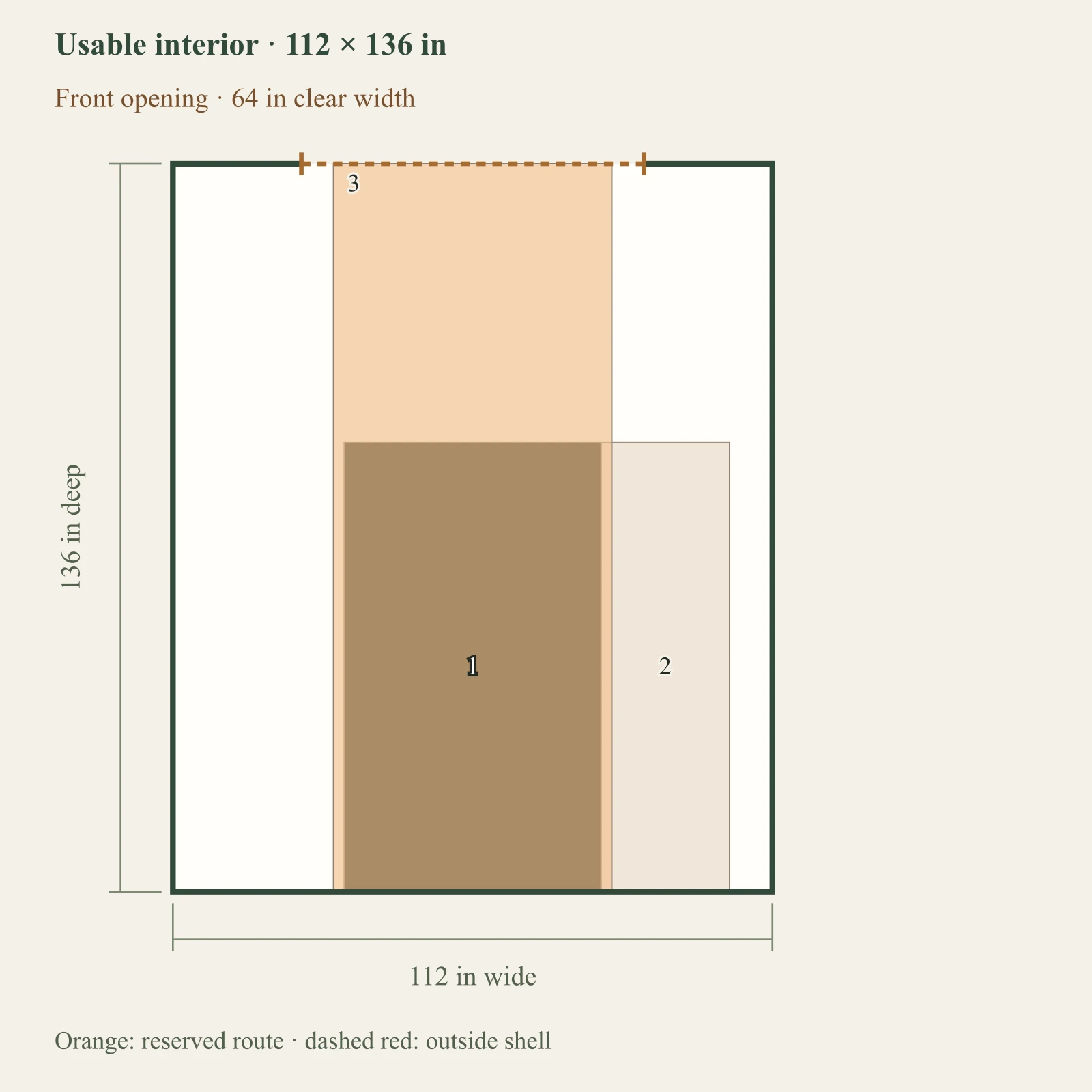

1. Measured parked envelope: 48 × 84 in
2. Entered side access: 24 × 84 in
3. Straight full-width retrieval sweep: 52 × 136 in
Side access and service space
Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.
1. Measured parked envelope: 48 × 84 in
2. Entered side access: 24 × 84 in
Controlled failure
What changes the answer?
Increase only the moving vehicle width, including accessories, to 100 inches. The parked state stays fixed.
Moving vehicle plus side allowances exceeds the clear opening.
Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

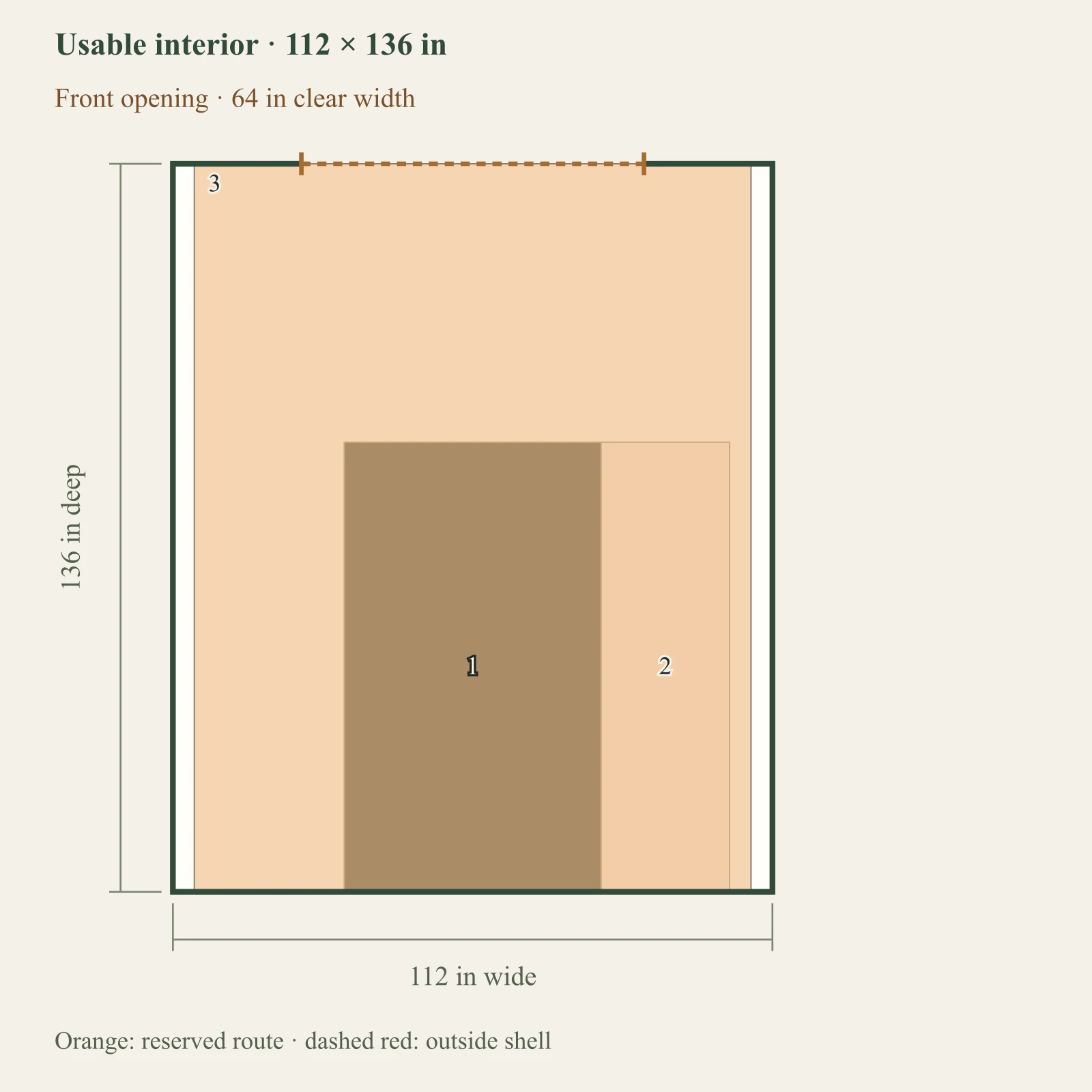

1. Measured parked envelope: 48 × 84 in
2. Entered side access: 24 × 84 in
3. Straight full-width retrieval sweep: 104 × 136 in
Sources and the questions to take further.
Layout conclusions come from the disclosed rectangular geometry and entered clearances. A source supports only the specific guidance stated here. Site, structure, ventilation, actual door operation and local requirements need separate review.
