Can you push the measured parked motorcycle out and retain service space?
Motorcycle storage planning starts with the task you need to complete. Compare the disclosed examples below, then replace their assumptions with your measurements and keep your decision in one supplier brief.
Reference answer: The 38 × 84 in moving envelope and 42 × 84 in measured stand-state envelope retain 18 in side access. The smallest passing footprint in this three-candidate example is 8×10. This answers the disclosed example, not an unmeasured personal project.
Authored planning examples, not measured customer projects or product specifications. Dimensions are inches. No construction or safety approval.
Measure the conditions that change the answer.
Moving envelope
How to measure: Measure including mirrors, panniers and accessories in the actual pushing configuration.
What it changes: Full moving width and height are checked at the opening without assuming folding or tilt.
Actual stand state
How to measure: Measure the complete parked envelope with the intended stand engaged. Select measured only after recording that state.
What it changes: The planner does not infer lean geometry or the transition between moving and parked states.
Maintenance and retrieval
How to measure: Enter actual side and front working space; measure any stored tools that remain when pushing the motorcycle out.
What it changes: Compact parking and maintenance need different reservations. A straight route does not prove turning, balance or ramp safety.
Two ways to frame the decision.
Reference 1 · editable assumptions
Compact parking
What you gain
A separately measured stand-state envelope and 18-inch example side space form a compact starting point.
What you give up
No maintenance depth is reserved. The example allowance is not a safe handling standard.
When to choose it
Start here for parking, then measure how you actually stand and push the motorcycle.

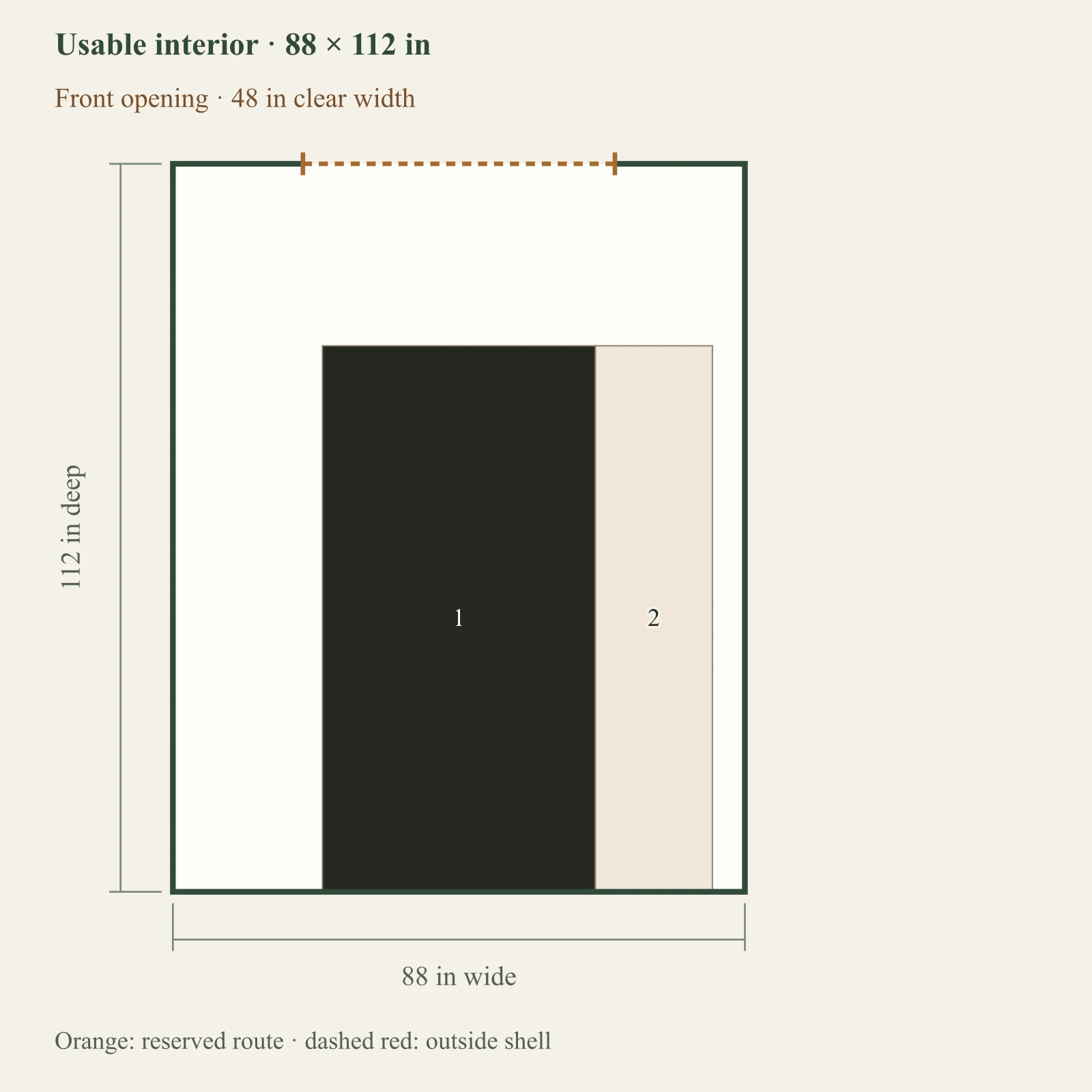

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.
1. Measured parked envelope: 42 × 84 in
2. Entered side access: 18 × 84 in
The stated geometry fits this arrangement.
A full straight route can fail even when the parked rectangle fits. Confirm actual handling, outside approach and manufacturer requirements separately.
Every input, finding and limitation
vehicle / width: 38
vehicle / depth: 84
vehicle / height: 54
parked / width: 42
parked / depth: 84
parked / height: 54
storage / width: 18
storage / depth: 30
storage / height: 48
side Space: 18
service Depth: 0
maintenance: false
stand: measured
A full straight route can fail even when the parked rectangle fits. Confirm actual handling, outside approach and manufacturer requirements separately.
Reference 2 · editable assumptions
Parking and maintenance
What you gain
A 30-inch example side space, 36-inch front service depth and storage fixture are retained.
What you give up
The larger reservations can fail despite a parked fit; no leaning transition or stand geometry is inferred.
When to choose it
Start here when maintenance space is part of the task, using your actual working envelope.

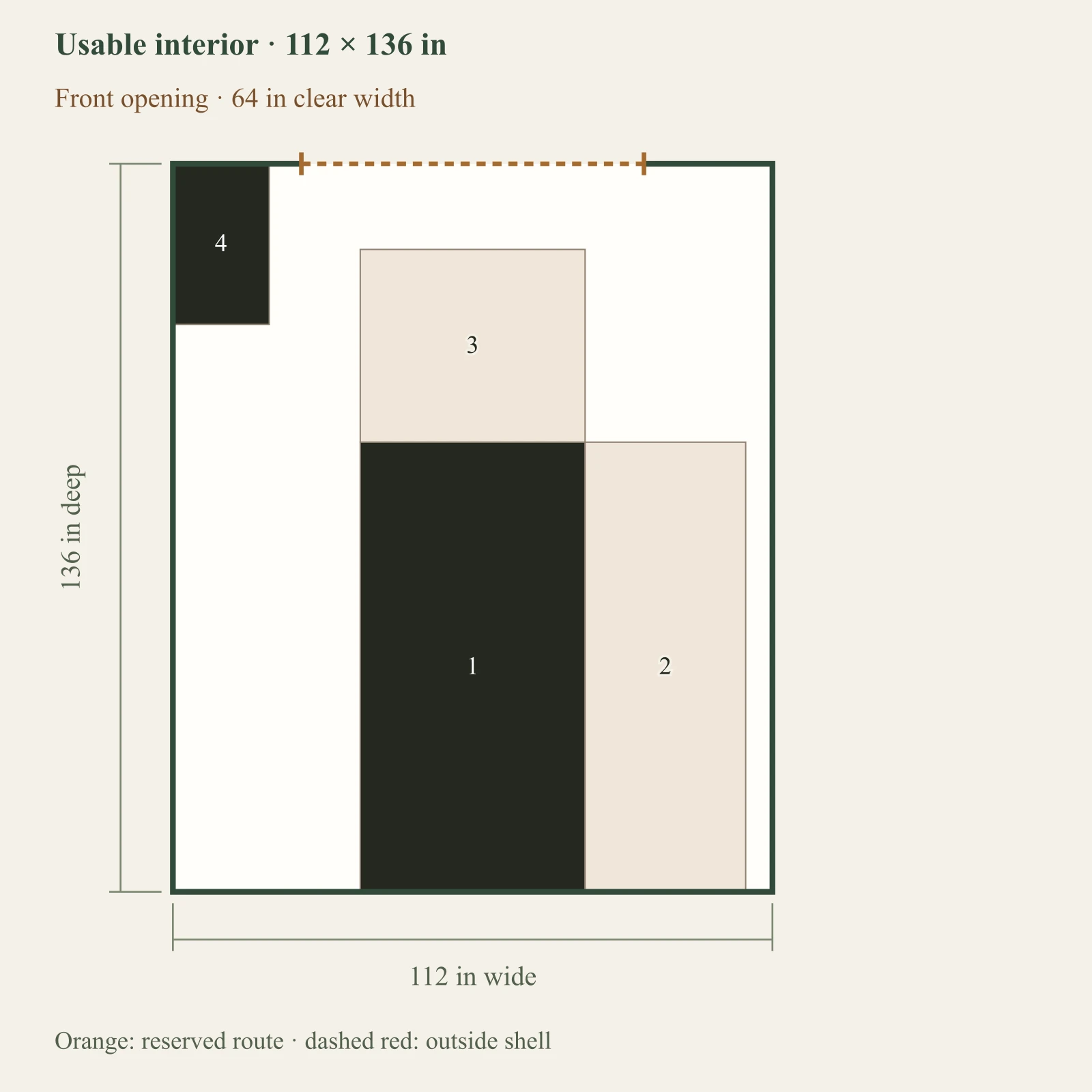

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.
1. Measured parked envelope: 42 × 84 in
2. Entered side access: 30 × 84 in
3. Front service reservation: 42 × 36 in
4. Mixed storage: 18 × 30 in
The stated geometry fits this arrangement.
A full straight route can fail even when the parked rectangle fits. Confirm actual handling, outside approach and manufacturer requirements separately.
Every input, finding and limitation
vehicle / width: 38
vehicle / depth: 84
vehicle / height: 54
parked / width: 42
parked / depth: 84
parked / height: 54
storage / width: 18
storage / depth: 30
storage / height: 48
side Space: 30
service Depth: 36
maintenance: true
stand: measured
A full straight route can fail even when the parked rectangle fits. Confirm actual handling, outside approach and manufacturer requirements separately.
Same task, three candidate footprints.
Reference 1 stays fixed. These are authored clear dimensions, not guaranteed interiors of products bearing the same nominal size. Each diagram uses the same scale; failed objects remain full size.
At least one shown arrangement passes the modeled geometry; read the remaining limits before making a choice.

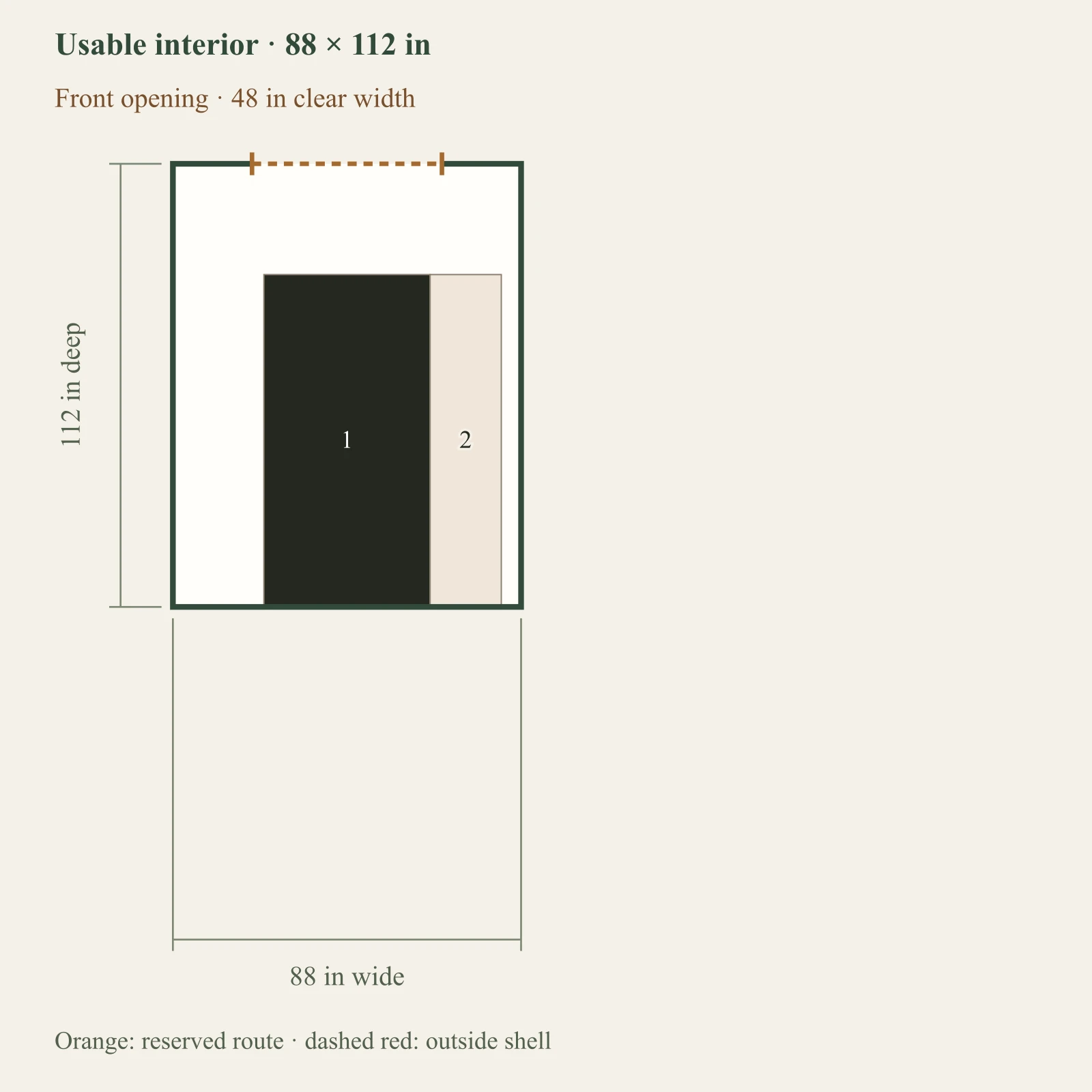

8×10
Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.
1. Measured parked envelope: 42 × 84 in
2. Entered side access: 18 × 84 in
The stated geometry fits this arrangement.
A full straight route can fail even when the parked rectangle fits. Confirm actual handling, outside approach and manufacturer requirements separately.

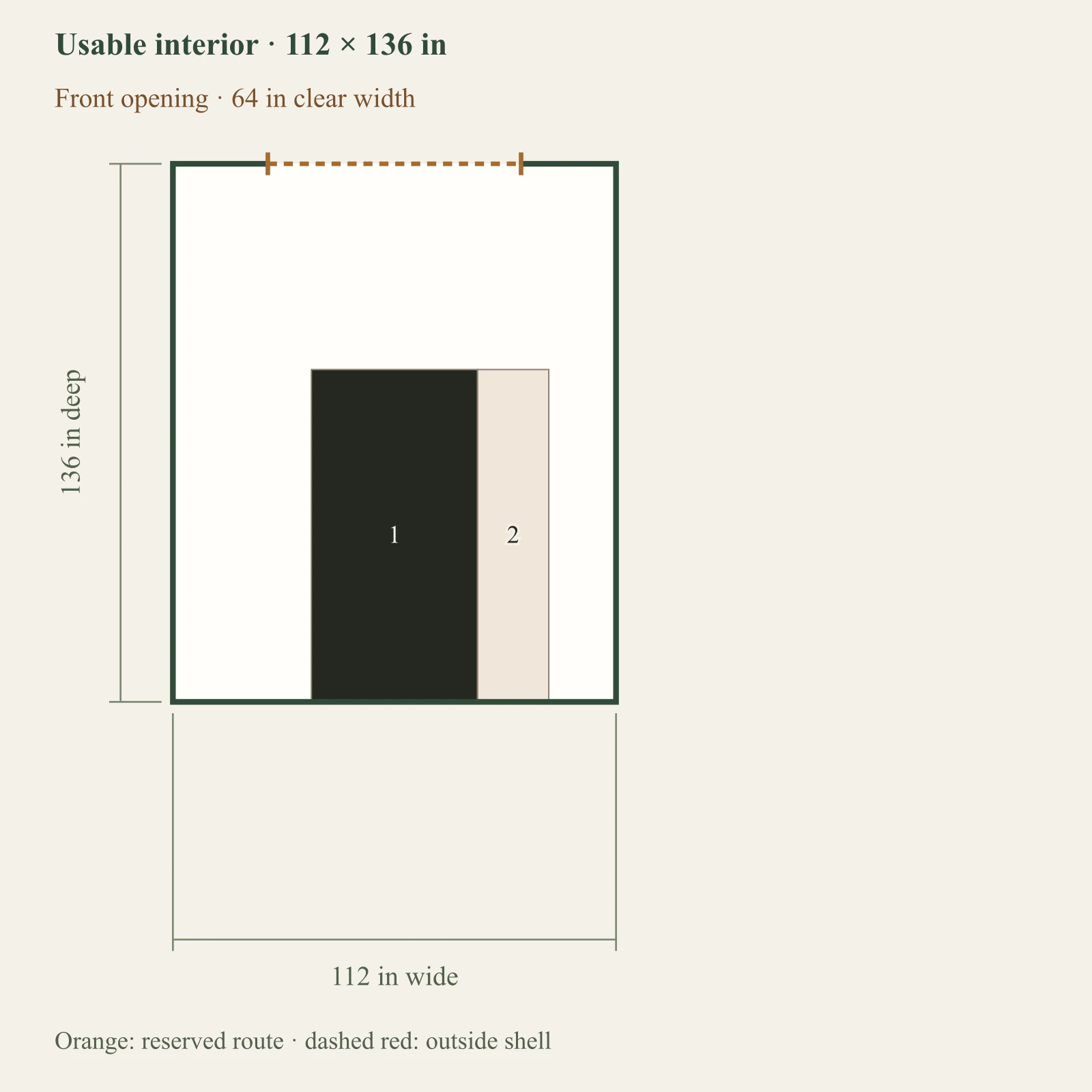

10×12
Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.
1. Measured parked envelope: 42 × 84 in
2. Entered side access: 18 × 84 in
The stated geometry fits this arrangement.
A full straight route can fail even when the parked rectangle fits. Confirm actual handling, outside approach and manufacturer requirements separately.

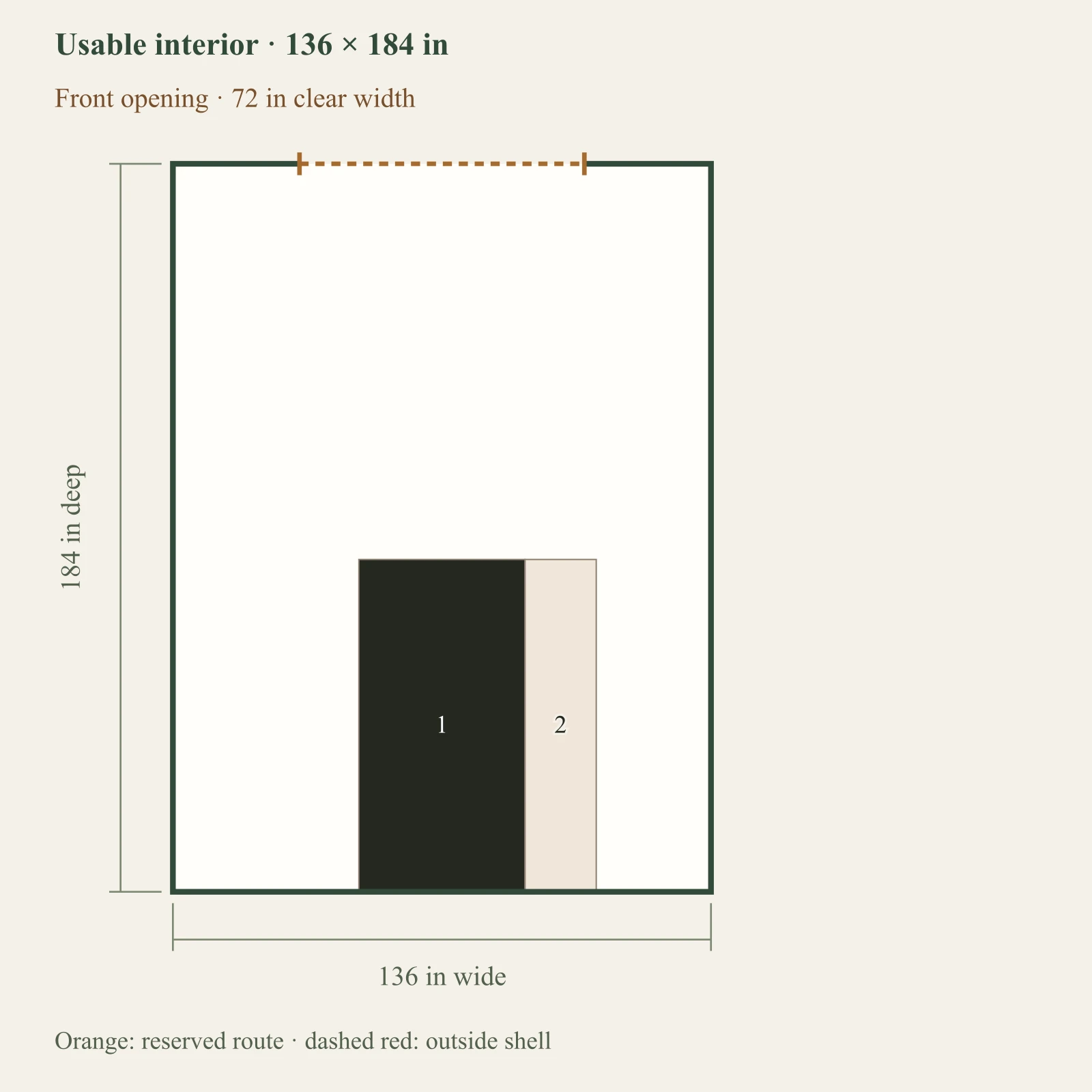

12×16
Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.
1. Measured parked envelope: 42 × 84 in
2. Entered side access: 18 × 84 in
The stated geometry fits this arrangement.
A full straight route can fail even when the parked rectangle fits. Confirm actual handling, outside approach and manufacturer requirements separately.
Test the task in use.

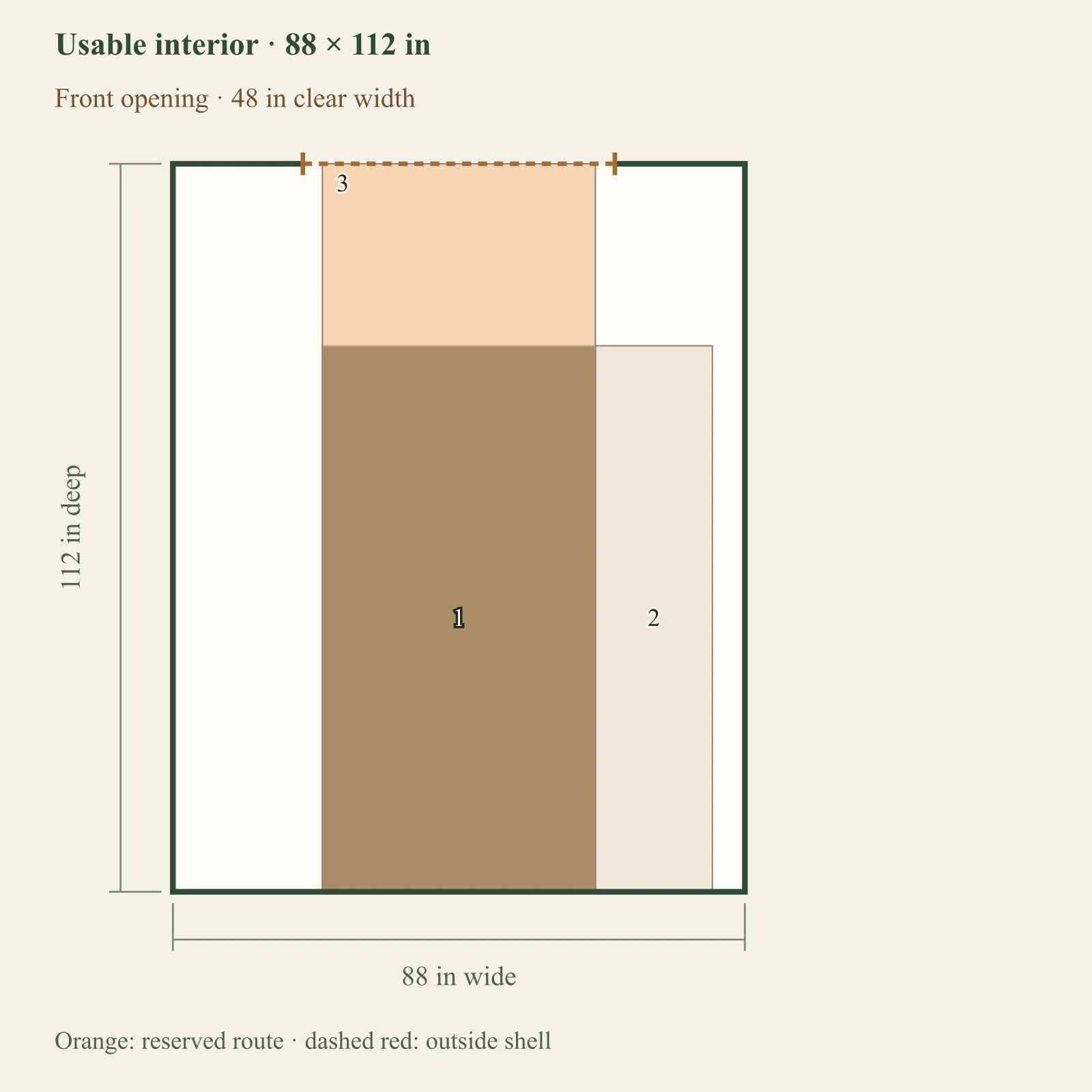

Straight retrieval with mixed storage fixed
Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.
1. Measured parked envelope: 42 × 84 in
2. Entered side access: 18 × 84 in
3. Straight full-width retrieval sweep: 42 × 112 in
Side access and service space
Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.
1. Measured parked envelope: 42 × 84 in
2. Entered side access: 18 × 84 in

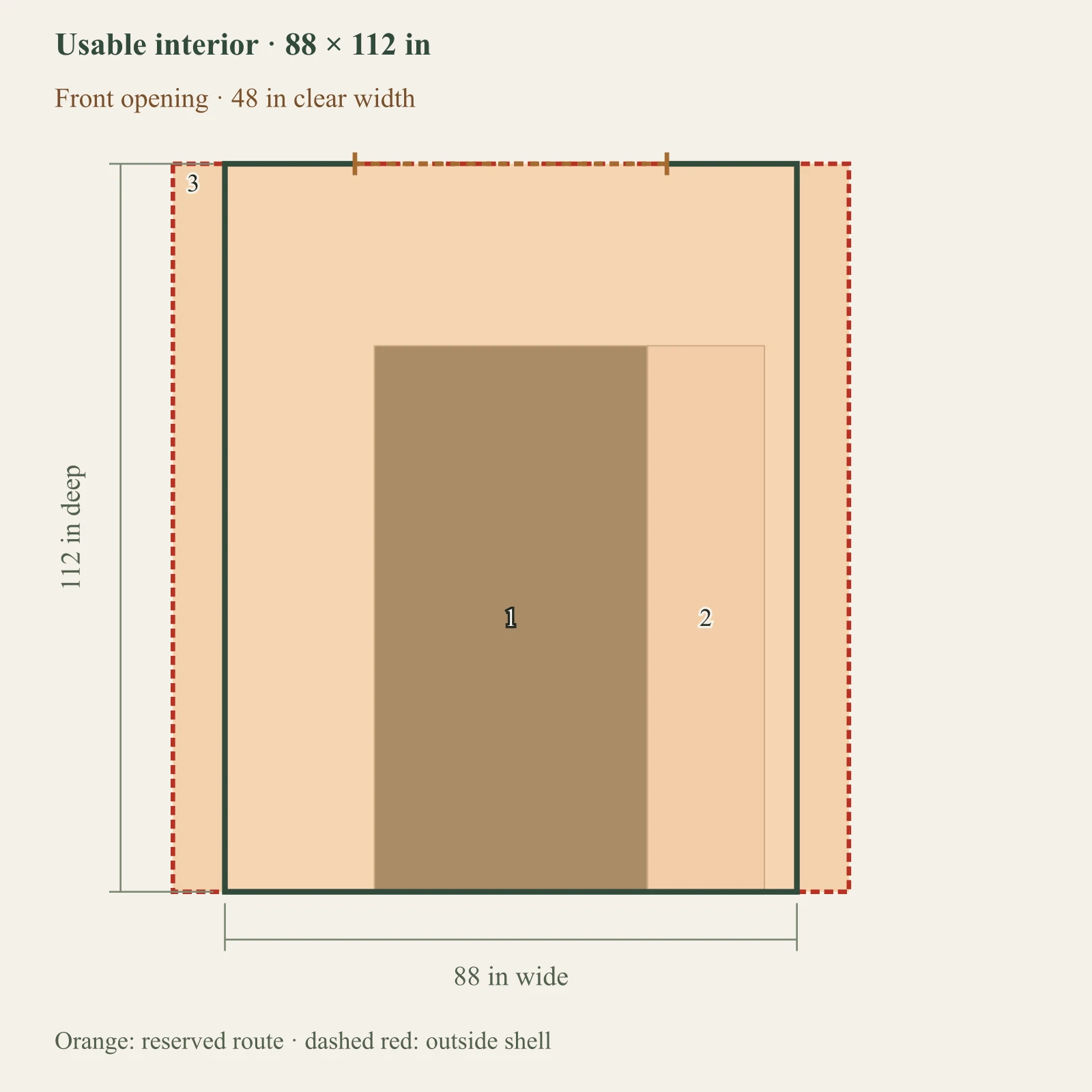

Controlled failure
What changes the answer?
Increase only the moving vehicle width, including accessories, to 100 inches. The parked state stays fixed.
Moving vehicle plus side allowances exceeds the clear opening.
The full moving envelope does not fit the stated straight route.
Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.
Layout conclusions come from the disclosed rectangular geometry and entered clearances. A source supports only the specific guidance stated here. Site, structure, ventilation, actual door operation and local requirements need separate review.
