Can you collect supplies, pot plants and return tools without blocking the bench?

Potting planning starts with the task you need to complete. Compare the disclosed examples below, then replace their assumptions with your measurements and keep your decision in one supplier brief.

Reference answer: A 72 × 24 in bench keeps 30 in standing depth, with separate soil, pot, tool, tray and water-point footprints. The smallest passing footprint in this three-candidate example is 12×16. This answers the disclosed example, not an unmeasured personal project.

Compare reference arrangements

Authored planning examples, not measured customer projects or product specifications. Dimensions are inches. No construction or safety approval.

Measure the conditions that change the answer.

Bench and standing space

How to measure: Measure the whole bench top and depth, then the clear space you need in front while working.

What it changes: A bench can fit while its standing reservation collides with supplies or entry.

Supply containers

How to measure: Enter the full containers used for soil, pots and trays in their moving state, including handles. Use both footprint fields as zero only when omitting an item.

What it changes: Full containers are checked through the opening and around retained fixtures; moving a stack in separate pieces requires new measurements.

Tools, water and daylight

How to measure: Measure tool height and the reserved water-point footprint. Record actual light conditions and confirm drainage and connections separately.

What it changes: A long tool may fail height even when the floor works. Water and light labels do not establish installation suitability.

Two ways to frame the decision.

Reference 1 · editable assumptions

Bench first

What you gain
A 72-inch rear bench and its standing area form the main workspace.
What you give up
Soil, pots, trays, tools and a water-point reservation must share the remaining sides without losing their approaches.
When to choose it
Start here if potting on one continuous surface is the primary task.

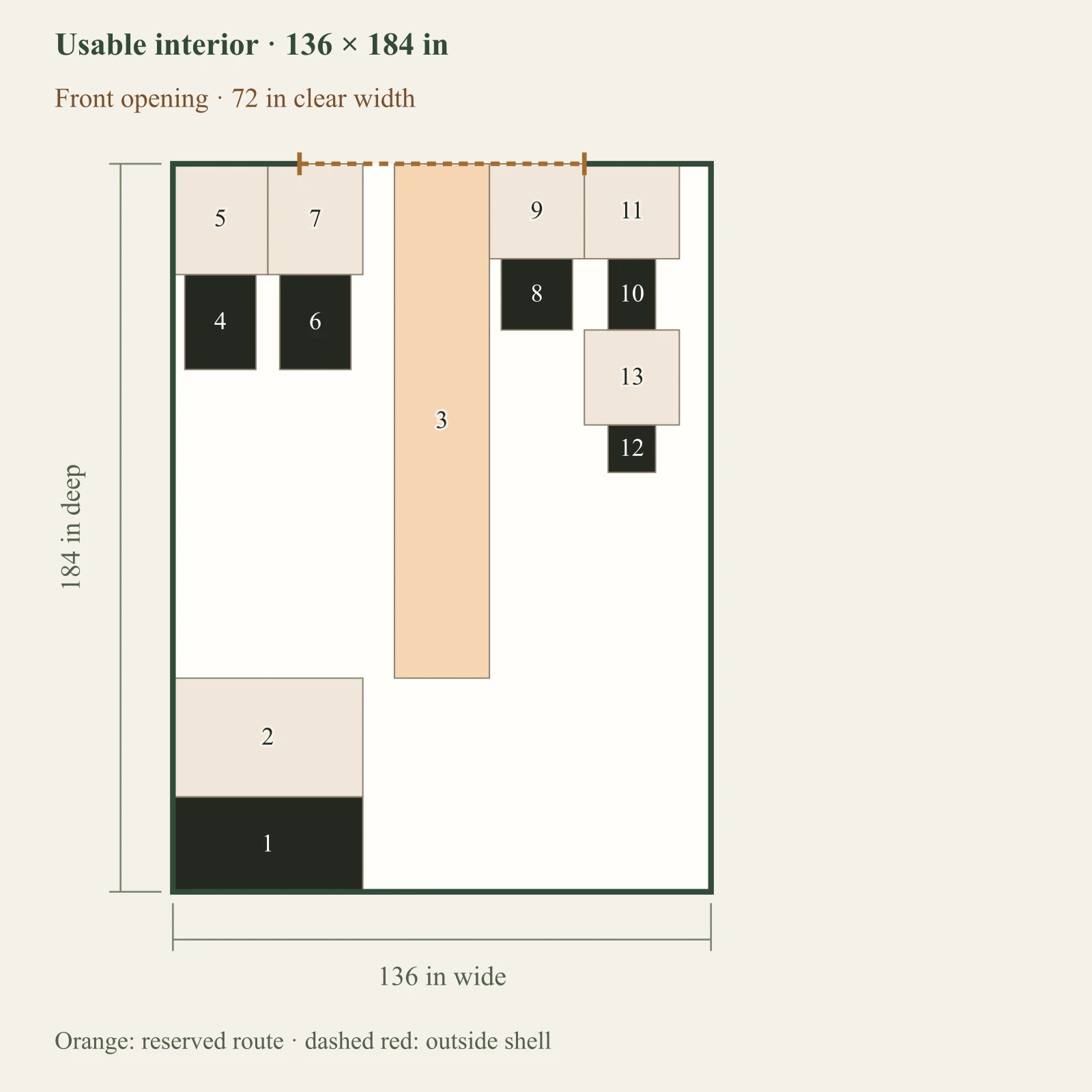

Full-size layout and reserved spacesBench, supply storage and water-point footprints are separate. Water connection, daylight and drainage need site review. Daylight preference and actual site light remain unrecorded. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Potting bench: 72 × 24 in at 32, 160 inBench standing area: 72 × 30 in at 32, 130 inEntry circulation: 24 × 130 in at 56, 0 inSoil storage: 18 × 24 in at 3, 28 inSoil storage service space: 24 × 28 in at 0, 0 inPots: 18 × 24 in at 27, 28 inPots service space: 24 × 28 in at 24, 0 inTrays: 18 × 18 in at 83, 24 inTrays service space: 24 × 24 in at 80, 0 inLong tools: 12 × 18 in at 110, 24 inLong tools service space: 24 × 24 in at 104, 0 inWater point reservation: 12 × 12 in at 110, 66 inWater point reservation service space: 24 × 24 in at 104, 42 in12345678910111213Usable interior · 136 × 184 inFront opening · 72 in clear width136 in wide184 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Potting bench: 72 × 24 in
  2. 2. Bench standing area: 72 × 30 in
  3. 3. Entry circulation: 24 × 130 in
  4. 4. Soil storage: 18 × 24 in
  5. 5. Soil storage service space: 24 × 28 in
  6. 6. Pots: 18 × 24 in
  7. 7. Pots service space: 24 × 28 in
  8. 8. Trays: 18 × 18 in
  9. 9. Trays service space: 24 × 24 in
  10. 10. Long tools: 12 × 18 in
  11. 11. Long tools service space: 24 × 24 in
  12. 12. Water point reservation: 12 × 12 in
  13. 13. Water point reservation service space: 24 × 24 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

The stated geometry fits this arrangement.

Approaches test an entered square circulation footprint with fixtures retained. Turning bodies, door leaves, ventilation, utilities and safe occupancy are unassessed.

Every input, finding and limitation
  • bench / width: 72
  • bench / depth: 24
  • bench / height: 36
  • soil / width: 18
  • soil / depth: 24
  • soil / height: 36
  • pots / width: 18
  • pots / depth: 24
  • pots / height: 36
  • tools / width: 12
  • tools / depth: 18
  • tools / height: 72
  • trays / width: 18
  • trays / depth: 18
  • trays / height: 36
  • water Point / width: 12
  • water Point / depth: 12
  • water Point / height: 36
  • standing Depth: 30
  • aisle: 24
  • priority: bench
  • daylight: unknown
  • Approaches test an entered square circulation footprint with fixtures retained. Turning bodies, door leaves, ventilation, utilities and safe occupancy are unassessed.

Reference 2 · editable assumptions

Storage first

What you gain
A 48-inch bench moved to the rear corner leaves a different arrangement for supplies.
What you give up
You give up 24 inches of example bench length; storage still needs a clear service area.
When to choose it
Start here when supply storage matters more than a long working surface.
Full-size layout and reserved spacesBench, supply storage and water-point footprints are separate. Water connection, daylight and drainage need site review. Daylight preference and actual site light remain unrecorded. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Potting bench: 48 × 24 in at 0, 160 inBench standing area: 48 × 30 in at 0, 130 inEntry circulation: 24 × 130 in at 56, 0 inSoil storage: 18 × 24 in at 3, 28 inSoil storage service space: 24 × 28 in at 0, 0 inPots: 18 × 24 in at 27, 28 inPots service space: 24 × 28 in at 24, 0 inTrays: 18 × 18 in at 83, 24 inTrays service space: 24 × 24 in at 80, 0 inLong tools: 12 × 18 in at 110, 24 inLong tools service space: 24 × 24 in at 104, 0 inWater point reservation: 12 × 12 in at 110, 66 inWater point reservation service space: 24 × 24 in at 104, 42 in12345678910111213Usable interior · 136 × 184 inFront opening · 72 in clear width136 in wide184 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Potting bench: 48 × 24 in
  2. 2. Bench standing area: 48 × 30 in
  3. 3. Entry circulation: 24 × 130 in
  4. 4. Soil storage: 18 × 24 in
  5. 5. Soil storage service space: 24 × 28 in
  6. 6. Pots: 18 × 24 in
  7. 7. Pots service space: 24 × 28 in
  8. 8. Trays: 18 × 18 in
  9. 9. Trays service space: 24 × 24 in
  10. 10. Long tools: 12 × 18 in
  11. 11. Long tools service space: 24 × 24 in
  12. 12. Water point reservation: 12 × 12 in
  13. 13. Water point reservation service space: 24 × 24 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

The stated geometry fits this arrangement.

Approaches test an entered square circulation footprint with fixtures retained. Turning bodies, door leaves, ventilation, utilities and safe occupancy are unassessed.

Every input, finding and limitation
  • bench / width: 48
  • bench / depth: 24
  • bench / height: 36
  • soil / width: 18
  • soil / depth: 24
  • soil / height: 36
  • pots / width: 18
  • pots / depth: 24
  • pots / height: 36
  • tools / width: 12
  • tools / depth: 18
  • tools / height: 72
  • trays / width: 18
  • trays / depth: 18
  • trays / height: 36
  • water Point / width: 12
  • water Point / depth: 12
  • water Point / height: 36
  • standing Depth: 30
  • aisle: 24
  • priority: storage
  • daylight: unknown
  • Approaches test an entered square circulation footprint with fixtures retained. Turning bodies, door leaves, ventilation, utilities and safe occupancy are unassessed.

Same task, three candidate footprints.

Reference 1 stays fixed. These are authored clear dimensions, not guaranteed interiors of products bearing the same nominal size. Each diagram uses the same scale; failed objects remain full size.

At least one shown arrangement passes the modeled geometry; read the remaining limits before making a choice.

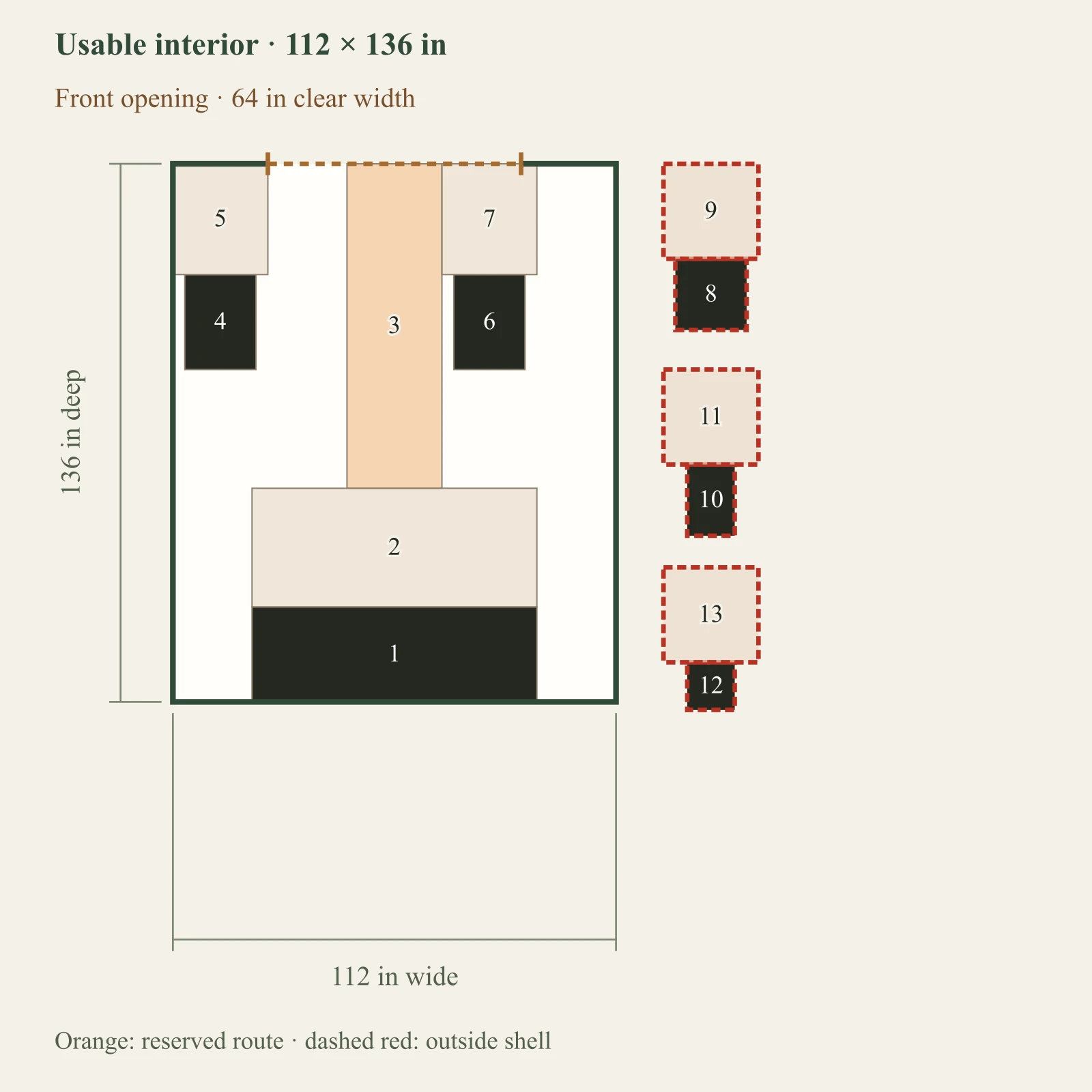

8×10

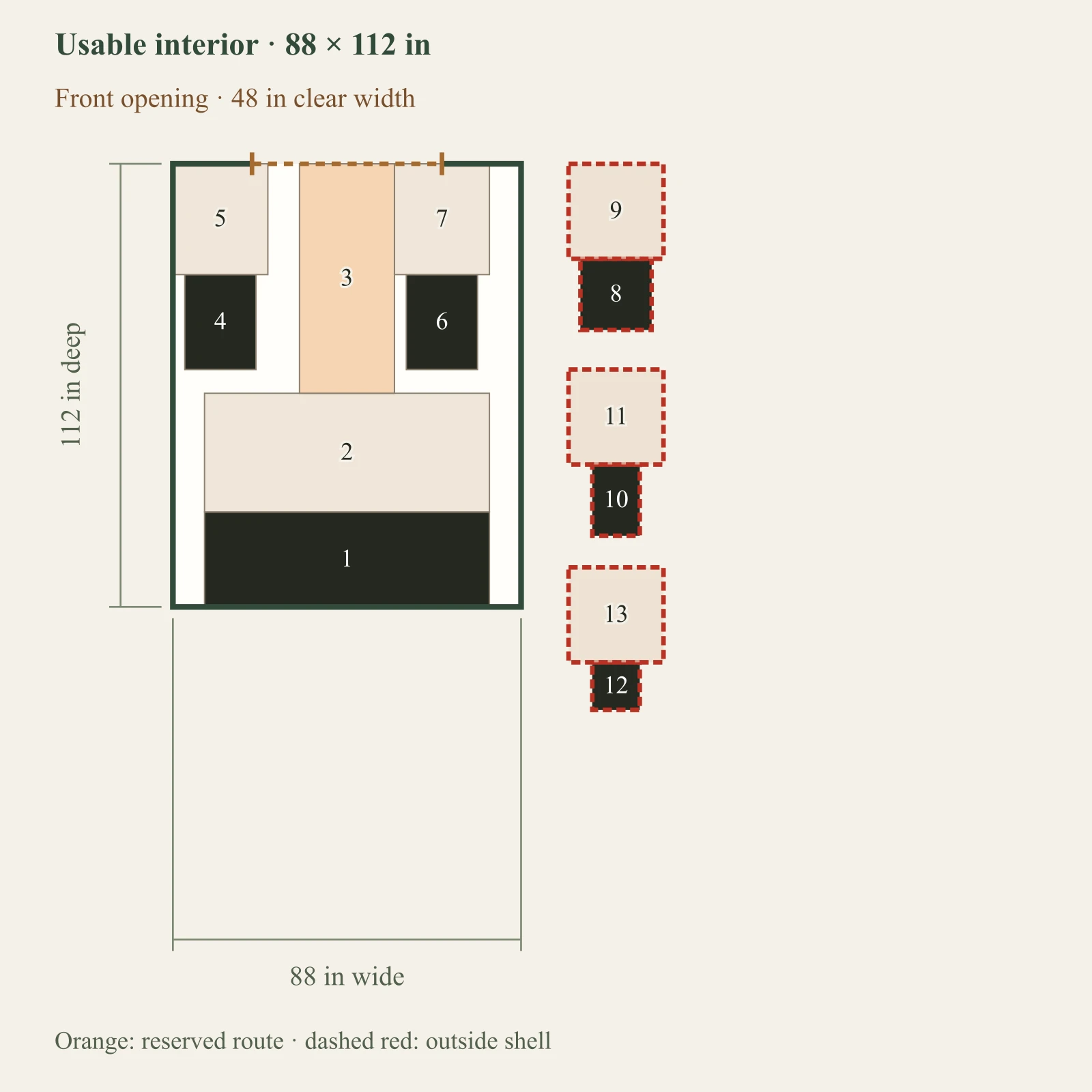

Full-size layout and reserved spacesBench, supply storage and water-point footprints are separate. Water connection, daylight and drainage need site review. Daylight preference and actual site light remain unrecorded. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Potting bench: 72 × 24 in at 8, 88 inBench standing area: 72 × 30 in at 8, 58 inEntry circulation: 24 × 58 in at 32, 0 inSoil storage: 18 × 24 in at 3, 28 inSoil storage service space: 24 × 28 in at 0, 0 inPots: 18 × 24 in at 59, 28 inPots service space: 24 × 28 in at 56, 0 inTrays: 18 × 18 in at 103, 24 inTrays service space: 24 × 24 in at 100, 0 inLong tools: 12 × 18 in at 106, 76 inLong tools service space: 24 × 24 in at 100, 52 inWater point reservation: 12 × 12 in at 106, 126 inWater point reservation service space: 24 × 24 in at 100, 102 in12345678910111213Usable interior · 88 × 112 inFront opening · 48 in clear width88 in wide112 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Potting bench: 72 × 24 in
  2. 2. Bench standing area: 72 × 30 in
  3. 3. Entry circulation: 24 × 58 in
  4. 4. Soil storage: 18 × 24 in
  5. 5. Soil storage service space: 24 × 28 in
  6. 6. Pots: 18 × 24 in
  7. 7. Pots service space: 24 × 28 in
  8. 8. Trays: 18 × 18 in — outside shell
  9. 9. Trays service space: 24 × 24 in — outside shell
  10. 10. Long tools: 12 × 18 in — outside shell
  11. 11. Long tools service space: 24 × 24 in — outside shell
  12. 12. Water point reservation: 12 × 12 in — outside shell
  13. 13. Water point reservation service space: 24 × 24 in — outside shell

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

This arrangement needs a change.

Trays: no non-overlapping position was found in this bounded arrangement search.

10×12

Full-size layout and reserved spacesBench, supply storage and water-point footprints are separate. Water connection, daylight and drainage need site review. Daylight preference and actual site light remain unrecorded. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Potting bench: 72 × 24 in at 20, 112 inBench standing area: 72 × 30 in at 20, 82 inEntry circulation: 24 × 82 in at 44, 0 inSoil storage: 18 × 24 in at 3, 28 inSoil storage service space: 24 × 28 in at 0, 0 inPots: 18 × 24 in at 71, 28 inPots service space: 24 × 28 in at 68, 0 inTrays: 18 × 18 in at 127, 24 inTrays service space: 24 × 24 in at 124, 0 inLong tools: 12 × 18 in at 130, 76 inLong tools service space: 24 × 24 in at 124, 52 inWater point reservation: 12 × 12 in at 130, 126 inWater point reservation service space: 24 × 24 in at 124, 102 in12345678910111213Usable interior · 112 × 136 inFront opening · 64 in clear width112 in wide136 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Potting bench: 72 × 24 in
  2. 2. Bench standing area: 72 × 30 in
  3. 3. Entry circulation: 24 × 82 in
  4. 4. Soil storage: 18 × 24 in
  5. 5. Soil storage service space: 24 × 28 in
  6. 6. Pots: 18 × 24 in
  7. 7. Pots service space: 24 × 28 in
  8. 8. Trays: 18 × 18 in — outside shell
  9. 9. Trays service space: 24 × 24 in — outside shell
  10. 10. Long tools: 12 × 18 in — outside shell
  11. 11. Long tools service space: 24 × 24 in — outside shell
  12. 12. Water point reservation: 12 × 12 in — outside shell
  13. 13. Water point reservation service space: 24 × 24 in — outside shell

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

This arrangement needs a change.

Trays: no non-overlapping position was found in this bounded arrangement search.

12×16

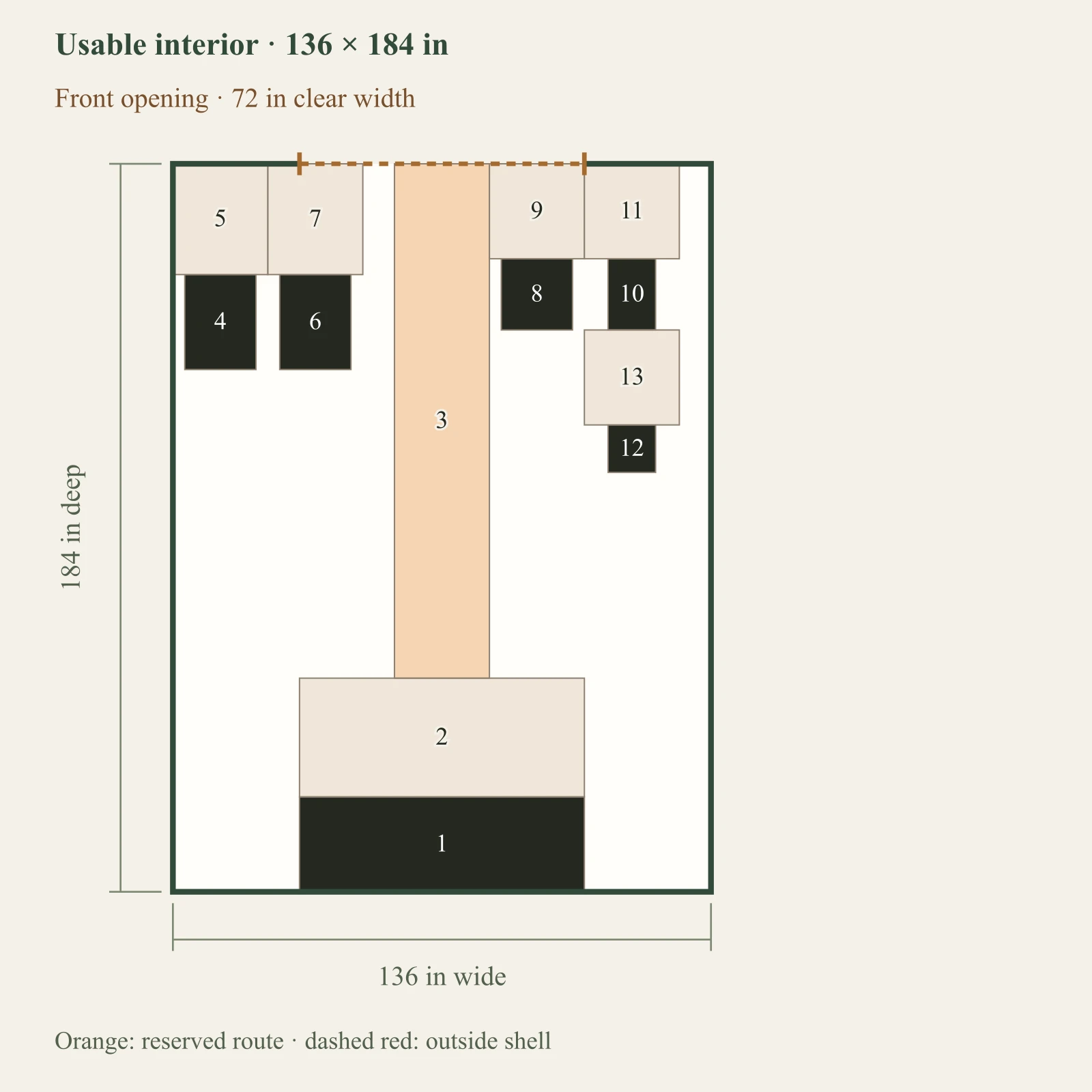

Full-size layout and reserved spacesBench, supply storage and water-point footprints are separate. Water connection, daylight and drainage need site review. Daylight preference and actual site light remain unrecorded. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Potting bench: 72 × 24 in at 32, 160 inBench standing area: 72 × 30 in at 32, 130 inEntry circulation: 24 × 130 in at 56, 0 inSoil storage: 18 × 24 in at 3, 28 inSoil storage service space: 24 × 28 in at 0, 0 inPots: 18 × 24 in at 27, 28 inPots service space: 24 × 28 in at 24, 0 inTrays: 18 × 18 in at 83, 24 inTrays service space: 24 × 24 in at 80, 0 inLong tools: 12 × 18 in at 110, 24 inLong tools service space: 24 × 24 in at 104, 0 inWater point reservation: 12 × 12 in at 110, 66 inWater point reservation service space: 24 × 24 in at 104, 42 in12345678910111213Usable interior · 136 × 184 inFront opening · 72 in clear width136 in wide184 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Potting bench: 72 × 24 in
  2. 2. Bench standing area: 72 × 30 in
  3. 3. Entry circulation: 24 × 130 in
  4. 4. Soil storage: 18 × 24 in
  5. 5. Soil storage service space: 24 × 28 in
  6. 6. Pots: 18 × 24 in
  7. 7. Pots service space: 24 × 28 in
  8. 8. Trays: 18 × 18 in
  9. 9. Trays service space: 24 × 24 in
  10. 10. Long tools: 12 × 18 in
  11. 11. Long tools service space: 24 × 24 in
  12. 12. Water point reservation: 12 × 12 in
  13. 13. Water point reservation service space: 24 × 24 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

The stated geometry fits this arrangement.

Approaches test an entered square circulation footprint with fixtures retained. Turning bodies, door leaves, ventilation, utilities and safe occupancy are unassessed.

Test the task in use.

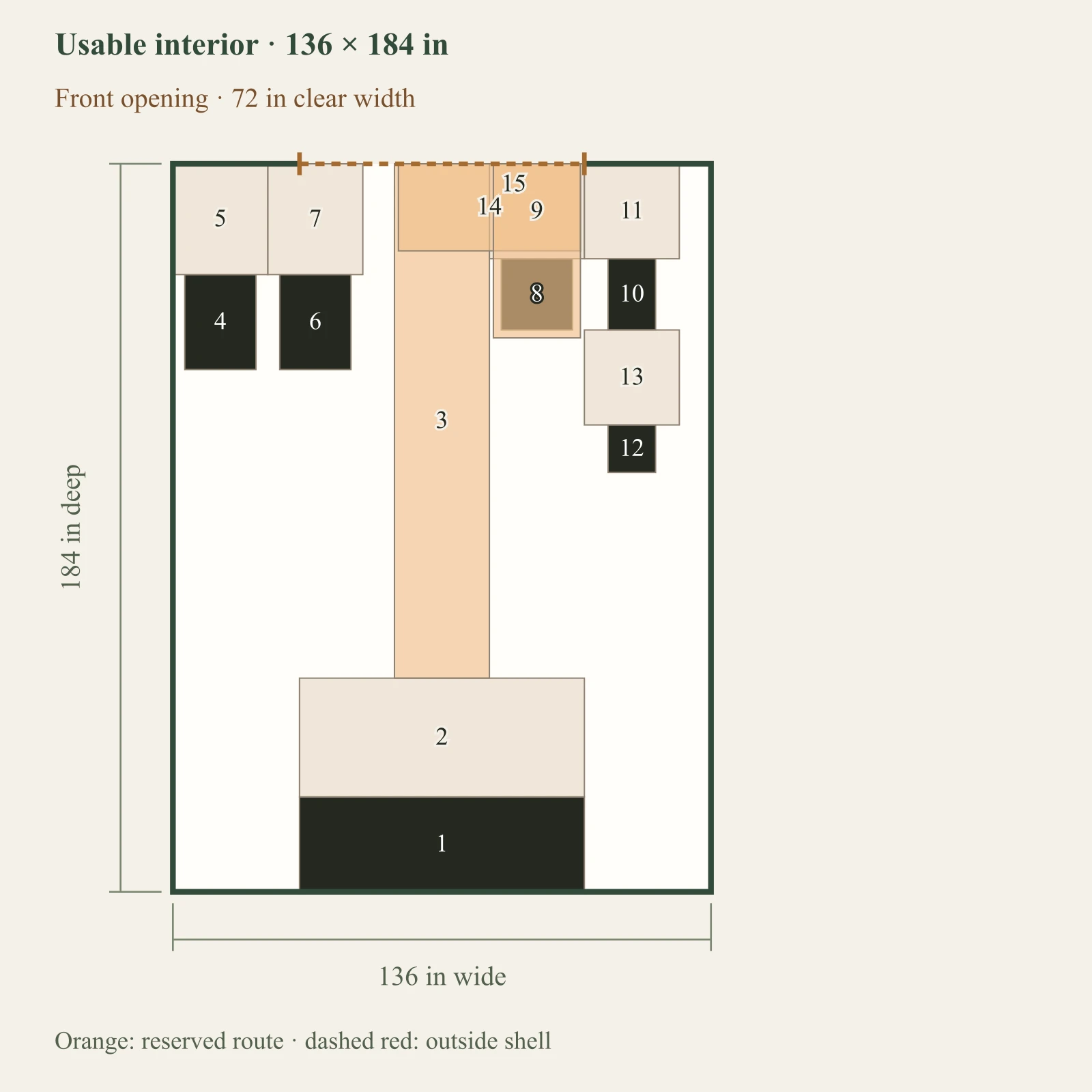

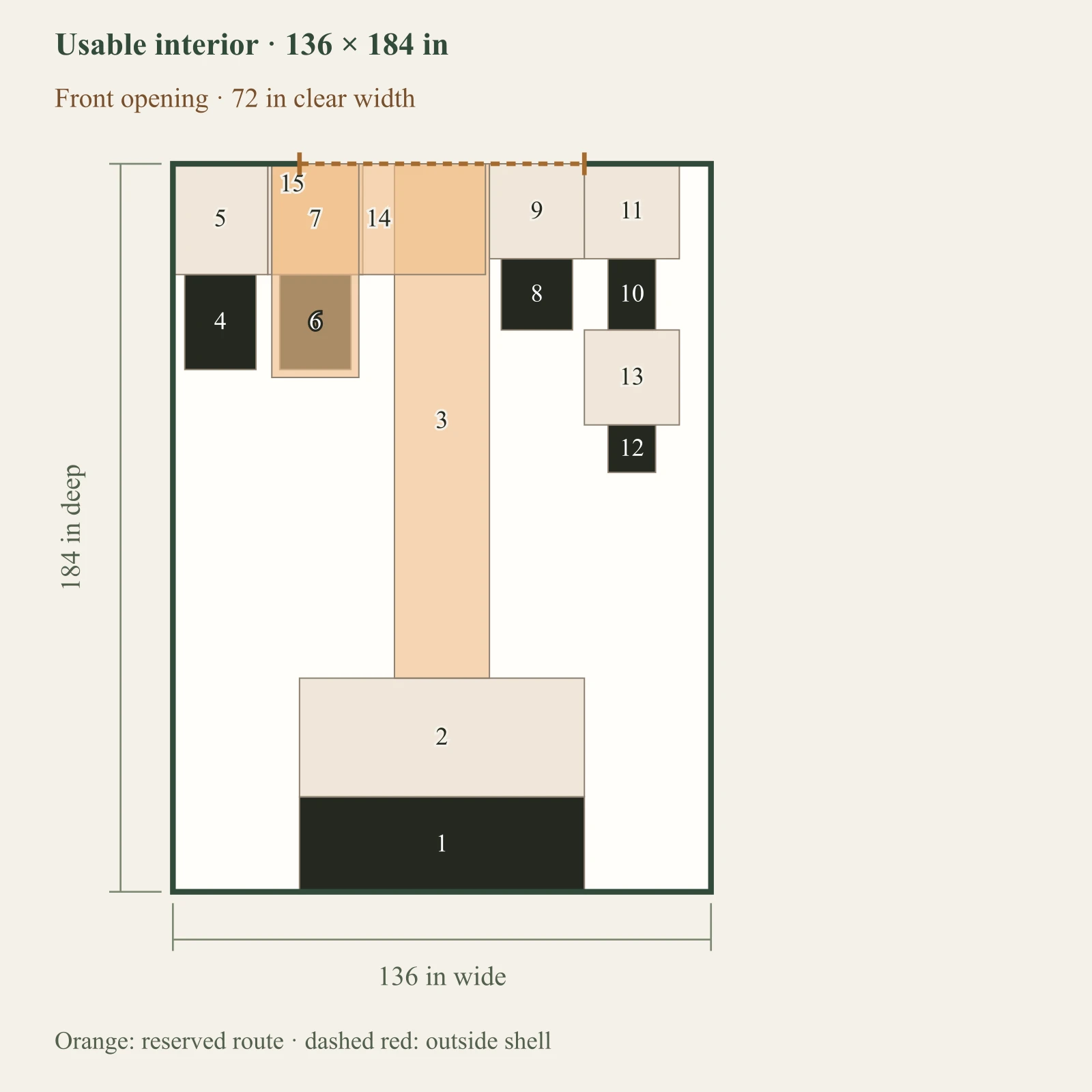

Person approaches and moving containers are separate checks. Container routes retain the full entered footprint plus side allowances, keep other fixtures in place and hold orientation fixed. Their service areas reserve at least the container depth plus allowances. No lifting, rotation or safe handling is inferred.

Collect supplies → work at bench → return tools

Collect supplies → work at bench → return toolsBench, supply storage and water-point footprints are separate. Water connection, daylight and drainage need site review. Daylight preference and actual site light remain unrecorded. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Potting bench: 72 × 24 in at 32, 160 inBench standing area: 72 × 30 in at 32, 130 inEntry circulation: 24 × 130 in at 56, 0 inSoil storage: 18 × 24 in at 3, 28 inSoil storage service space: 24 × 28 in at 0, 0 inPots: 18 × 24 in at 27, 28 inPots service space: 24 × 28 in at 24, 0 inTrays: 18 × 18 in at 83, 24 inTrays service space: 24 × 24 in at 80, 0 inLong tools: 12 × 18 in at 110, 24 inLong tools service space: 24 × 24 in at 104, 0 inWater point reservation: 12 × 12 in at 110, 66 inWater point reservation service space: 24 × 24 in at 104, 42 in12345678910111213Usable interior · 136 × 184 inFront opening · 72 in clear width136 in wide184 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Potting bench: 72 × 24 in
  2. 2. Bench standing area: 72 × 30 in
  3. 3. Entry circulation: 24 × 130 in
  4. 4. Soil storage: 18 × 24 in
  5. 5. Soil storage service space: 24 × 28 in
  6. 6. Pots: 18 × 24 in
  7. 7. Pots service space: 24 × 28 in
  8. 8. Trays: 18 × 18 in
  9. 9. Trays service space: 24 × 24 in
  10. 10. Long tools: 12 × 18 in
  11. 11. Long tools service space: 24 × 24 in
  12. 12. Water point reservation: 12 × 12 in
  13. 13. Water point reservation service space: 24 × 24 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

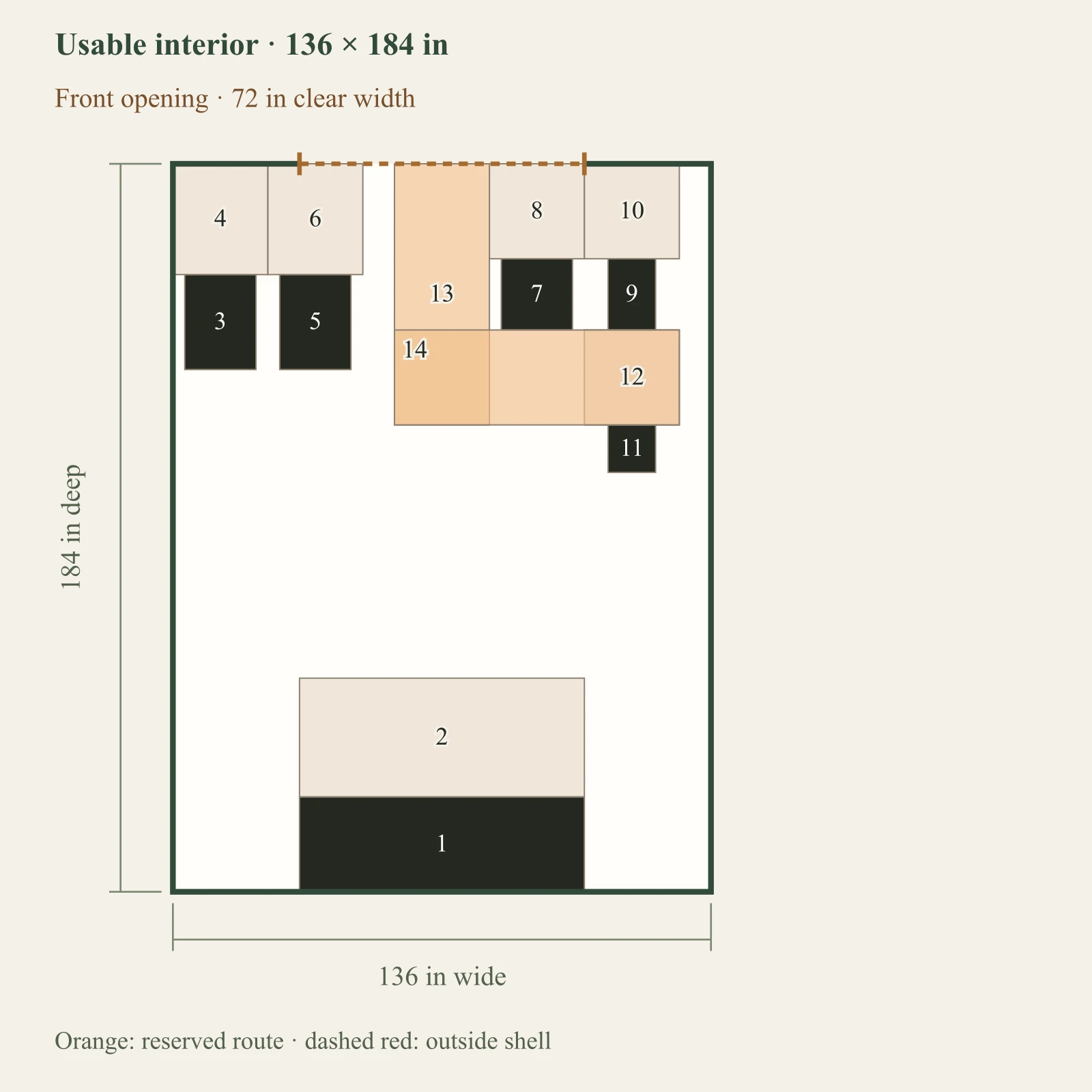

Route to Potting bench

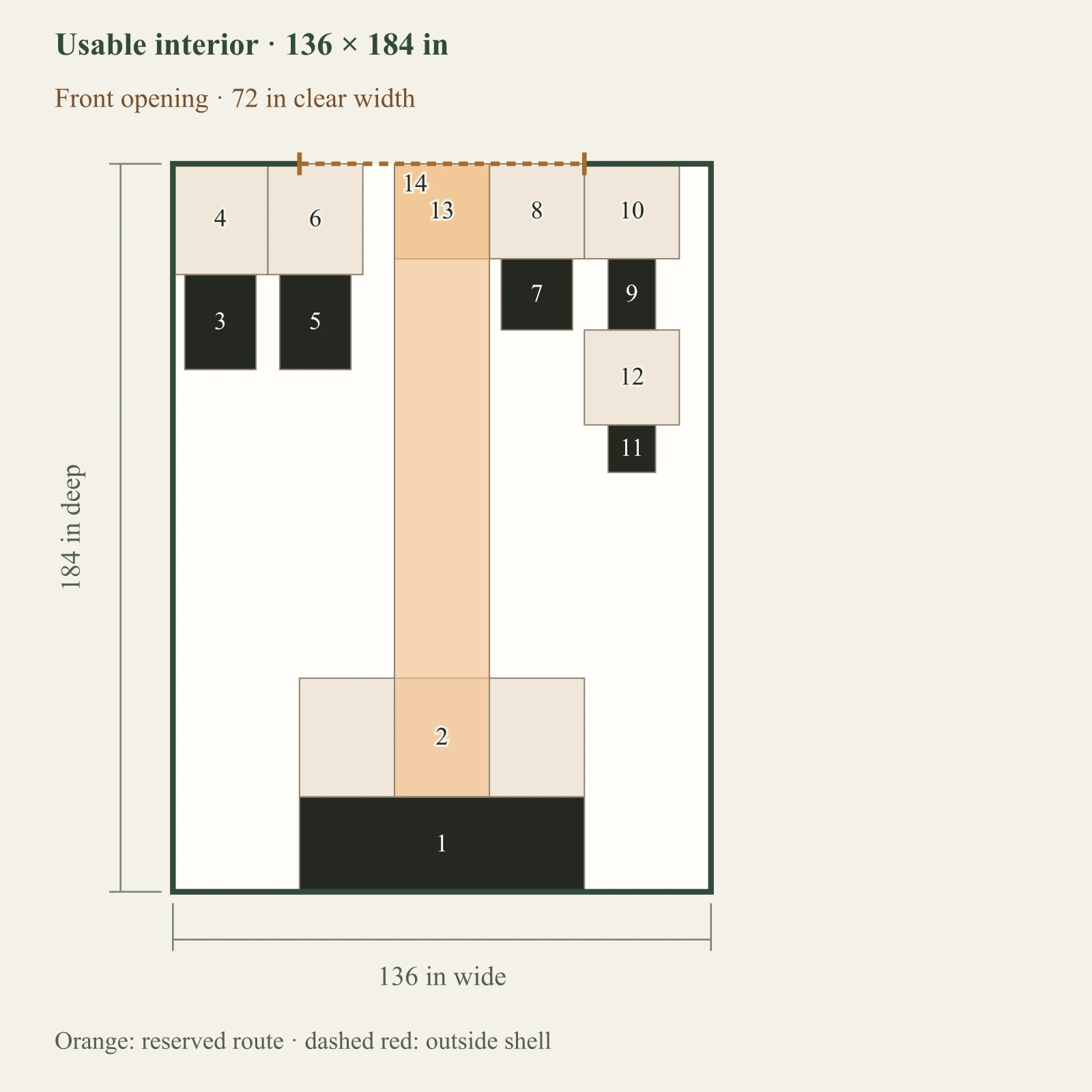

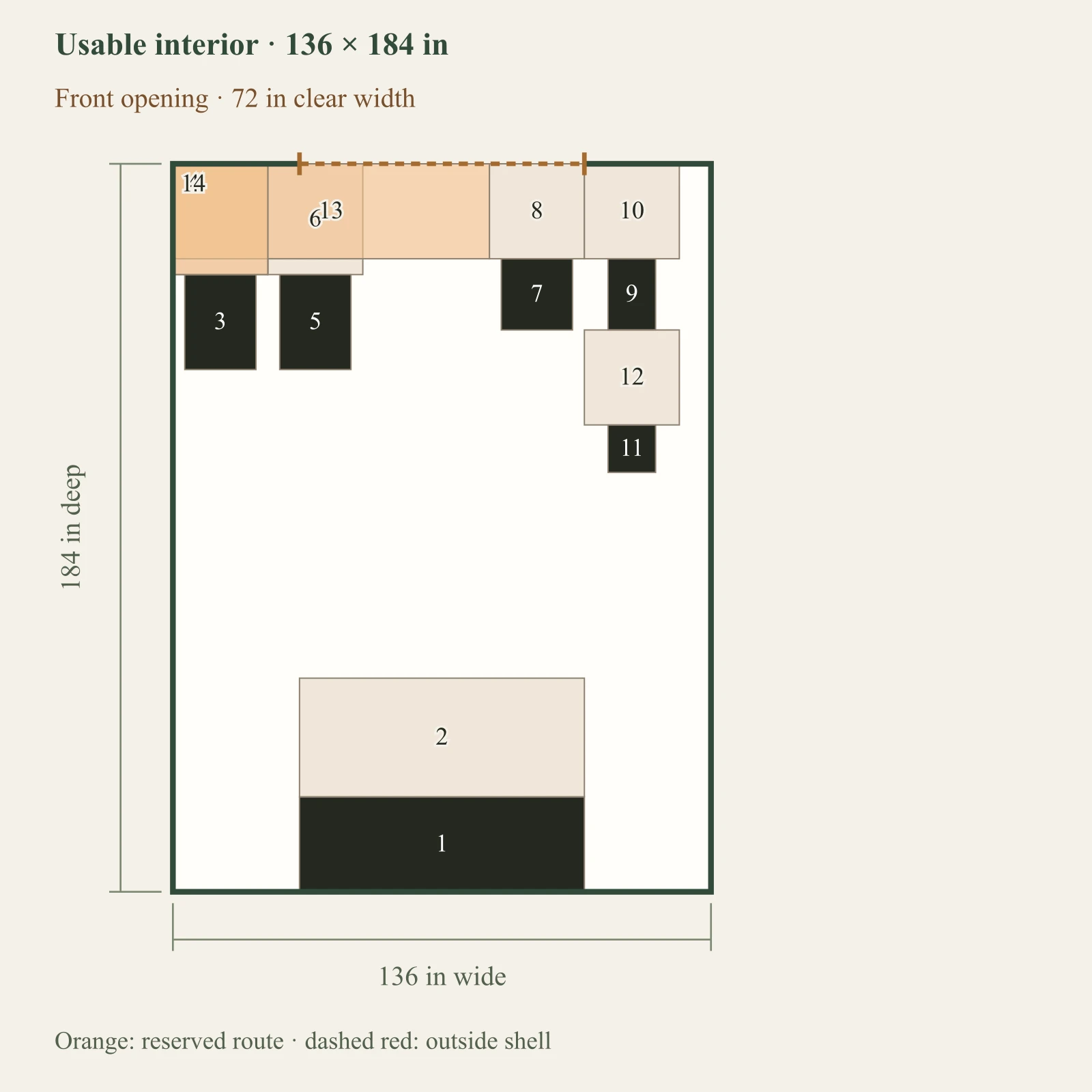

Route to Potting benchBench, supply storage and water-point footprints are separate. Water connection, daylight and drainage need site review. Daylight preference and actual site light remain unrecorded. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Potting bench: 72 × 24 in at 32, 160 inBench standing area: 72 × 30 in at 32, 130 inSoil storage: 18 × 24 in at 3, 28 inSoil storage service space: 24 × 28 in at 0, 0 inPots: 18 × 24 in at 27, 28 inPots service space: 24 × 28 in at 24, 0 inTrays: 18 × 18 in at 83, 24 inTrays service space: 24 × 24 in at 80, 0 inLong tools: 12 × 18 in at 110, 24 inLong tools service space: 24 × 24 in at 104, 0 inWater point reservation: 12 × 12 in at 110, 66 inWater point reservation service space: 24 × 24 in at 104, 42 inFull-footprint translation sweep: 24 × 24 in at 56, 0 inFull-footprint translation sweep: 24 × 160 in at 56, 0 in1234567891011121314Usable interior · 136 × 184 inFront opening · 72 in clear width136 in wide184 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Potting bench: 72 × 24 in
  2. 2. Bench standing area: 72 × 30 in
  3. 3. Soil storage: 18 × 24 in
  4. 4. Soil storage service space: 24 × 28 in
  5. 5. Pots: 18 × 24 in
  6. 6. Pots service space: 24 × 28 in
  7. 7. Trays: 18 × 18 in
  8. 8. Trays service space: 24 × 24 in
  9. 9. Long tools: 12 × 18 in
  10. 10. Long tools service space: 24 × 24 in
  11. 11. Water point reservation: 12 × 12 in
  12. 12. Water point reservation service space: 24 × 24 in
  13. 13. Full-footprint translation sweep: 24 × 24 in
  14. 14. Full-footprint translation sweep: 24 × 160 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

Route to Soil storage

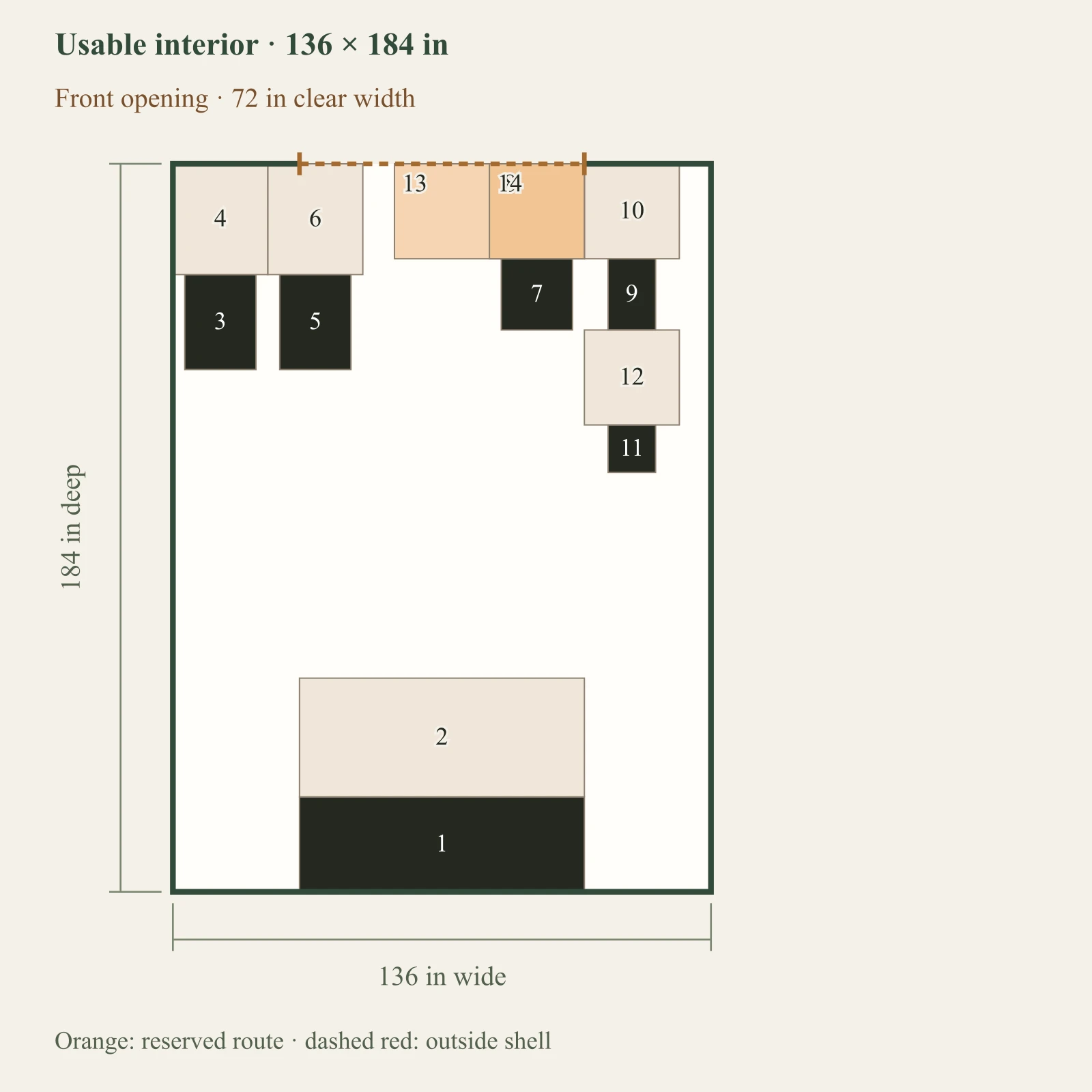

Route to Soil storageBench, supply storage and water-point footprints are separate. Water connection, daylight and drainage need site review. Daylight preference and actual site light remain unrecorded. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Potting bench: 72 × 24 in at 32, 160 inBench standing area: 72 × 30 in at 32, 130 inSoil storage: 18 × 24 in at 3, 28 inSoil storage service space: 24 × 28 in at 0, 0 inPots: 18 × 24 in at 27, 28 inPots service space: 24 × 28 in at 24, 0 inTrays: 18 × 18 in at 83, 24 inTrays service space: 24 × 24 in at 80, 0 inLong tools: 12 × 18 in at 110, 24 inLong tools service space: 24 × 24 in at 104, 0 inWater point reservation: 12 × 12 in at 110, 66 inWater point reservation service space: 24 × 24 in at 104, 42 inFull-footprint translation sweep: 80 × 24 in at 0, 0 inFull-footprint translation sweep: 24 × 28 in at 0, 0 in1234567891011121314Usable interior · 136 × 184 inFront opening · 72 in clear width136 in wide184 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Potting bench: 72 × 24 in
  2. 2. Bench standing area: 72 × 30 in
  3. 3. Soil storage: 18 × 24 in
  4. 4. Soil storage service space: 24 × 28 in
  5. 5. Pots: 18 × 24 in
  6. 6. Pots service space: 24 × 28 in
  7. 7. Trays: 18 × 18 in
  8. 8. Trays service space: 24 × 24 in
  9. 9. Long tools: 12 × 18 in
  10. 10. Long tools service space: 24 × 24 in
  11. 11. Water point reservation: 12 × 12 in
  12. 12. Water point reservation service space: 24 × 24 in
  13. 13. Full-footprint translation sweep: 80 × 24 in
  14. 14. Full-footprint translation sweep: 24 × 28 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

Route to Pots

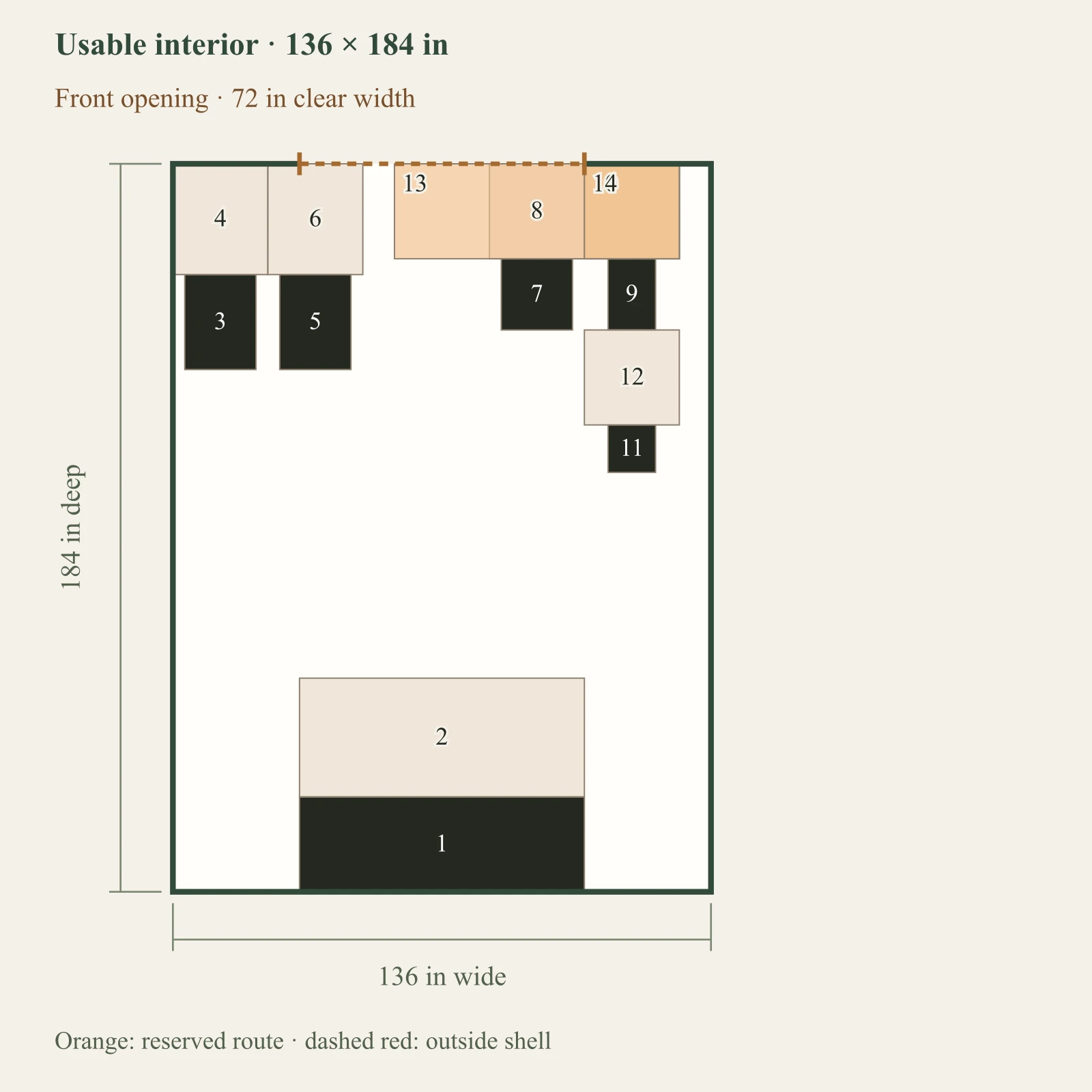

Route to PotsBench, supply storage and water-point footprints are separate. Water connection, daylight and drainage need site review. Daylight preference and actual site light remain unrecorded. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Potting bench: 72 × 24 in at 32, 160 inBench standing area: 72 × 30 in at 32, 130 inSoil storage: 18 × 24 in at 3, 28 inSoil storage service space: 24 × 28 in at 0, 0 inPots: 18 × 24 in at 27, 28 inPots service space: 24 × 28 in at 24, 0 inTrays: 18 × 18 in at 83, 24 inTrays service space: 24 × 24 in at 80, 0 inLong tools: 12 × 18 in at 110, 24 inLong tools service space: 24 × 24 in at 104, 0 inWater point reservation: 12 × 12 in at 110, 66 inWater point reservation service space: 24 × 24 in at 104, 42 inFull-footprint translation sweep: 56 × 24 in at 24, 0 inFull-footprint translation sweep: 24 × 28 in at 24, 0 in1234567891011121314Usable interior · 136 × 184 inFront opening · 72 in clear width136 in wide184 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Potting bench: 72 × 24 in
  2. 2. Bench standing area: 72 × 30 in
  3. 3. Soil storage: 18 × 24 in
  4. 4. Soil storage service space: 24 × 28 in
  5. 5. Pots: 18 × 24 in
  6. 6. Pots service space: 24 × 28 in
  7. 7. Trays: 18 × 18 in
  8. 8. Trays service space: 24 × 24 in
  9. 9. Long tools: 12 × 18 in
  10. 10. Long tools service space: 24 × 24 in
  11. 11. Water point reservation: 12 × 12 in
  12. 12. Water point reservation service space: 24 × 24 in
  13. 13. Full-footprint translation sweep: 56 × 24 in
  14. 14. Full-footprint translation sweep: 24 × 28 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

Route to Trays

Route to TraysBench, supply storage and water-point footprints are separate. Water connection, daylight and drainage need site review. Daylight preference and actual site light remain unrecorded. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Potting bench: 72 × 24 in at 32, 160 inBench standing area: 72 × 30 in at 32, 130 inSoil storage: 18 × 24 in at 3, 28 inSoil storage service space: 24 × 28 in at 0, 0 inPots: 18 × 24 in at 27, 28 inPots service space: 24 × 28 in at 24, 0 inTrays: 18 × 18 in at 83, 24 inTrays service space: 24 × 24 in at 80, 0 inLong tools: 12 × 18 in at 110, 24 inLong tools service space: 24 × 24 in at 104, 0 inWater point reservation: 12 × 12 in at 110, 66 inWater point reservation service space: 24 × 24 in at 104, 42 inFull-footprint translation sweep: 48 × 24 in at 56, 0 inFull-footprint translation sweep: 24 × 24 in at 80, 0 in1234567891011121314Usable interior · 136 × 184 inFront opening · 72 in clear width136 in wide184 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Potting bench: 72 × 24 in
  2. 2. Bench standing area: 72 × 30 in
  3. 3. Soil storage: 18 × 24 in
  4. 4. Soil storage service space: 24 × 28 in
  5. 5. Pots: 18 × 24 in
  6. 6. Pots service space: 24 × 28 in
  7. 7. Trays: 18 × 18 in
  8. 8. Trays service space: 24 × 24 in
  9. 9. Long tools: 12 × 18 in
  10. 10. Long tools service space: 24 × 24 in
  11. 11. Water point reservation: 12 × 12 in
  12. 12. Water point reservation service space: 24 × 24 in
  13. 13. Full-footprint translation sweep: 48 × 24 in
  14. 14. Full-footprint translation sweep: 24 × 24 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

Route to Long tools

Route to Long toolsBench, supply storage and water-point footprints are separate. Water connection, daylight and drainage need site review. Daylight preference and actual site light remain unrecorded. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Potting bench: 72 × 24 in at 32, 160 inBench standing area: 72 × 30 in at 32, 130 inSoil storage: 18 × 24 in at 3, 28 inSoil storage service space: 24 × 28 in at 0, 0 inPots: 18 × 24 in at 27, 28 inPots service space: 24 × 28 in at 24, 0 inTrays: 18 × 18 in at 83, 24 inTrays service space: 24 × 24 in at 80, 0 inLong tools: 12 × 18 in at 110, 24 inLong tools service space: 24 × 24 in at 104, 0 inWater point reservation: 12 × 12 in at 110, 66 inWater point reservation service space: 24 × 24 in at 104, 42 inFull-footprint translation sweep: 72 × 24 in at 56, 0 inFull-footprint translation sweep: 24 × 24 in at 104, 0 in1234567891011121314Usable interior · 136 × 184 inFront opening · 72 in clear width136 in wide184 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Potting bench: 72 × 24 in
  2. 2. Bench standing area: 72 × 30 in
  3. 3. Soil storage: 18 × 24 in
  4. 4. Soil storage service space: 24 × 28 in
  5. 5. Pots: 18 × 24 in
  6. 6. Pots service space: 24 × 28 in
  7. 7. Trays: 18 × 18 in
  8. 8. Trays service space: 24 × 24 in
  9. 9. Long tools: 12 × 18 in
  10. 10. Long tools service space: 24 × 24 in
  11. 11. Water point reservation: 12 × 12 in
  12. 12. Water point reservation service space: 24 × 24 in
  13. 13. Full-footprint translation sweep: 72 × 24 in
  14. 14. Full-footprint translation sweep: 24 × 24 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

Route to Water point reservation

Route to Water point reservationBench, supply storage and water-point footprints are separate. Water connection, daylight and drainage need site review. Daylight preference and actual site light remain unrecorded. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Potting bench: 72 × 24 in at 32, 160 inBench standing area: 72 × 30 in at 32, 130 inSoil storage: 18 × 24 in at 3, 28 inSoil storage service space: 24 × 28 in at 0, 0 inPots: 18 × 24 in at 27, 28 inPots service space: 24 × 28 in at 24, 0 inTrays: 18 × 18 in at 83, 24 inTrays service space: 24 × 24 in at 80, 0 inLong tools: 12 × 18 in at 110, 24 inLong tools service space: 24 × 24 in at 104, 0 inWater point reservation: 12 × 12 in at 110, 66 inWater point reservation service space: 24 × 24 in at 104, 42 inFull-footprint translation sweep: 24 × 66 in at 56, 0 inFull-footprint translation sweep: 72 × 24 in at 56, 42 in1234567891011121314Usable interior · 136 × 184 inFront opening · 72 in clear width136 in wide184 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Potting bench: 72 × 24 in
  2. 2. Bench standing area: 72 × 30 in
  3. 3. Soil storage: 18 × 24 in
  4. 4. Soil storage service space: 24 × 28 in
  5. 5. Pots: 18 × 24 in
  6. 6. Pots service space: 24 × 28 in
  7. 7. Trays: 18 × 18 in
  8. 8. Trays service space: 24 × 24 in
  9. 9. Long tools: 12 × 18 in
  10. 10. Long tools service space: 24 × 24 in
  11. 11. Water point reservation: 12 × 12 in
  12. 12. Water point reservation service space: 24 × 24 in
  13. 13. Full-footprint translation sweep: 24 × 66 in
  14. 14. Full-footprint translation sweep: 72 × 24 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

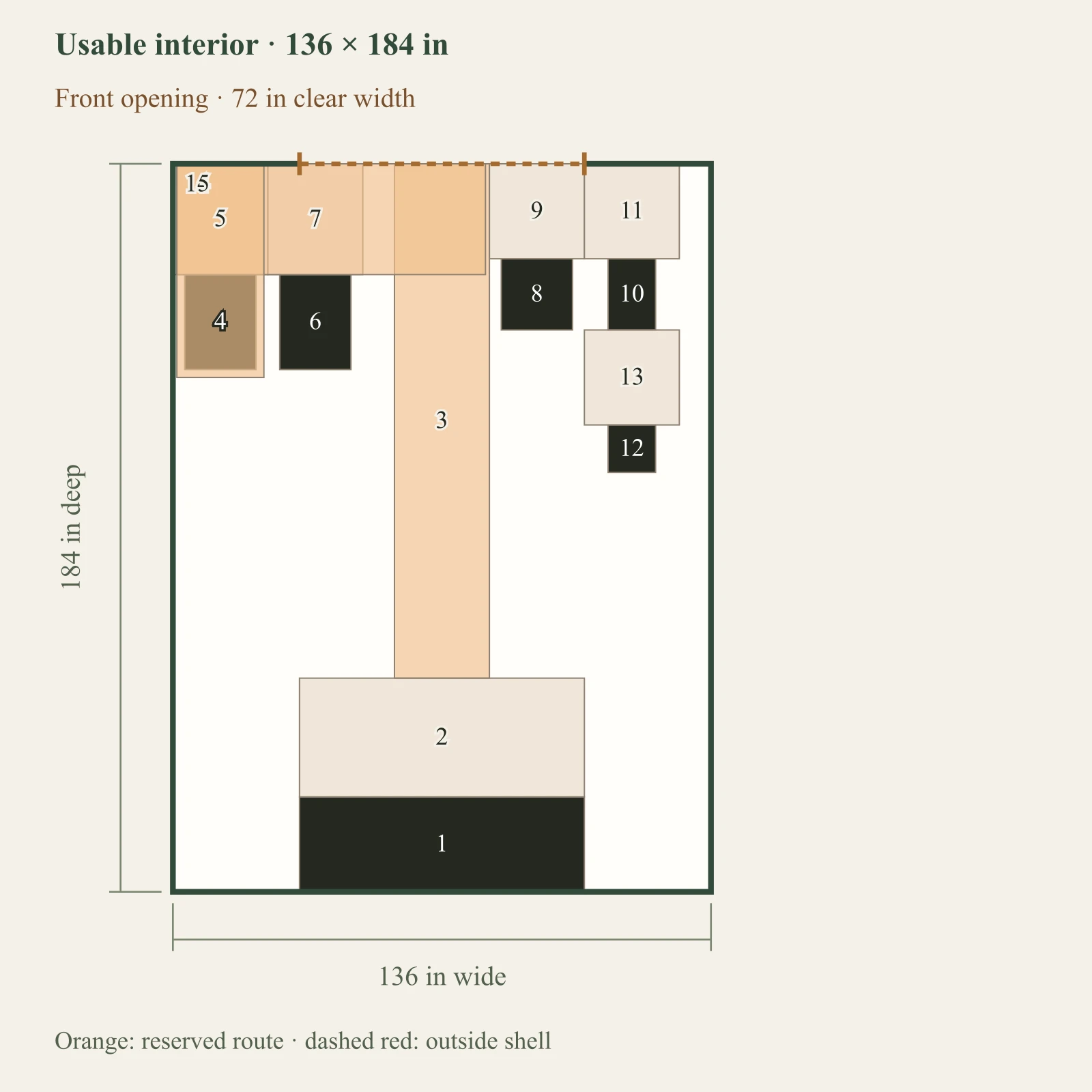

Move soil storage — full envelope, fixed orientation

Move soil storage — full envelope, fixed orientationBench, supply storage and water-point footprints are separate. Water connection, daylight and drainage need site review. Daylight preference and actual site light remain unrecorded. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Potting bench: 72 × 24 in at 32, 160 inBench standing area: 72 × 30 in at 32, 130 inEntry circulation: 24 × 130 in at 56, 0 inSoil storage: 18 × 24 in at 3, 28 inSoil storage service space: 24 × 28 in at 0, 0 inPots: 18 × 24 in at 27, 28 inPots service space: 24 × 28 in at 24, 0 inTrays: 18 × 18 in at 83, 24 inTrays service space: 24 × 24 in at 80, 0 inLong tools: 12 × 18 in at 110, 24 inLong tools service space: 24 × 24 in at 104, 0 inWater point reservation: 12 × 12 in at 110, 66 inWater point reservation service space: 24 × 24 in at 104, 42 inFull-footprint translation sweep: 78 × 28 in at 1, 0 inFull-footprint translation sweep: 22 × 54 in at 1, 0 in123456789101112131415Usable interior · 136 × 184 inFront opening · 72 in clear width136 in wide184 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Potting bench: 72 × 24 in
  2. 2. Bench standing area: 72 × 30 in
  3. 3. Entry circulation: 24 × 130 in
  4. 4. Soil storage: 18 × 24 in
  5. 5. Soil storage service space: 24 × 28 in
  6. 6. Pots: 18 × 24 in
  7. 7. Pots service space: 24 × 28 in
  8. 8. Trays: 18 × 18 in
  9. 9. Trays service space: 24 × 24 in
  10. 10. Long tools: 12 × 18 in
  11. 11. Long tools service space: 24 × 24 in
  12. 12. Water point reservation: 12 × 12 in
  13. 13. Water point reservation service space: 24 × 24 in
  14. 14. Full-footprint translation sweep: 78 × 28 in
  15. 15. Full-footprint translation sweep: 22 × 54 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

Move pots — full envelope, fixed orientation

Move pots — full envelope, fixed orientationBench, supply storage and water-point footprints are separate. Water connection, daylight and drainage need site review. Daylight preference and actual site light remain unrecorded. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Potting bench: 72 × 24 in at 32, 160 inBench standing area: 72 × 30 in at 32, 130 inEntry circulation: 24 × 130 in at 56, 0 inSoil storage: 18 × 24 in at 3, 28 inSoil storage service space: 24 × 28 in at 0, 0 inPots: 18 × 24 in at 27, 28 inPots service space: 24 × 28 in at 24, 0 inTrays: 18 × 18 in at 83, 24 inTrays service space: 24 × 24 in at 80, 0 inLong tools: 12 × 18 in at 110, 24 inLong tools service space: 24 × 24 in at 104, 0 inWater point reservation: 12 × 12 in at 110, 66 inWater point reservation service space: 24 × 24 in at 104, 42 inFull-footprint translation sweep: 54 × 28 in at 25, 0 inFull-footprint translation sweep: 22 × 54 in at 25, 0 in123456789101112131415Usable interior · 136 × 184 inFront opening · 72 in clear width136 in wide184 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Potting bench: 72 × 24 in
  2. 2. Bench standing area: 72 × 30 in
  3. 3. Entry circulation: 24 × 130 in
  4. 4. Soil storage: 18 × 24 in
  5. 5. Soil storage service space: 24 × 28 in
  6. 6. Pots: 18 × 24 in
  7. 7. Pots service space: 24 × 28 in
  8. 8. Trays: 18 × 18 in
  9. 9. Trays service space: 24 × 24 in
  10. 10. Long tools: 12 × 18 in
  11. 11. Long tools service space: 24 × 24 in
  12. 12. Water point reservation: 12 × 12 in
  13. 13. Water point reservation service space: 24 × 24 in
  14. 14. Full-footprint translation sweep: 54 × 28 in
  15. 15. Full-footprint translation sweep: 22 × 54 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

Move trays — full envelope, fixed orientation

Move trays — full envelope, fixed orientationBench, supply storage and water-point footprints are separate. Water connection, daylight and drainage need site review. Daylight preference and actual site light remain unrecorded. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Potting bench: 72 × 24 in at 32, 160 inBench standing area: 72 × 30 in at 32, 130 inEntry circulation: 24 × 130 in at 56, 0 inSoil storage: 18 × 24 in at 3, 28 inSoil storage service space: 24 × 28 in at 0, 0 inPots: 18 × 24 in at 27, 28 inPots service space: 24 × 28 in at 24, 0 inTrays: 18 × 18 in at 83, 24 inTrays service space: 24 × 24 in at 80, 0 inLong tools: 12 × 18 in at 110, 24 inLong tools service space: 24 × 24 in at 104, 0 inWater point reservation: 12 × 12 in at 110, 66 inWater point reservation service space: 24 × 24 in at 104, 42 inFull-footprint translation sweep: 46 × 22 in at 57, 0 inFull-footprint translation sweep: 22 × 44 in at 81, 0 in123456789101112131415Usable interior · 136 × 184 inFront opening · 72 in clear width136 in wide184 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Potting bench: 72 × 24 in
  2. 2. Bench standing area: 72 × 30 in
  3. 3. Entry circulation: 24 × 130 in
  4. 4. Soil storage: 18 × 24 in
  5. 5. Soil storage service space: 24 × 28 in
  6. 6. Pots: 18 × 24 in
  7. 7. Pots service space: 24 × 28 in
  8. 8. Trays: 18 × 18 in
  9. 9. Trays service space: 24 × 24 in
  10. 10. Long tools: 12 × 18 in
  11. 11. Long tools service space: 24 × 24 in
  12. 12. Water point reservation: 12 × 12 in
  13. 13. Water point reservation service space: 24 × 24 in
  14. 14. Full-footprint translation sweep: 46 × 22 in
  15. 15. Full-footprint translation sweep: 22 × 44 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

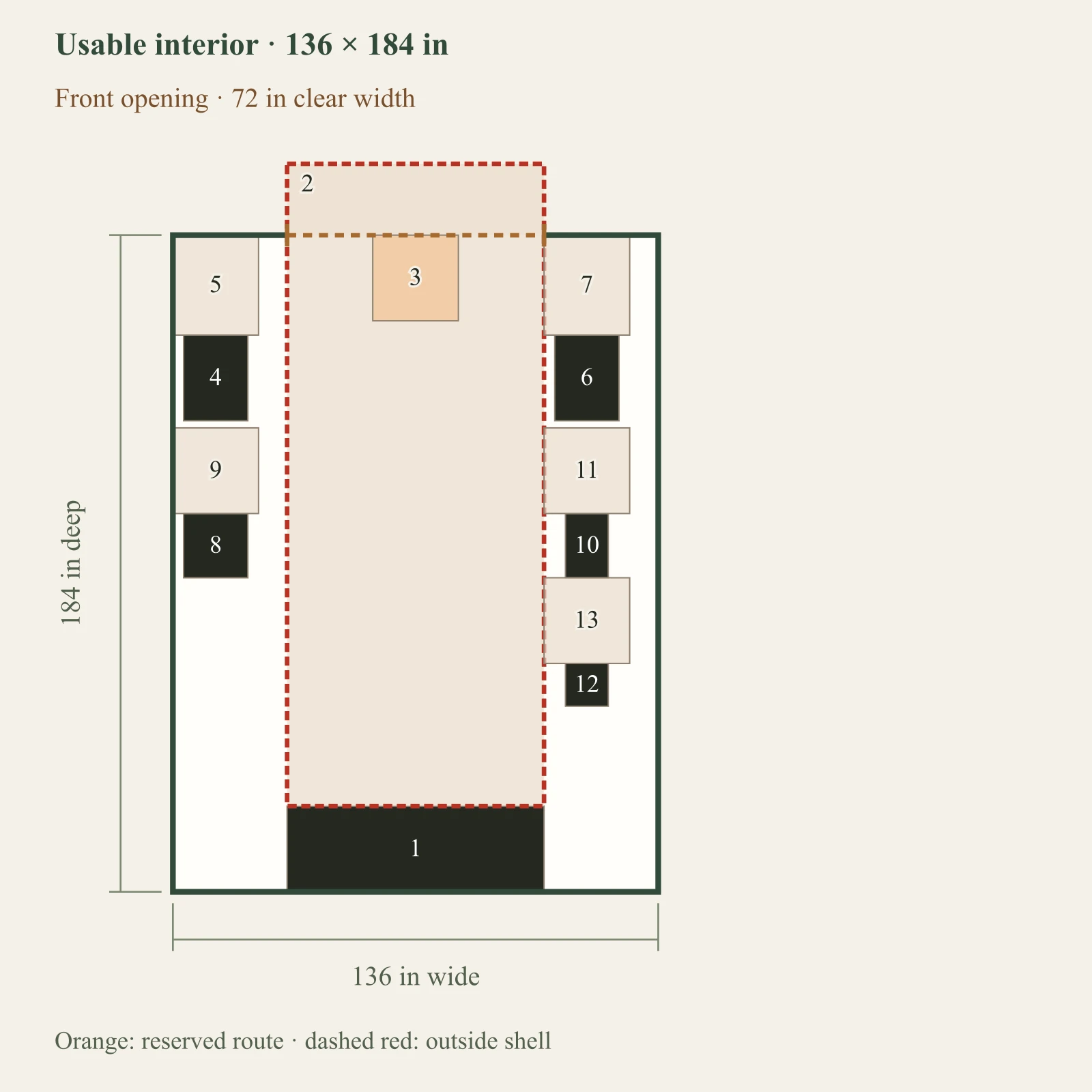

Controlled failure

What changes the answer?

Increase only bench standing depth to 180 inches.

  • Bench standing area exceeds the usable interior in this arrangement.
  • Bench standing area overlaps Entry circulation.
Full-size layout and reserved spacesBench, supply storage and water-point footprints are separate. Water connection, daylight and drainage need site review. Daylight preference and actual site light remain unrecorded. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Potting bench: 72 × 24 in at 32, 160 inBench standing area: 72 × 180 in at 32, -20 inEntry circulation: 24 × 24 in at 56, 0 inSoil storage: 18 × 24 in at 3, 28 inSoil storage service space: 24 × 28 in at 0, 0 inPots: 18 × 24 in at 107, 28 inPots service space: 24 × 28 in at 104, 0 inTrays: 18 × 18 in at 3, 78 inTrays service space: 24 × 24 in at 0, 54 inLong tools: 12 × 18 in at 110, 78 inLong tools service space: 24 × 24 in at 104, 54 inWater point reservation: 12 × 12 in at 110, 120 inWater point reservation service space: 24 × 24 in at 104, 96 in12345678910111213Usable interior · 136 × 184 inFront opening · 72 in clear width136 in wide184 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Potting bench: 72 × 24 in
  2. 2. Bench standing area: 72 × 180 in — outside shell
  3. 3. Entry circulation: 24 × 24 in
  4. 4. Soil storage: 18 × 24 in
  5. 5. Soil storage service space: 24 × 28 in
  6. 6. Pots: 18 × 24 in
  7. 7. Pots service space: 24 × 28 in
  8. 8. Trays: 18 × 18 in
  9. 9. Trays service space: 24 × 24 in
  10. 10. Long tools: 12 × 18 in
  11. 11. Long tools service space: 24 × 24 in
  12. 12. Water point reservation: 12 × 12 in
  13. 13. Water point reservation service space: 24 × 24 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

Sources and the questions to take further.

Layout conclusions come from the disclosed rectangular geometry and entered clearances. A source supports only the specific guidance stated here. Site, structure, ventilation, actual door operation and local requirements need separate review.

    Record foundation questionsMeasure the openingSources and assumptionsCheck my yardCompare actual quote scopeTake my supplier brief
    Download the authored reference diagrams

    Version 2026-09-08-decisions. These files reproduce the public examples, including failed arrangements. Your private measurements are only included when you generate your own brief.

    • Figure 1 · EX potting 0SVGWebP
    • Figure 2 · EX potting 1SVGWebP
    • Figure 3 · EX potting shell 8×10 referenceSVGWebP
    • Figure 4 · EX potting shell 10×12 referenceSVGWebP
    • Figure 5 · EX potting shell 12×16 referenceSVGWebP
    • Figure 6 · EX potting activitySVGWebP
    • Figure 7 · EX potting route 0SVGWebP
    • Figure 8 · EX potting route 1SVGWebP
    • Figure 9 · EX potting route 2SVGWebP
    • Figure 10 · EX potting route 3SVGWebP
    • Figure 11 · EX potting route 4SVGWebP
    • Figure 12 · EX potting route 5SVGWebP
    • Figure 13 · EX potting moving soil storageSVGWebP
    • Figure 14 · EX potting moving potsSVGWebP
    • Figure 15 · EX potting moving traysSVGWebP
    • Figure 16 · EX potting failureSVGWebP

    Change this project?
