Shed size · measured planning examples

10×20 shed: decide what the footprint needs to do

Test a long work area against a wider alternative.

Plan with my measurementsCompare reference sizes

Test a long work area against a wider alternative.

The example is 232 in long but only 112 in wide. Compare it with 12×16: more nominal area cannot fix a cross-shed working-width conflict.

Five checks behind this page
  1. What does nominal area leave out?
  2. Which shown arrangement works with these exact inputs?
  3. Which equipment or path is the first constraint?
  4. Does a wider or deeper candidate resolve that constraint?
  5. What must I measure and take to a supplier before choosing?

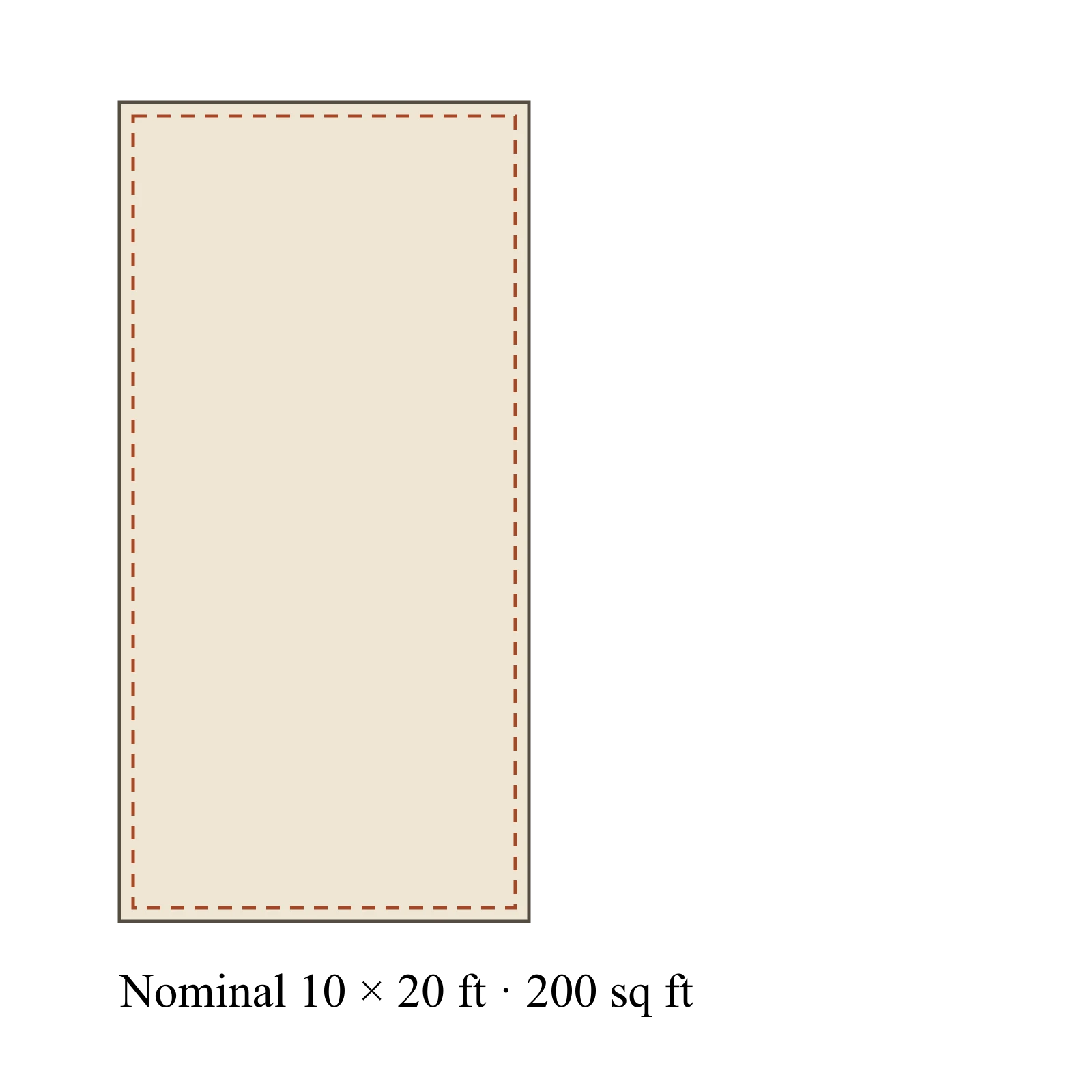

Nominal 10 × 20 ft · 200 sq ft

Solid: nominal footprint definition. Dashed: independently authored interior 112 × 232 in, aligned for illustration. The gap does not specify wall thickness. Usable height: 84 in; opening: 64 × 78 in. Editable planning assumptions.

Compare the reference arrangements

Example layout · 10×20

A mobile-tool workshop

Projects that use a movable tool and then put it away.

Full-size layout and reserved spacesFull-size footprints with a 24 in entry/side aisle and 30 in bench standing depth. Each mobile deployment and its orthogonal routes are tested with other parked positions unchanged. Staging is screened along the lengthwise axis; turning, actual machine feed points and manufacturer operating instructions require separate confirmation. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Reserved entry cross-aisle: 112 × 24 in at 0, 0 inReserved side aisle: 24 × 178 in at 0, 0 inBench standing area: 60 × 30 in at 26, 178 inWorkbench: 60 × 24 in at 26, 208 inMobile tool parked footprint: 30 × 30 in at 24, 24 inTool chest: 30 × 24 in at 54, 24 in123456Usable interior · 112 × 232 inFront opening · 64 in clear width112 in wide232 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Reserved entry cross-aisle: 112 × 24 in
  2. 2. Reserved side aisle: 24 × 178 in
  3. 3. Bench standing area: 60 × 30 in
  4. 4. Workbench: 60 × 24 in
  5. 5. Mobile tool parked footprint: 30 × 30 in
  6. 6. Tool chest: 30 × 24 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

The shown arrangement preserves its reserved spaces and entry aisle.

What you gain
Tests the parked tool and its separate deployed envelope while the other fixtures stay in place.
What you give up
Moving the tool is an extra step. The shown translation route is tested without rotation; actual steering and tool-specific feeding still need checking.
When to choose it
Choose this direction if you accept setup time in exchange for a shared floor area.

Example interior: 112 × 232 in. Opening: 64 in wide. All reference dimensions and allowances are planning assumptions, not product specifications.

Checks and operating states
  • A failed arrangement is not proof that every layout in this size fails. Only the displayed axis-aligned arrangements were tested.
  • Equipment footprints and reserved spaces are editable planning assumptions. These rectangles do not establish manufacturer operating clearances.
  • Mobile transport tests full-footprint translations along obstacle edges without rotation. Individual workstation approaches and turning remain unassessed. Machine-specific material feeding is not selected; enable its separate straight-sweep check when relevant.
  • Confirm guarding, electrical, dust collection, ventilation, fire separation, loading, and local requirements separately.

Move Mobile tool from parked to working position

Move Mobile tool from parked to working positionFull-size footprints with a 24 in entry/side aisle and 30 in bench standing depth. Each mobile deployment and its orthogonal routes are tested with other parked positions unchanged. Staging is screened along the lengthwise axis; turning, actual machine feed points and manufacturer operating instructions require separate confirmation. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Full-footprint translation sweep: 30 × 63 in at 24, 24 inFull-footprint translation sweep: 39 × 30 in at 24, 57 inReserved entry cross-aisle: 112 × 24 in at 0, 0 inReserved side aisle: 24 × 178 in at 0, 0 inBench standing area: 60 × 30 in at 26, 178 inWorkbench: 60 × 24 in at 26, 208 inTool chest: 30 × 24 in at 54, 24 inMobile tool parked footprint: 30 × 30 in at 24, 24 in12345678Usable interior · 112 × 232 inFront opening · 64 in clear width112 in wide232 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Full-footprint translation sweep: 30 × 63 in
  2. 2. Full-footprint translation sweep: 39 × 30 in
  3. 3. Reserved entry cross-aisle: 112 × 24 in
  4. 4. Reserved side aisle: 24 × 178 in
  5. 5. Bench standing area: 60 × 30 in
  6. 6. Workbench: 60 × 24 in
  7. 7. Tool chest: 30 × 24 in
  8. 8. Mobile tool parked footprint: 30 × 30 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

Use Mobile tool; other machines stay parked

Use Mobile tool; other machines stay parkedFull-size footprints with a 24 in entry/side aisle and 30 in bench standing depth. Each mobile deployment and its orthogonal routes are tested with other parked positions unchanged. Staging is screened along the lengthwise axis; turning, actual machine feed points and manufacturer operating instructions require separate confirmation. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Reserved entry cross-aisle: 112 × 24 in at 0, 0 inReserved side aisle: 24 × 178 in at 0, 0 inBench standing area: 60 × 30 in at 26, 178 inWorkbench: 60 × 24 in at 26, 208 inTool chest: 30 × 24 in at 54, 24 inMobile tool working envelope: 48 × 48 in at 24, 48 inMobile tool footprint: 30 × 30 in at 33, 57 in1234567Usable interior · 112 × 232 inFront opening · 64 in clear width112 in wide232 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Reserved entry cross-aisle: 112 × 24 in
  2. 2. Reserved side aisle: 24 × 178 in
  3. 3. Bench standing area: 60 × 30 in
  4. 4. Workbench: 60 × 24 in
  5. 5. Tool chest: 30 × 24 in
  6. 6. Mobile tool working envelope: 48 × 48 in
  7. 7. Mobile tool footprint: 30 × 30 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

Before buying or building: Measure the tool in storage and in use. Check power, dust collection and moving the real tool before committing.

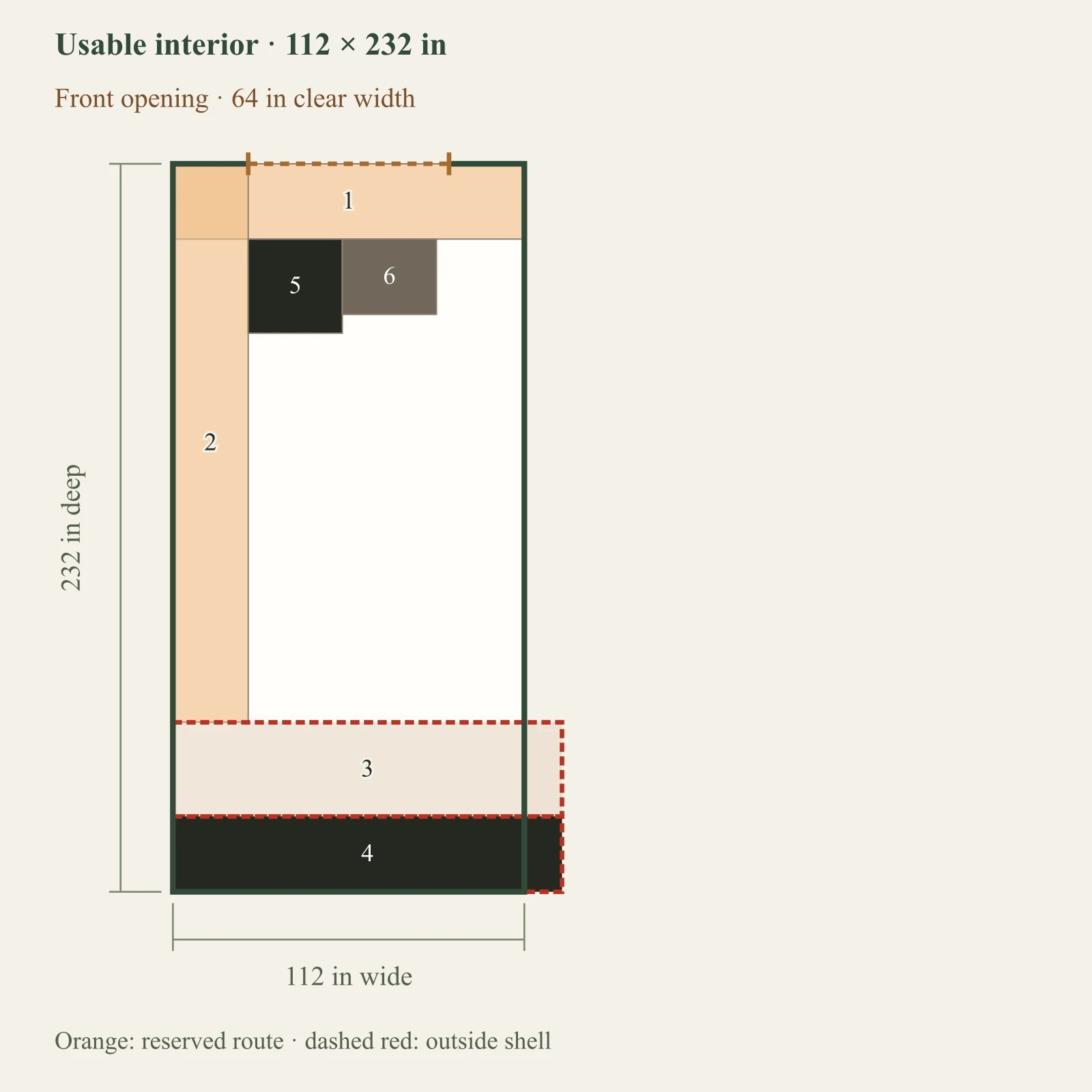

Where this candidate stops working

Only the bench length changes to 124 in, beyond the usable rear wall.

  • Bench standing area exceeds the usable interior in this arrangement.
  • Workbench exceeds the usable interior in this arrangement.
Full-size layout and reserved spacesFull-size footprints with a 24 in entry/side aisle and 30 in bench standing depth. Each mobile deployment and its orthogonal routes are tested with other parked positions unchanged. Staging is screened along the lengthwise axis; turning, actual machine feed points and manufacturer operating instructions require separate confirmation. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Reserved entry cross-aisle: 112 × 24 in at 0, 0 inReserved side aisle: 24 × 178 in at 0, 0 inBench standing area: 124 × 30 in at 0, 178 inWorkbench: 124 × 24 in at 0, 208 inMobile tool parked footprint: 30 × 30 in at 24, 24 inTool chest: 30 × 24 in at 54, 24 in123456Usable interior · 112 × 232 inFront opening · 64 in clear width112 in wide232 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Reserved entry cross-aisle: 112 × 24 in
  2. 2. Reserved side aisle: 24 × 178 in
  3. 3. Bench standing area: 124 × 30 in — outside shell
  4. 4. Workbench: 124 × 24 in — outside shell
  5. 5. Mobile tool parked footprint: 30 × 30 in
  6. 6. Tool chest: 30 × 24 in

Same arrangement: 10×20 and 12×16

Equipment, activities and allowances are identical. The authored shell dimensions and opening can differ. The drawings use one scale, including full-size items that cannot be placed. Positions can change as the bounded layout search uses the available space.

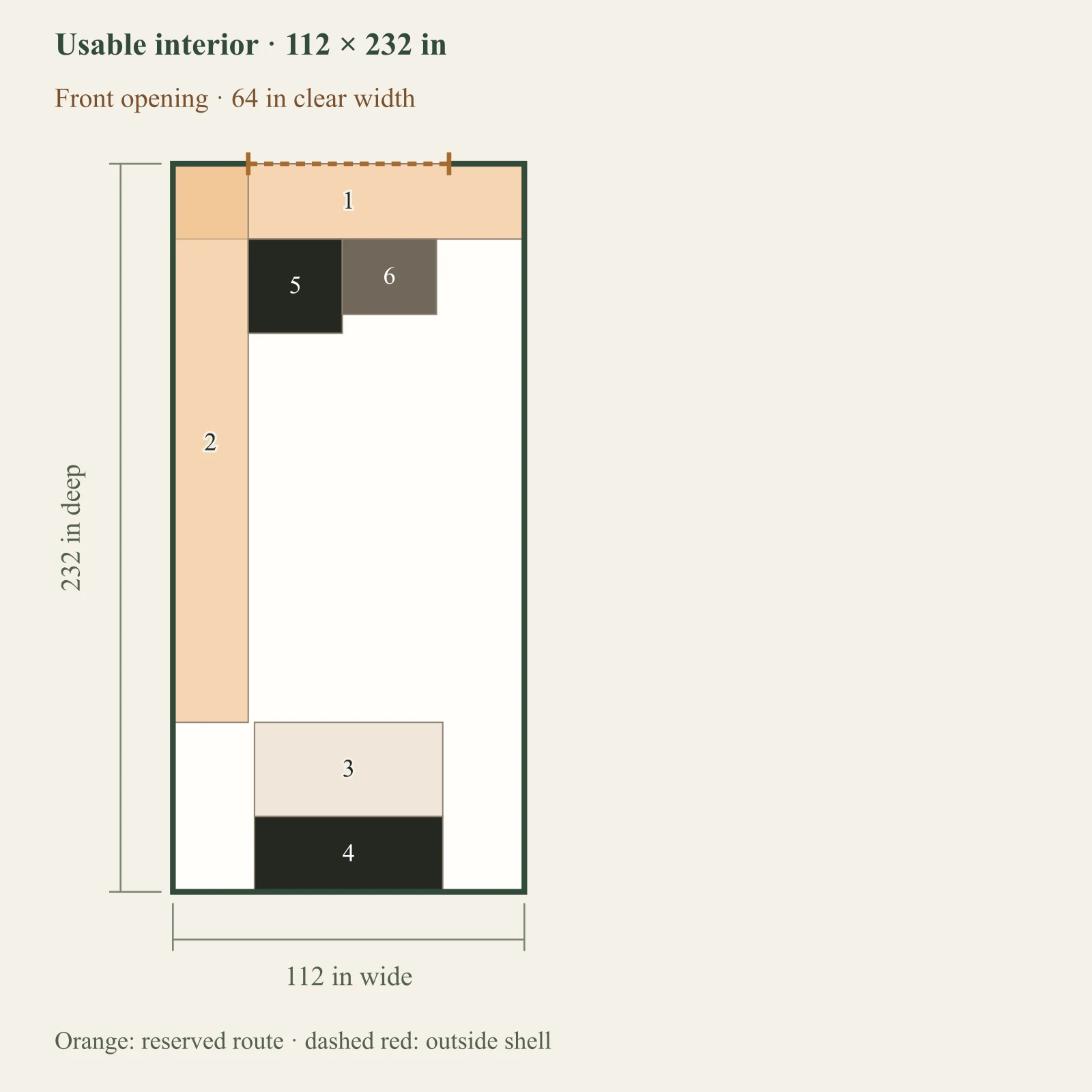

10×20

Example interior 112 × 232 in; clear door 64 × 78 in.

Full-size layout and reserved spacesFull-size footprints with a 24 in entry/side aisle and 30 in bench standing depth. Each mobile deployment and its orthogonal routes are tested with other parked positions unchanged. Staging is screened along the lengthwise axis; turning, actual machine feed points and manufacturer operating instructions require separate confirmation. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Reserved entry cross-aisle: 112 × 24 in at 0, 0 inReserved side aisle: 24 × 178 in at 0, 0 inBench standing area: 60 × 30 in at 26, 178 inWorkbench: 60 × 24 in at 26, 208 inMobile tool parked footprint: 30 × 30 in at 24, 24 inTool chest: 30 × 24 in at 54, 24 in123456Usable interior · 112 × 232 inFront opening · 64 in clear width112 in wide232 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Reserved entry cross-aisle: 112 × 24 in
  2. 2. Reserved side aisle: 24 × 178 in
  3. 3. Bench standing area: 60 × 30 in
  4. 4. Workbench: 60 × 24 in
  5. 5. Mobile tool parked footprint: 30 × 30 in
  6. 6. Tool chest: 30 × 24 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

The shown arrangement preserves its reserved spaces and entry aisle.

  • A failed arrangement is not proof that every layout in this size fails. Only the displayed axis-aligned arrangements were tested.
  • Equipment footprints and reserved spaces are editable planning assumptions. These rectangles do not establish manufacturer operating clearances.

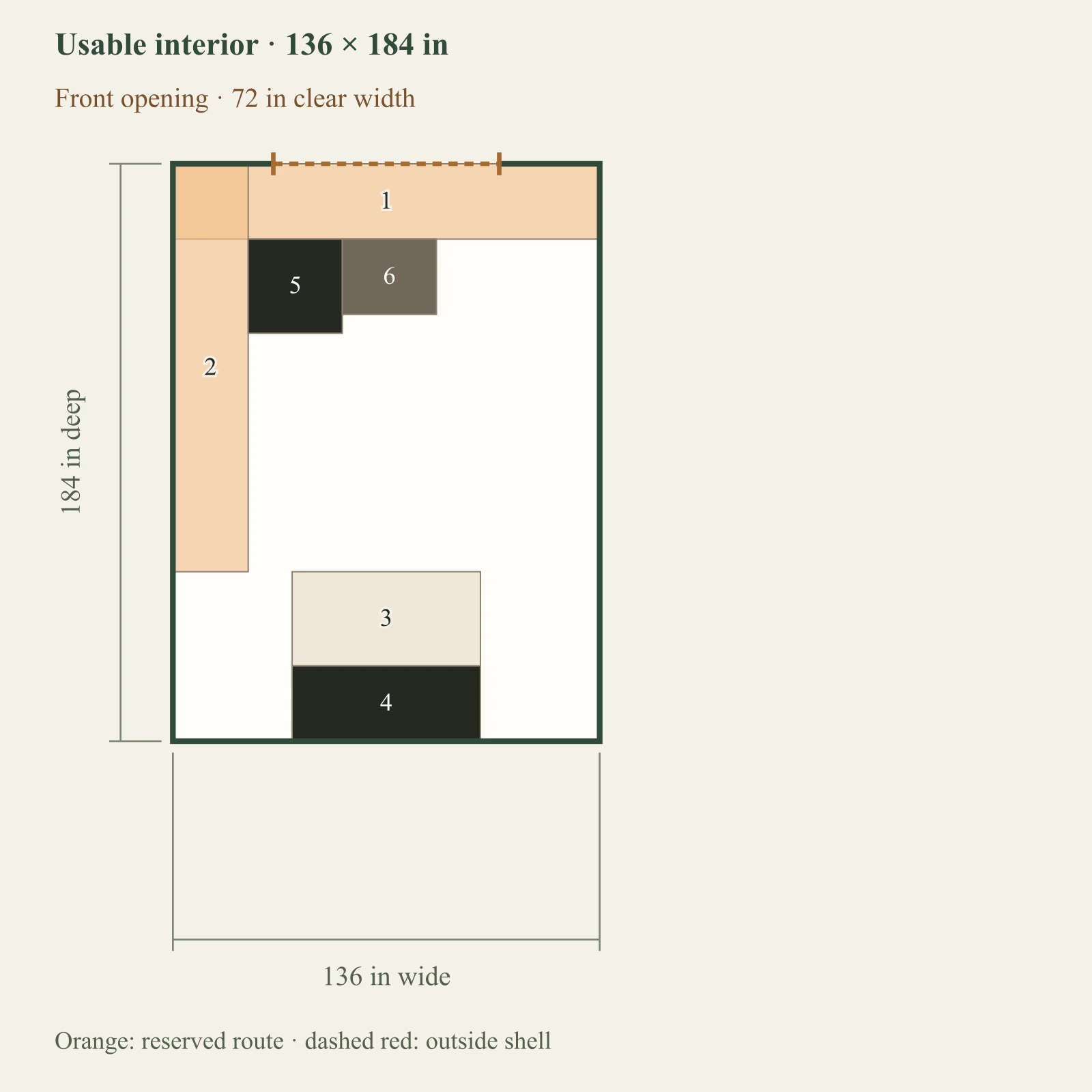

12×16

Example interior 136 × 184 in; clear door 72 × 78 in.

Full-size layout and reserved spacesFull-size footprints with a 24 in entry/side aisle and 30 in bench standing depth. Each mobile deployment and its orthogonal routes are tested with other parked positions unchanged. Staging is screened along the lengthwise axis; turning, actual machine feed points and manufacturer operating instructions require separate confirmation. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Reserved entry cross-aisle: 136 × 24 in at 0, 0 inReserved side aisle: 24 × 130 in at 0, 0 inBench standing area: 60 × 30 in at 38, 130 inWorkbench: 60 × 24 in at 38, 160 inMobile tool parked footprint: 30 × 30 in at 24, 24 inTool chest: 30 × 24 in at 54, 24 in123456Usable interior · 136 × 184 inFront opening · 72 in clear width136 in wide184 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Reserved entry cross-aisle: 136 × 24 in
  2. 2. Reserved side aisle: 24 × 130 in
  3. 3. Bench standing area: 60 × 30 in
  4. 4. Workbench: 60 × 24 in
  5. 5. Mobile tool parked footprint: 30 × 30 in
  6. 6. Tool chest: 30 × 24 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

The shown arrangement preserves its reserved spaces and entry aisle.

  • A failed arrangement is not proof that every layout in this size fails. Only the displayed axis-aligned arrangements were tested.
  • Equipment footprints and reserved spaces are editable planning assumptions. These rectangles do not establish manufacturer operating clearances.

Moving from the first example to the second changes usable width by 24 in, depth by -48 in and clear door width by 8 in. These differences belong to these examples. Obtain actual product measurements before choosing.

A changed result applies to the shown arrangement only. A different layout may work; a larger candidate can still fail a doorway, site or budget check.

Download the authored reference diagrams

Version 2026-09-08-decisions. These files reproduce the public examples, including failed arrangements. Your private measurements are only included when you generate your own brief.

  • Figure 1 · 10×20 shellSVGWebP
  • Figure 2 · workshop mobile layoutSVGWebP

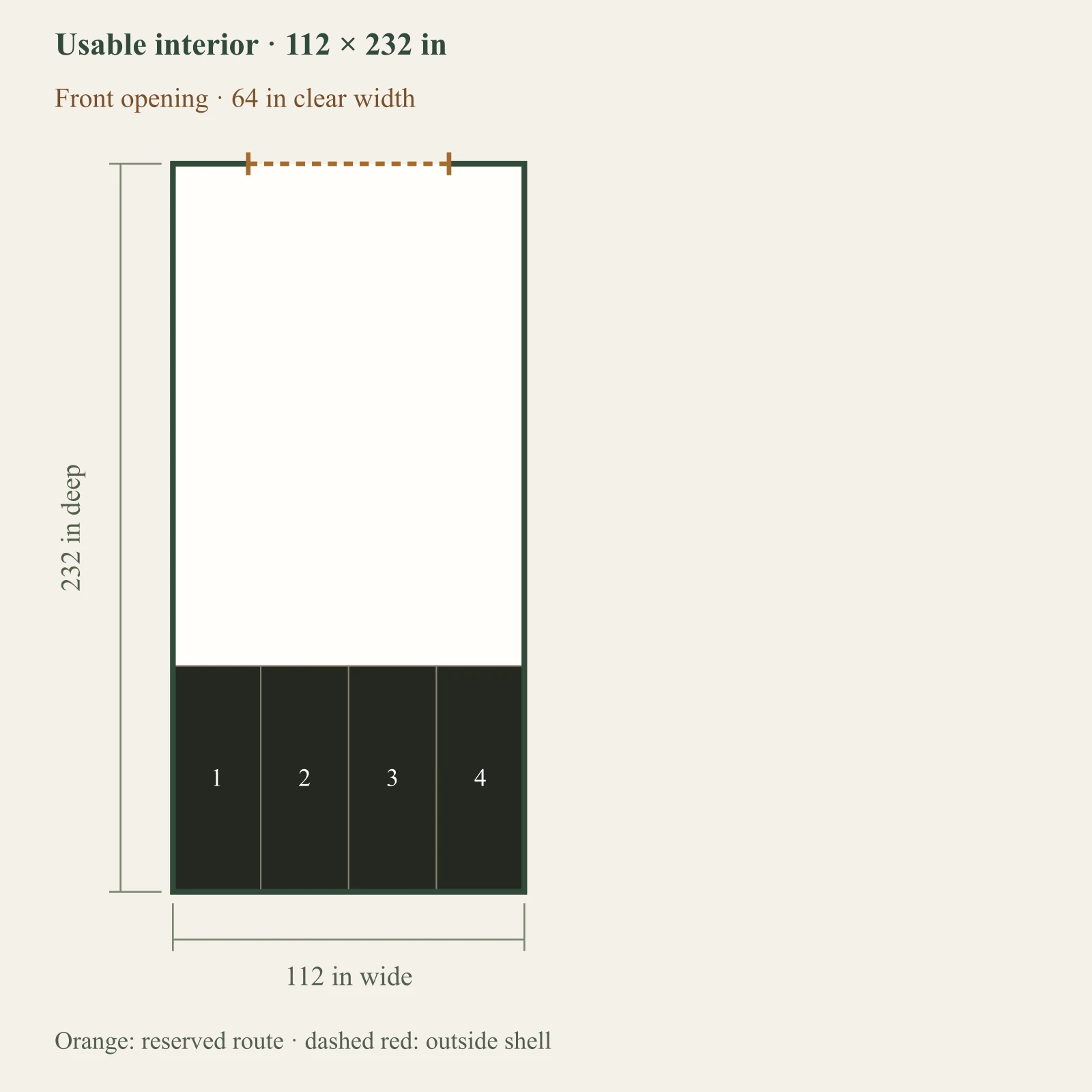

  • Figure 3 · bike four layoutSVGWebP
  • Figure 4 · 10×20 boundarySVGWebP
  • Figure 5 · 10×20 12×16 workshop mobile 10×20SVGWebP
  • Figure 6 · 10×20 12×16 workshop mobile 12×16SVGWebP
