Layout reference · Light fitness room

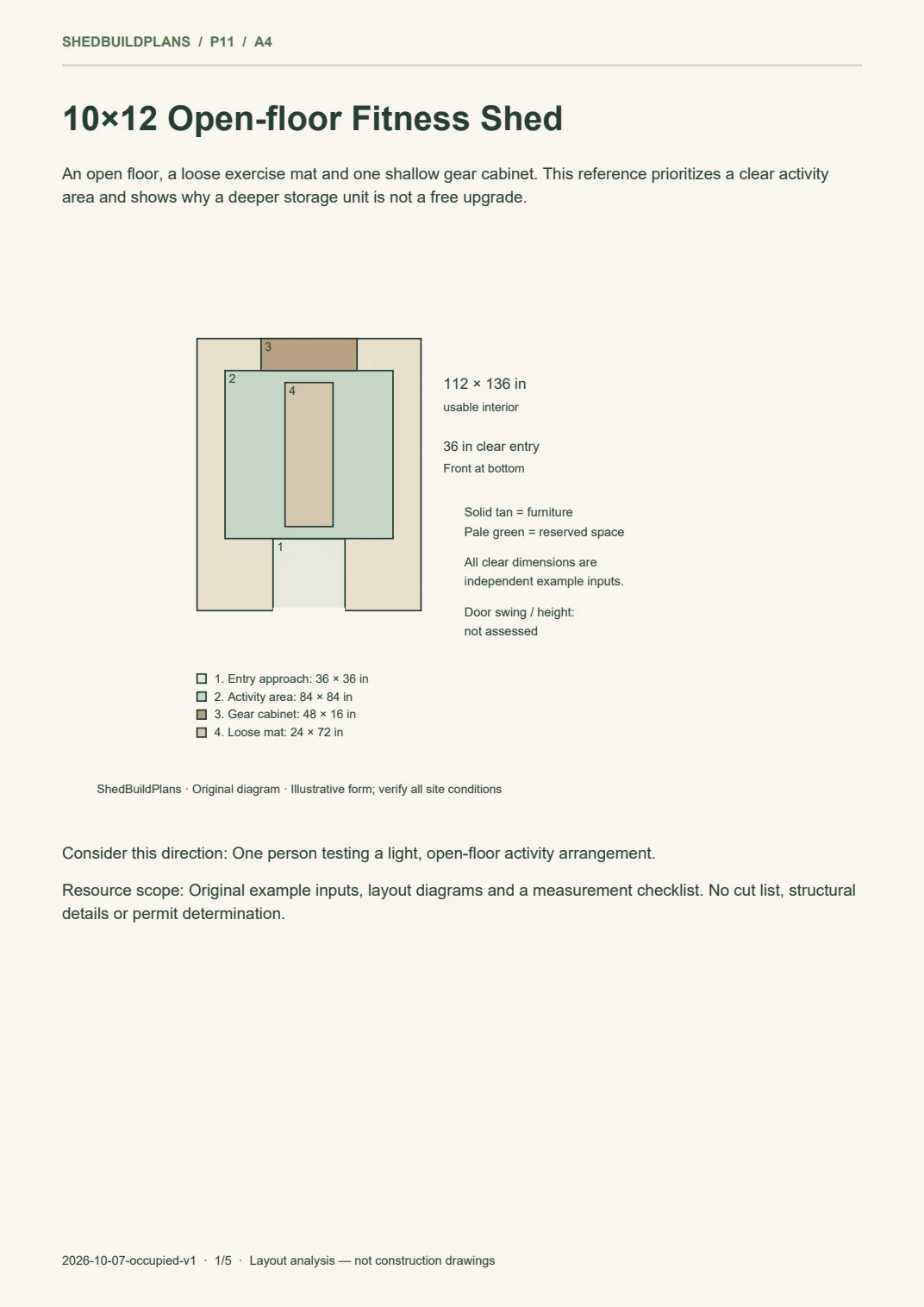

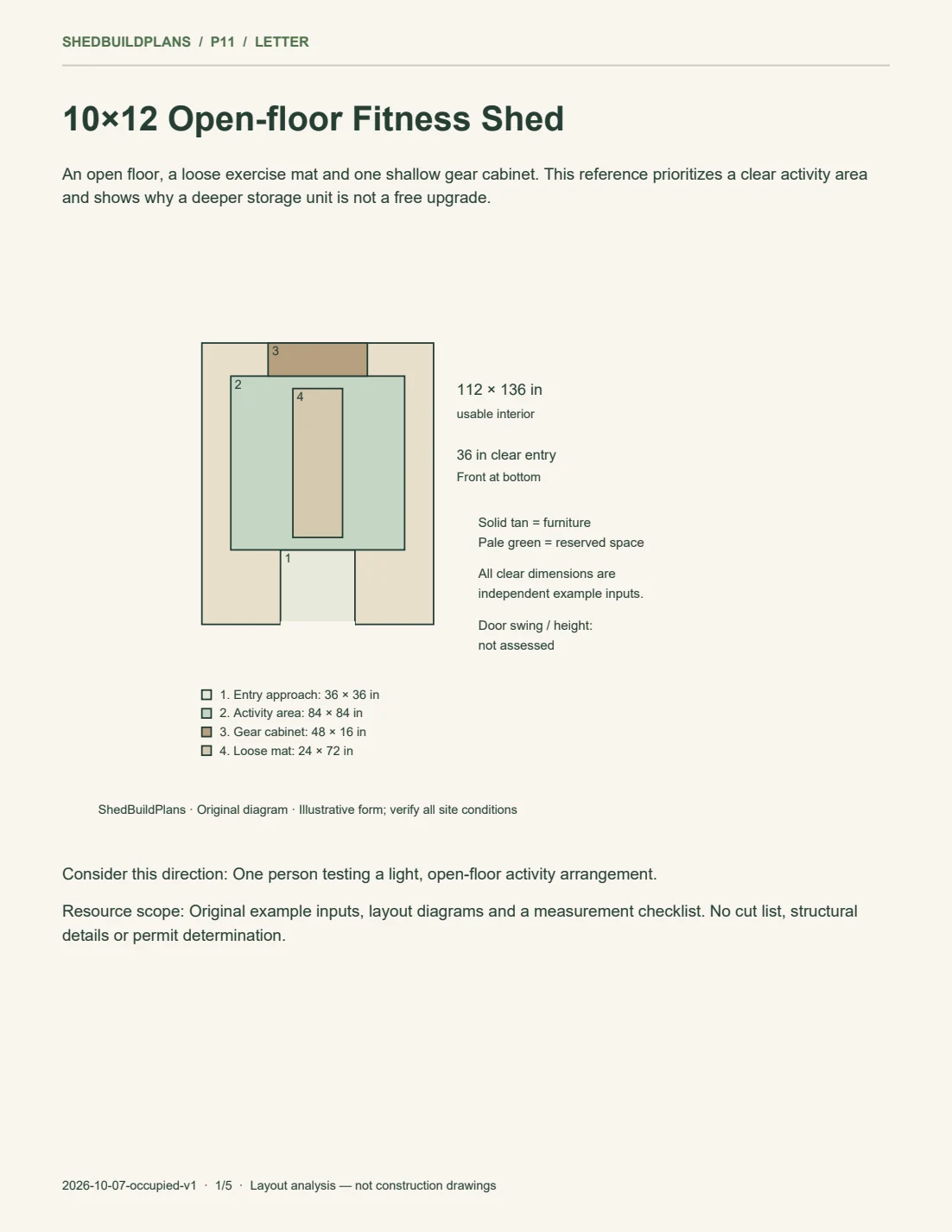

An open floor, a loose exercise mat and one shallow gear cabinet. This reference prioritizes a clear activity area and shows why a deeper storage unit is not a free upgrade.

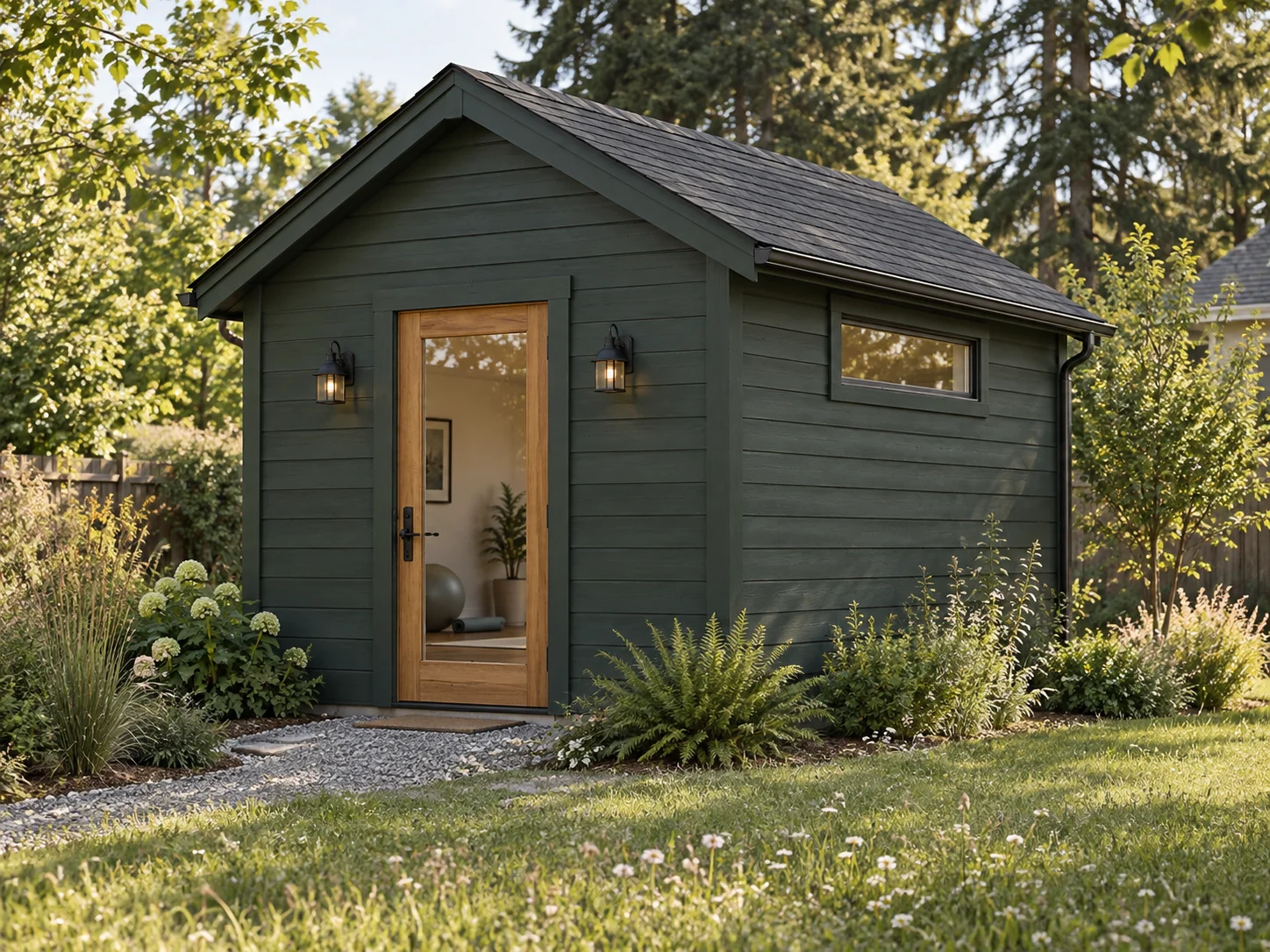

A light-fitness direction built around open floor rather than equipment density. The green exterior and pale interior are finish concepts; the activity rectangle is an explicit planning assumption.
The mat sits inside a larger selected activity area. Try the intended movements and record their width, length and relevant height. This reference does not prescribe exercise, establish personal clearance or assess heavy equipment.
A rear cabinet stores portable accessories outside the baseline activity reservation. Close doors and put loose gear away before activity. Door operation and retrieval still need a physical check; the floor study does not model cabinet hardware.

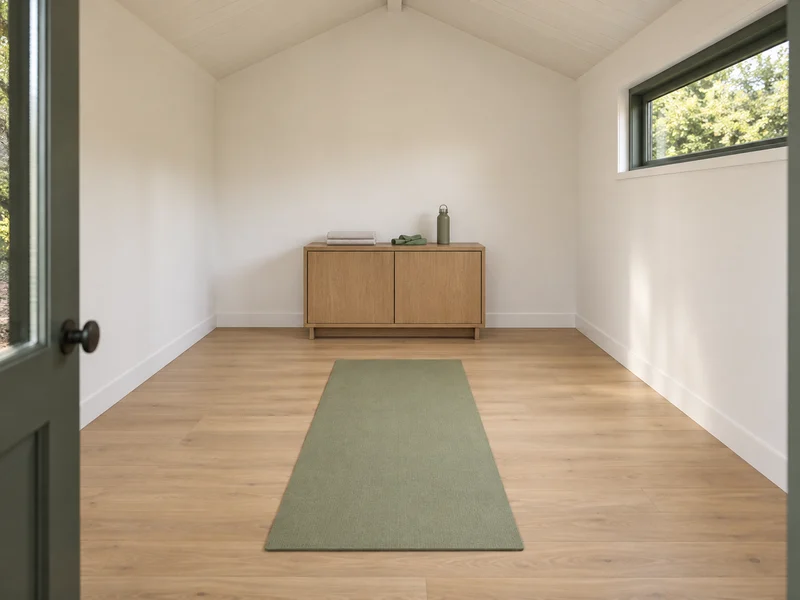

The pale timber appearance in the image is a visual direction. It does not identify a sports surface, slip performance, impact resistance or structural floor capacity. Select the actual finish and support for the intended use.
The high side window suggests privacy and daylight. It does not establish ventilation or temperature control. Include use duration, occupancy, local climate and services in the room brief before specifying an enclosure.
From ShedBuildPlans · Letter
Direct free PDF. No registration. Choose your paper format; diagrams are not construction-scale drawings.
Includes: 5-page layout/access study; Inputs, trade-off diagram and measurement checklist
Does not include: Construction drawings or structural approval; Materials schedule and cut list
From ShedBuildPlans · A4
Direct free PDF. No registration. Choose your paper format; diagrams are not construction-scale drawings.
Includes: 5-page layout/access study; Inputs, trade-off diagram and measurement checklist
Does not include: Construction drawings or structural approval; Materials schedule and cut list
Nominal exterior class only. All clear dimensions below are authored example inputs, not a product specification.
Independent authored interior input; not calculated from the nominal shell.
Independent authored interior input; not a wall-assembly result.
Illustrative planning input; not a minimum requirement.
Selected test area; replace with actual movement measurements.
Selected test area; not ergonomic approval.

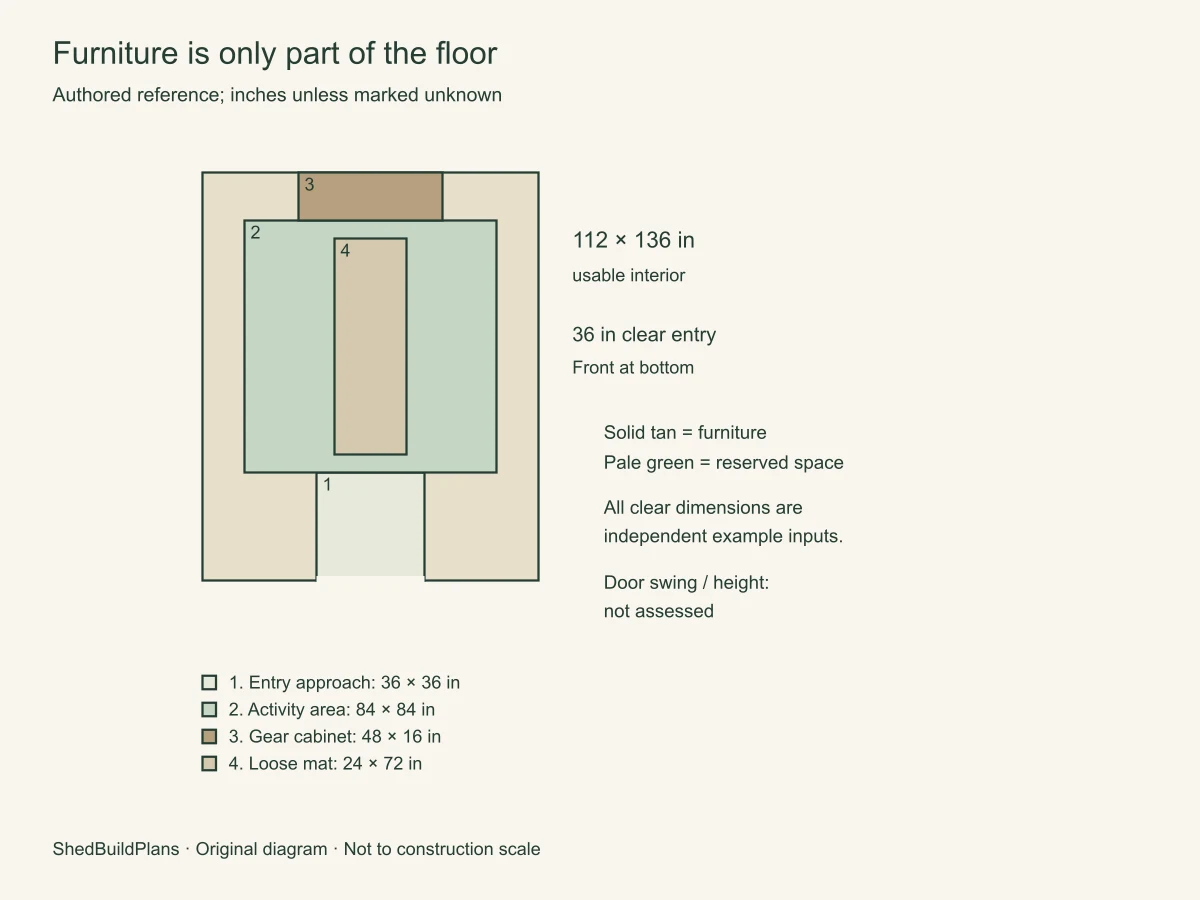

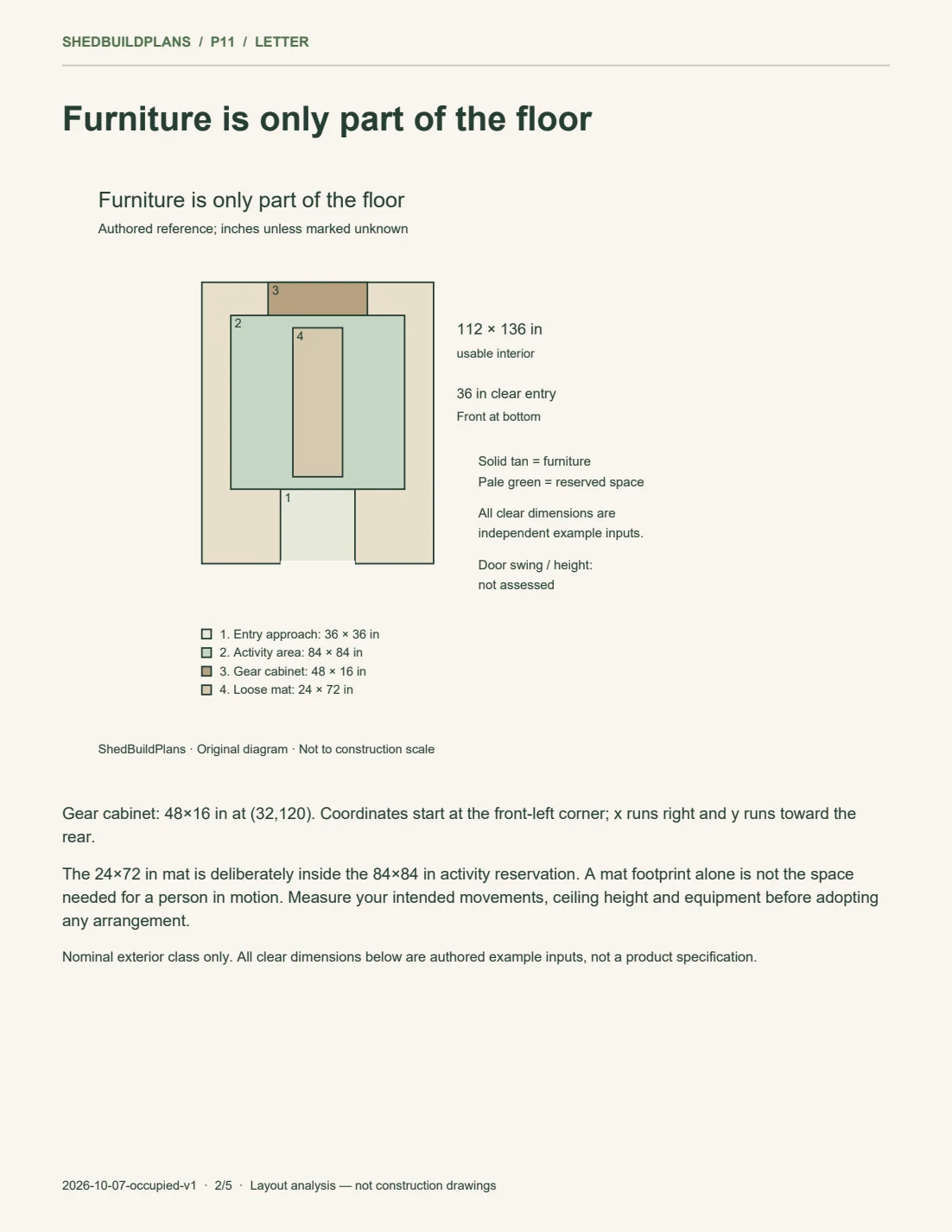

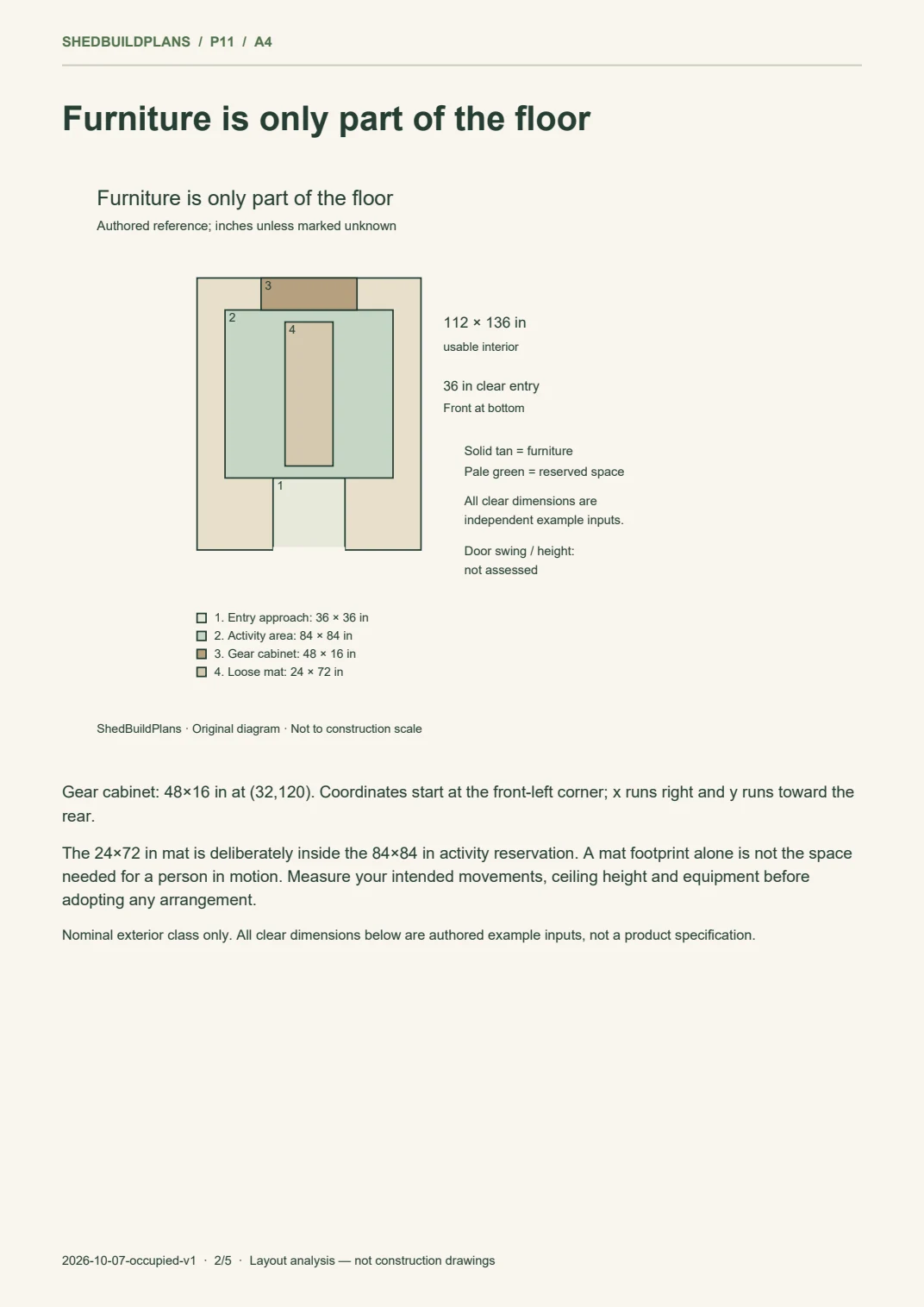

Gear cabinet: 48×16 in at (32,120). Coordinates start at the front-left corner; x runs right and y runs toward the rear.
The 24×72 in mat is deliberately inside the 84×84 in activity reservation. A mat footprint alone is not the space needed for a person in motion. Measure your intended movements, ceiling height and equipment before adopting any arrangement.

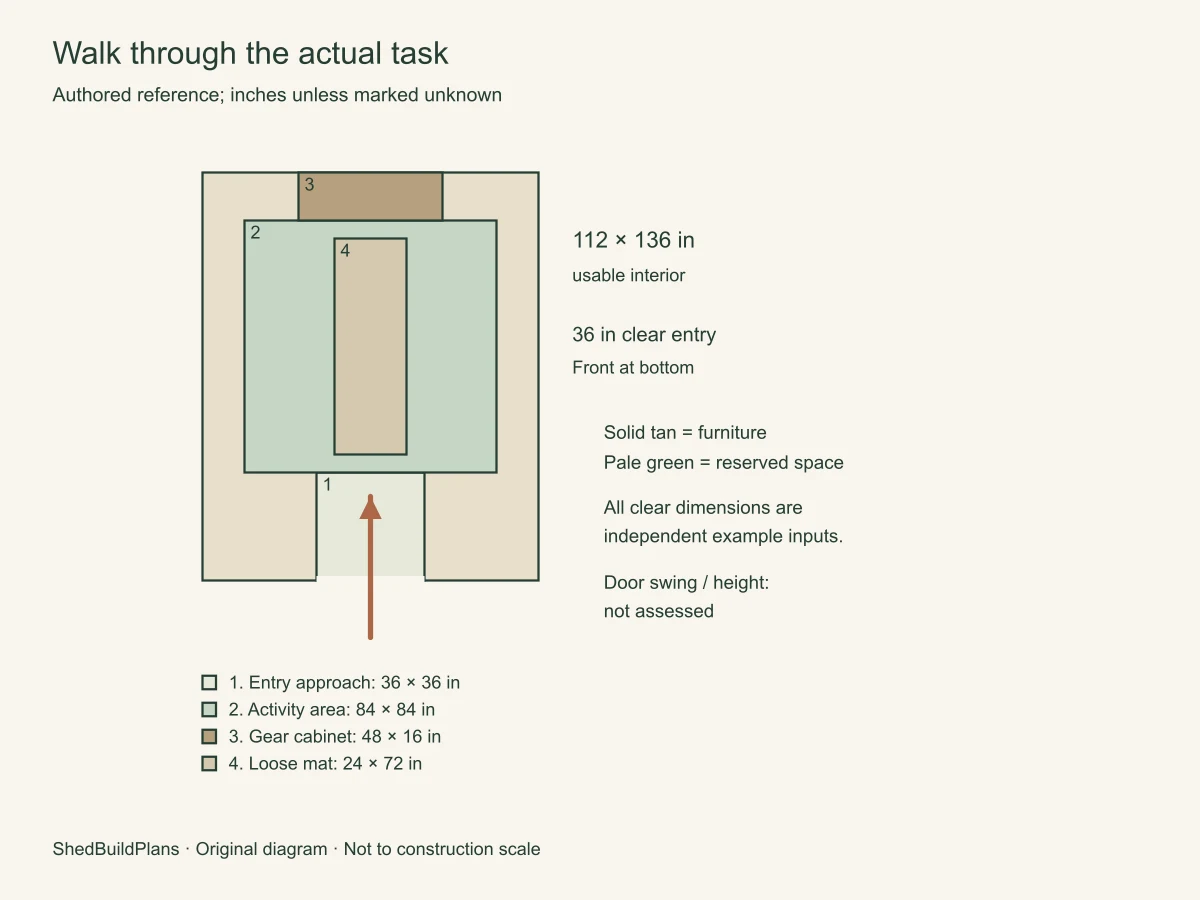

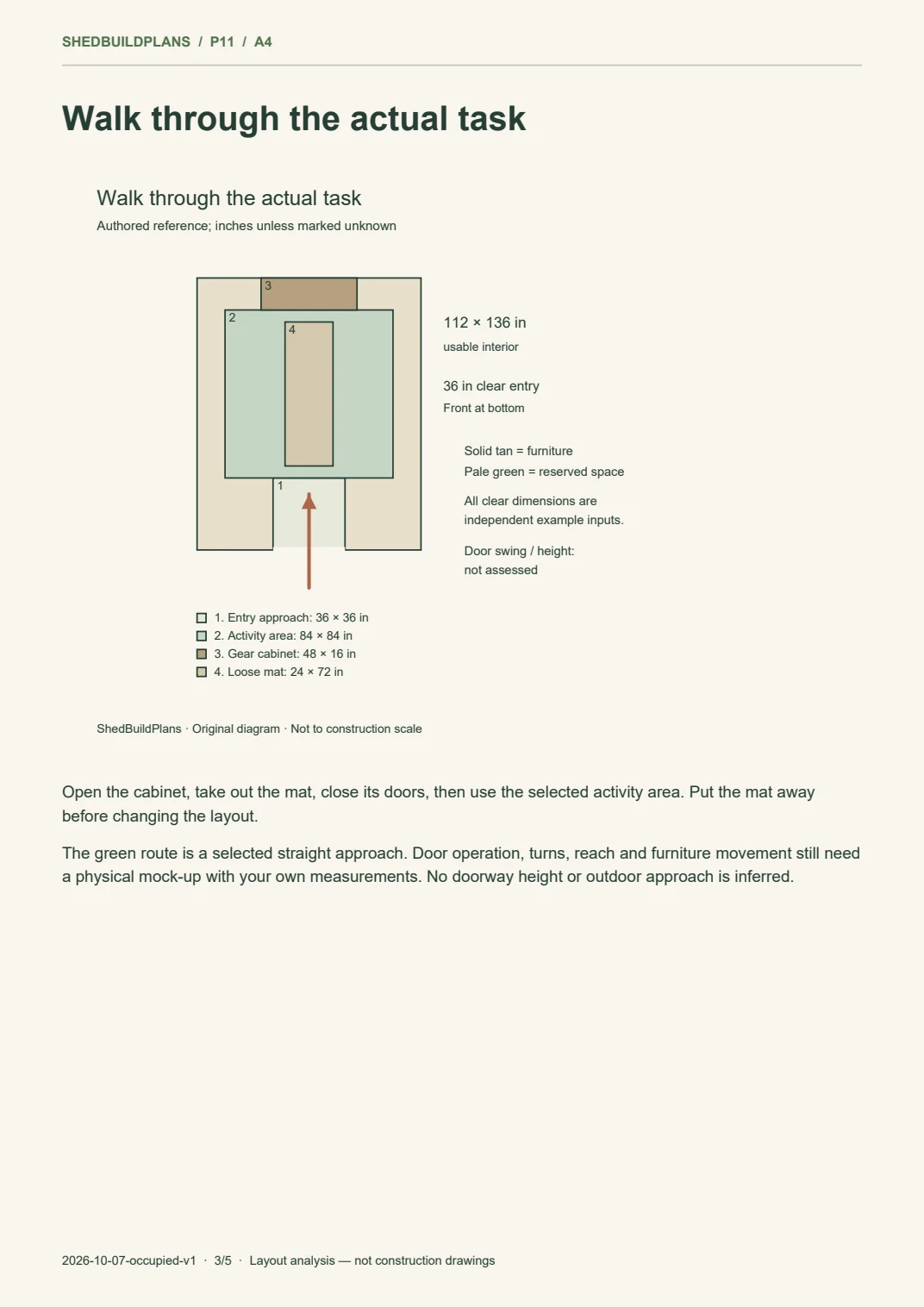

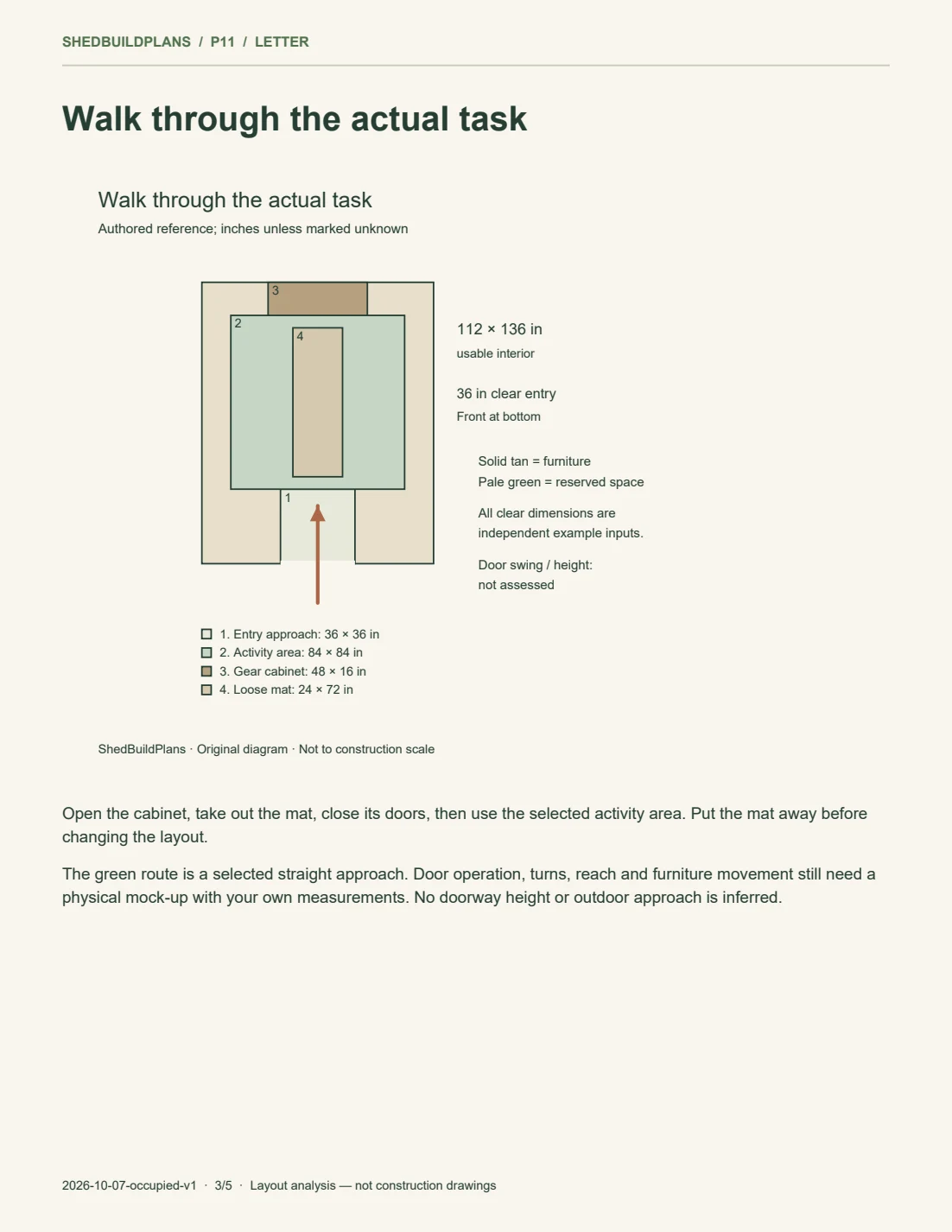

Open the cabinet, take out the mat, close its doors, then use the selected activity area. Put the mat away before changing the layout.
The green route is a selected straight approach. Door operation, turns, reach and furniture movement still need a physical mock-up with your own measurements. No doorway height or outdoor approach is inferred.

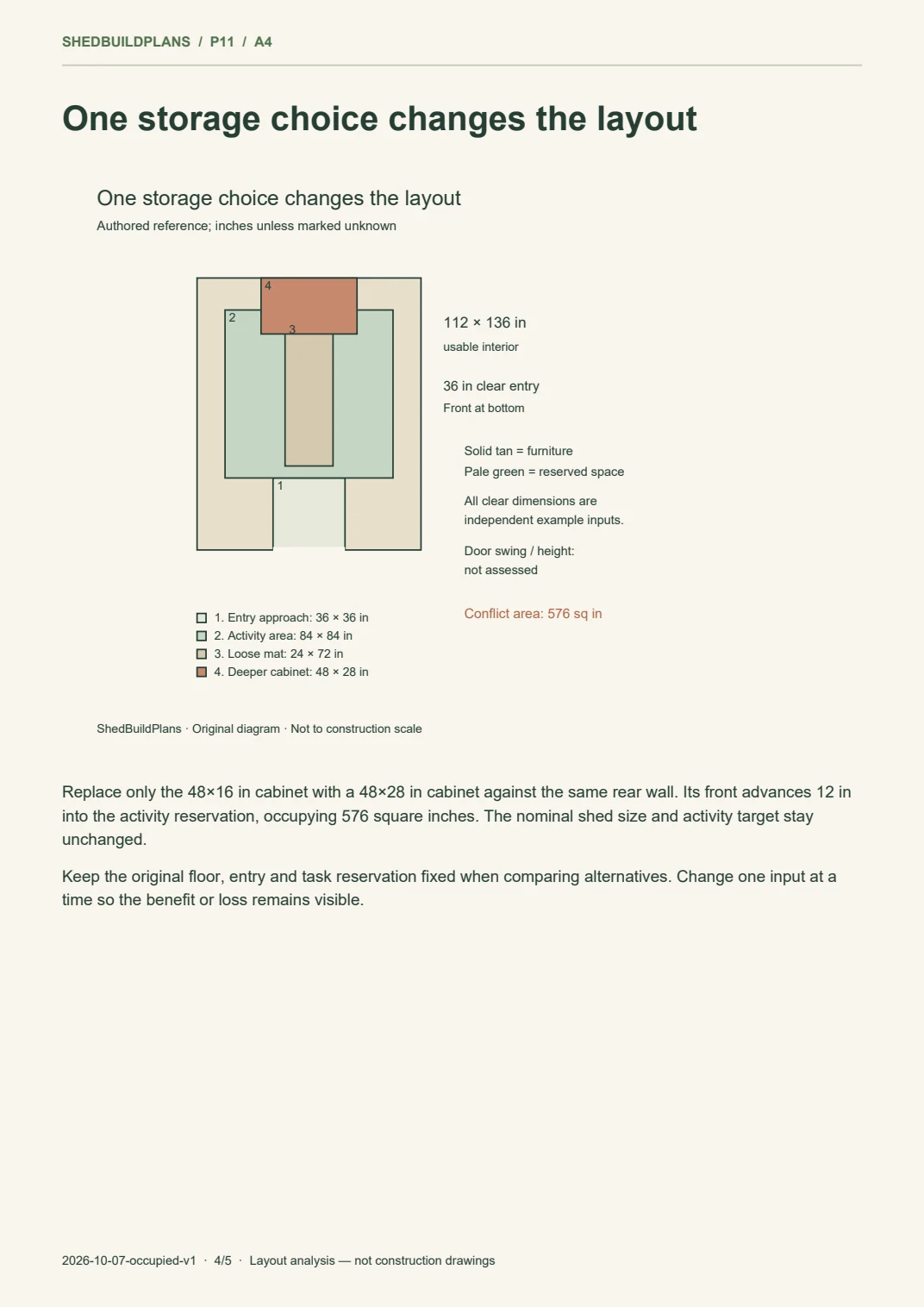

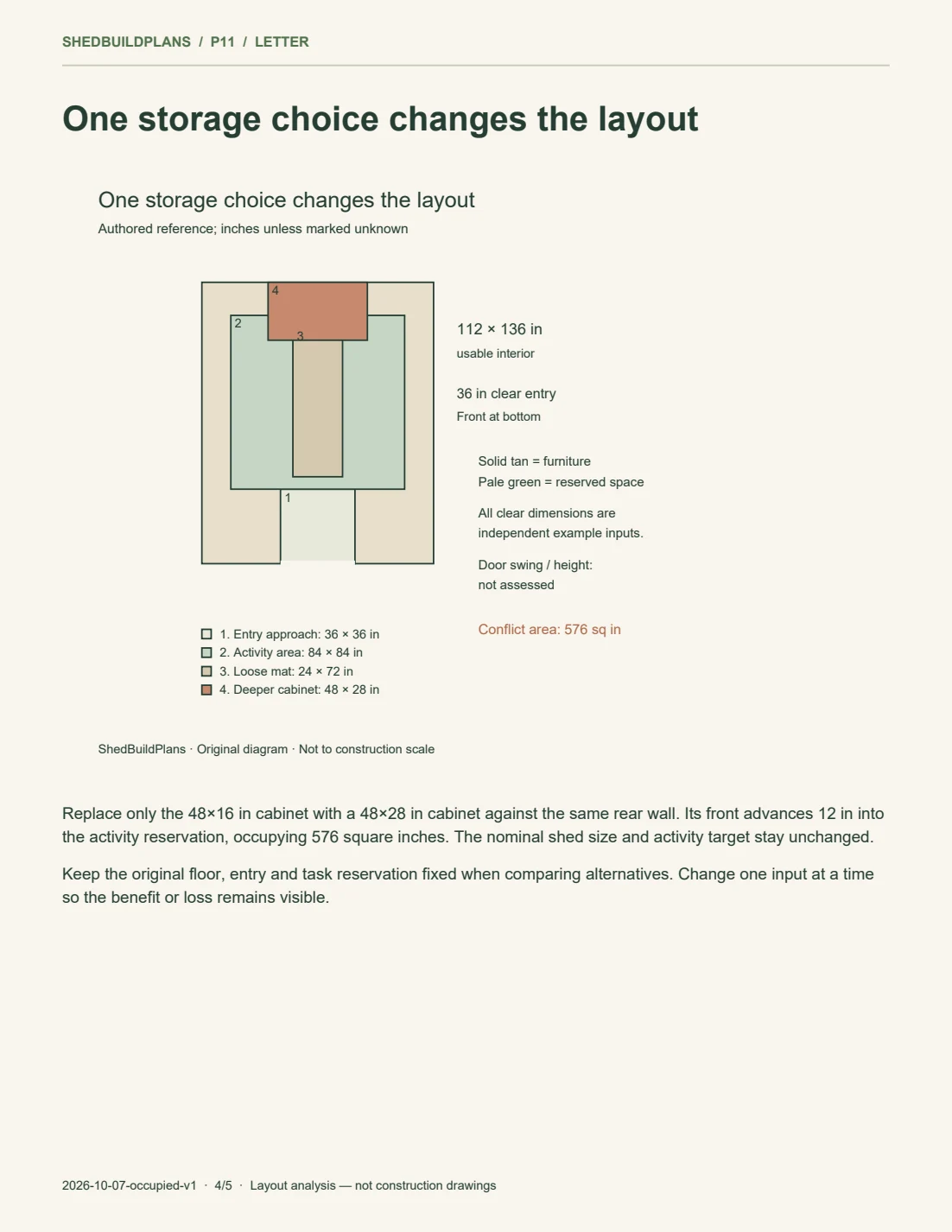

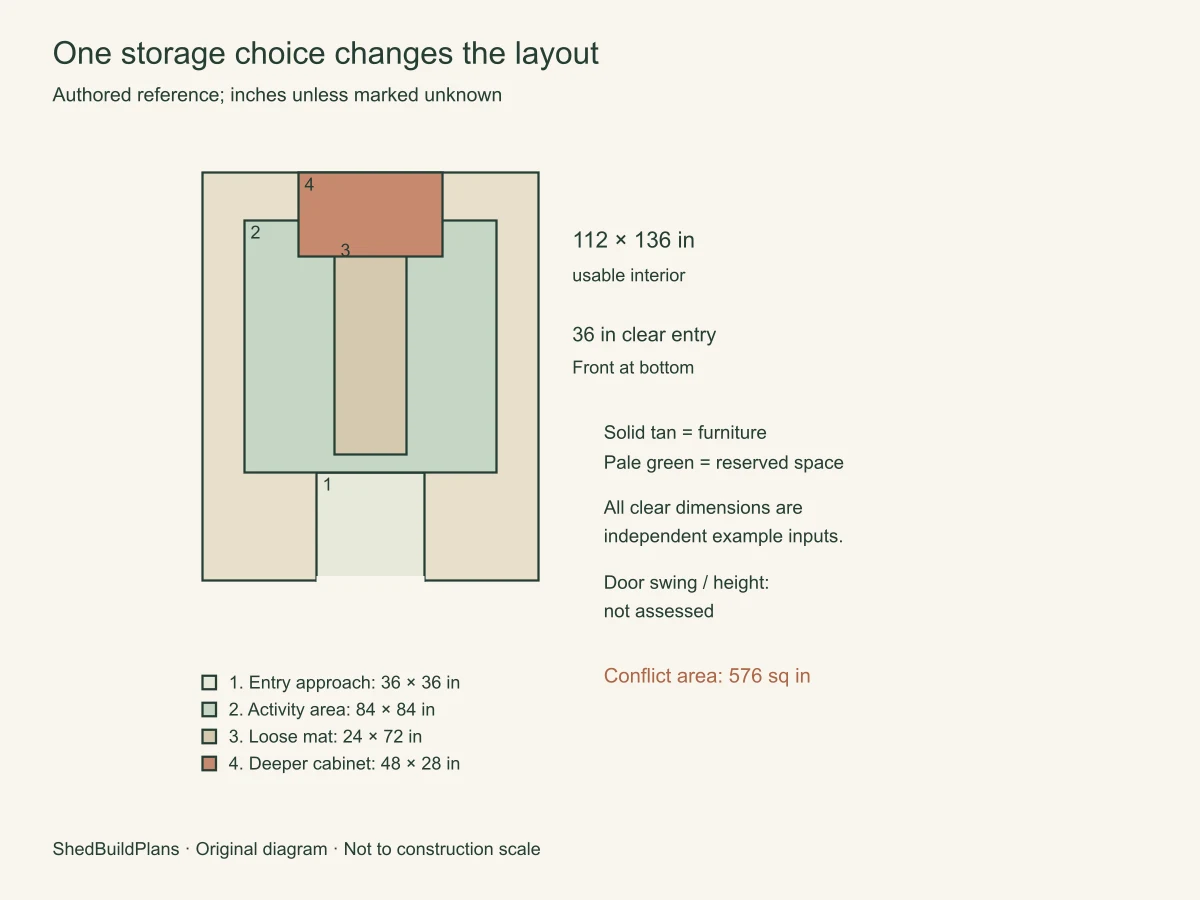

Replace only the 48×16 in cabinet with a 48×28 in cabinet against the same rear wall. Its front advances 12 in into the activity reservation, occupying 576 square inches. The nominal shed size and activity target stay unchanged.
Keep the original floor, entry and task reservation fixed when comparing alternatives. Change one input at a time so the benefit or loss remains visible.

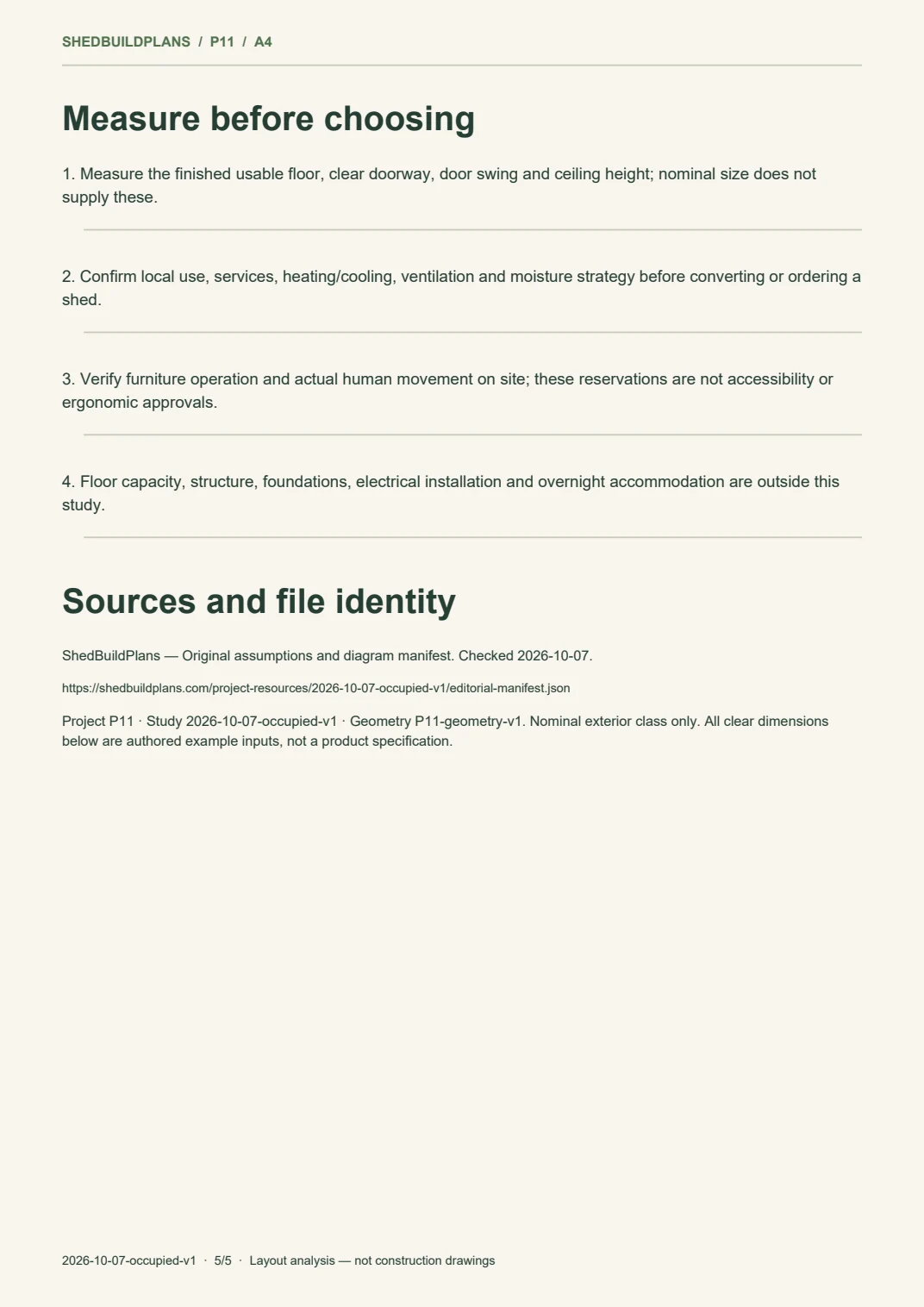

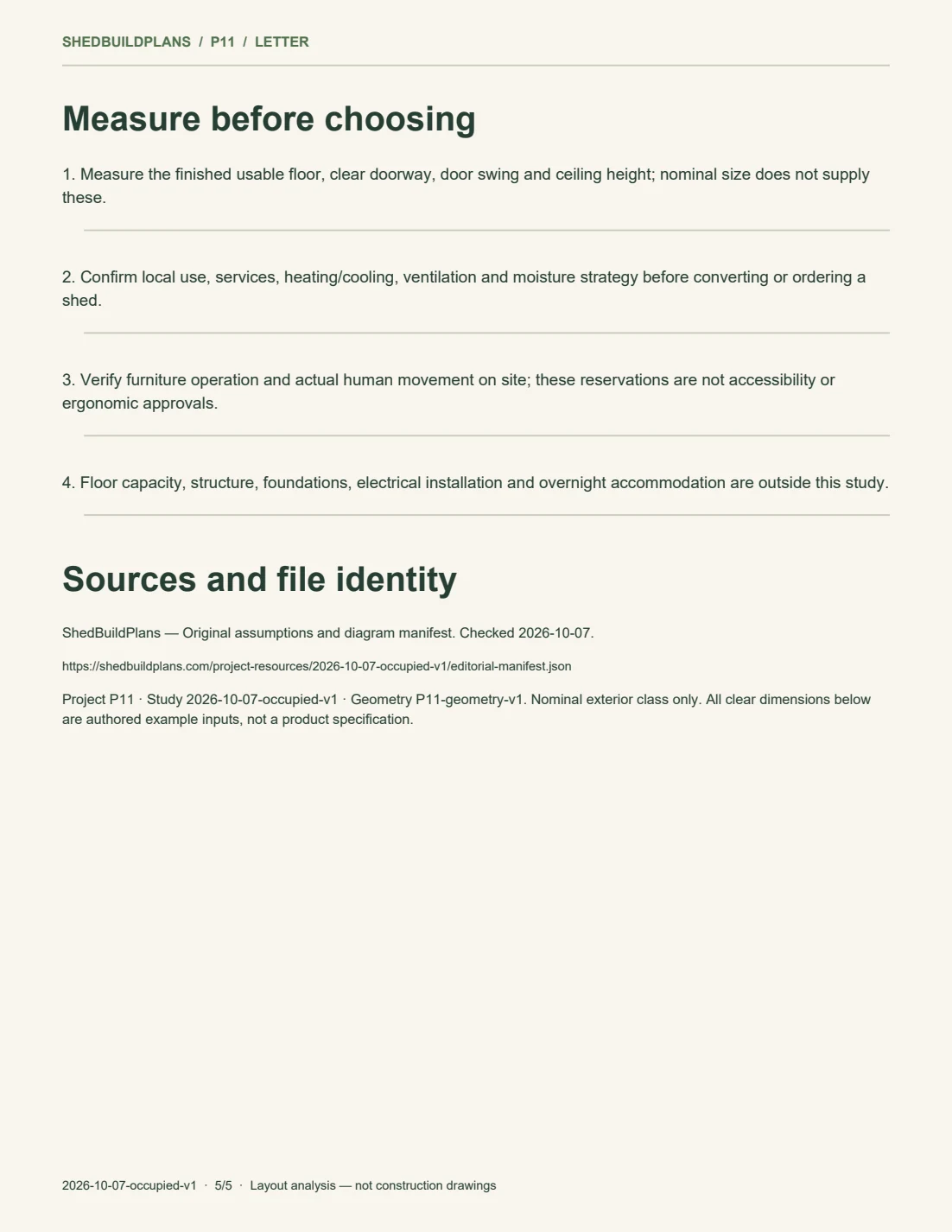

Keep the parts that match your task. Confirm these remaining conditions before buying or building:
This study does not offer automatic layout adoption. The tools show its context alongside your current private project, and ask for your own measurements.
Example usable interior, openings and task inputs. Outdoor turns and construction remain unassessed.
The selected nominal footprint carries across. Your yard, setbacks and delivery dimensions must still be entered.
The project supplies the task context. No prices, quotes or build method are invented.
Nominal floor dimensions only. Material height, opening deductions, roof factor, waste and rates remain unknown.
