12×12 shed: decide what the footprint needs to do

Check what extra width contributes without a deeper footprint.

Plan with my measurementsCompare reference sizes

Check what extra width contributes without a deeper footprint.

The square 136 × 136 in example adds width to 10×12. A machine's deployment or a gym equipment envelope can still need more depth.

Five checks behind this page
  1. What does nominal area leave out?
  2. Which shown arrangement works with these exact inputs?
  3. Which equipment or path is the first constraint?
  4. Does a wider or deeper candidate resolve that constraint?
  5. What must I measure and take to a supplier before choosing?
Nominal 12 × 12 ft · 144 sq ft

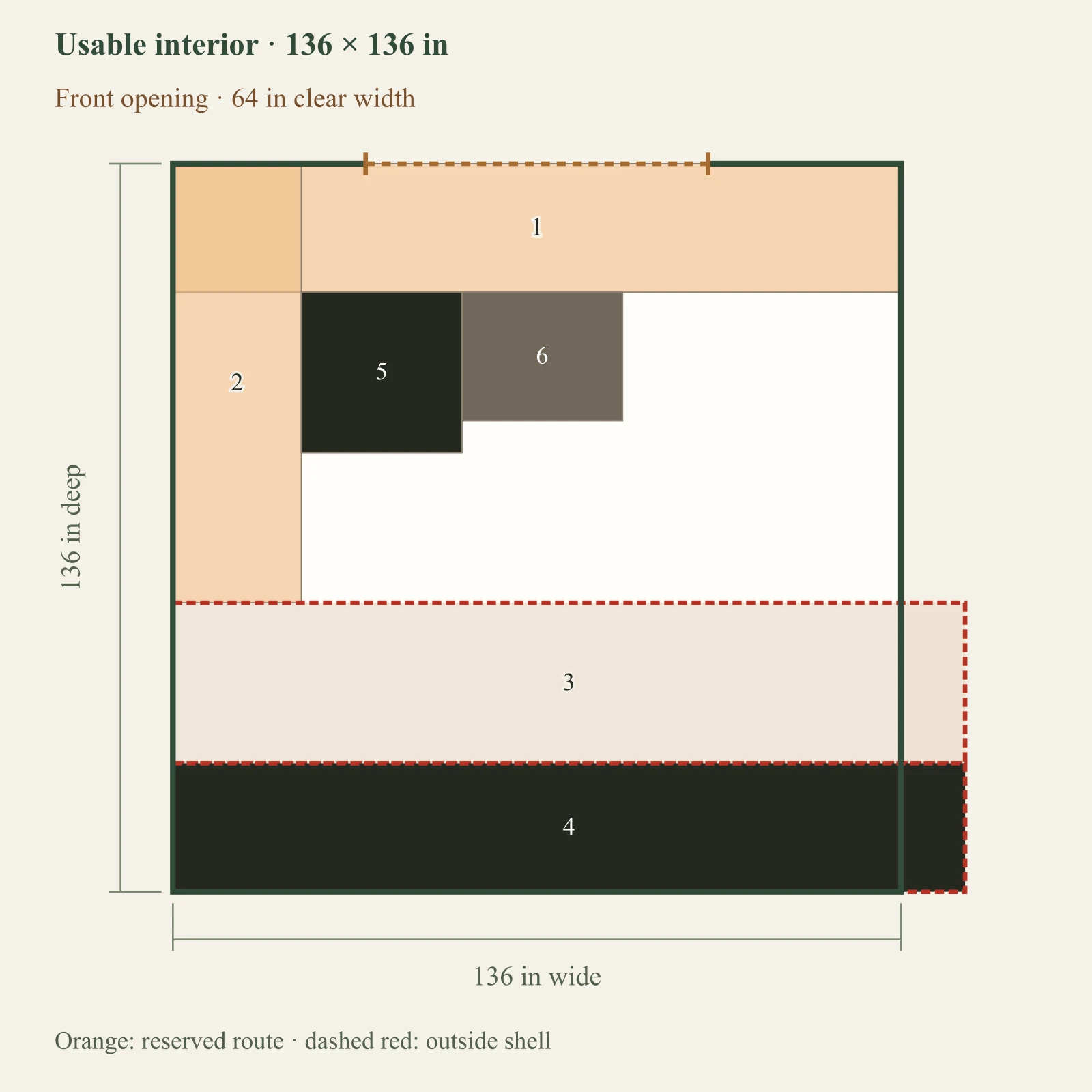

Solid: nominal footprint definition. Dashed: independently authored interior 136 × 136 in, aligned for illustration. The gap does not specify wall thickness. Usable height: 84 in; opening: 64 × 78 in. Editable planning assumptions.

Compare the reference arrangements

Example layout · 12×12

A mobile-tool workshop

Projects that use a movable tool and then put it away.

Full-size layout and reserved spacesFull-size footprints with a 24 in entry/side aisle and 30 in bench standing depth. Each mobile deployment and its orthogonal routes are tested with other parked positions unchanged. Staging is screened along the lengthwise axis; turning, actual machine feed points and manufacturer operating instructions require separate confirmation. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Reserved entry cross-aisle: 136 × 24 in at 0, 0 inReserved side aisle: 24 × 82 in at 0, 0 inBench standing area: 60 × 30 in at 38, 82 inWorkbench: 60 × 24 in at 38, 112 inMobile tool parked footprint: 30 × 30 in at 24, 24 inTool chest: 30 × 24 in at 54, 24 in123456Usable interior · 136 × 136 inFront opening · 64 in clear width136 in wide136 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Reserved entry cross-aisle: 136 × 24 in
  2. 2. Reserved side aisle: 24 × 82 in
  3. 3. Bench standing area: 60 × 30 in
  4. 4. Workbench: 60 × 24 in
  5. 5. Mobile tool parked footprint: 30 × 30 in
  6. 6. Tool chest: 30 × 24 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

The shown arrangement preserves its reserved spaces and entry aisle.

What you gain
Tests the parked tool and its separate deployed envelope while the other fixtures stay in place.
What you give up
Moving the tool is an extra step. The shown translation route is tested without rotation; actual steering and tool-specific feeding still need checking.
When to choose it
Choose this direction if you accept setup time in exchange for a shared floor area.

Example interior: 136 × 136 in. Opening: 64 in wide. All reference dimensions and allowances are planning assumptions, not product specifications.

Checks and operating states
  • A failed arrangement is not proof that every layout in this size fails. Only the displayed axis-aligned arrangements were tested.
  • Equipment footprints and reserved spaces are editable planning assumptions. These rectangles do not establish manufacturer operating clearances.
  • Mobile transport tests full-footprint translations along obstacle edges without rotation. Individual workstation approaches and turning remain unassessed. Machine-specific material feeding is not selected; enable its separate straight-sweep check when relevant.
  • Confirm guarding, electrical, dust collection, ventilation, fire separation, loading, and local requirements separately.

Move Mobile tool from parked to working position

Move Mobile tool from parked to working positionFull-size footprints with a 24 in entry/side aisle and 30 in bench standing depth. Each mobile deployment and its orthogonal routes are tested with other parked positions unchanged. Staging is screened along the lengthwise axis; turning, actual machine feed points and manufacturer operating instructions require separate confirmation. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Full-footprint translation sweep: 30 × 88 in at 24, 24 inFull-footprint translation sweep: 99 × 30 in at 24, 82 inFull-footprint translation sweep: 30 × 79 in at 93, 33 inReserved entry cross-aisle: 136 × 24 in at 0, 0 inReserved side aisle: 24 × 82 in at 0, 0 inBench standing area: 60 × 30 in at 38, 82 inWorkbench: 60 × 24 in at 38, 112 inTool chest: 30 × 24 in at 54, 24 inMobile tool parked footprint: 30 × 30 in at 24, 24 in123456789Usable interior · 136 × 136 inFront opening · 64 in clear width136 in wide136 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Full-footprint translation sweep: 30 × 88 in
  2. 2. Full-footprint translation sweep: 99 × 30 in
  3. 3. Full-footprint translation sweep: 30 × 79 in
  4. 4. Reserved entry cross-aisle: 136 × 24 in
  5. 5. Reserved side aisle: 24 × 82 in
  6. 6. Bench standing area: 60 × 30 in
  7. 7. Workbench: 60 × 24 in
  8. 8. Tool chest: 30 × 24 in
  9. 9. Mobile tool parked footprint: 30 × 30 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

Use Mobile tool; other machines stay parked

Use Mobile tool; other machines stay parkedFull-size footprints with a 24 in entry/side aisle and 30 in bench standing depth. Each mobile deployment and its orthogonal routes are tested with other parked positions unchanged. Staging is screened along the lengthwise axis; turning, actual machine feed points and manufacturer operating instructions require separate confirmation. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Reserved entry cross-aisle: 136 × 24 in at 0, 0 inReserved side aisle: 24 × 82 in at 0, 0 inBench standing area: 60 × 30 in at 38, 82 inWorkbench: 60 × 24 in at 38, 112 inTool chest: 30 × 24 in at 54, 24 inMobile tool working envelope: 48 × 48 in at 84, 24 inMobile tool footprint: 30 × 30 in at 93, 33 in1234567Usable interior · 136 × 136 inFront opening · 64 in clear width136 in wide136 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Reserved entry cross-aisle: 136 × 24 in
  2. 2. Reserved side aisle: 24 × 82 in
  3. 3. Bench standing area: 60 × 30 in
  4. 4. Workbench: 60 × 24 in
  5. 5. Tool chest: 30 × 24 in
  6. 6. Mobile tool working envelope: 48 × 48 in
  7. 7. Mobile tool footprint: 30 × 30 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

Before buying or building: Measure the tool in storage and in use. Check power, dust collection and moving the real tool before committing.

Where this candidate stops working

Only the bench length changes to 148 in, beyond the usable rear wall.

  • Bench standing area exceeds the usable interior in this arrangement.
  • Workbench exceeds the usable interior in this arrangement.
Full-size layout and reserved spacesFull-size footprints with a 24 in entry/side aisle and 30 in bench standing depth. Each mobile deployment and its orthogonal routes are tested with other parked positions unchanged. Staging is screened along the lengthwise axis; turning, actual machine feed points and manufacturer operating instructions require separate confirmation. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Reserved entry cross-aisle: 136 × 24 in at 0, 0 inReserved side aisle: 24 × 82 in at 0, 0 inBench standing area: 148 × 30 in at 0, 82 inWorkbench: 148 × 24 in at 0, 112 inMobile tool parked footprint: 30 × 30 in at 24, 24 inTool chest: 30 × 24 in at 54, 24 in123456Usable interior · 136 × 136 inFront opening · 64 in clear width136 in wide136 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Reserved entry cross-aisle: 136 × 24 in
  2. 2. Reserved side aisle: 24 × 82 in
  3. 3. Bench standing area: 148 × 30 in — outside shell
  4. 4. Workbench: 148 × 24 in — outside shell
  5. 5. Mobile tool parked footprint: 30 × 30 in
  6. 6. Tool chest: 30 × 24 in

Worked example · not a measured product or customer story

Same inventory, less overlap in the larger interior

Two authored 60 × 100 × 20 in rectangular storage footprints collide in the smaller example interior. Compare the exact same pair in the larger interior. Seasonal access intentionally leaves independent retrieval unassessed: no collision is not a complete usability approval.

12×12 example

Details still need checking

Storage layout from the current inputsNumbers identify objects in the list below. Dashed shaded regions are selected retrieval paths, not structural or turning checks.FLOOR PLAN / ARRANGEMENT 2136 in usable width136 in usable lengthLarge storage footprint 1 · 60 in × 100 in1Large storage footprint 2 · 60 in × 100 in2FRONT · 64 in clear opening12 in scale · flat rectangular footprints
  1. 1. Large storage footprint 1
  2. 2. Large storage footprint 2

Numbers identify the objects in this legend. Dashed regions show the paths actually checked. Turning, ramps, thresholds and structural capacity are not assessed.

Inspect the layout

100%

Zoom in, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys. Zoom changes the view, not your measurements.

  1. 1. Large storage footprint 1
  2. 2. Large storage footprint 2

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

Usable interior: 136 × 136 × 84 in. Clear opening: 64 × 78 in; centered by assumption.

  • Not assessed: Large storage footprint 1: straight retrieval. Independent retrieval is not required by your seasonal setting; moving other items may be necessary.
  • Not assessed: Large storage footprint 2: straight retrieval. Independent retrieval is not required by your seasonal setting; moving other items may be necessary.
All evaluated checks (11)
  • Pass with these inputs: Large storage footprint: clear door width. 60 in width + 2 in each side; 64 in clear opening.
  • Pass with these inputs: Large storage footprint: clear door height. 20 in item height; 78 in clear opening. No tilt is modeled.
  • Pass with these inputs: Large storage footprint: interior height. 20 in overall height; 84 in stated usable height. This does not test lifting or overhead working space.
  • Pass with these inputs: Large storage footprint: clear door width. 60 in width + 2 in each side; 64 in clear opening.
  • Pass with these inputs: Large storage footprint: clear door height. 20 in item height; 78 in clear opening. No tilt is modeled.
  • Pass with these inputs: Large storage footprint: interior height. 20 in overall height; 84 in stated usable height. This does not test lifting or overhead working space.
  • Pass with these inputs: Large storage footprint 1: floor boundary. The complete footprint is within the stated interior.
  • Pass with these inputs: Large storage footprint 2: floor boundary. The complete footprint is within the stated interior.
  • Pass with these inputs: Clear opening position. The opening is within the stated front wall.
  • Not assessed: Large storage footprint 1: straight retrieval. Independent retrieval is not required by your seasonal setting; moving other items may be necessary.
  • Not assessed: Large storage footprint 2: straight retrieval. Independent retrieval is not required by your seasonal setting; moving other items may be necessary.

No distinct fully checked rearrangement was found in the limited search. This does not prove all arrangements impossible.

Inspect every input and its source

All dimensions and positions are authored planning assumptions. Door side allowance: 2 in; walking aisle: 24 in. No manufacturer specification or user measurement is implied.

  • 2 × Large storage footprint: 60 × 100 × 20 in; seasonal access; floor; carry; 0° parked orientation.

Case: two-large-items · authored-cases-2026-09-03. Diagram and checks: storage-fit-1. Positions chosen by the limited automatic search.

Continue my saved project

Reading this example does not change your project. Copying asks before replacing it. Planning only: not a structural, installation, delivery or permit approval.

Same arrangement: 12×12 and 12×16

Equipment, activities and allowances are identical. The authored shell dimensions and opening can differ. The drawings use one scale, including full-size items that cannot be placed. Positions can change as the bounded layout search uses the available space.

12×12

Example interior 136 × 136 in; clear door 64 × 78 in.

Full-size layout and reserved spacesFull-size footprints with a 24 in entry/side aisle and 30 in bench standing depth. Each mobile deployment and its orthogonal routes are tested with other parked positions unchanged. Staging is screened along the lengthwise axis; turning, actual machine feed points and manufacturer operating instructions require separate confirmation. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Reserved entry cross-aisle: 136 × 24 in at 0, 0 inReserved side aisle: 24 × 82 in at 0, 0 inBench standing area: 60 × 30 in at 38, 82 inWorkbench: 60 × 24 in at 38, 112 inMobile tool parked footprint: 30 × 30 in at 24, 24 inTool chest: 30 × 24 in at 54, 24 in123456Usable interior · 136 × 136 inFront opening · 64 in clear width136 in wide136 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Reserved entry cross-aisle: 136 × 24 in
  2. 2. Reserved side aisle: 24 × 82 in
  3. 3. Bench standing area: 60 × 30 in
  4. 4. Workbench: 60 × 24 in
  5. 5. Mobile tool parked footprint: 30 × 30 in
  6. 6. Tool chest: 30 × 24 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

The shown arrangement preserves its reserved spaces and entry aisle.

  • A failed arrangement is not proof that every layout in this size fails. Only the displayed axis-aligned arrangements were tested.
  • Equipment footprints and reserved spaces are editable planning assumptions. These rectangles do not establish manufacturer operating clearances.
12×16

Example interior 136 × 184 in; clear door 72 × 78 in.

Full-size layout and reserved spacesFull-size footprints with a 24 in entry/side aisle and 30 in bench standing depth. Each mobile deployment and its orthogonal routes are tested with other parked positions unchanged. Staging is screened along the lengthwise axis; turning, actual machine feed points and manufacturer operating instructions require separate confirmation. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Reserved entry cross-aisle: 136 × 24 in at 0, 0 inReserved side aisle: 24 × 130 in at 0, 0 inBench standing area: 60 × 30 in at 38, 130 inWorkbench: 60 × 24 in at 38, 160 inMobile tool parked footprint: 30 × 30 in at 24, 24 inTool chest: 30 × 24 in at 54, 24 in123456Usable interior · 136 × 184 inFront opening · 72 in clear width136 in wide184 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Reserved entry cross-aisle: 136 × 24 in
  2. 2. Reserved side aisle: 24 × 130 in
  3. 3. Bench standing area: 60 × 30 in
  4. 4. Workbench: 60 × 24 in
  5. 5. Mobile tool parked footprint: 30 × 30 in
  6. 6. Tool chest: 30 × 24 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

The shown arrangement preserves its reserved spaces and entry aisle.

  • A failed arrangement is not proof that every layout in this size fails. Only the displayed axis-aligned arrangements were tested.
  • Equipment footprints and reserved spaces are editable planning assumptions. These rectangles do not establish manufacturer operating clearances.

Moving from the first example to the second changes usable width by 0 in, depth by 48 in and clear door width by 8 in. These differences belong to these examples. Obtain actual product measurements before choosing.

A changed result applies to the shown arrangement only. A different layout may work; a larger candidate can still fail a doorway, site or budget check.

Download the authored reference diagrams

Version 2026-09-08-decisions. These files reproduce the public examples, including failed arrangements. Your private measurements are only included when you generate your own brief.

  • Figure 1 · 12×12 shellSVGWebP

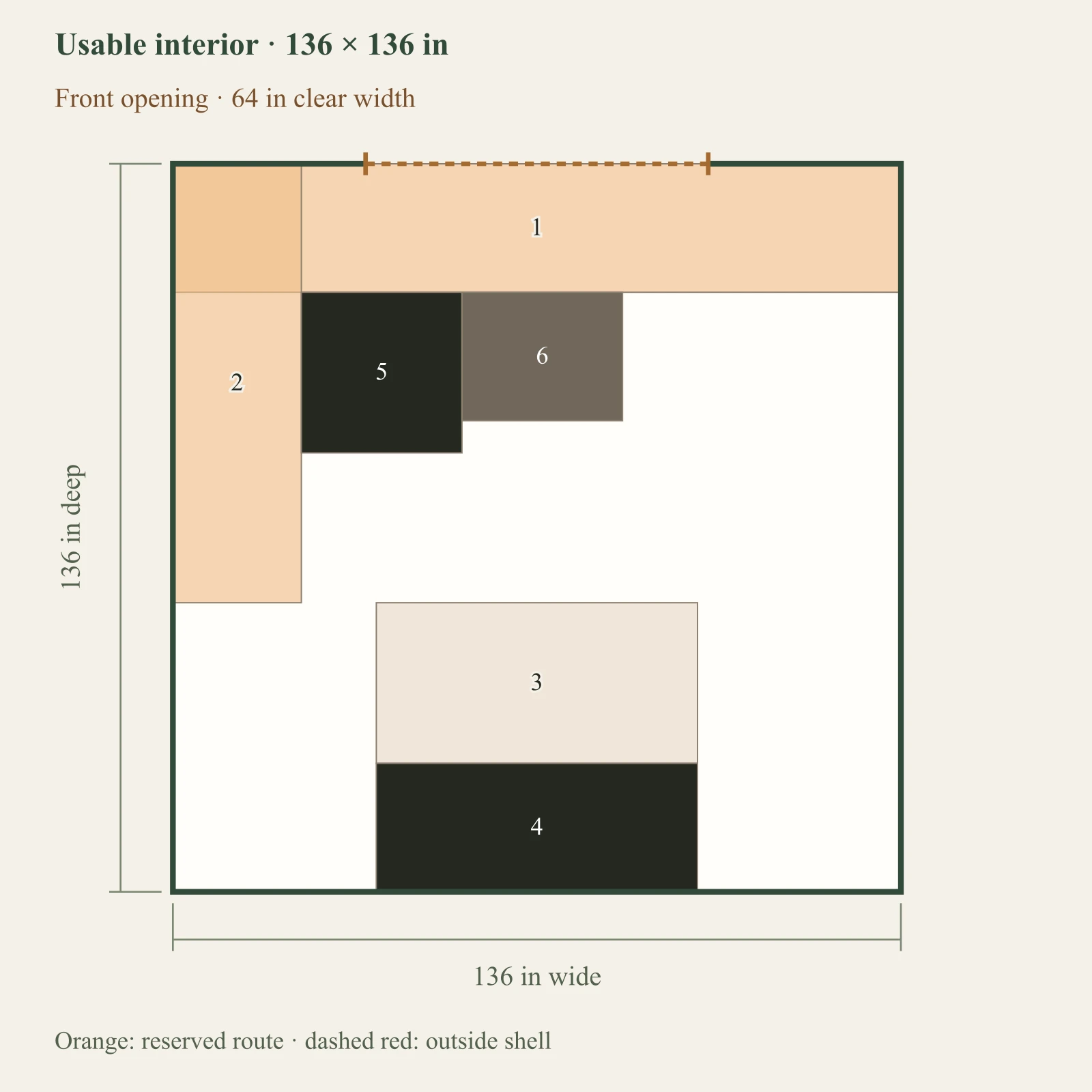

  • Figure 2 · workshop mobile layoutSVGWebP

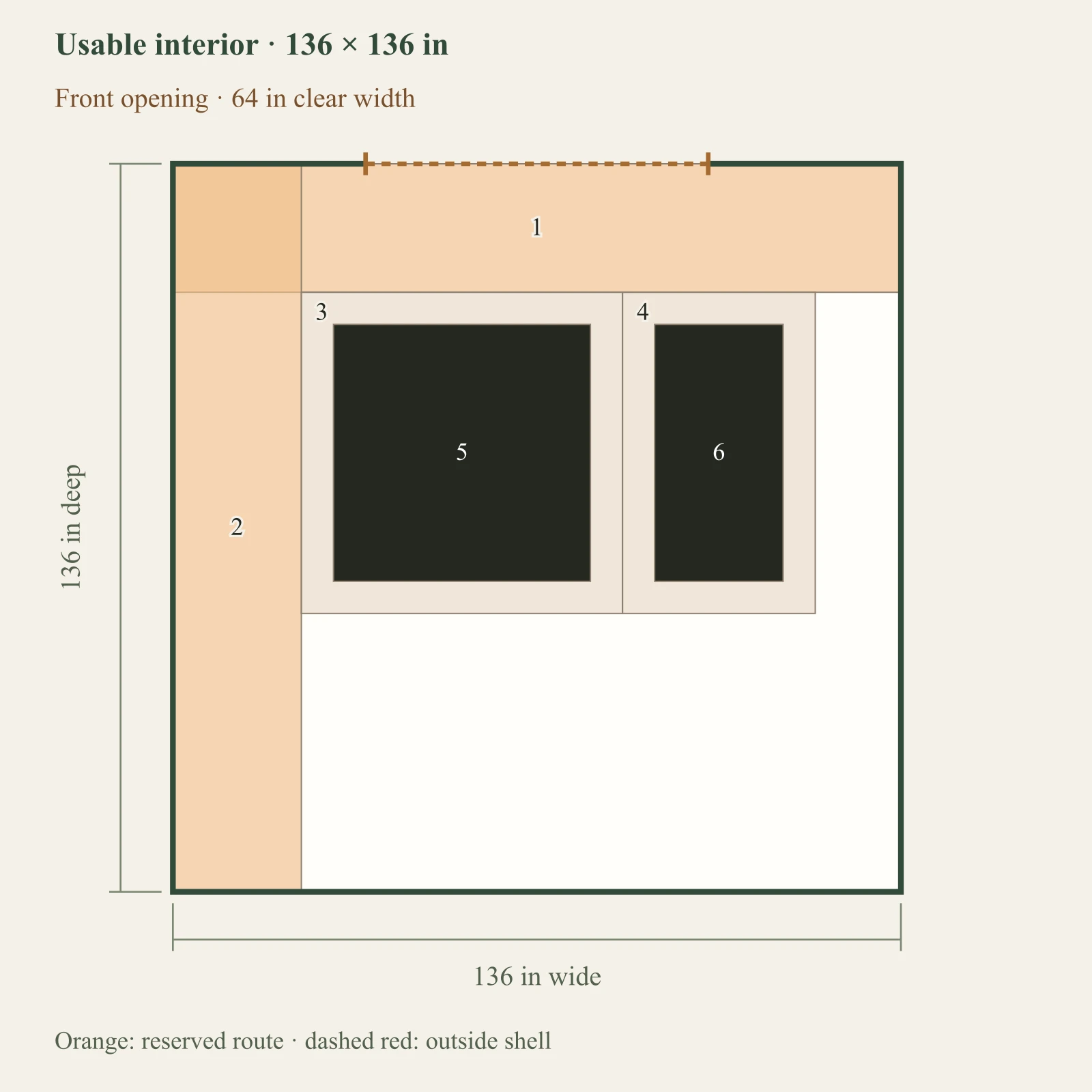

  • Figure 3 · gym equipment layoutSVGWebP
  • Figure 4 · 12×12 boundarySVGWebP

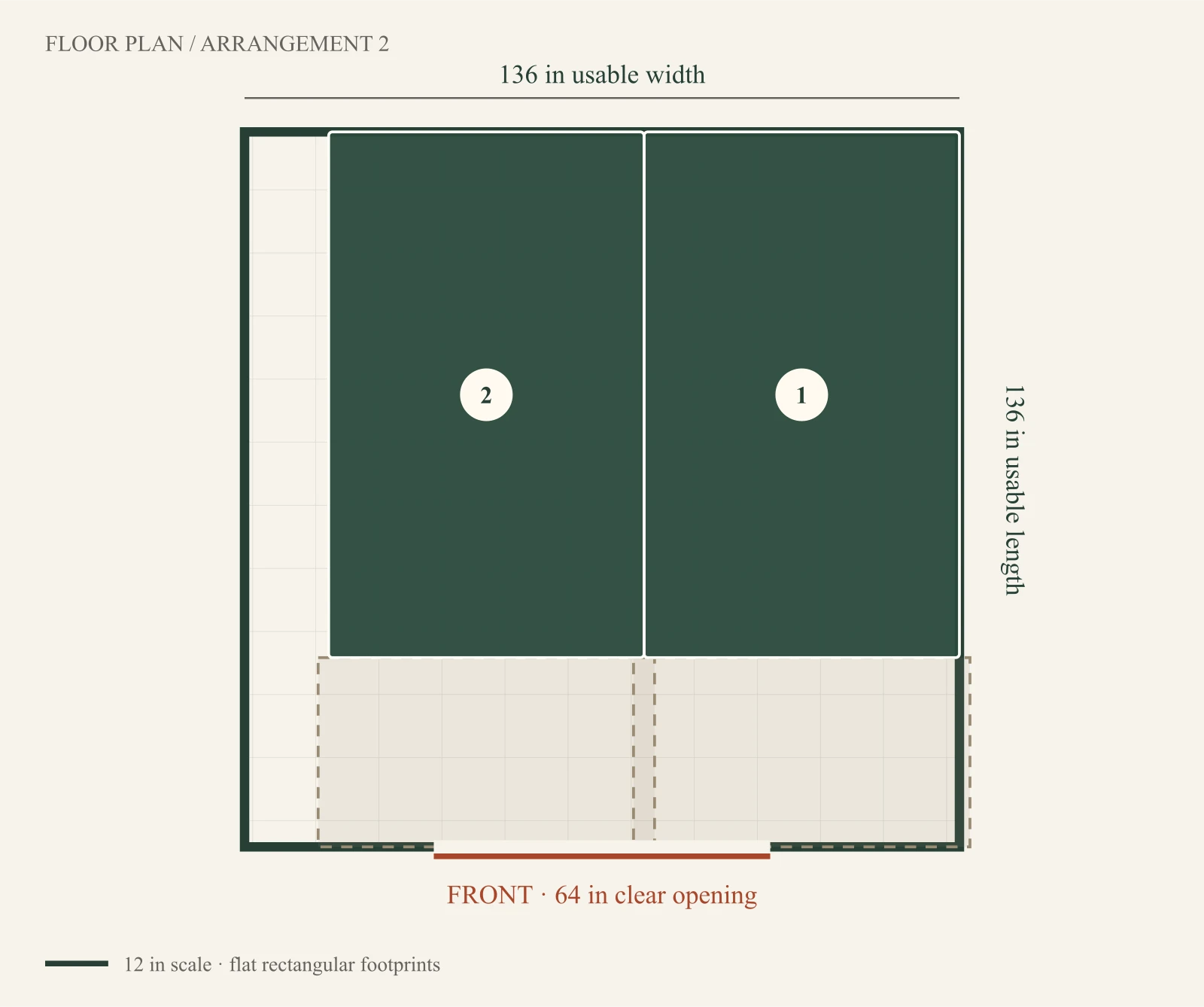

  • Figure 5 · two large items shell 12×12 referenceSVGWebP

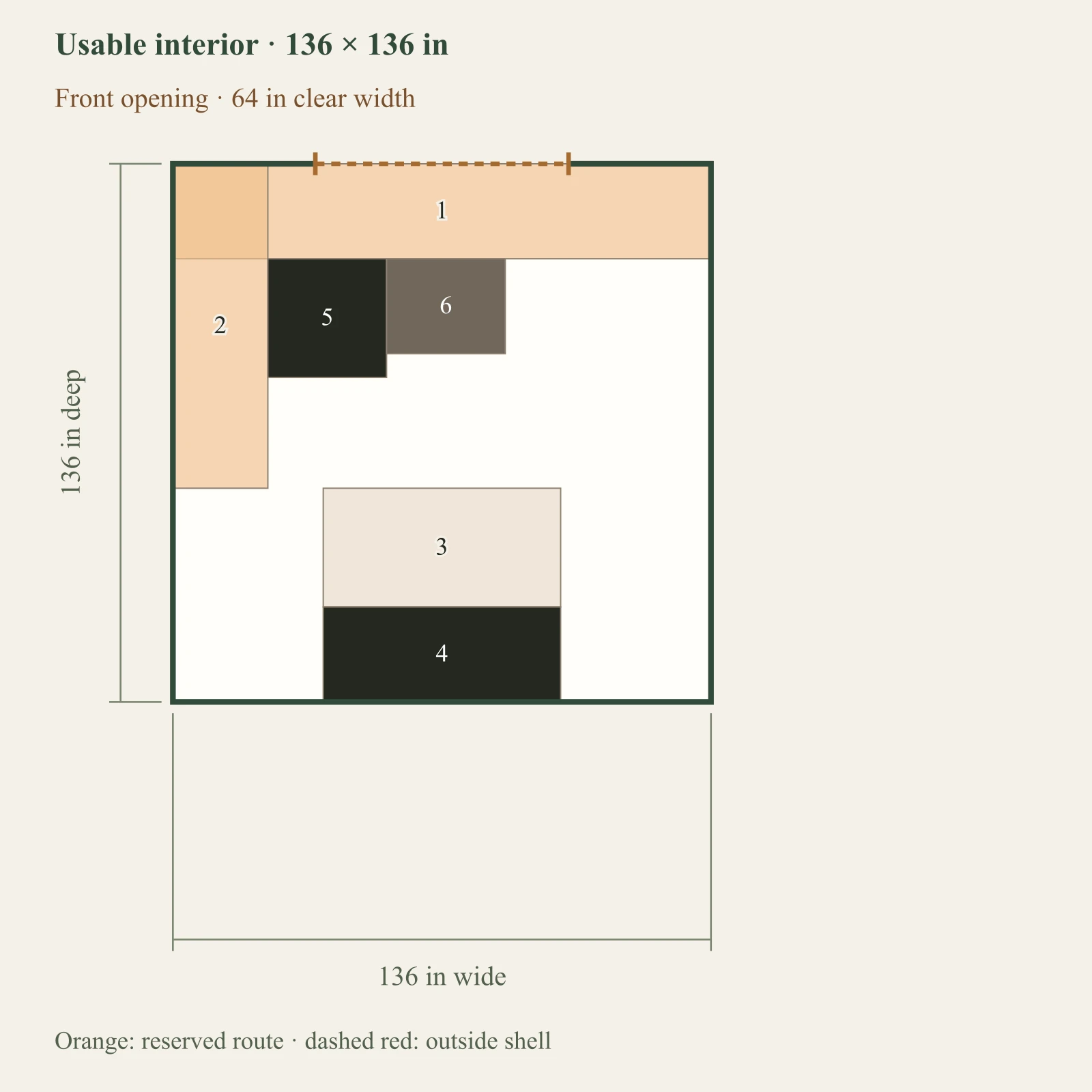

  • Figure 6 · 12×12 12×16 workshop mobile 12×12SVGWebP

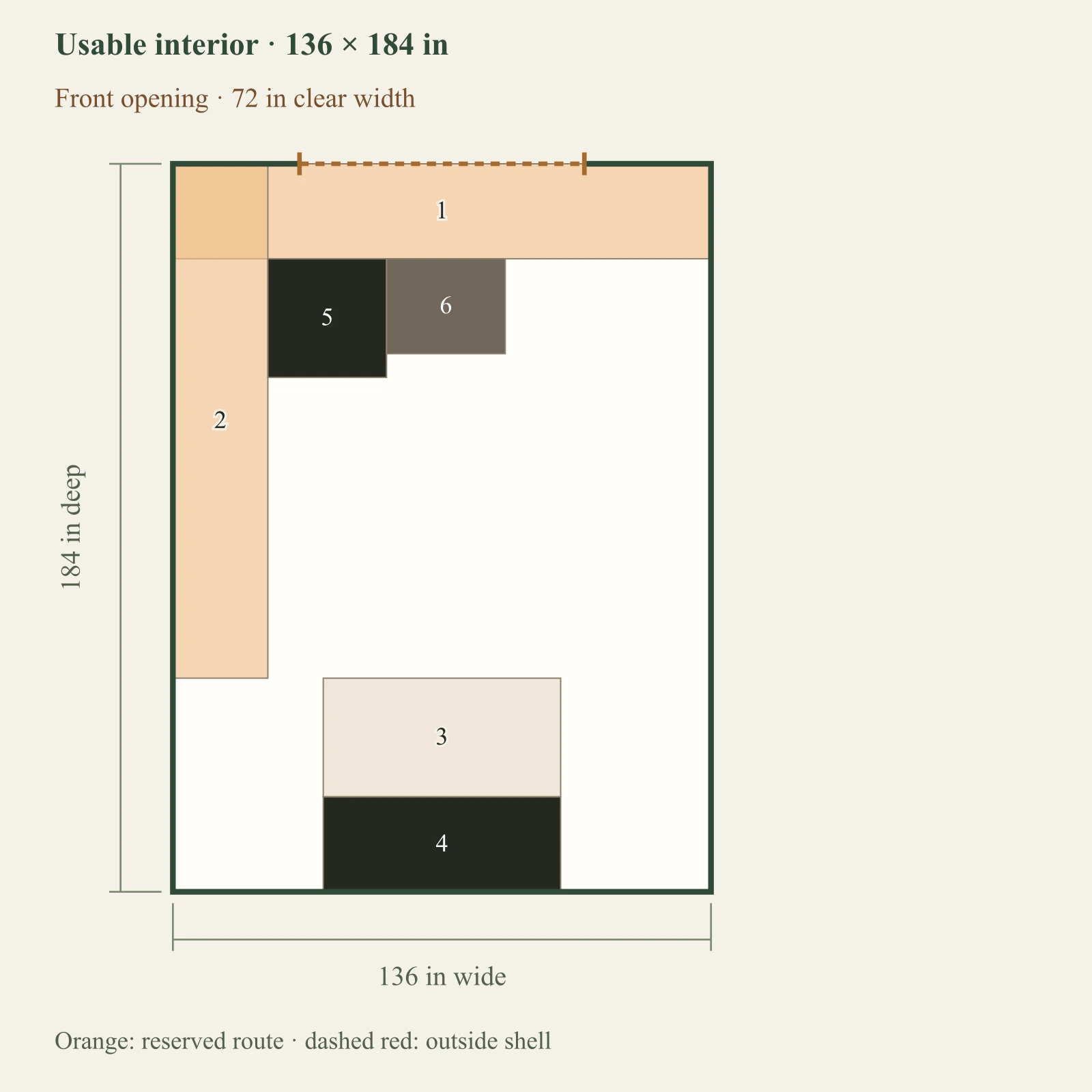

  • Figure 7 · 12×12 12×16 workshop mobile 12×16SVGWebP
