Can chairs move and a visitor sit without blocking the entrance?

Backyard office planning starts with the task you need to complete. Compare the disclosed examples below, then replace their assumptions with your measurements and keep your decision in one supplier brief.

Reference answer: A 60 × 24 in desk, chair and 30 in chair-back allowance share the room with measured storage and equipment. The smallest passing footprint in this three-candidate example is 10×12. This answers the disclosed example, not an unmeasured personal project.

Compare reference arrangements

Authored planning examples, not measured customer projects or product specifications. Dimensions are inches. No construction or safety approval.

Measure the conditions that change the answer.

Desk and chair

How to measure: Measure complete desk and chair footprints, plus the clear distance the chair moves back during use.

What it changes: The chair-back area is reserved before storage; it cannot be used as permanent equipment space.

Second seat and equipment

How to measure: Measure a second seat for collaboration mode and the actual storage/equipment footprints and heights.

What it changes: Compare solo and collaboration using the same shell. If access fails, revise the furniture arrangement or footprint.

Working conditions

How to measure: Measure the real opening and usable height. Ask separately about power, ventilation, daylight and applicable use/occupancy requirements.

What it changes: Passing furniture geometry is not an office-use or habitability approval.

Two ways to frame the decision.

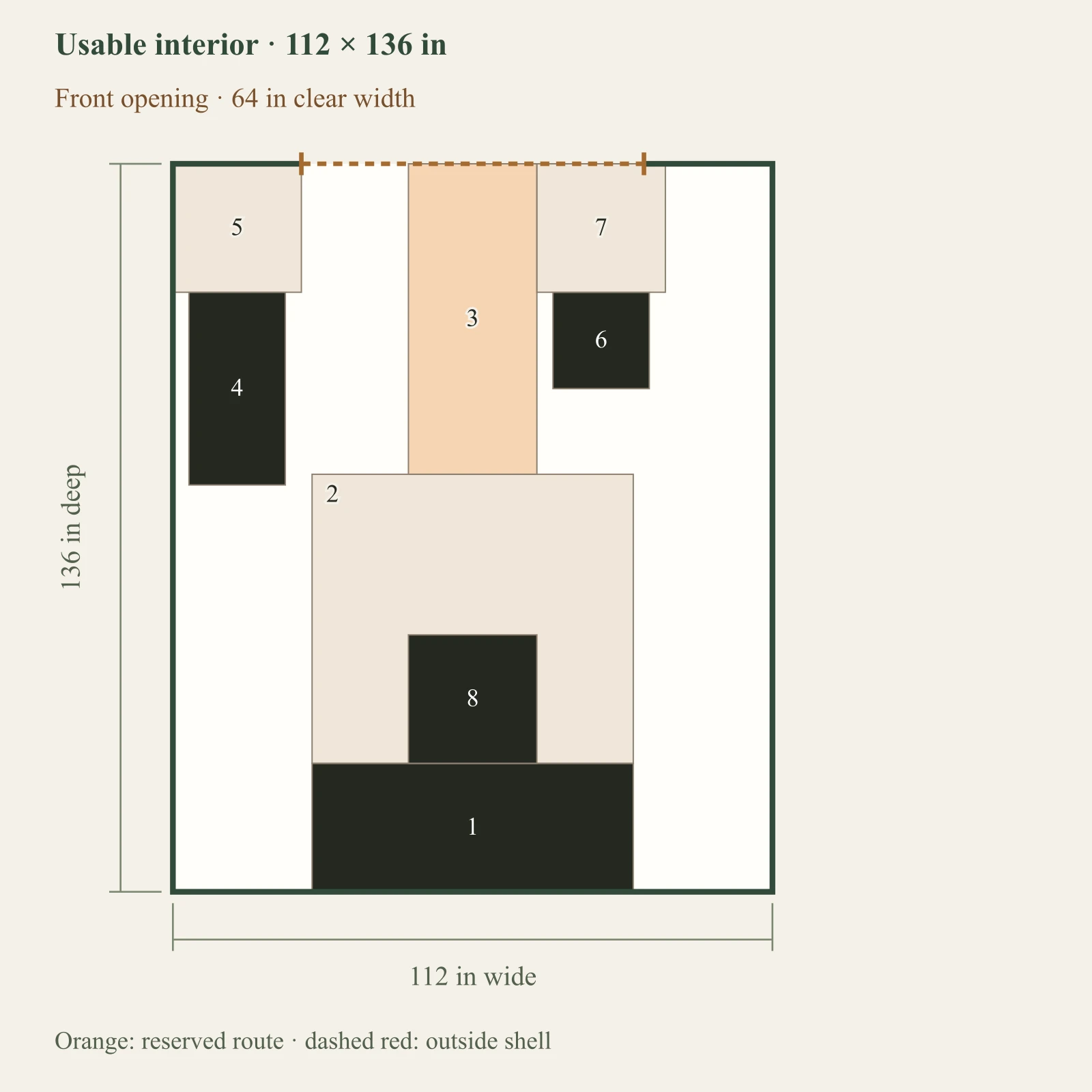

Reference 1 · editable assumptions

Solo office

What you gain
A desk, chair-back movement, storage and equipment are kept in one measured solo-office arrangement.
What you give up
A visitor seat is not included; power, ventilation, light and permitted use remain open questions.
When to choose it
Start here for one regular desk user.
Full-size layout and reserved spacesDesk and chair movement are separate reservations. A second seat is included only in collaboration mode. Power, ventilation, daylight and occupancy/use permissions remain unverified. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Desk: 60 × 24 in at 26, 112 inChair-back movement: 60 × 54 in at 26, 58 inEntry circulation: 24 × 58 in at 44, 0 inStorage: 18 × 36 in at 3, 24 inStorage service space: 24 × 24 in at 0, 0 inEquipment: 18 × 18 in at 71, 24 inEquipment service space: 24 × 24 in at 68, 0 inChair at desk: 24 × 24 in at 44, 88 in12345678Usable interior · 112 × 136 inFront opening · 64 in clear width112 in wide136 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Desk: 60 × 24 in
  2. 2. Chair-back movement: 60 × 54 in
  3. 3. Entry circulation: 24 × 58 in
  4. 4. Storage: 18 × 36 in
  5. 5. Storage service space: 24 × 24 in
  6. 6. Equipment: 18 × 18 in
  7. 7. Equipment service space: 24 × 24 in
  8. 8. Chair at desk: 24 × 24 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

The stated geometry fits this arrangement.

Approaches test an entered square circulation footprint with fixtures retained. Turning bodies, door leaves, ventilation, utilities and safe occupancy are unassessed.

Every input, finding and limitation
  • desk / width: 60
  • desk / depth: 24
  • desk / height: 30
  • chair / width: 24
  • chair / depth: 24
  • chair / height: 42
  • second Seat / width: 24
  • second Seat / depth: 24
  • second Seat / height: 36
  • storage / width: 18
  • storage / depth: 36
  • storage / height: 60
  • equipment / width: 18
  • equipment / depth: 18
  • equipment / height: 24
  • chair Back: 30
  • aisle: 24
  • mode: solo
  • Approaches test an entered square circulation footprint with fixtures retained. Turning bodies, door leaves, ventilation, utilities and safe occupancy are unassessed.

Reference 2 · editable assumptions

Collaboration space

What you gain
A second seat adds its footprint and service area to the same office task.
What you give up
The visitor space competes with circulation and storage; nominal floor area alone does not resolve it.
When to choose it
Start here if a second person needs a real seat rather than occasional standing room.

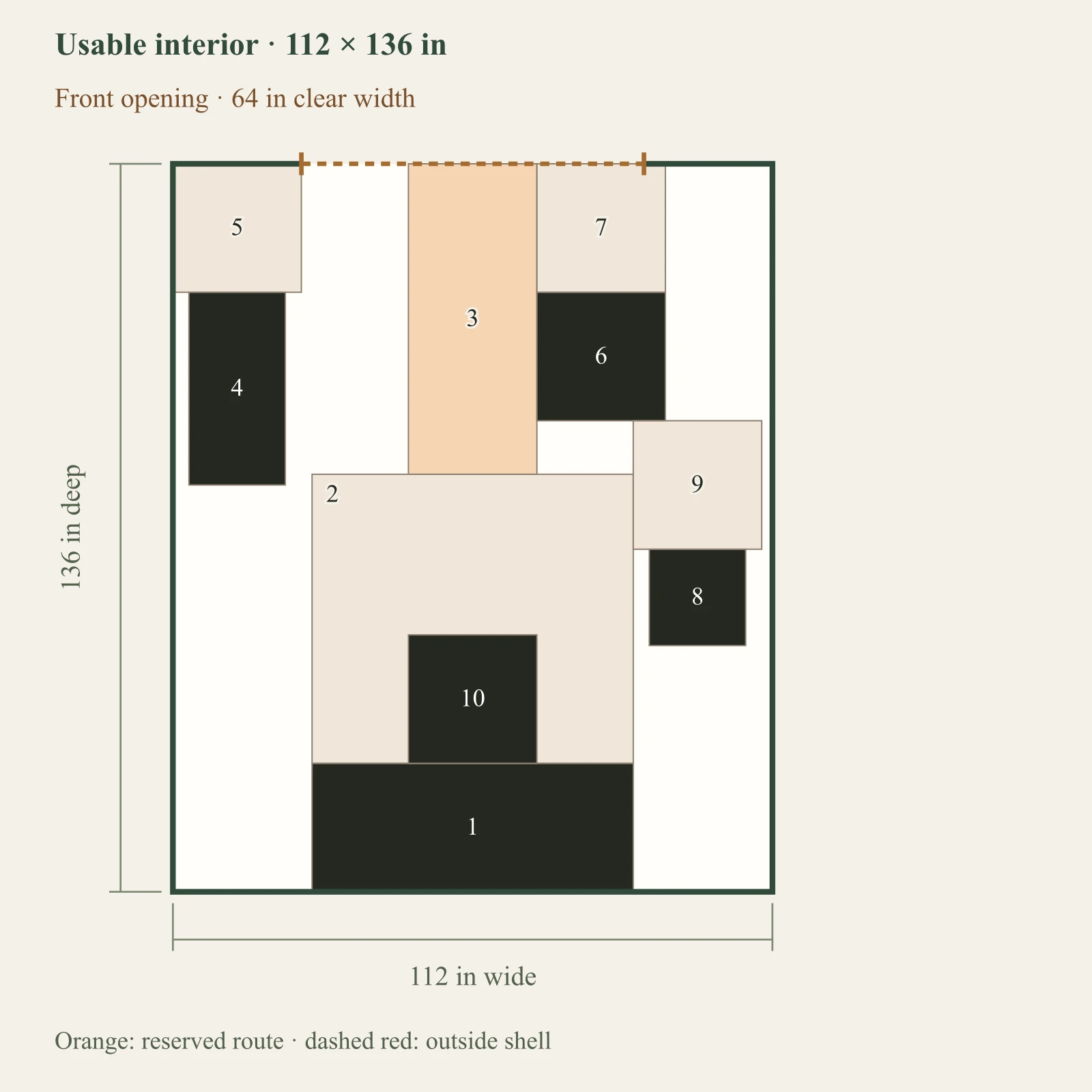

Full-size layout and reserved spacesDesk and chair movement are separate reservations. A second seat is included only in collaboration mode. Power, ventilation, daylight and occupancy/use permissions remain unverified. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Desk: 60 × 24 in at 26, 112 inChair-back movement: 60 × 54 in at 26, 58 inEntry circulation: 24 × 58 in at 44, 0 inStorage: 18 × 36 in at 3, 24 inStorage service space: 24 × 24 in at 0, 0 inSecond seat: 24 × 24 in at 68, 24 inSecond seat service space: 24 × 24 in at 68, 0 inEquipment: 18 × 18 in at 89, 72 inEquipment service space: 24 × 24 in at 86, 48 inChair at desk: 24 × 24 in at 44, 88 in12345678910Usable interior · 112 × 136 inFront opening · 64 in clear width112 in wide136 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Desk: 60 × 24 in
  2. 2. Chair-back movement: 60 × 54 in
  3. 3. Entry circulation: 24 × 58 in
  4. 4. Storage: 18 × 36 in
  5. 5. Storage service space: 24 × 24 in
  6. 6. Second seat: 24 × 24 in
  7. 7. Second seat service space: 24 × 24 in
  8. 8. Equipment: 18 × 18 in
  9. 9. Equipment service space: 24 × 24 in
  10. 10. Chair at desk: 24 × 24 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

The stated geometry fits this arrangement.

Approaches test an entered square circulation footprint with fixtures retained. Turning bodies, door leaves, ventilation, utilities and safe occupancy are unassessed.

Every input, finding and limitation
  • desk / width: 60
  • desk / depth: 24
  • desk / height: 30
  • chair / width: 24
  • chair / depth: 24
  • chair / height: 42
  • second Seat / width: 24
  • second Seat / depth: 24
  • second Seat / height: 36
  • storage / width: 18
  • storage / depth: 36
  • storage / height: 60
  • equipment / width: 18
  • equipment / depth: 18
  • equipment / height: 24
  • chair Back: 30
  • aisle: 24
  • mode: collaboration
  • Approaches test an entered square circulation footprint with fixtures retained. Turning bodies, door leaves, ventilation, utilities and safe occupancy are unassessed.

Same task, three candidate footprints.

Reference 1 stays fixed. These are authored clear dimensions, not guaranteed interiors of products bearing the same nominal size. Each diagram uses the same scale; failed objects remain full size.

At least one shown arrangement passes the modeled geometry; read the remaining limits before making a choice.

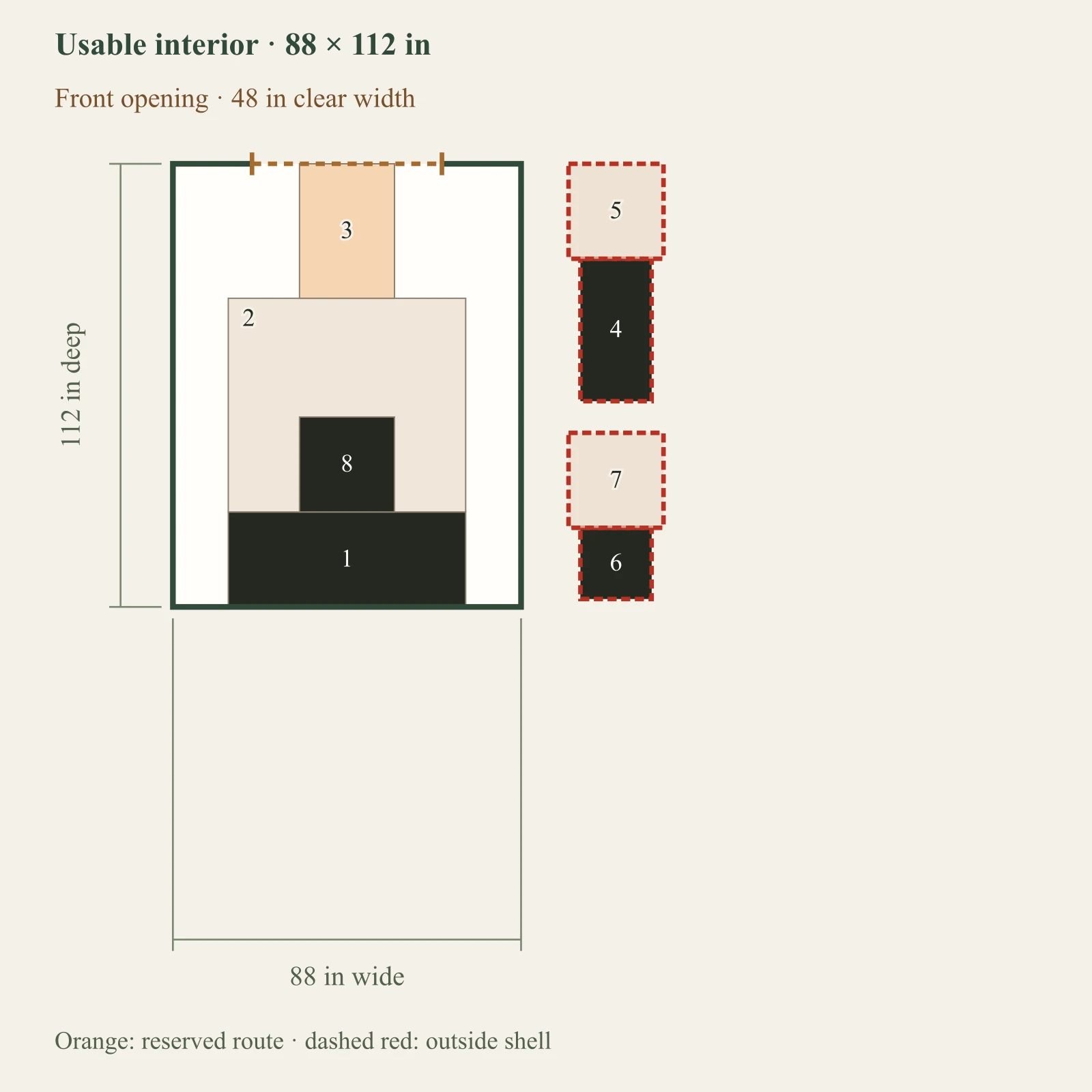

8×10

Full-size layout and reserved spacesDesk and chair movement are separate reservations. A second seat is included only in collaboration mode. Power, ventilation, daylight and occupancy/use permissions remain unverified. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Desk: 60 × 24 in at 14, 88 inChair-back movement: 60 × 54 in at 14, 34 inEntry circulation: 24 × 34 in at 32, 0 inStorage: 18 × 36 in at 103, 24 inStorage service space: 24 × 24 in at 100, 0 inEquipment: 18 × 18 in at 103, 92 inEquipment service space: 24 × 24 in at 100, 68 inChair at desk: 24 × 24 in at 32, 64 in12345678Usable interior · 88 × 112 inFront opening · 48 in clear width88 in wide112 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Desk: 60 × 24 in
  2. 2. Chair-back movement: 60 × 54 in
  3. 3. Entry circulation: 24 × 34 in
  4. 4. Storage: 18 × 36 in — outside shell
  5. 5. Storage service space: 24 × 24 in — outside shell
  6. 6. Equipment: 18 × 18 in — outside shell
  7. 7. Equipment service space: 24 × 24 in — outside shell
  8. 8. Chair at desk: 24 × 24 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

This arrangement needs a change.

Storage: no non-overlapping position was found in this bounded arrangement search.

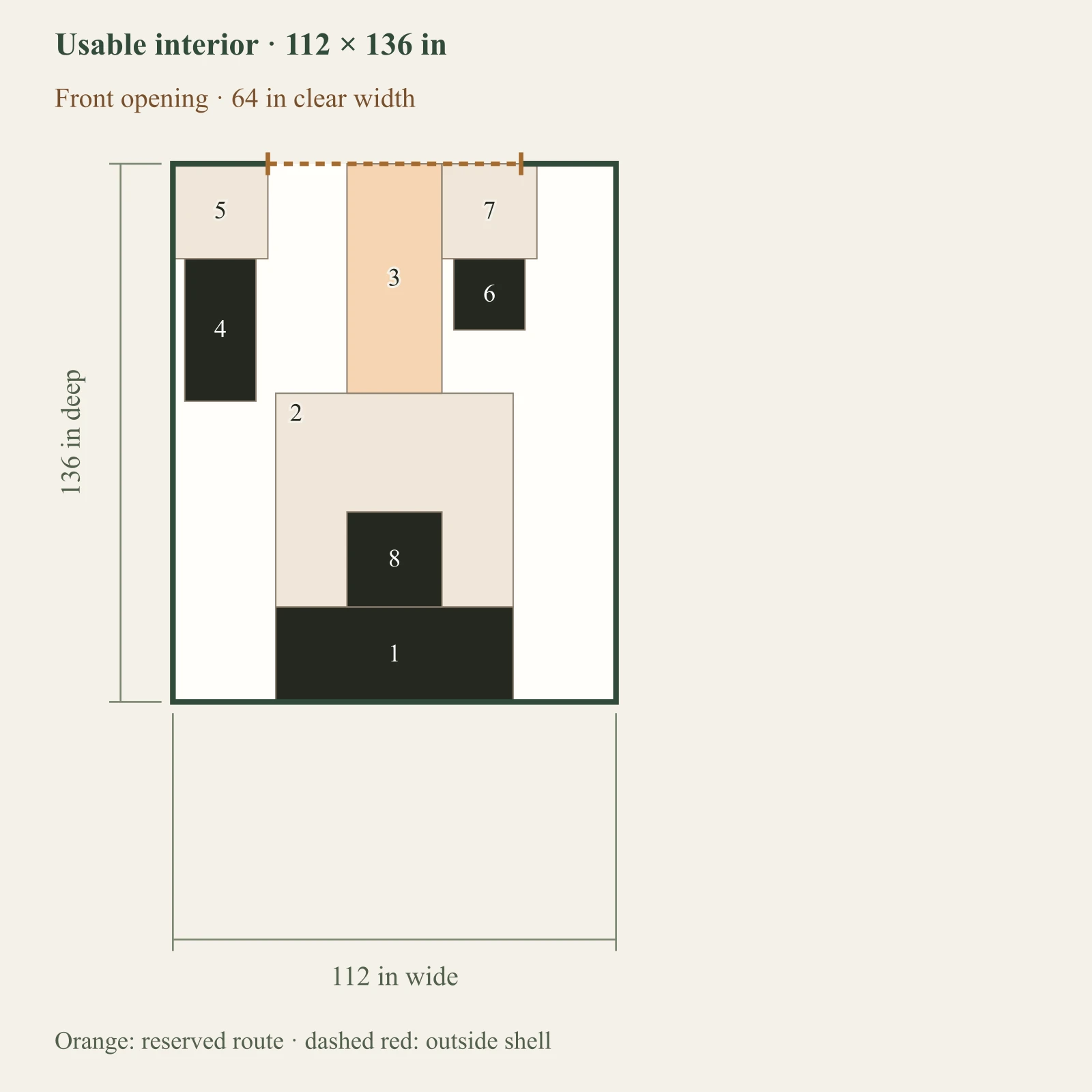

10×12

Full-size layout and reserved spacesDesk and chair movement are separate reservations. A second seat is included only in collaboration mode. Power, ventilation, daylight and occupancy/use permissions remain unverified. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Desk: 60 × 24 in at 26, 112 inChair-back movement: 60 × 54 in at 26, 58 inEntry circulation: 24 × 58 in at 44, 0 inStorage: 18 × 36 in at 3, 24 inStorage service space: 24 × 24 in at 0, 0 inEquipment: 18 × 18 in at 71, 24 inEquipment service space: 24 × 24 in at 68, 0 inChair at desk: 24 × 24 in at 44, 88 in12345678Usable interior · 112 × 136 inFront opening · 64 in clear width112 in wide136 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Desk: 60 × 24 in
  2. 2. Chair-back movement: 60 × 54 in
  3. 3. Entry circulation: 24 × 58 in
  4. 4. Storage: 18 × 36 in
  5. 5. Storage service space: 24 × 24 in
  6. 6. Equipment: 18 × 18 in
  7. 7. Equipment service space: 24 × 24 in
  8. 8. Chair at desk: 24 × 24 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

The stated geometry fits this arrangement.

Approaches test an entered square circulation footprint with fixtures retained. Turning bodies, door leaves, ventilation, utilities and safe occupancy are unassessed.

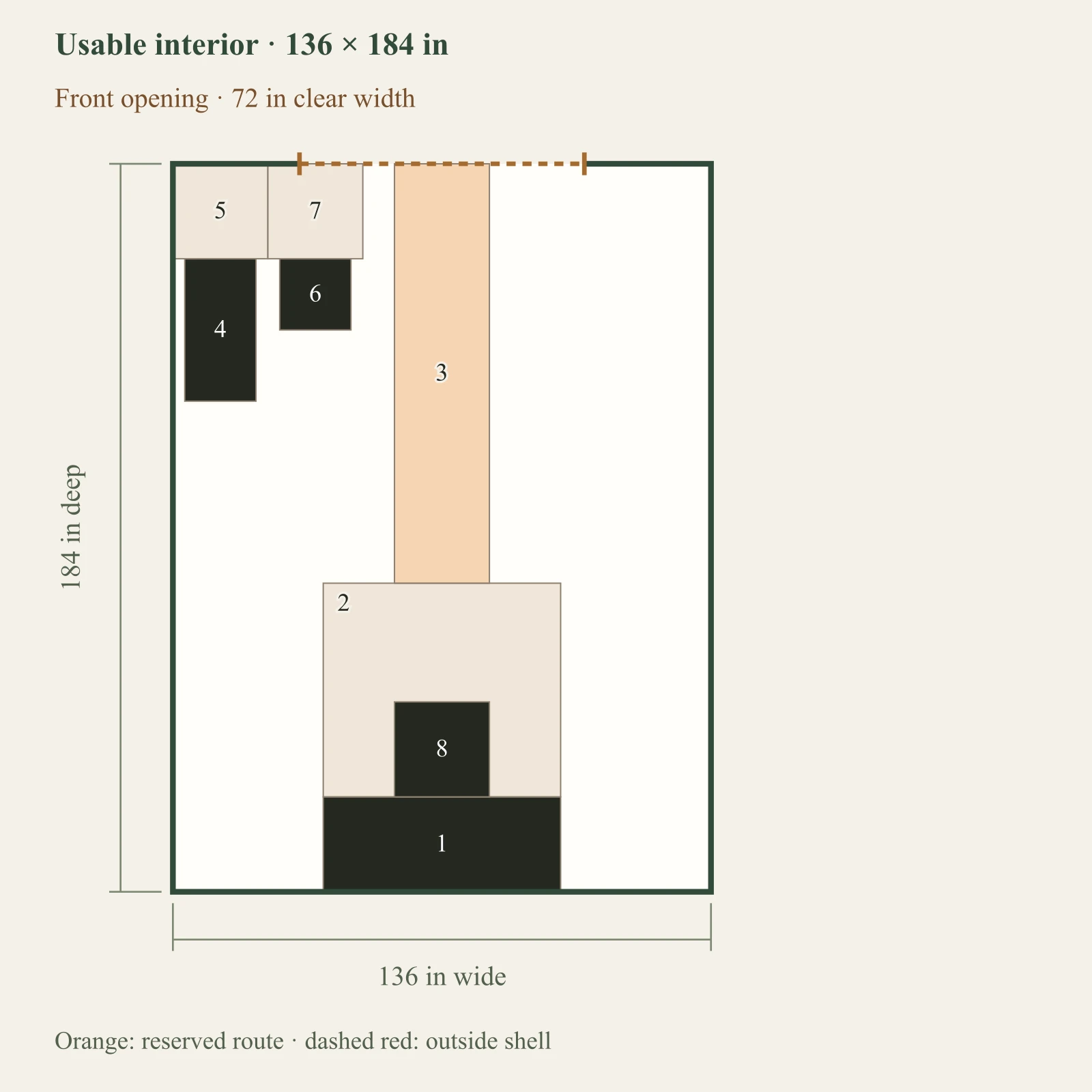

12×16

Full-size layout and reserved spacesDesk and chair movement are separate reservations. A second seat is included only in collaboration mode. Power, ventilation, daylight and occupancy/use permissions remain unverified. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Desk: 60 × 24 in at 38, 160 inChair-back movement: 60 × 54 in at 38, 106 inEntry circulation: 24 × 106 in at 56, 0 inStorage: 18 × 36 in at 3, 24 inStorage service space: 24 × 24 in at 0, 0 inEquipment: 18 × 18 in at 27, 24 inEquipment service space: 24 × 24 in at 24, 0 inChair at desk: 24 × 24 in at 56, 136 in12345678Usable interior · 136 × 184 inFront opening · 72 in clear width136 in wide184 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Desk: 60 × 24 in
  2. 2. Chair-back movement: 60 × 54 in
  3. 3. Entry circulation: 24 × 106 in
  4. 4. Storage: 18 × 36 in
  5. 5. Storage service space: 24 × 24 in
  6. 6. Equipment: 18 × 18 in
  7. 7. Equipment service space: 24 × 24 in
  8. 8. Chair at desk: 24 × 24 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

The stated geometry fits this arrangement.

Approaches test an entered square circulation footprint with fixtures retained. Turning bodies, door leaves, ventilation, utilities and safe occupancy are unassessed.

Test the task in use.

Chair-back movement with other furniture retained

Chair-back movement with other furniture retainedDesk and chair movement are separate reservations. A second seat is included only in collaboration mode. Power, ventilation, daylight and occupancy/use permissions remain unverified. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Desk: 60 × 24 in at 26, 112 inChair-back movement: 60 × 54 in at 26, 58 inEntry circulation: 24 × 58 in at 44, 0 inStorage: 18 × 36 in at 3, 24 inStorage service space: 24 × 24 in at 0, 0 inEquipment: 18 × 18 in at 71, 24 inEquipment service space: 24 × 24 in at 68, 0 inChair at desk: 24 × 24 in at 44, 88 in12345678Usable interior · 112 × 136 inFront opening · 64 in clear width112 in wide136 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Desk: 60 × 24 in
  2. 2. Chair-back movement: 60 × 54 in
  3. 3. Entry circulation: 24 × 58 in
  4. 4. Storage: 18 × 36 in
  5. 5. Storage service space: 24 × 24 in
  6. 6. Equipment: 18 × 18 in
  7. 7. Equipment service space: 24 × 24 in
  8. 8. Chair at desk: 24 × 24 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

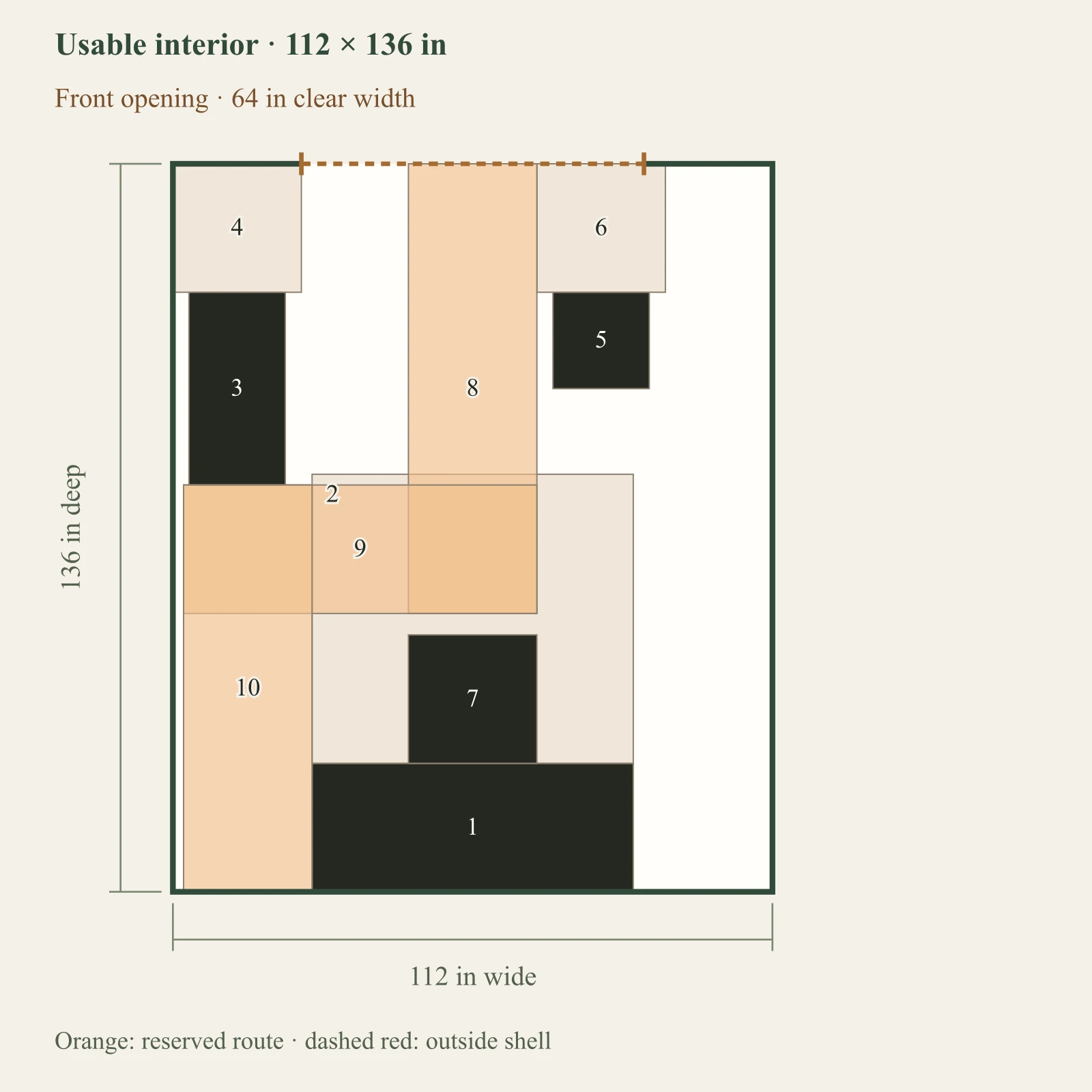

Route to Desk

Route to DeskDesk and chair movement are separate reservations. A second seat is included only in collaboration mode. Power, ventilation, daylight and occupancy/use permissions remain unverified. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Desk: 60 × 24 in at 26, 112 inChair-back movement: 60 × 54 in at 26, 58 inStorage: 18 × 36 in at 3, 24 inStorage service space: 24 × 24 in at 0, 0 inEquipment: 18 × 18 in at 71, 24 inEquipment service space: 24 × 24 in at 68, 0 inChair at desk: 24 × 24 in at 44, 88 inFull-footprint translation sweep: 24 × 84 in at 44, 0 inFull-footprint translation sweep: 66 × 24 in at 2, 60 inFull-footprint translation sweep: 24 × 76 in at 2, 60 in12345678910Usable interior · 112 × 136 inFront opening · 64 in clear width112 in wide136 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Desk: 60 × 24 in
  2. 2. Chair-back movement: 60 × 54 in
  3. 3. Storage: 18 × 36 in
  4. 4. Storage service space: 24 × 24 in
  5. 5. Equipment: 18 × 18 in
  6. 6. Equipment service space: 24 × 24 in
  7. 7. Chair at desk: 24 × 24 in
  8. 8. Full-footprint translation sweep: 24 × 84 in
  9. 9. Full-footprint translation sweep: 66 × 24 in
  10. 10. Full-footprint translation sweep: 24 × 76 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

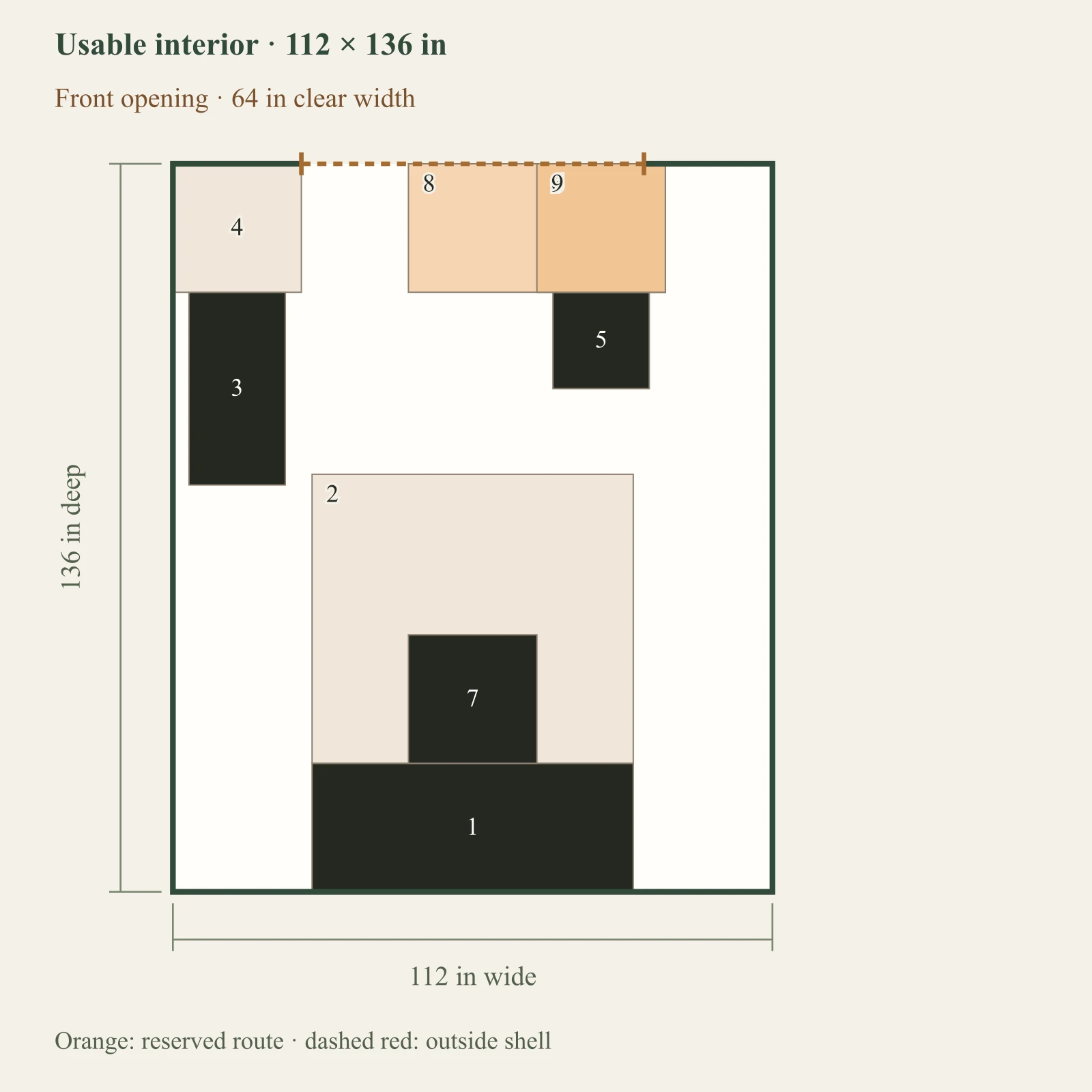

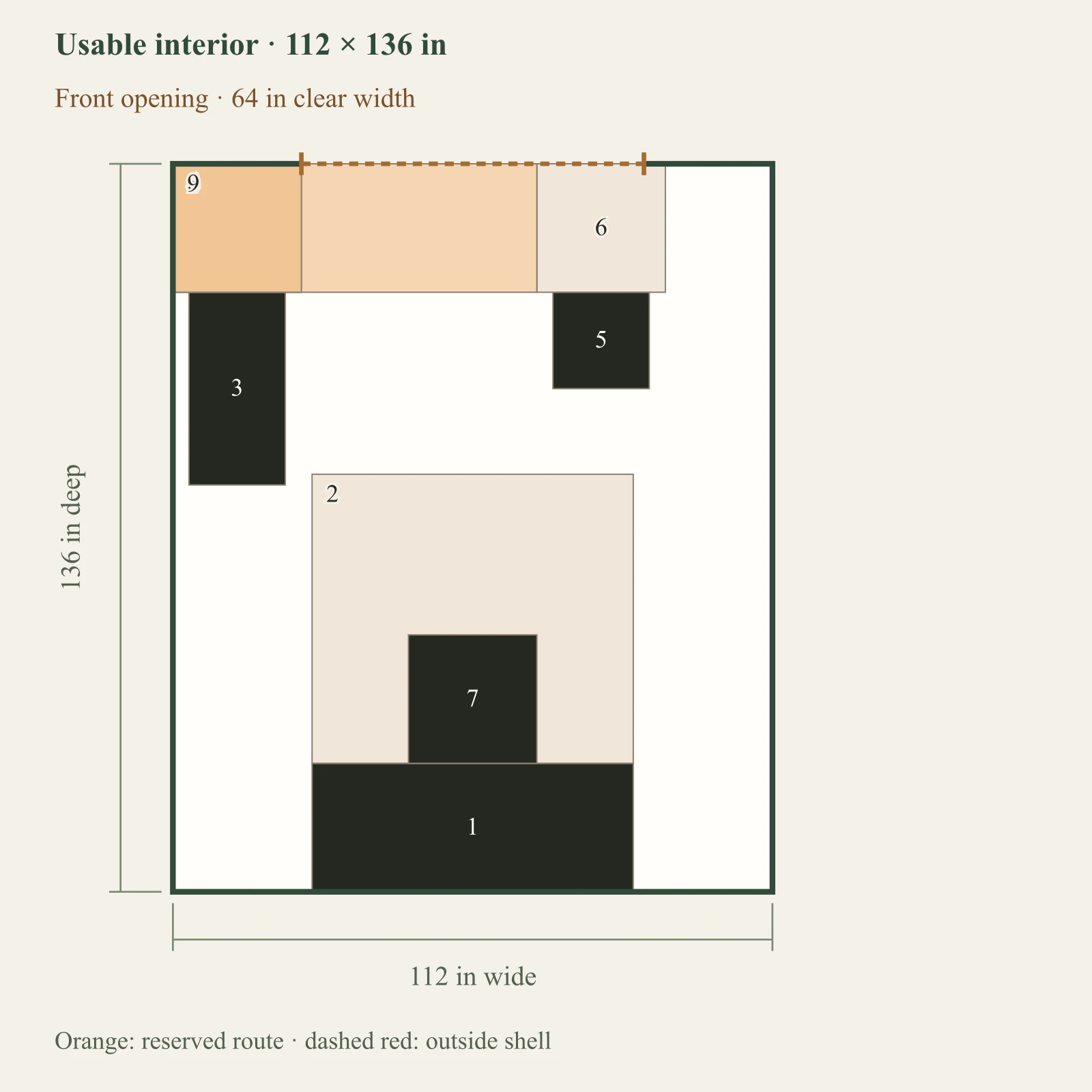

Route to Storage

Route to StorageDesk and chair movement are separate reservations. A second seat is included only in collaboration mode. Power, ventilation, daylight and occupancy/use permissions remain unverified. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Desk: 60 × 24 in at 26, 112 inChair-back movement: 60 × 54 in at 26, 58 inStorage: 18 × 36 in at 3, 24 inStorage service space: 24 × 24 in at 0, 0 inEquipment: 18 × 18 in at 71, 24 inEquipment service space: 24 × 24 in at 68, 0 inChair at desk: 24 × 24 in at 44, 88 inFull-footprint translation sweep: 68 × 24 in at 0, 0 inFull-footprint translation sweep: 24 × 24 in at 0, 0 in123456789Usable interior · 112 × 136 inFront opening · 64 in clear width112 in wide136 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Desk: 60 × 24 in
  2. 2. Chair-back movement: 60 × 54 in
  3. 3. Storage: 18 × 36 in
  4. 4. Storage service space: 24 × 24 in
  5. 5. Equipment: 18 × 18 in
  6. 6. Equipment service space: 24 × 24 in
  7. 7. Chair at desk: 24 × 24 in
  8. 8. Full-footprint translation sweep: 68 × 24 in
  9. 9. Full-footprint translation sweep: 24 × 24 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

Route to Equipment

Route to EquipmentDesk and chair movement are separate reservations. A second seat is included only in collaboration mode. Power, ventilation, daylight and occupancy/use permissions remain unverified. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Desk: 60 × 24 in at 26, 112 inChair-back movement: 60 × 54 in at 26, 58 inStorage: 18 × 36 in at 3, 24 inStorage service space: 24 × 24 in at 0, 0 inEquipment: 18 × 18 in at 71, 24 inEquipment service space: 24 × 24 in at 68, 0 inChair at desk: 24 × 24 in at 44, 88 inFull-footprint translation sweep: 48 × 24 in at 44, 0 inFull-footprint translation sweep: 24 × 24 in at 68, 0 in123456789Usable interior · 112 × 136 inFront opening · 64 in clear width112 in wide136 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Desk: 60 × 24 in
  2. 2. Chair-back movement: 60 × 54 in
  3. 3. Storage: 18 × 36 in
  4. 4. Storage service space: 24 × 24 in
  5. 5. Equipment: 18 × 18 in
  6. 6. Equipment service space: 24 × 24 in
  7. 7. Chair at desk: 24 × 24 in
  8. 8. Full-footprint translation sweep: 48 × 24 in
  9. 9. Full-footprint translation sweep: 24 × 24 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

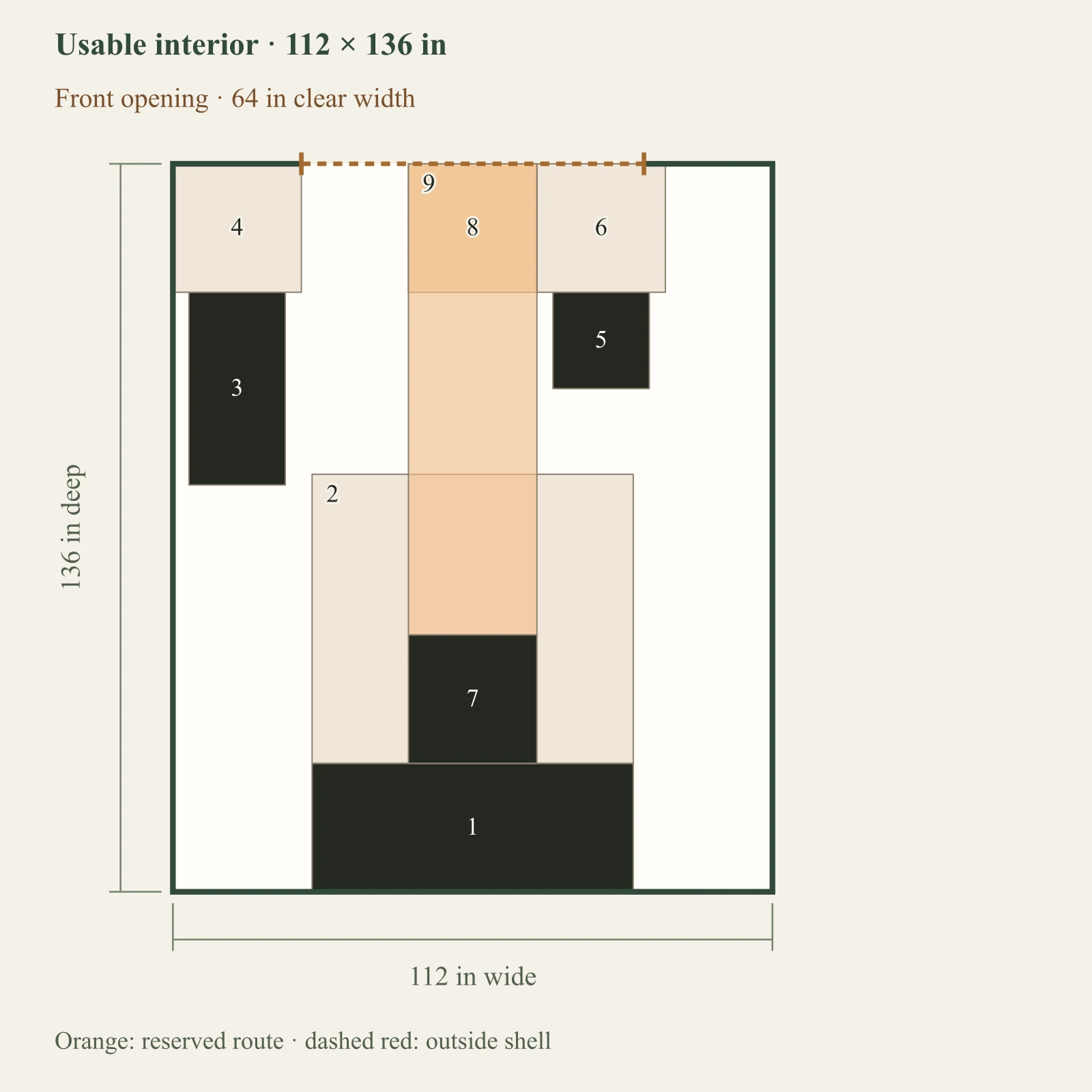

Route to Chair at desk

Route to Chair at deskDesk and chair movement are separate reservations. A second seat is included only in collaboration mode. Power, ventilation, daylight and occupancy/use permissions remain unverified. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Desk: 60 × 24 in at 26, 112 inChair-back movement: 60 × 54 in at 26, 58 inStorage: 18 × 36 in at 3, 24 inStorage service space: 24 × 24 in at 0, 0 inEquipment: 18 × 18 in at 71, 24 inEquipment service space: 24 × 24 in at 68, 0 inChair at desk: 24 × 24 in at 44, 88 inFull-footprint translation sweep: 24 × 24 in at 44, 0 inFull-footprint translation sweep: 24 × 88 in at 44, 0 in123456789Usable interior · 112 × 136 inFront opening · 64 in clear width112 in wide136 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Desk: 60 × 24 in
  2. 2. Chair-back movement: 60 × 54 in
  3. 3. Storage: 18 × 36 in
  4. 4. Storage service space: 24 × 24 in
  5. 5. Equipment: 18 × 18 in
  6. 6. Equipment service space: 24 × 24 in
  7. 7. Chair at desk: 24 × 24 in
  8. 8. Full-footprint translation sweep: 24 × 24 in
  9. 9. Full-footprint translation sweep: 24 × 88 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

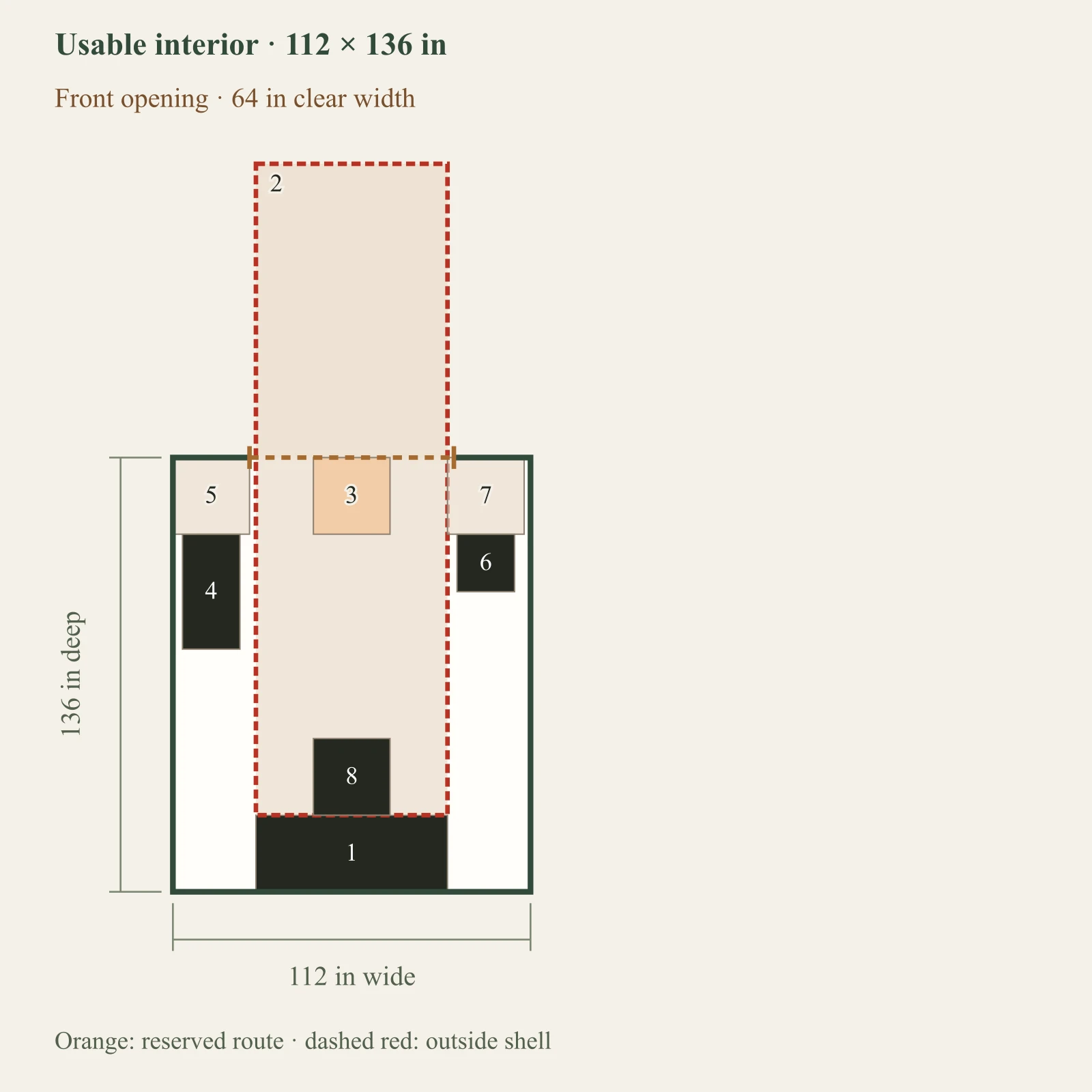

Controlled failure

What changes the answer?

Increase only chair-back space to 180 inches.

  • Chair-back movement exceeds the usable interior in this arrangement.
  • Chair-back movement overlaps Entry circulation.
Full-size layout and reserved spacesDesk and chair movement are separate reservations. A second seat is included only in collaboration mode. Power, ventilation, daylight and occupancy/use permissions remain unverified. Objects outside the outlined shell have not been placed. Numbers refer to the object list. This is a planning diagram, not a construction drawing.Desk: 60 × 24 in at 26, 112 inChair-back movement: 60 × 204 in at 26, -92 inEntry circulation: 24 × 24 in at 44, 0 inStorage: 18 × 36 in at 3, 24 inStorage service space: 24 × 24 in at 0, 0 inEquipment: 18 × 18 in at 89, 24 inEquipment service space: 24 × 24 in at 86, 0 inChair at desk: 24 × 24 in at 44, 88 in12345678Usable interior · 112 × 136 inFront opening · 64 in clear width112 in wide136 in deepOrange: reserved route · dashed red: outside shell

Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.

  1. 1. Desk: 60 × 24 in
  2. 2. Chair-back movement: 60 × 204 in — outside shell
  3. 3. Entry circulation: 24 × 24 in
  4. 4. Storage: 18 × 36 in
  5. 5. Storage service space: 24 × 24 in
  6. 6. Equipment: 18 × 18 in
  7. 7. Equipment service space: 24 × 24 in
  8. 8. Chair at desk: 24 × 24 in

Inspect the layout

100%

Dimensions in inches. Zoom changes the view, not your measurements. Select an object to identify its footprint, then swipe or scroll within the drawing. With a keyboard, focus the drawing and use arrow keys.

Input-based planning only. Turning, ramps, thresholds, wall mounting and structural capacity are not approved by this diagram. Escape or Close returns to the page.

Sources and the questions to take further.

Layout conclusions come from the disclosed rectangular geometry and entered clearances. A source supports only the specific guidance stated here. Site, structure, ventilation, actual door operation and local requirements need separate review.

    Record foundation questionsMeasure the openingSources and assumptionsCheck my yardCompare actual quote scopeTake my supplier brief
    Download the authored reference diagrams

    Version 2026-09-08-decisions. These files reproduce the public examples, including failed arrangements. Your private measurements are only included when you generate your own brief.

    • Figure 1 · EX office 0SVGWebP
    • Figure 2 · EX office 1SVGWebP
    • Figure 3 · EX office shell 8×10 referenceSVGWebP
    • Figure 4 · EX office shell 10×12 referenceSVGWebP
    • Figure 5 · EX office shell 12×16 referenceSVGWebP
    • Figure 6 · EX office activitySVGWebP
    • Figure 7 · EX office route 0SVGWebP
    • Figure 8 · EX office route 1SVGWebP
    • Figure 9 · EX office route 2SVGWebP
    • Figure 10 · EX office route 3SVGWebP
    • Figure 11 · EX office failureSVGWebP

    Change this project?
