Layout reference · Backyard office

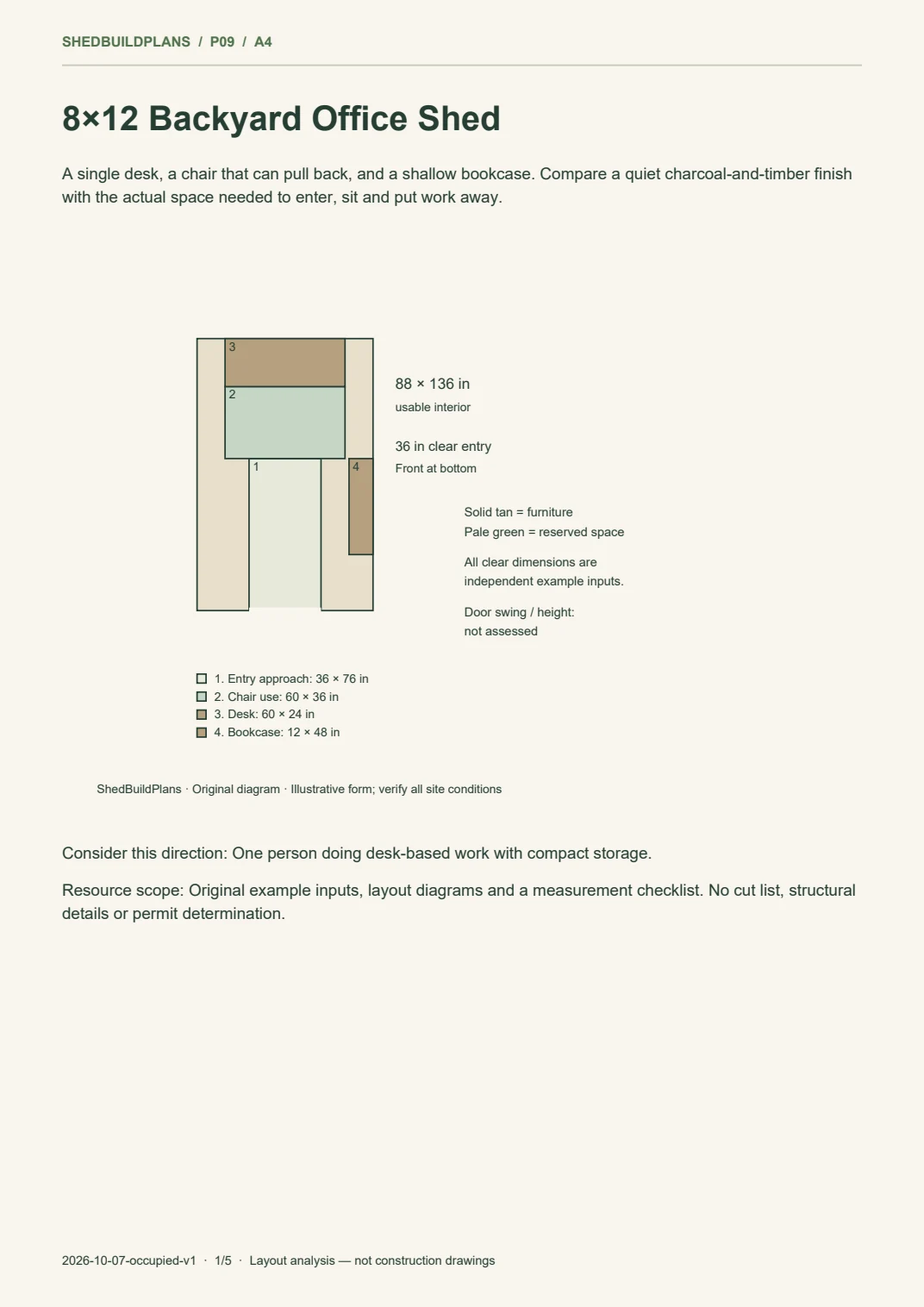

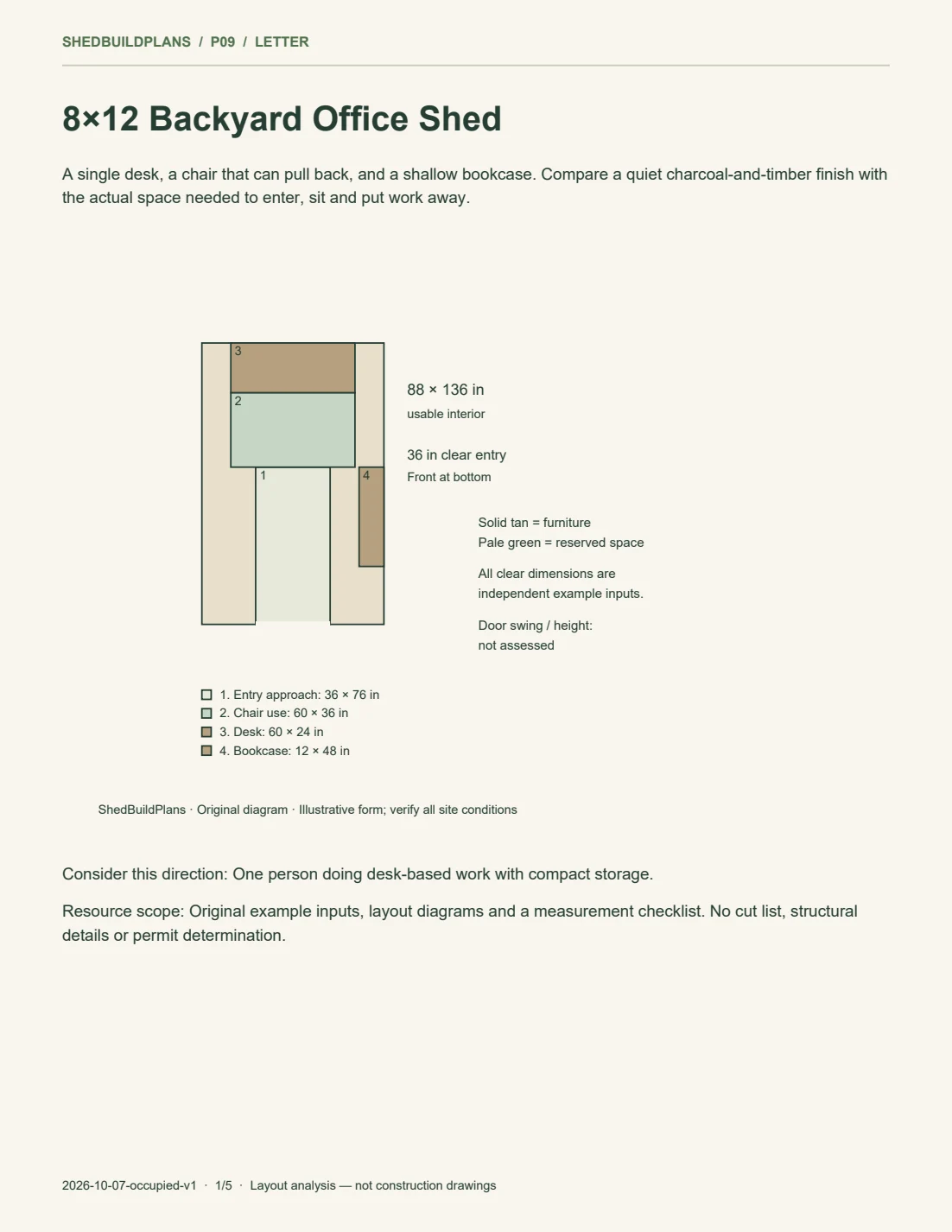

A single desk, a chair that can pull back, and a shallow bookcase. Compare a quiet charcoal-and-timber finish with the actual space needed to enter, sit and put work away.

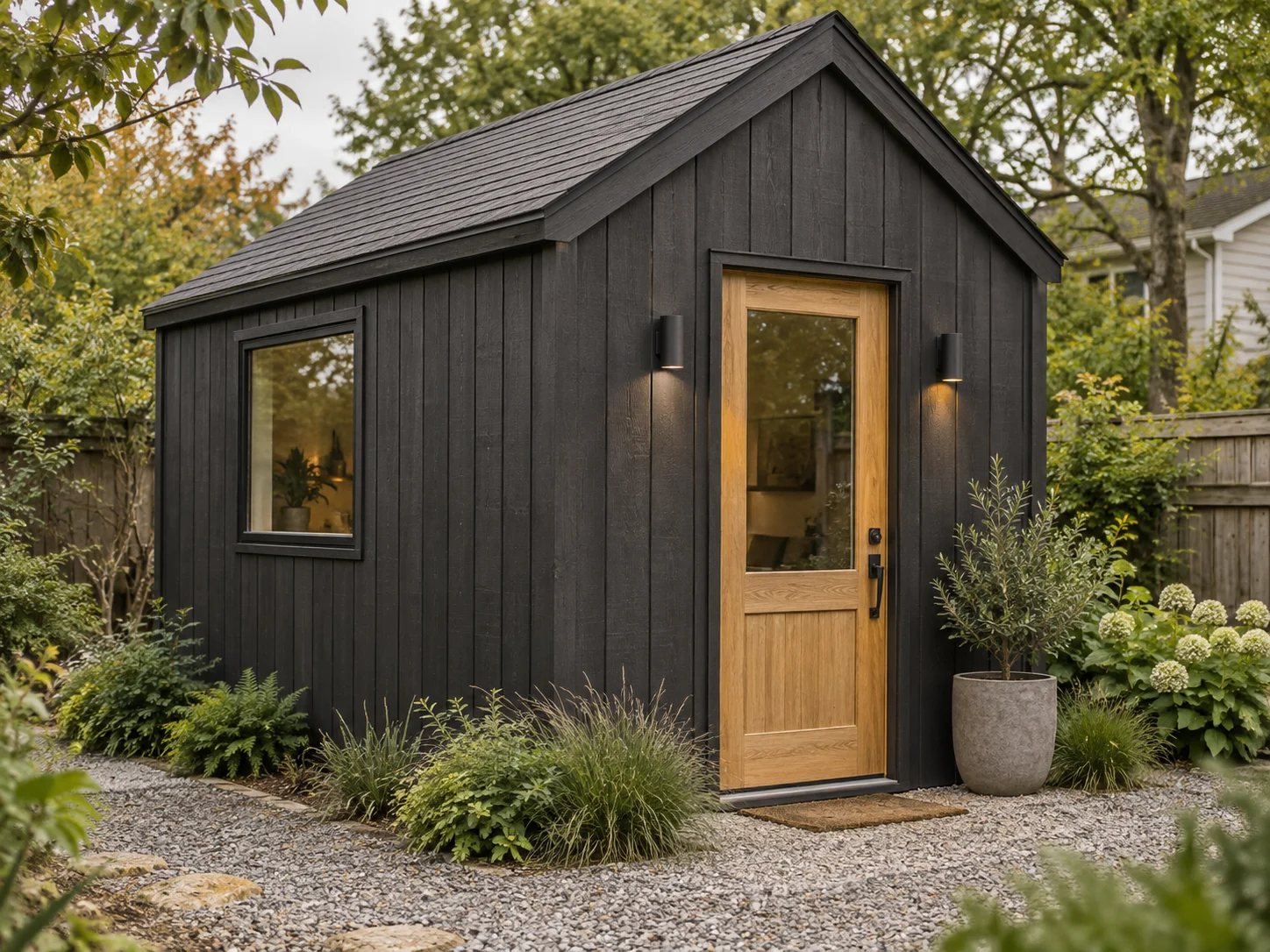

A quiet office direction: dark vertical siding outside, pale surfaces inside and one warm timber desk. The exterior and interior are companion concepts, not measured views of a completed building.

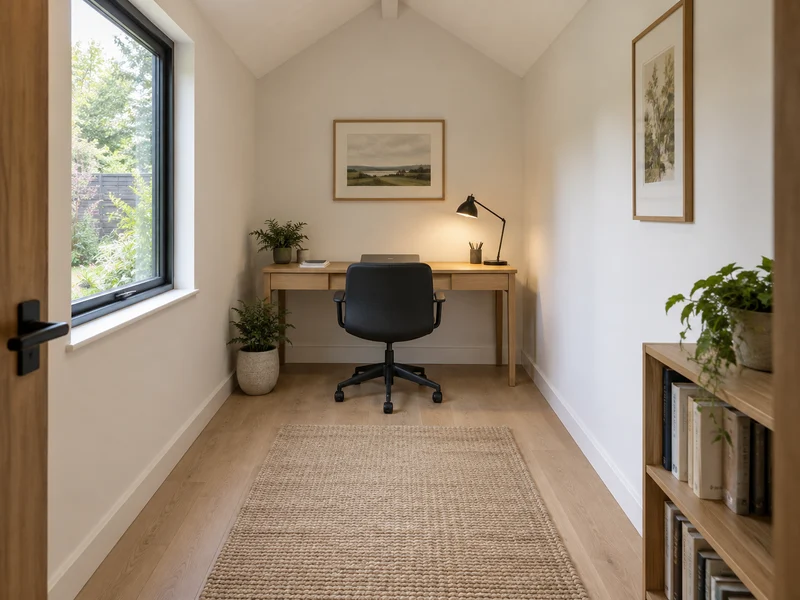

The reference puts one desk against the rear wall. Side daylight and the camera's bright exposure describe the visual idea; test screen reflections and the real view at your working hours before fixing the desk position.
The shallow bookcase is separate from the chair reservation. Measure drawers, cabinet doors and the chair pulled back. A second cabinet behind the chair is the counterexample below, even though it can look reasonable in a still photograph.
Charcoal cladding, a timber door and pale internal finishes are appearance choices. The image does not identify a wall assembly, insulation level, flooring product or suitable fixing. Ask for those specifications separately.
Record the actual desk, chair movement, file storage, daylight preferences, internet and power needs. Plants and the loose rug are decorative styling outside the measured baseline; give any retained floor objects their own footprint.

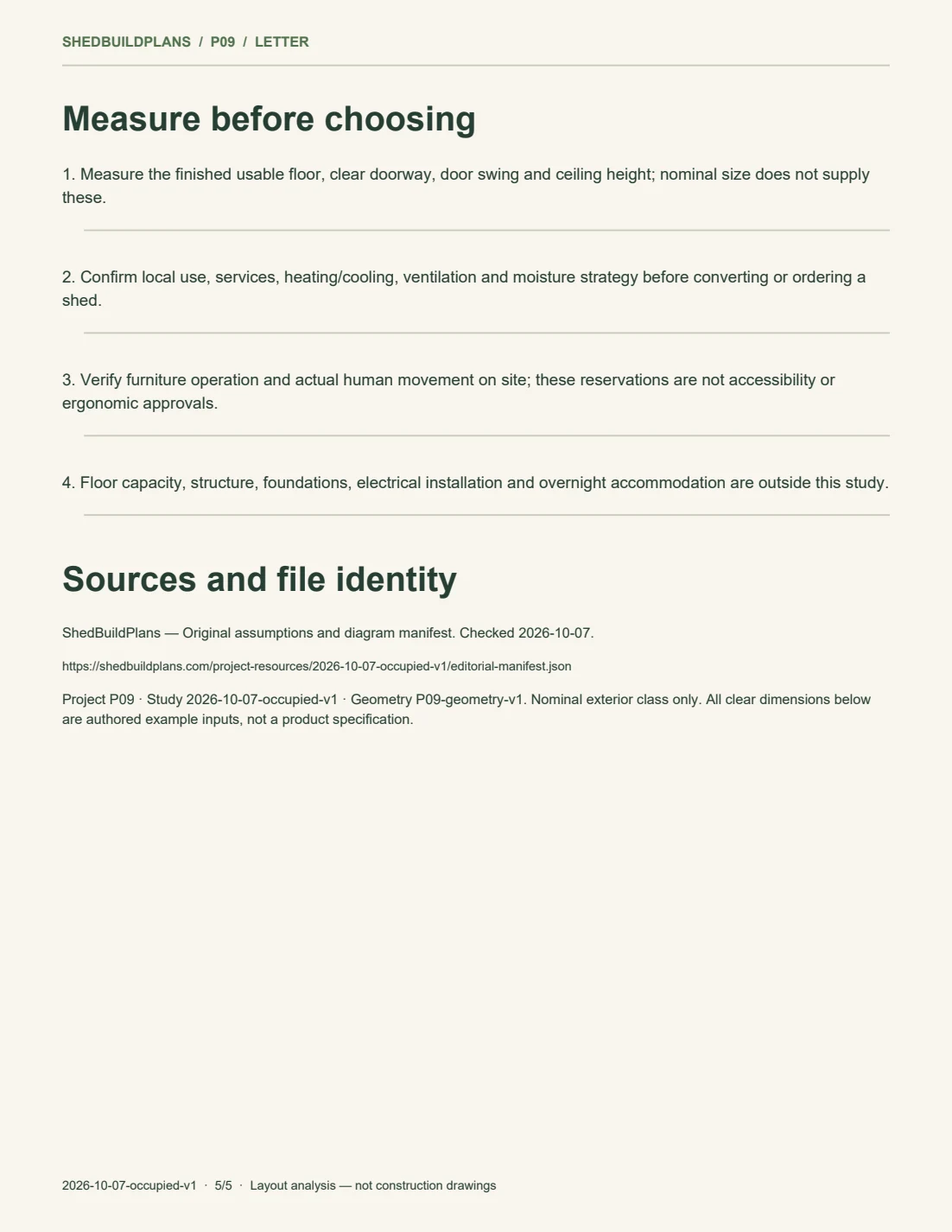

From ShedBuildPlans · Letter
Direct free PDF. No registration. Choose your paper format; diagrams are not construction-scale drawings.
Includes: 5-page layout/access study; Inputs, trade-off diagram and measurement checklist
Does not include: Construction drawings or structural approval; Materials schedule and cut list
From ShedBuildPlans · A4
Direct free PDF. No registration. Choose your paper format; diagrams are not construction-scale drawings.
Includes: 5-page layout/access study; Inputs, trade-off diagram and measurement checklist
Does not include: Construction drawings or structural approval; Materials schedule and cut list
Nominal exterior class only. All clear dimensions below are authored example inputs, not a product specification.
Independent authored interior input; not calculated from the nominal shell.
Independent authored interior input; not a wall-assembly result.
Illustrative planning input; not a minimum requirement.
Selected test area; replace with actual movement measurements.
Selected test area; not ergonomic approval.

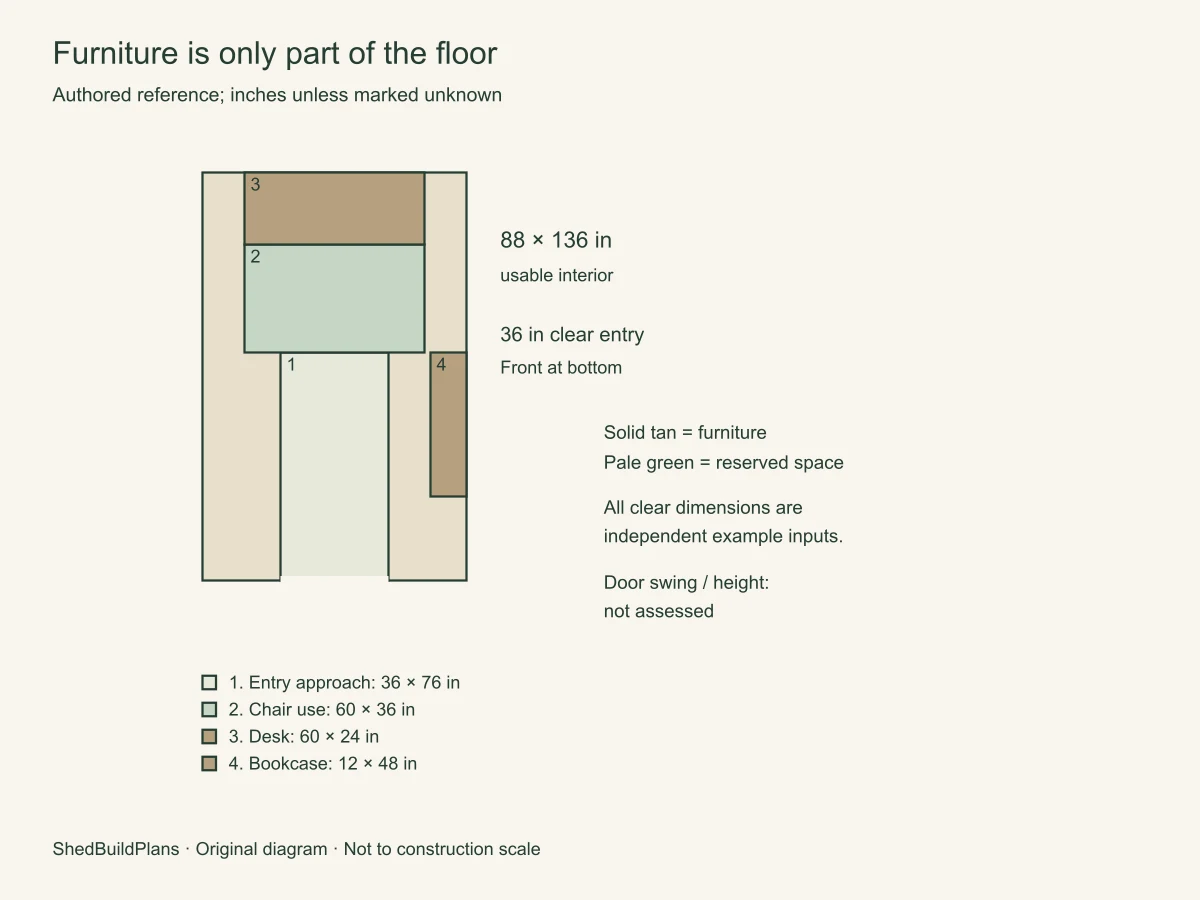

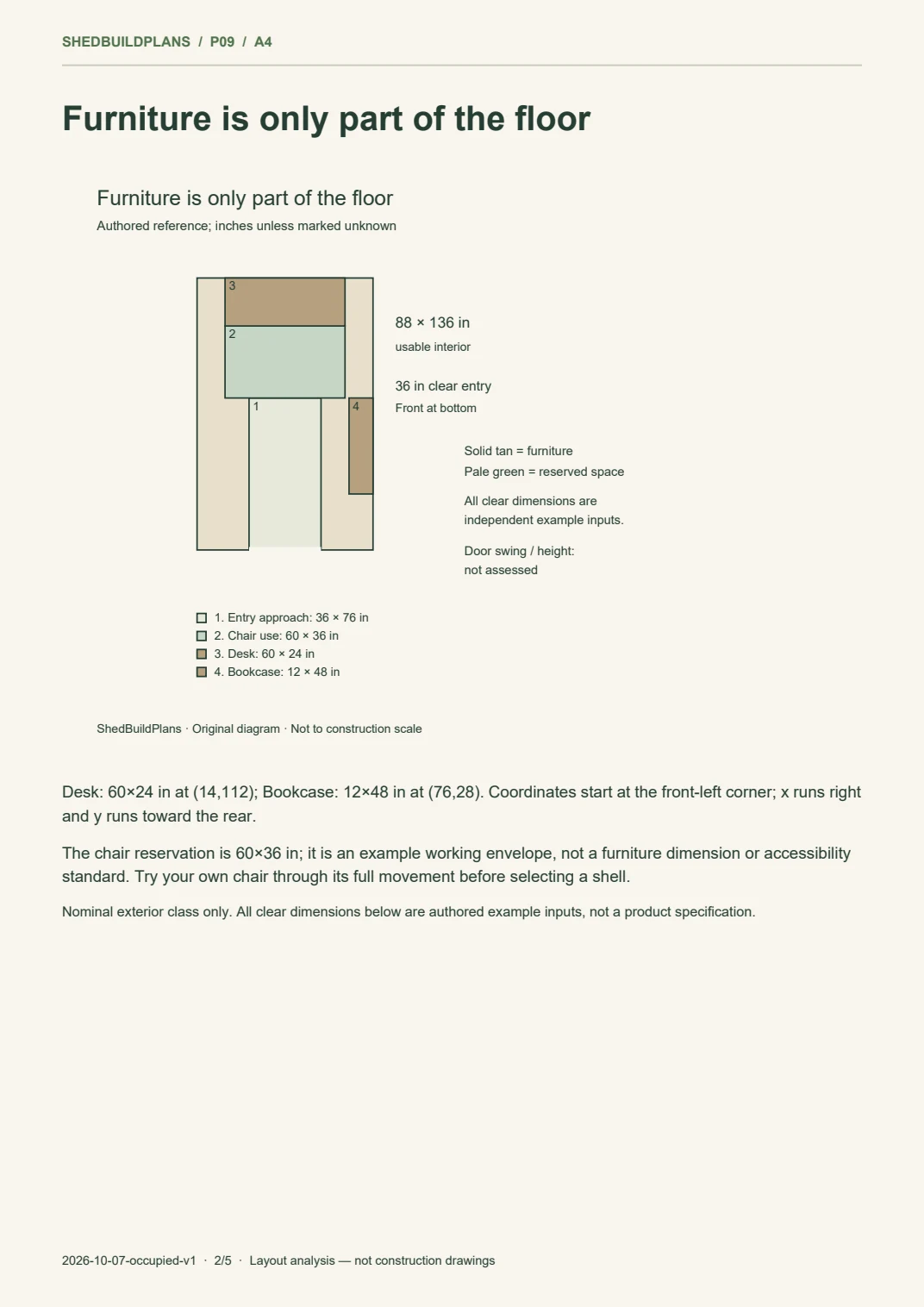

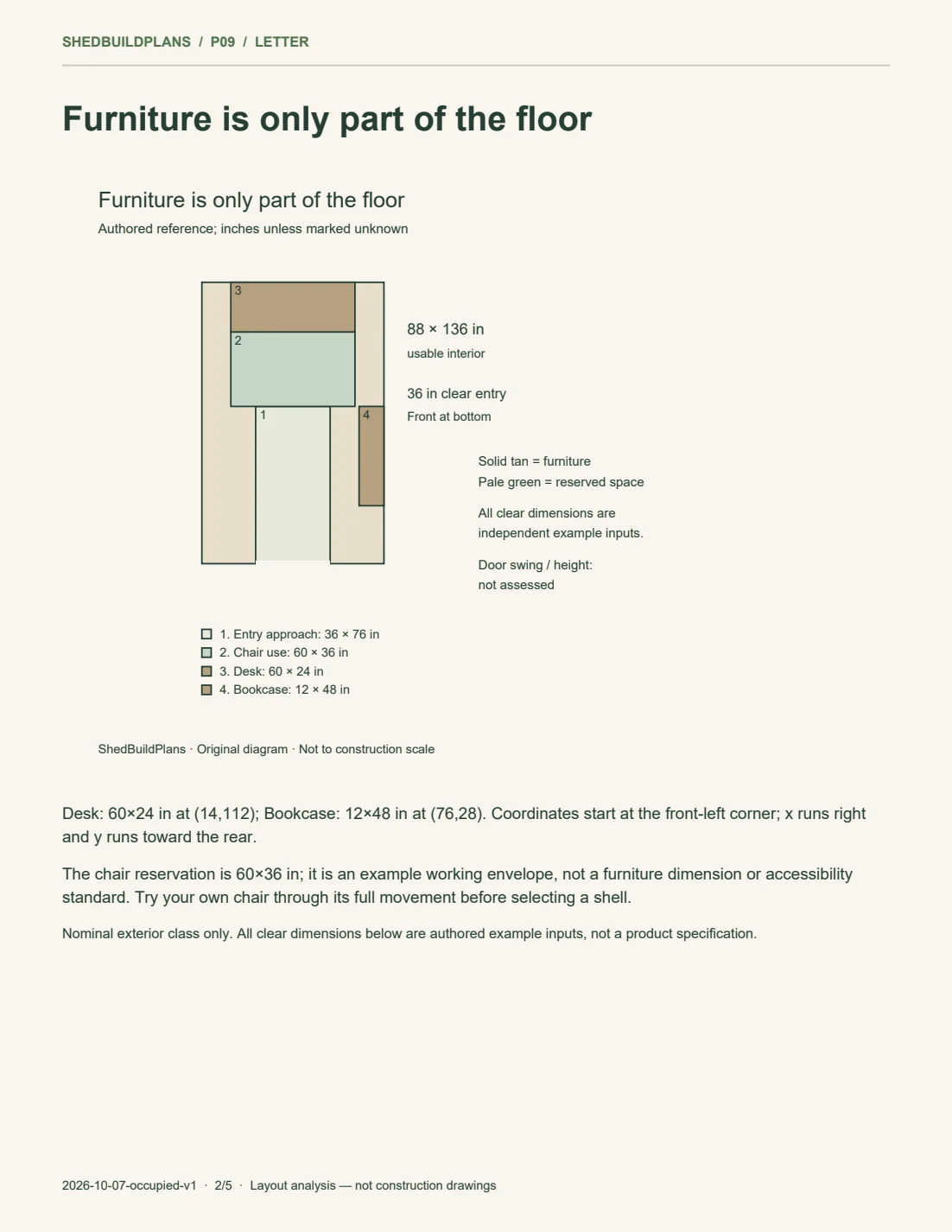

Desk: 60×24 in at (14,112); Bookcase: 12×48 in at (76,28). Coordinates start at the front-left corner; x runs right and y runs toward the rear.
The chair reservation is 60×36 in; it is an example working envelope, not a furniture dimension or accessibility standard. Try your own chair through its full movement before selecting a shell.

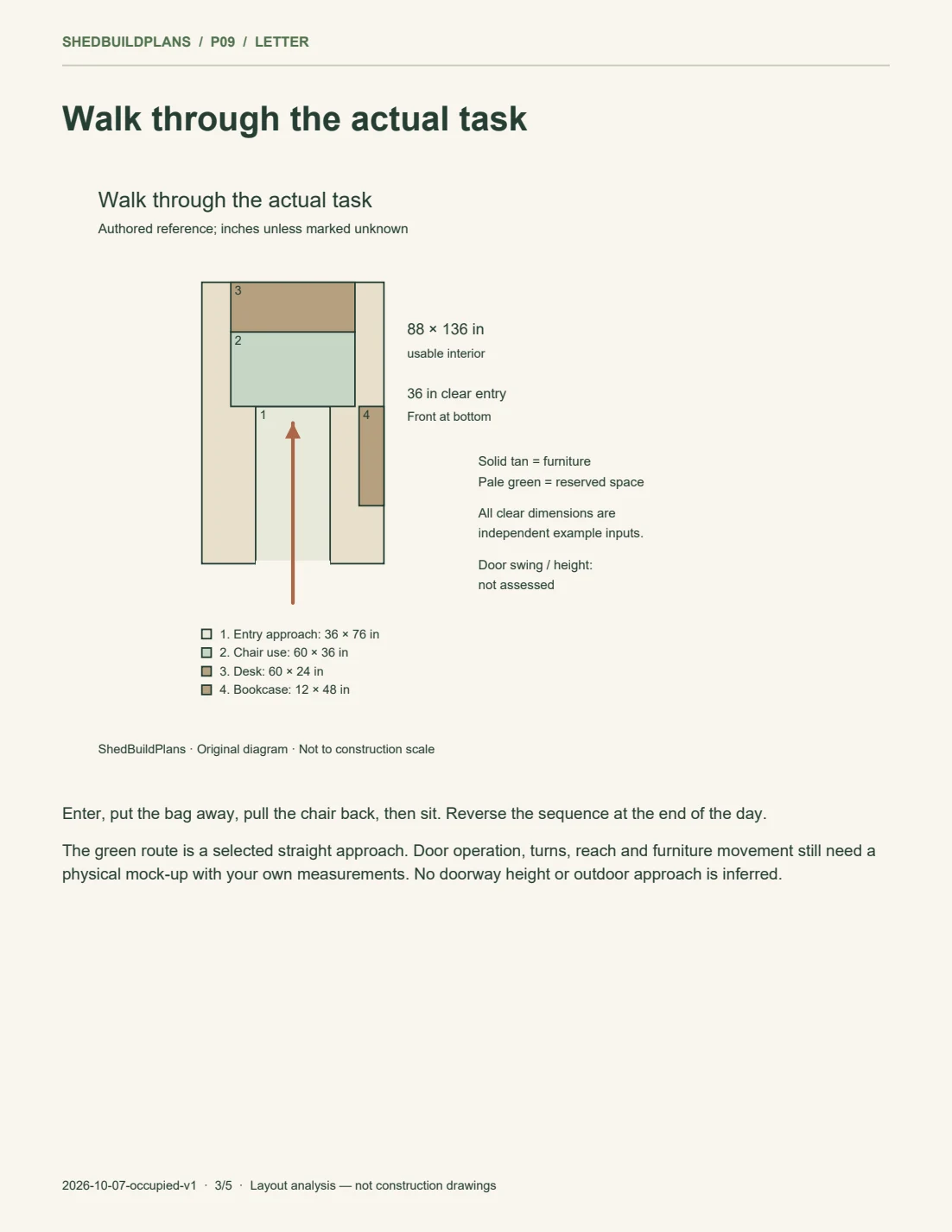

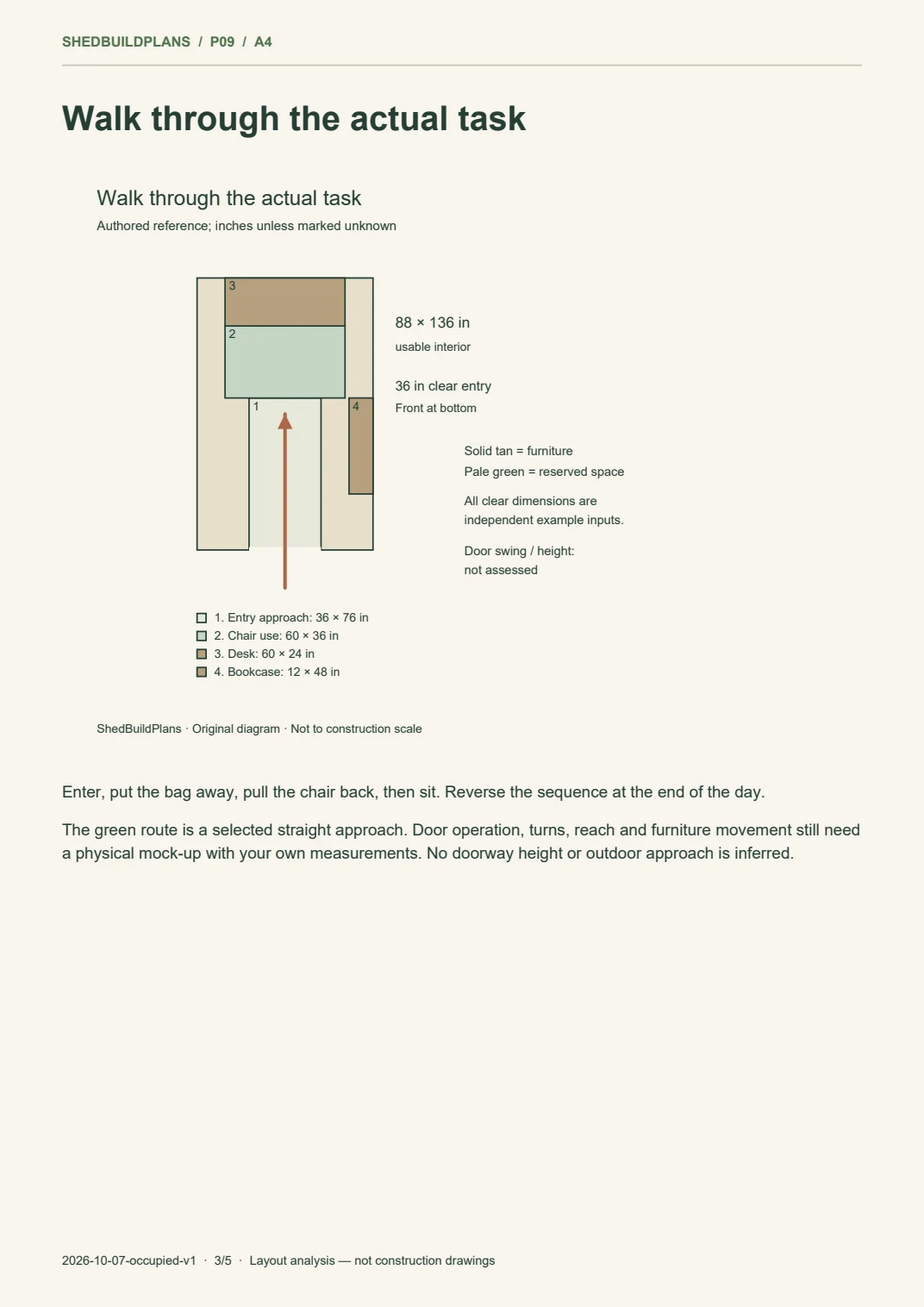

Enter, put the bag away, pull the chair back, then sit. Reverse the sequence at the end of the day.
The green route is a selected straight approach. Door operation, turns, reach and furniture movement still need a physical mock-up with your own measurements. No doorway height or outdoor approach is inferred.

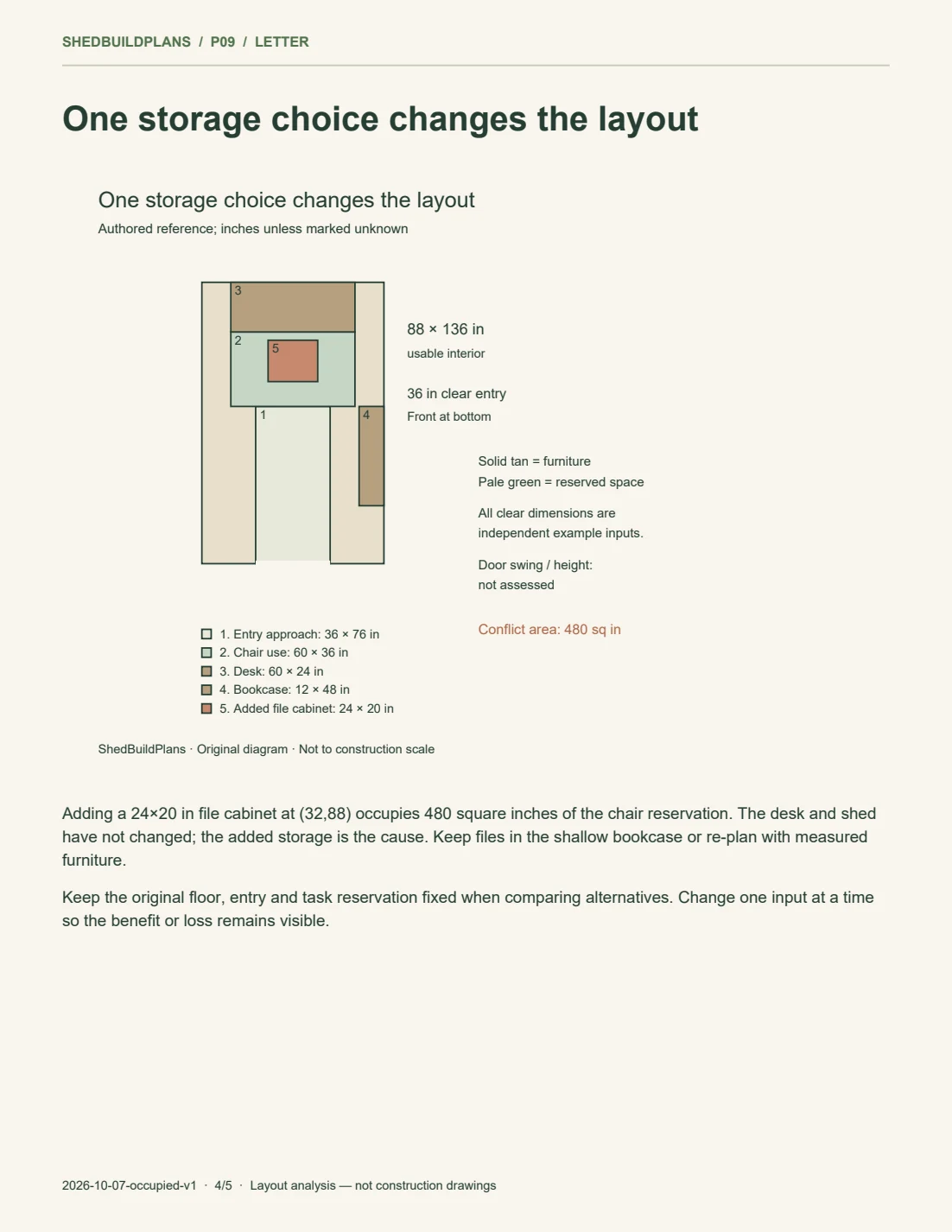

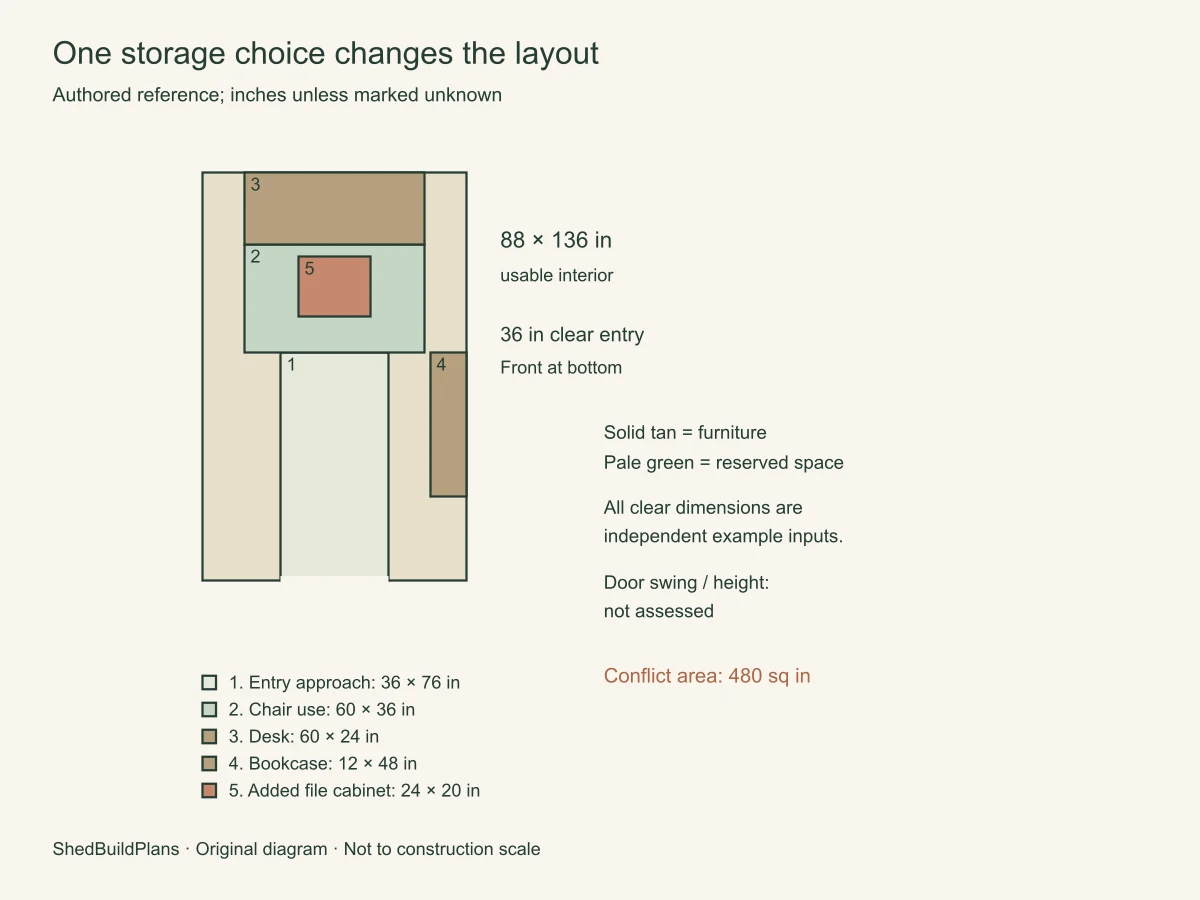

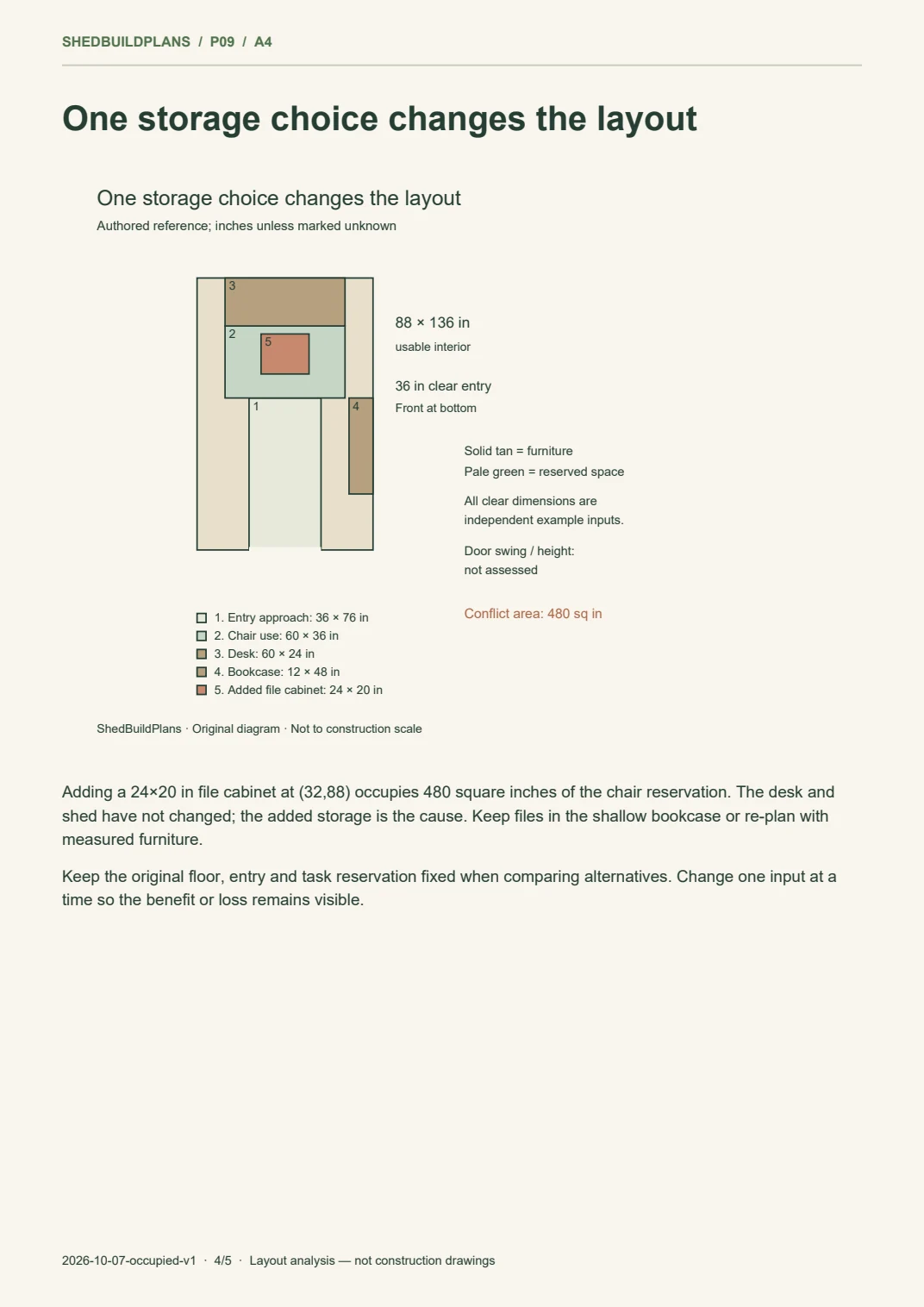

Adding a 24×20 in file cabinet at (32,88) occupies 480 square inches of the chair reservation. The desk and shed have not changed; the added storage is the cause. Keep files in the shallow bookcase or re-plan with measured furniture.
Keep the original floor, entry and task reservation fixed when comparing alternatives. Change one input at a time so the benefit or loss remains visible.

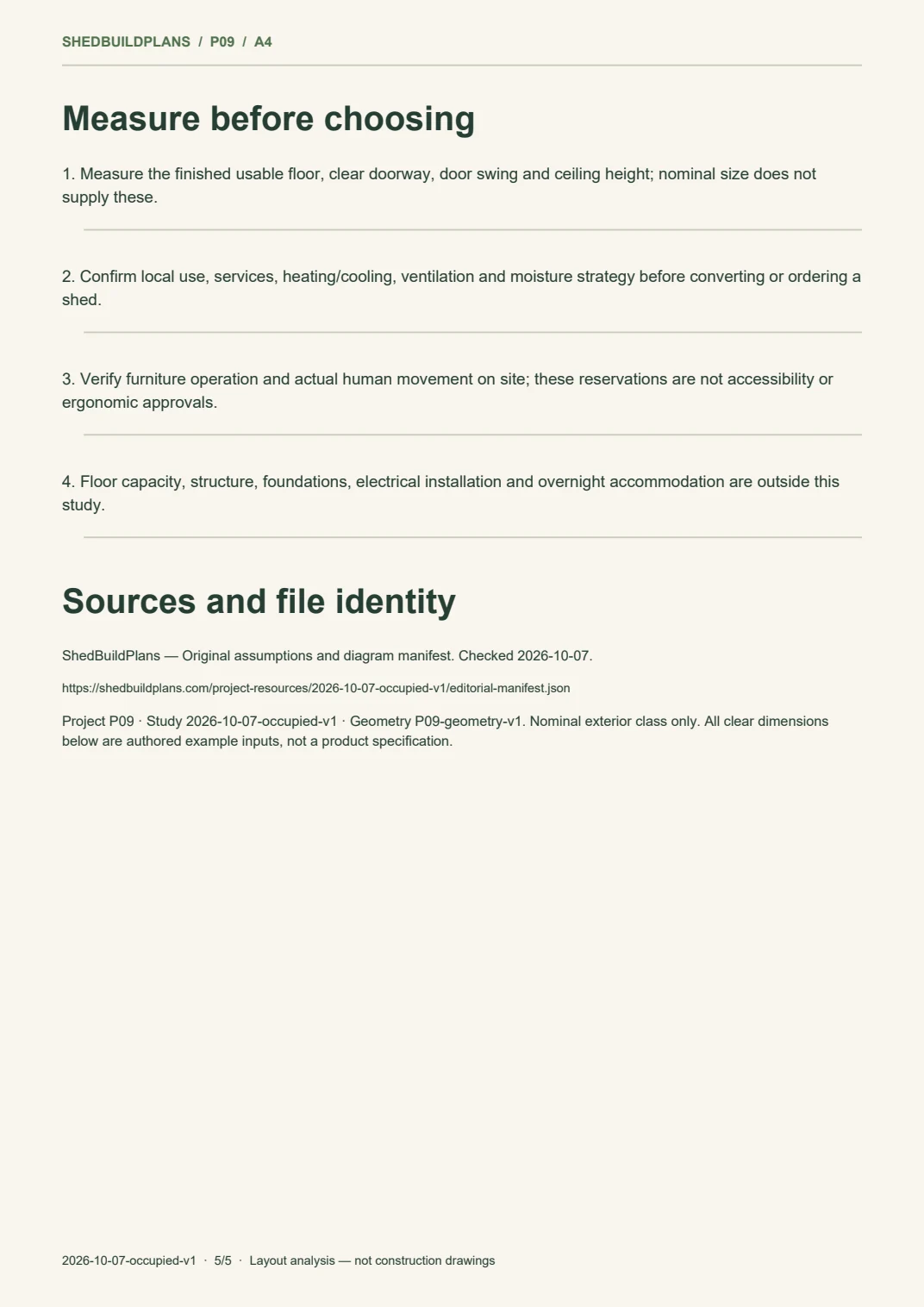

Keep the parts that match your task. Confirm these remaining conditions before buying or building:
This study does not offer automatic layout adoption. The tools show its context alongside your current private project, and ask for your own measurements.
Example usable interior, openings and task inputs. Outdoor turns and construction remain unassessed.
The selected nominal footprint carries across. Your yard, setbacks and delivery dimensions must still be entered.
The project supplies the task context. No prices, quotes or build method are invented.
Nominal floor dimensions only. Material height, opening deductions, roof factor, waste and rates remain unknown.
