Does your furniture leave room for the activity you want?
She shed planning starts with the task you need to complete. Compare the disclosed examples below, then replace their assumptions with your measurements and keep your decision in one supplier brief.
Reference answer: 30 × 36 in furniture and storage retain a separate 36 × 48 in activity area. The smallest passing footprint in this three-candidate example is 8×10. This answers the disclosed example, not an unmeasured personal project.
Authored planning examples, not measured customer projects or product specifications. Dimensions are inches. No construction or safety approval.
Measure the conditions that change the answer.
Furniture in both states
How to measure: Measure parked/folded furniture and its fully deployed footprint. Enter both deployed dimensions as zero only when no separate state is needed.
What it changes: The larger working arrangement must retain the activity area; a folded fit is insufficient.
Actual activity
How to measure: Mark the clear width and depth used for reading, craft, art or yoga, plus your entry circulation width.
What it changes: If the activity reservation fails, revise furniture or footprint rather than count its area twice.
Room conditions
How to measure: Record the lowest usable height and opening. Keep power, daylight, ventilation, thermal comfort and use requirements for supplier/local review.
What it changes: The floor plan establishes none of these occupied-space conditions.
Two ways to frame the decision.

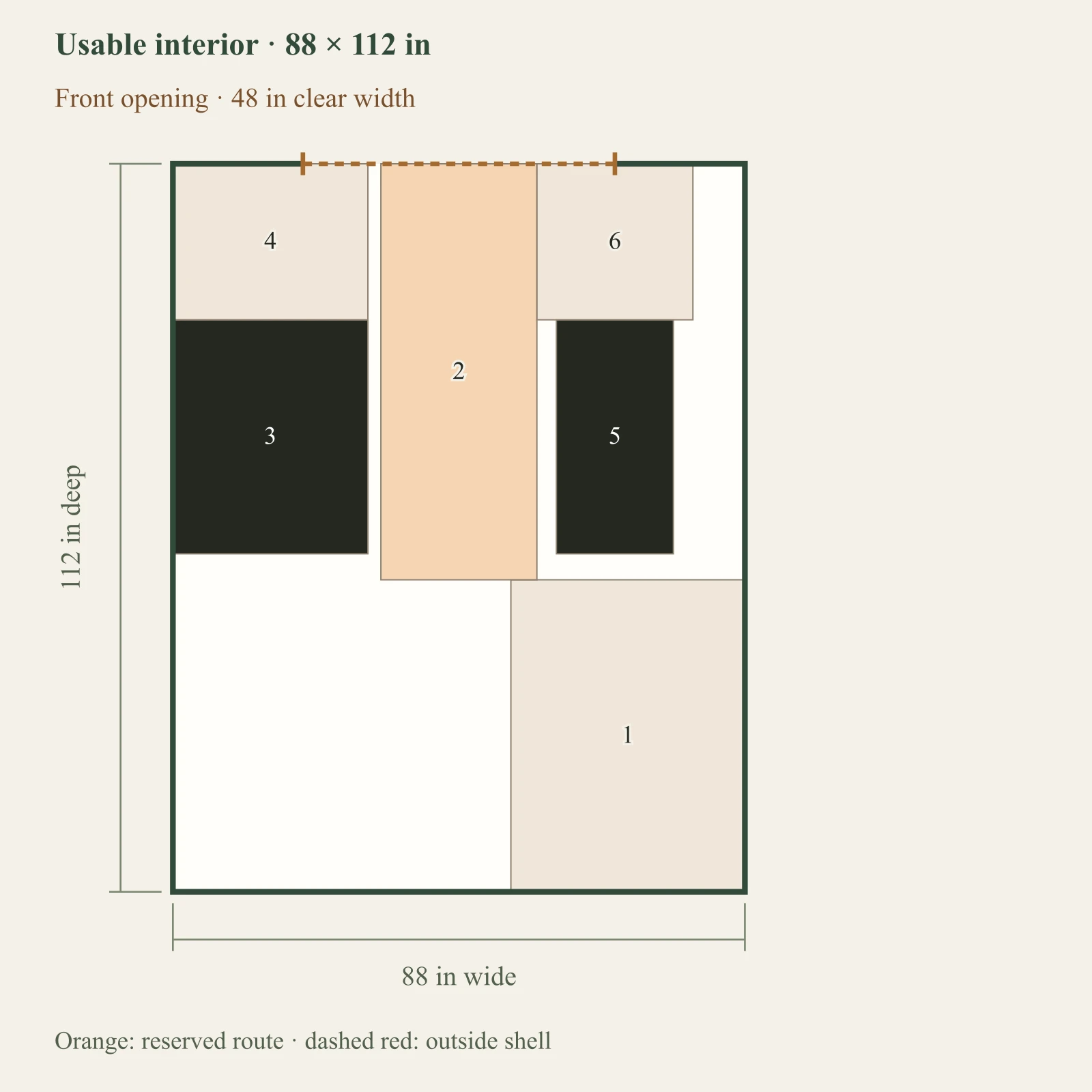

Reference 1 · editable assumptions
Quiet reading
What you gain
A reading chair, storage and a separate open activity area are evaluated together.
What you give up
This does not reserve a craft-table deployment area or assess climate and services.
When to choose it
Use it when quiet seating and uncluttered floor space are the main purpose.
Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.
1. Open activity area: 36 × 48 in
2. Entry circulation: 24 × 64 in
3. Furniture: 30 × 36 in
4. Furniture service space: 30 × 24 in
5. Storage: 18 × 36 in
6. Storage service space: 24 × 24 in
The stated geometry fits this arrangement.
Approaches test an entered square circulation footprint with fixtures retained. Turning bodies, door leaves, ventilation, utilities and safe occupancy are unassessed.
Every input, finding and limitation
use: reading
furniture / width: 30
furniture / depth: 36
furniture / height: 36
storage / width: 18
storage / depth: 36
storage / height: 60
deployed / width: 0
deployed / depth: 0
deployed / height: 0
activity Width: 36
activity Depth: 48
aisle: 24
Approaches test an entered square circulation footprint with fixtures retained. Turning bodies, door leaves, ventilation, utilities and safe occupancy are unassessed.

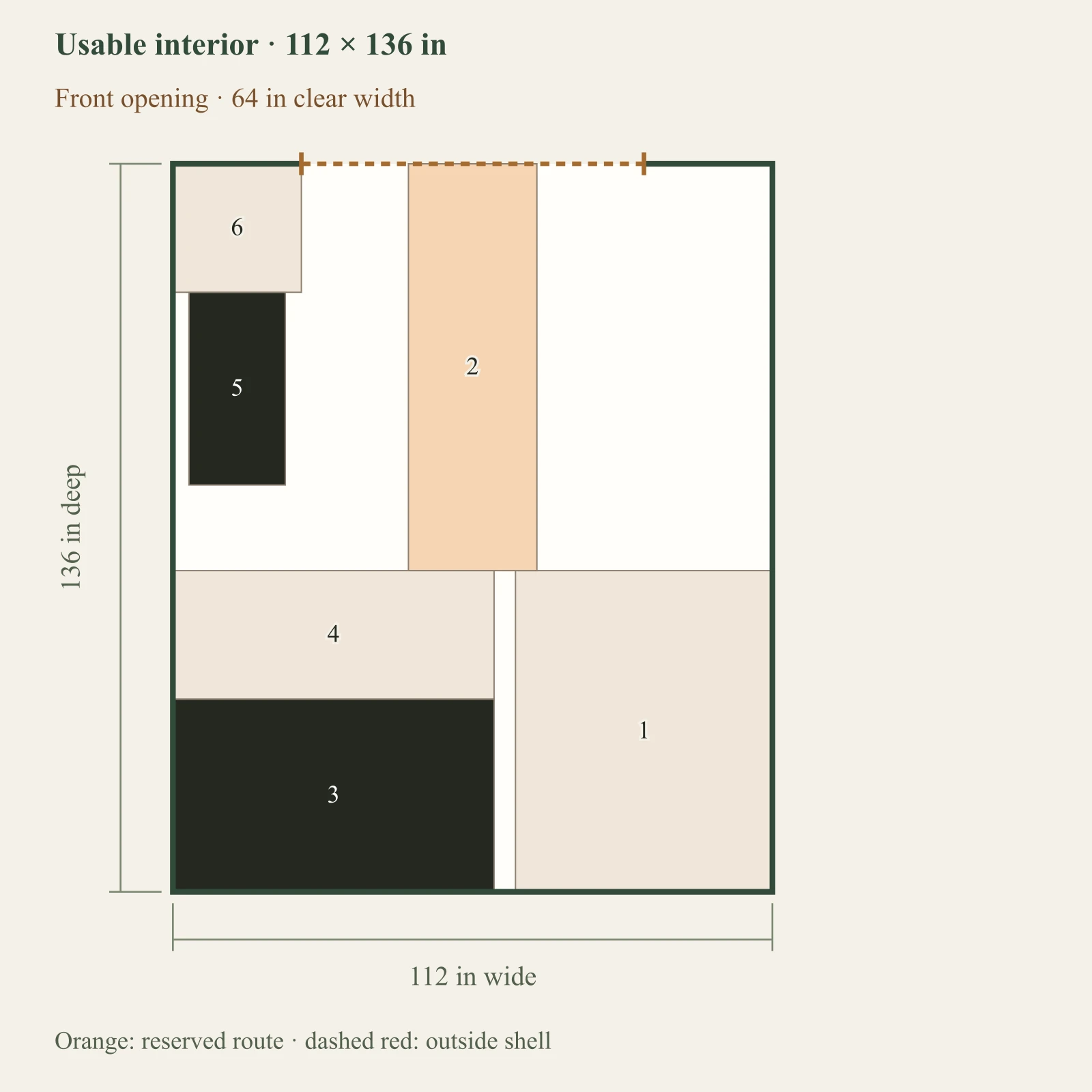

Reference 2 · editable assumptions
Creative work
What you gain
The deployed work surface is evaluated with the open creative activity area retained.
What you give up
Its parked footprint is a separate measured state; folding furniture does not remove the space needed during use.
When to choose it
Start here for craft or art work, replacing both parked and deployed dimensions.
Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.
1. Open activity area: 48 × 60 in
2. Entry circulation: 24 × 76 in
3. Furniture: 60 × 36 in
4. Furniture service space: 60 × 24 in
5. Storage: 18 × 36 in
6. Storage service space: 24 × 24 in
The stated geometry fits this arrangement.
Approaches test an entered square circulation footprint with fixtures retained. Turning bodies, door leaves, ventilation, utilities and safe occupancy are unassessed.
Every input, finding and limitation
use: craft
furniture / width: 48
furniture / depth: 24
furniture / height: 36
storage / width: 18
storage / depth: 36
storage / height: 60
deployed / width: 60
deployed / depth: 36
deployed / height: 36
activity Width: 48
activity Depth: 60
aisle: 24
Approaches test an entered square circulation footprint with fixtures retained. Turning bodies, door leaves, ventilation, utilities and safe occupancy are unassessed.
Same task, three candidate footprints.
Reference 1 stays fixed. These are authored clear dimensions, not guaranteed interiors of products bearing the same nominal size. Each diagram uses the same scale; failed objects remain full size.
At least one shown arrangement passes the modeled geometry; read the remaining limits before making a choice.

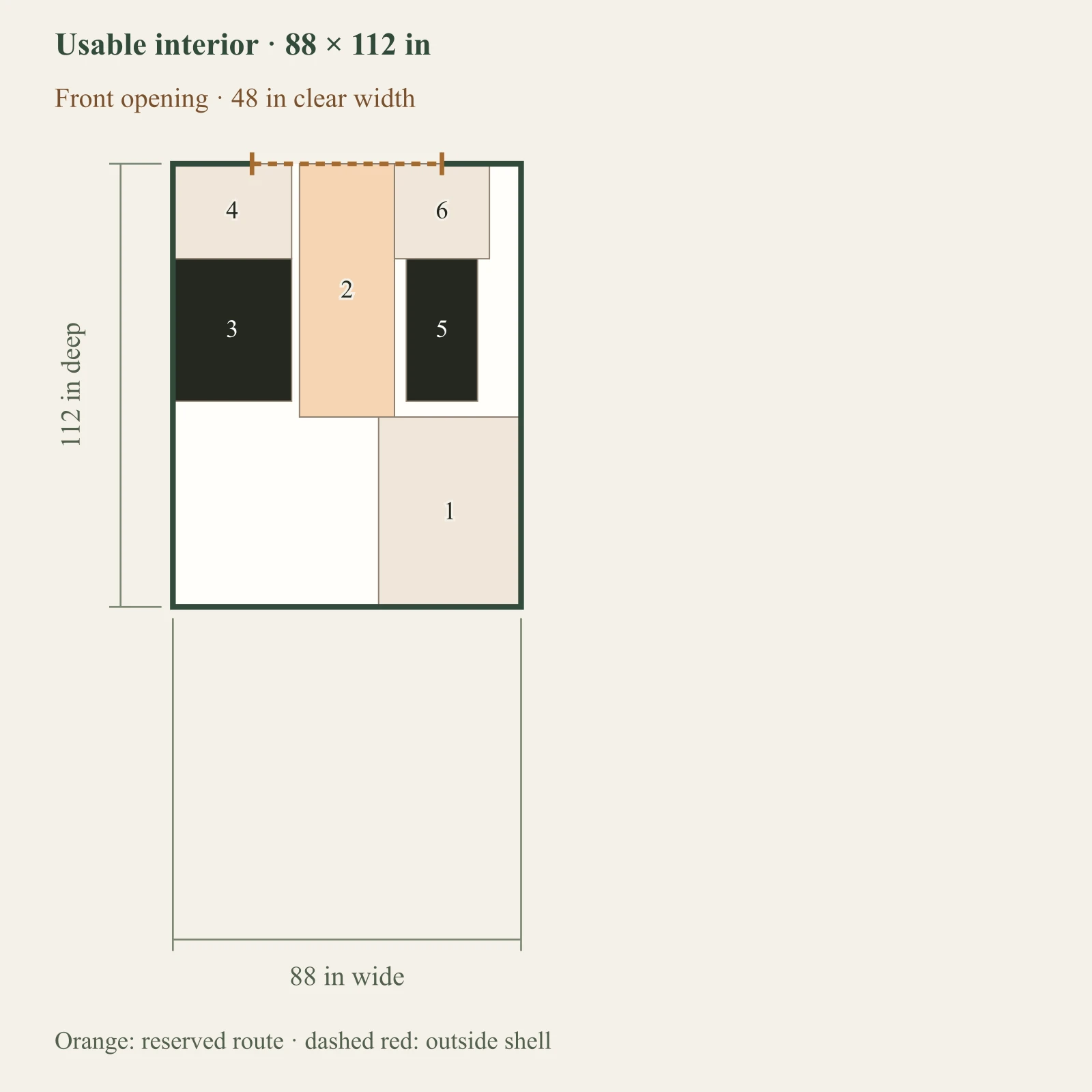

8×10
Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.
1. Open activity area: 36 × 48 in
2. Entry circulation: 24 × 64 in
3. Furniture: 30 × 36 in
4. Furniture service space: 30 × 24 in
5. Storage: 18 × 36 in
6. Storage service space: 24 × 24 in
The stated geometry fits this arrangement.
Approaches test an entered square circulation footprint with fixtures retained. Turning bodies, door leaves, ventilation, utilities and safe occupancy are unassessed.

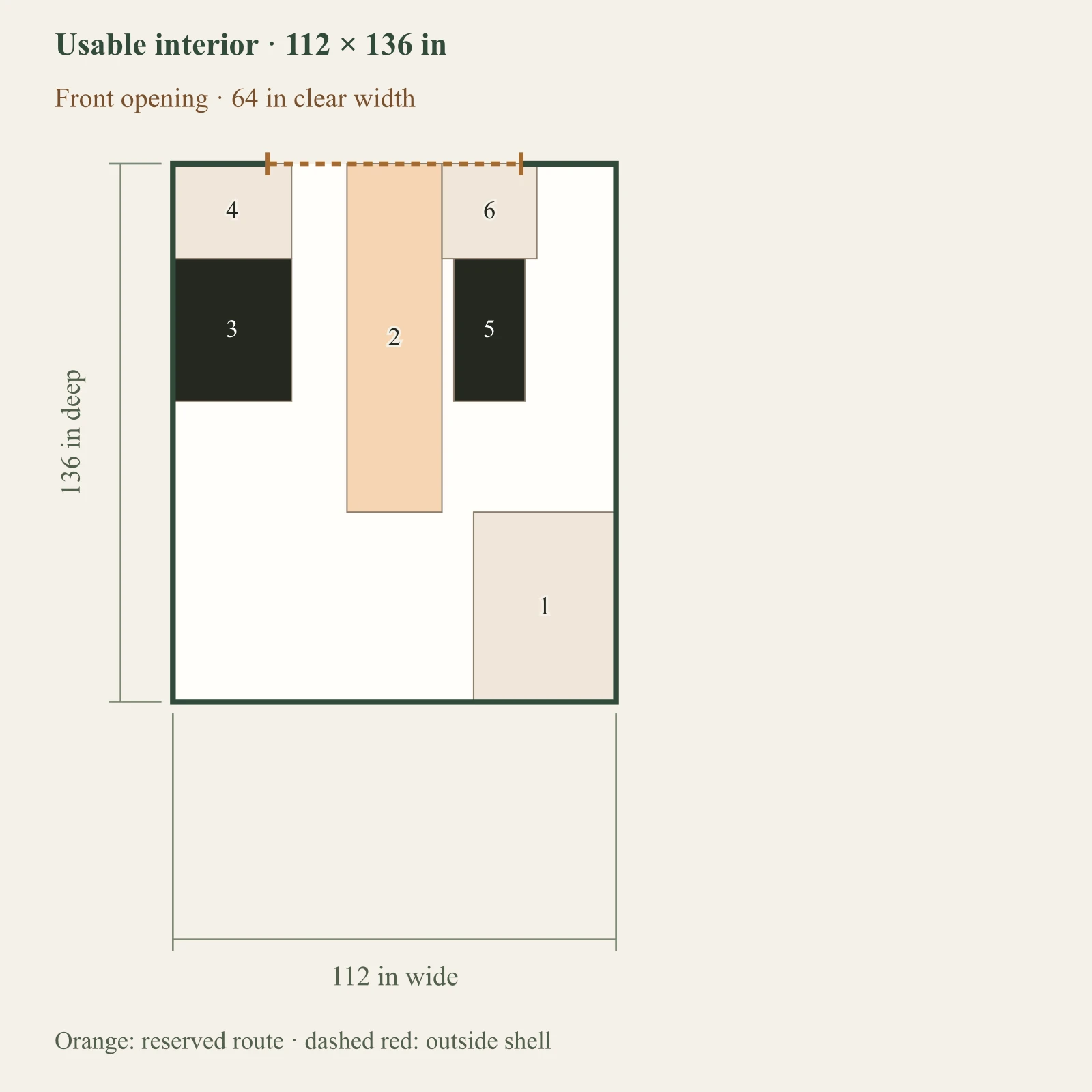

10×12
Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.
1. Open activity area: 36 × 48 in
2. Entry circulation: 24 × 88 in
3. Furniture: 30 × 36 in
4. Furniture service space: 30 × 24 in
5. Storage: 18 × 36 in
6. Storage service space: 24 × 24 in
The stated geometry fits this arrangement.
Approaches test an entered square circulation footprint with fixtures retained. Turning bodies, door leaves, ventilation, utilities and safe occupancy are unassessed.

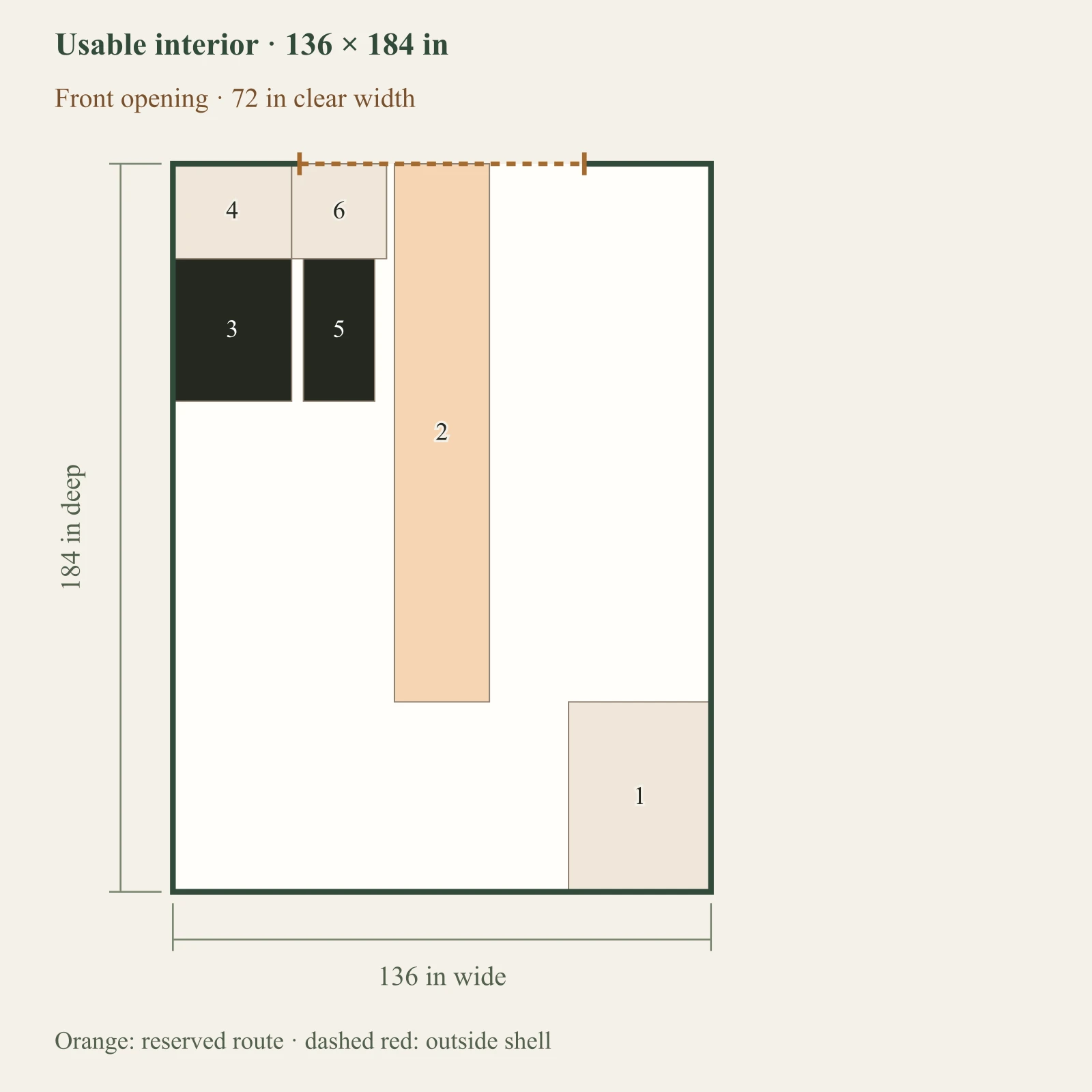

12×16
Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.
1. Open activity area: 36 × 48 in
2. Entry circulation: 24 × 136 in
3. Furniture: 30 × 36 in
4. Furniture service space: 30 × 24 in
5. Storage: 18 × 36 in
6. Storage service space: 24 × 24 in
The stated geometry fits this arrangement.
Approaches test an entered square circulation footprint with fixtures retained. Turning bodies, door leaves, ventilation, utilities and safe occupancy are unassessed.
Test the task in use.
Furniture deployed with activity area retained
Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.
1. Open activity area: 36 × 48 in
2. Entry circulation: 24 × 64 in
3. Furniture: 30 × 36 in
4. Furniture service space: 30 × 24 in
5. Storage: 18 × 36 in
6. Storage service space: 24 × 24 in

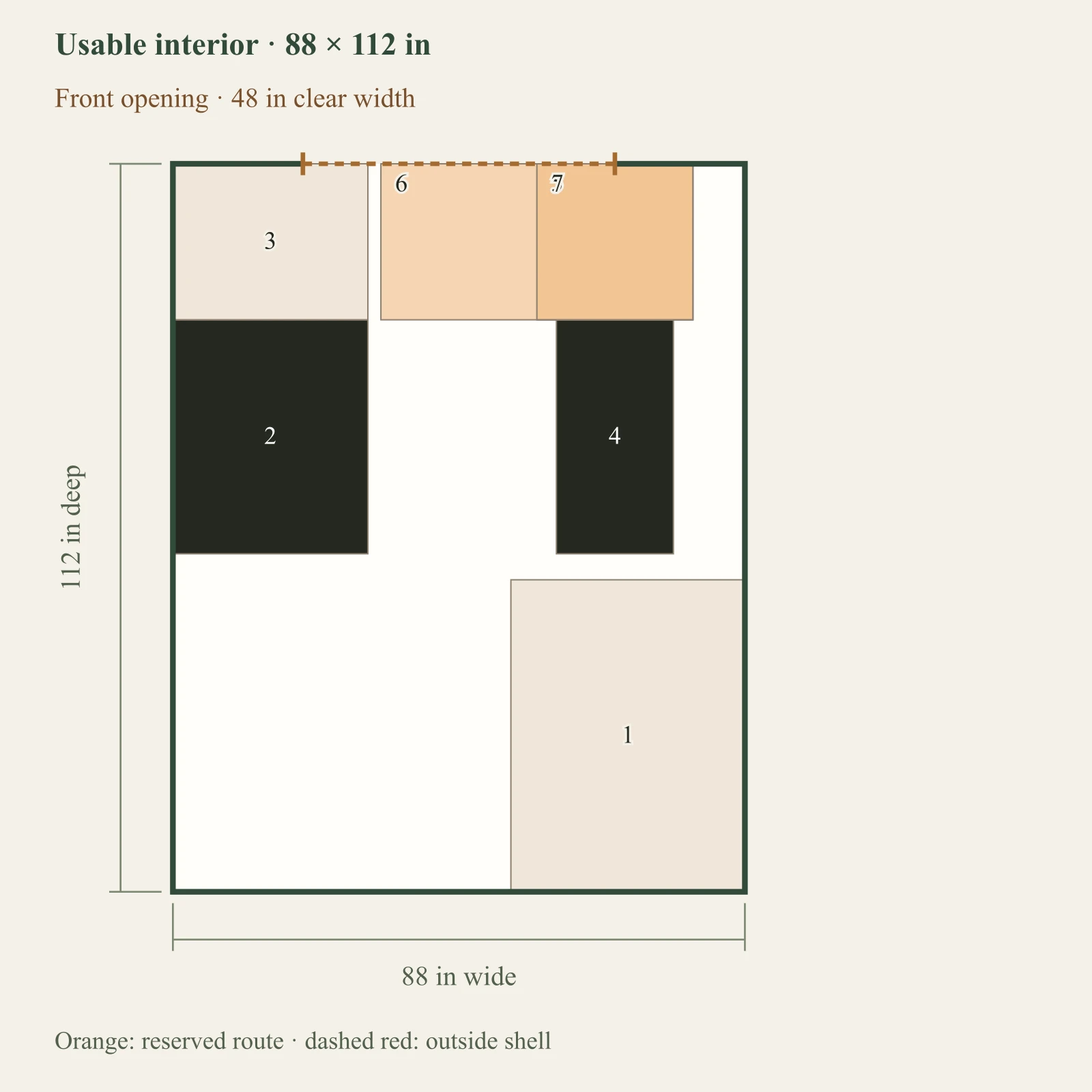

Route to Furniture
Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.
1. Open activity area: 36 × 48 in
2. Furniture: 30 × 36 in
3. Furniture service space: 30 × 24 in
4. Storage: 18 × 36 in
5. Storage service space: 24 × 24 in
6. Full-footprint translation sweep: 53 × 24 in
7. Full-footprint translation sweep: 24 × 24 in

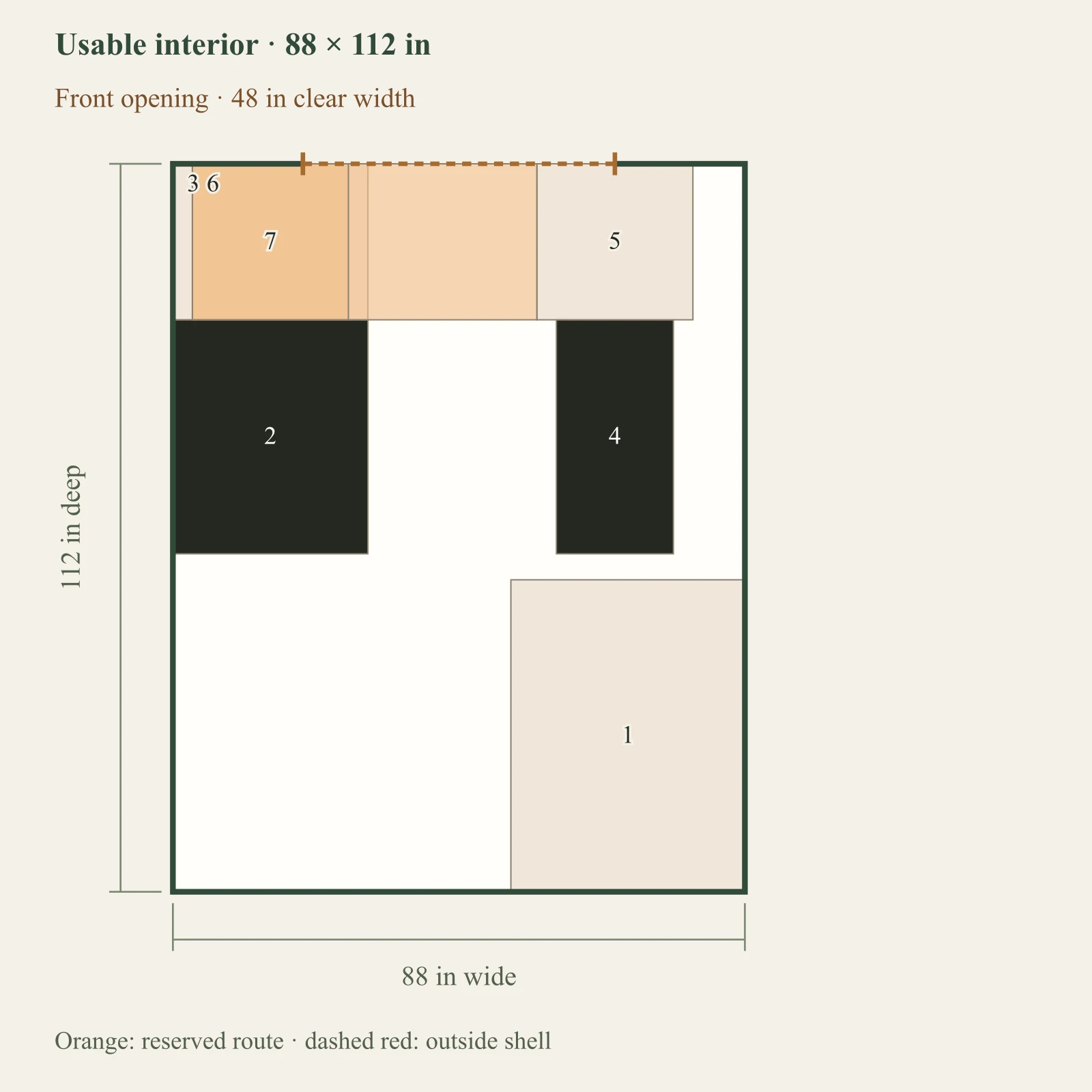

Route to Storage
Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.
1. Open activity area: 36 × 48 in
2. Furniture: 30 × 36 in
3. Furniture service space: 30 × 24 in
4. Storage: 18 × 36 in
5. Storage service space: 24 × 24 in
6. Full-footprint translation sweep: 48 × 24 in
7. Full-footprint translation sweep: 24 × 24 in

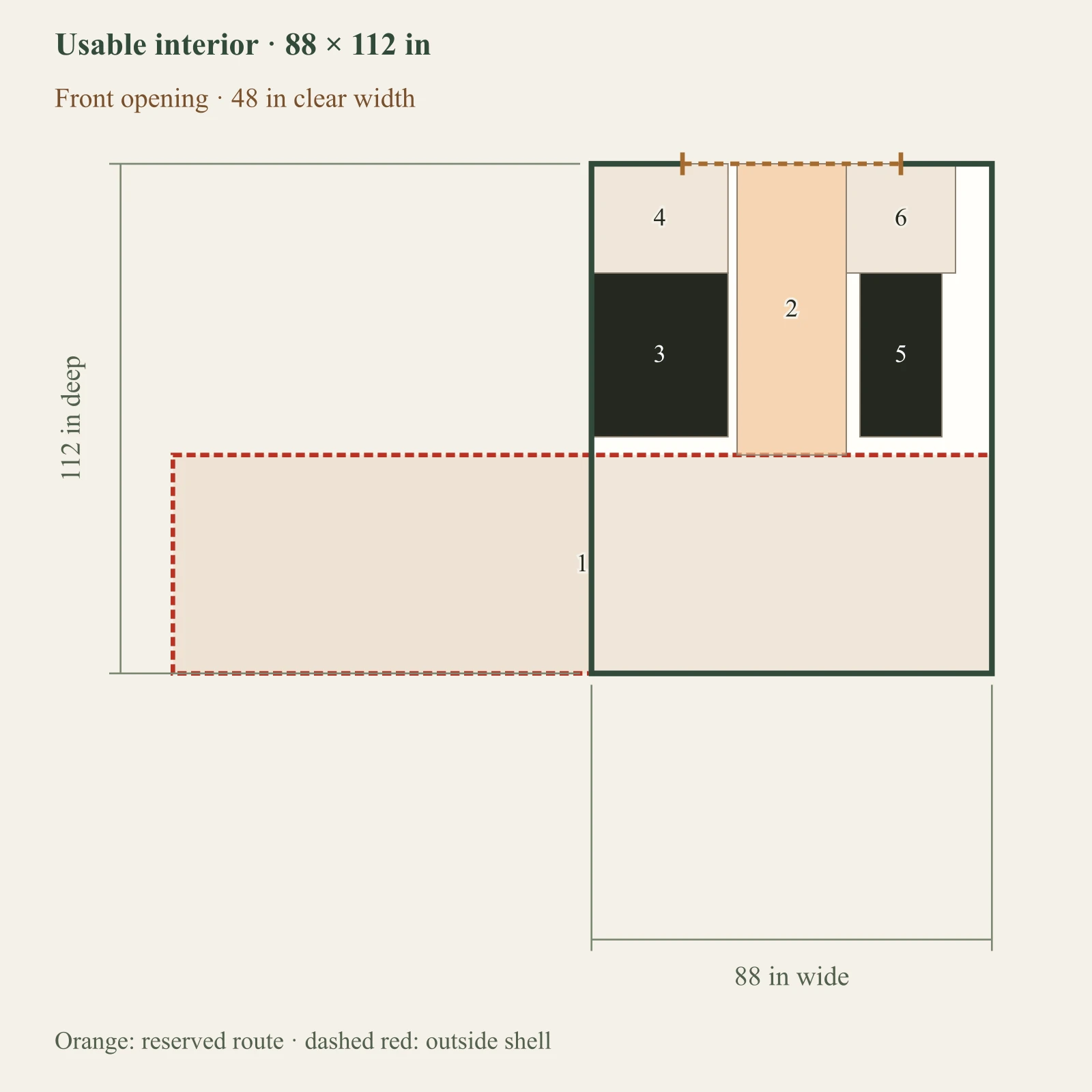

Controlled failure
What changes the answer?
Increase only the required activity width to 180 inches.
Open activity area exceeds the usable interior in this arrangement.
Dark: equipment or storage. Pale areas: activities or zones. Dimensions in inches; scale changes with the view.
1. Open activity area: 180 × 48 in — outside shell
2. Entry circulation: 24 × 64 in
3. Furniture: 30 × 36 in
4. Furniture service space: 30 × 24 in
5. Storage: 18 × 36 in
6. Storage service space: 24 × 24 in
Sources and the questions to take further.
Layout conclusions come from the disclosed rectangular geometry and entered clearances. A source supports only the specific guidance stated here. Site, structure, ventilation, actual door operation and local requirements need separate review.
Version 2026-09-08-decisions. These files reproduce the public examples, including failed arrangements. Your private measurements are only included when you generate your own brief.
